Ineffable Light House

Ineffable Light House

A Threshold

Ineffable Light House
© Atik Bheda

ARCHITECTS
A Threshold

LANDSCAPE DESIGNERS
A Threshold

STRUCTURAL CONSULTANTS
Radiance

DESIGN TEAM
Avinash Ankalge, Harshith Nayak, Sameed Ahmed, Karthik Krishna

BUILDER
Manjunath BR.

CIVIL CONTRACTORS
design2konstruct

PHOTOGRAPHS
Atik Bheda

AREA
4200 ft²

YEAR
2022

LOCATION
Jigani, India

CATEGORY
Houses

Ineffable Light House
© Atik Bheda

Architecture is about blurring boundaries between the inside and outside and establishing a co-relationship between humans, nature, and the built environment.

The site is situated in a tight urban context with houses on all three sides.

In response to the context, we aim to evolve a design language that maximizes the use of natural light, ventilation, and accessible green spaces within the home.

Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda

This approach creates a more porous environment, giving rise to a series of connections and fostering interaction, further enhancing the users' way of life.

It's an attempt to transform the space into a place, making the house into a home that celebrates life.

The site is a compact 30’ x 50’ urban plot situated off Bannerghatta Road, Bangalore, Karnataka.

Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda

Due to the limitations of the tight urban plot, our design necessitates drawing light primarily from the east, which is the road-facing edge, and from above.

Drawing inspiration from the quality of light in traditional Indian temples, the intensity of darkness increases as one moves from outside to inside.

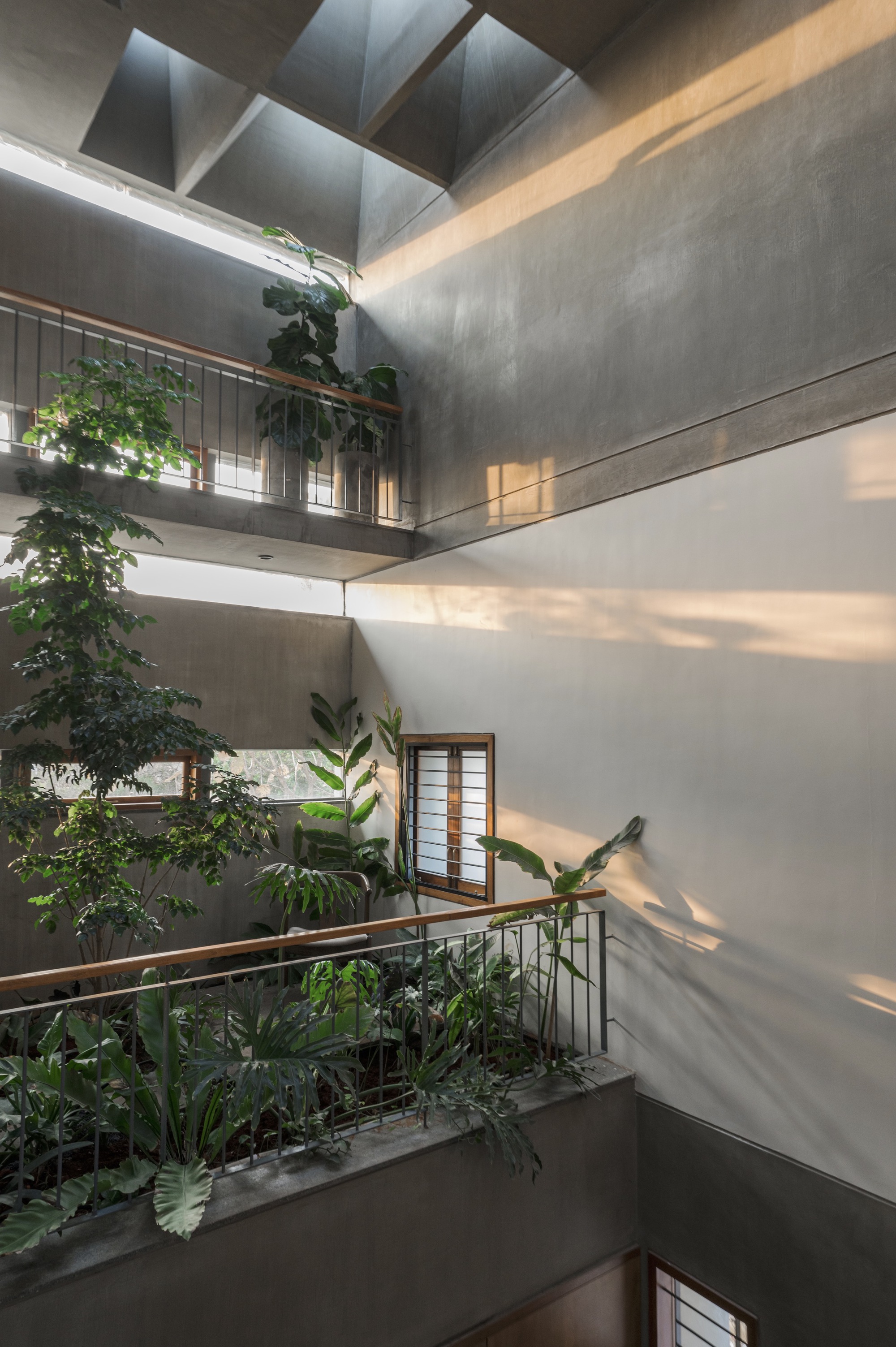

This creates a sense of transition. Additionally, a skylight strategically placed within the central volume of the house brings in streams of light, reminiscent of the Garbhagriha (sanctum sanctorum) in a temple.

Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda

This infusion of light adds a meditative quality to the space, where light itself becomes a significant material. The play of light and shadow creates a dynamic quality within the house that evolves with time and seasons.

A large Gulmohar Tree existing on the site became a primary clue for design. The plan helps establish an axis that divides the house into public and private zones.

Considering climate and functionality, the North side is designated to be more open, allowing for common gathering activities such as study family living.

Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda

The southern side is utilized for spaces like toilets and bedroom wardrobes, where individuals typically spend less time throughout the day.

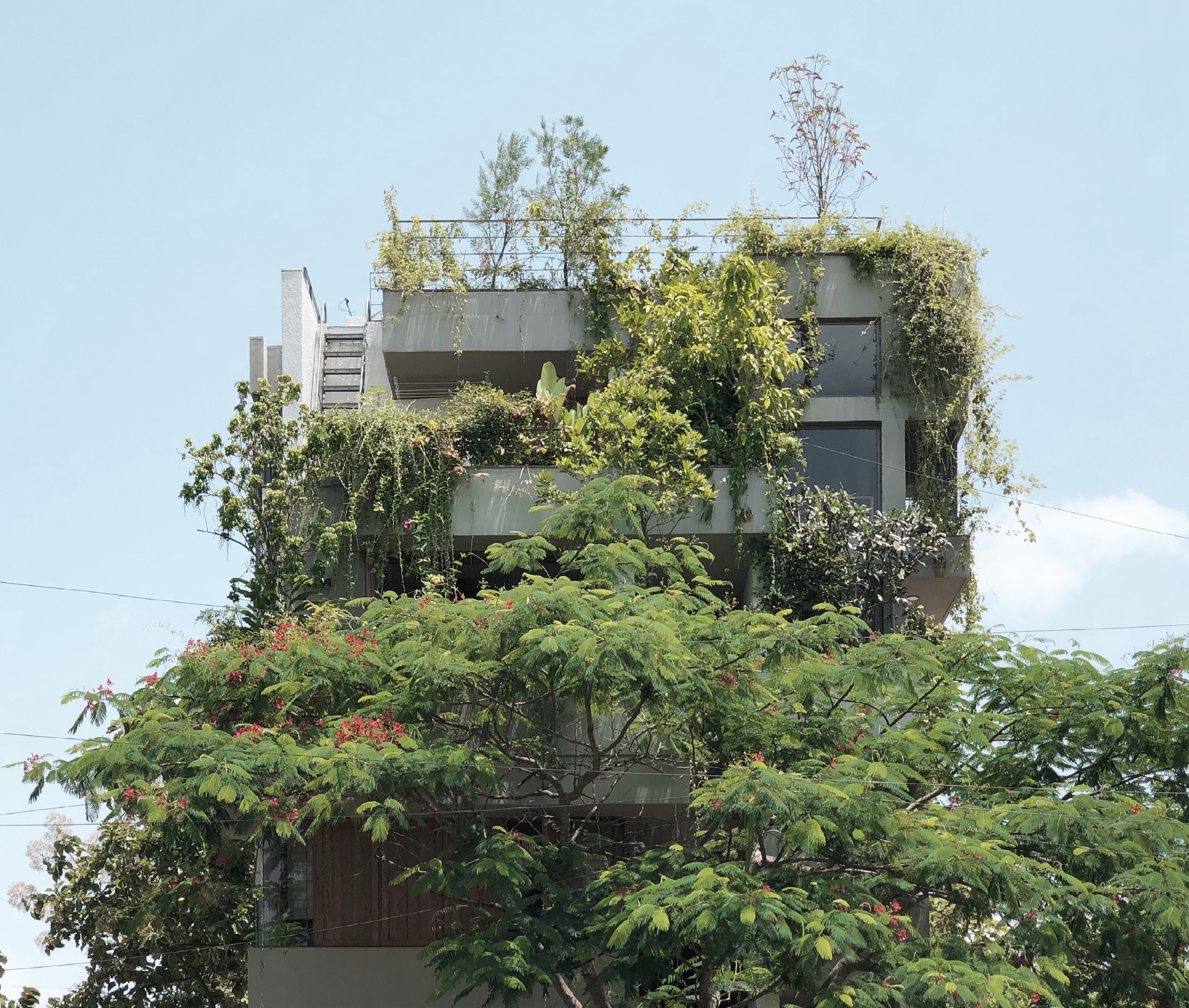

In the section, green terraces cascade southward, harmonizing with and accommodating the foliage of the Gulmohar tree, as though the tree has overtaken the entire facade of the house, seamlessly blending nature with the built form.

Furthermore, this design strategy serves to break down the scale of the building when viewed from the street.

Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda

The section allows multiple opportunities to experience the tree from within the house, fulfilling our primary objective of fostering a close connection with nature.

Dining, kitchen, living, family, and gathering spaces open up strategically to get framed glimpses of this tree.

Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda

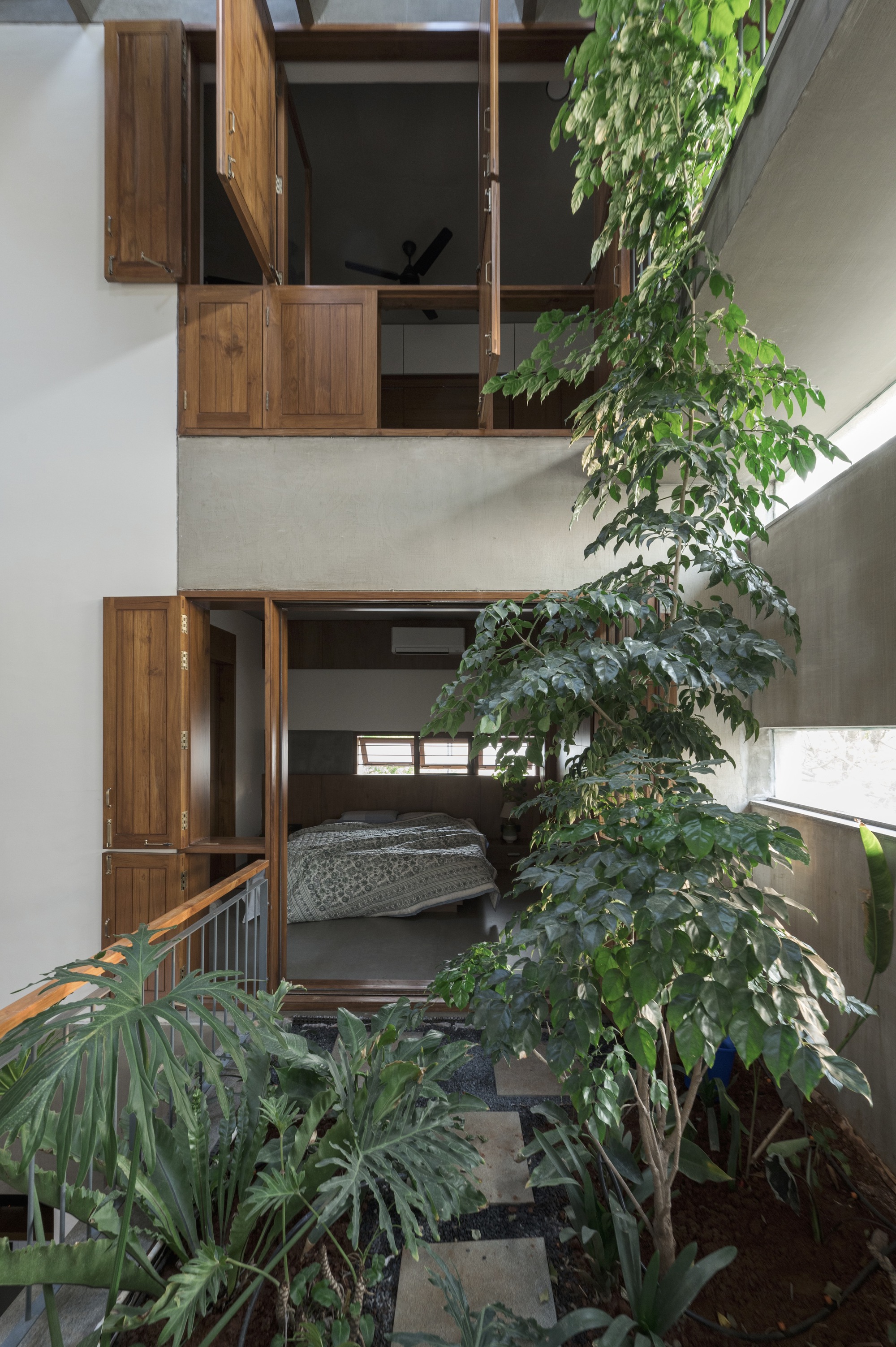

The green terraces are also multiplied internally to become extensions of living and bedroom spaces, offering a seamless transition between indoor and outdoor living.

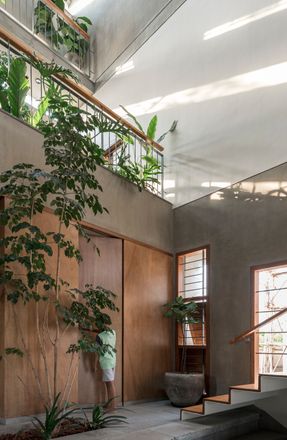

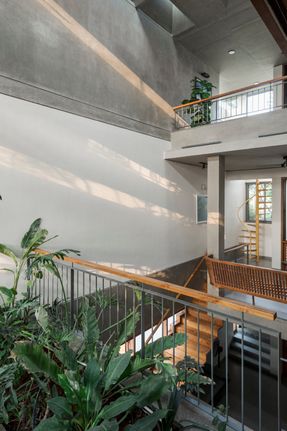

Interconnected green courtyards, overlapping sections, and levels allow residents to have visual connectivity throughout the house.

Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda

The central axis serves as a focal point that unifies the entire home, with a thoughtful layering of spaces and activities while also establishing a connection with nature.

The central space acts as a binding element, seamlessly weaving together various activities and allowing them to function autonomously yet harmoniously as a whole.

Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda


Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda
Ineffable Light House
© Atik Bheda
Ineffable Light House


Ineffable Light House
Volume and Light Study
Ineffable Light House
Planning Concept Diagram


Ineffable Light House
Sectional Diagram
Ineffable Light House
Section Diagram


Ineffable Light House
Perspective
Ineffable Light House
Sectional Perspective
Ineffable Light House
Sectional Perspective
Ineffable Light House
Sectional Diagram


Ineffable Light House
Section
Ineffable Light House
Section
Ineffable Light House
Section
Ineffable Light House
Section


Ineffable Light House
Diagram
Ineffable Light House
Diagram


Ineffable Light House
Plan - Ground Floor
Ineffable Light House

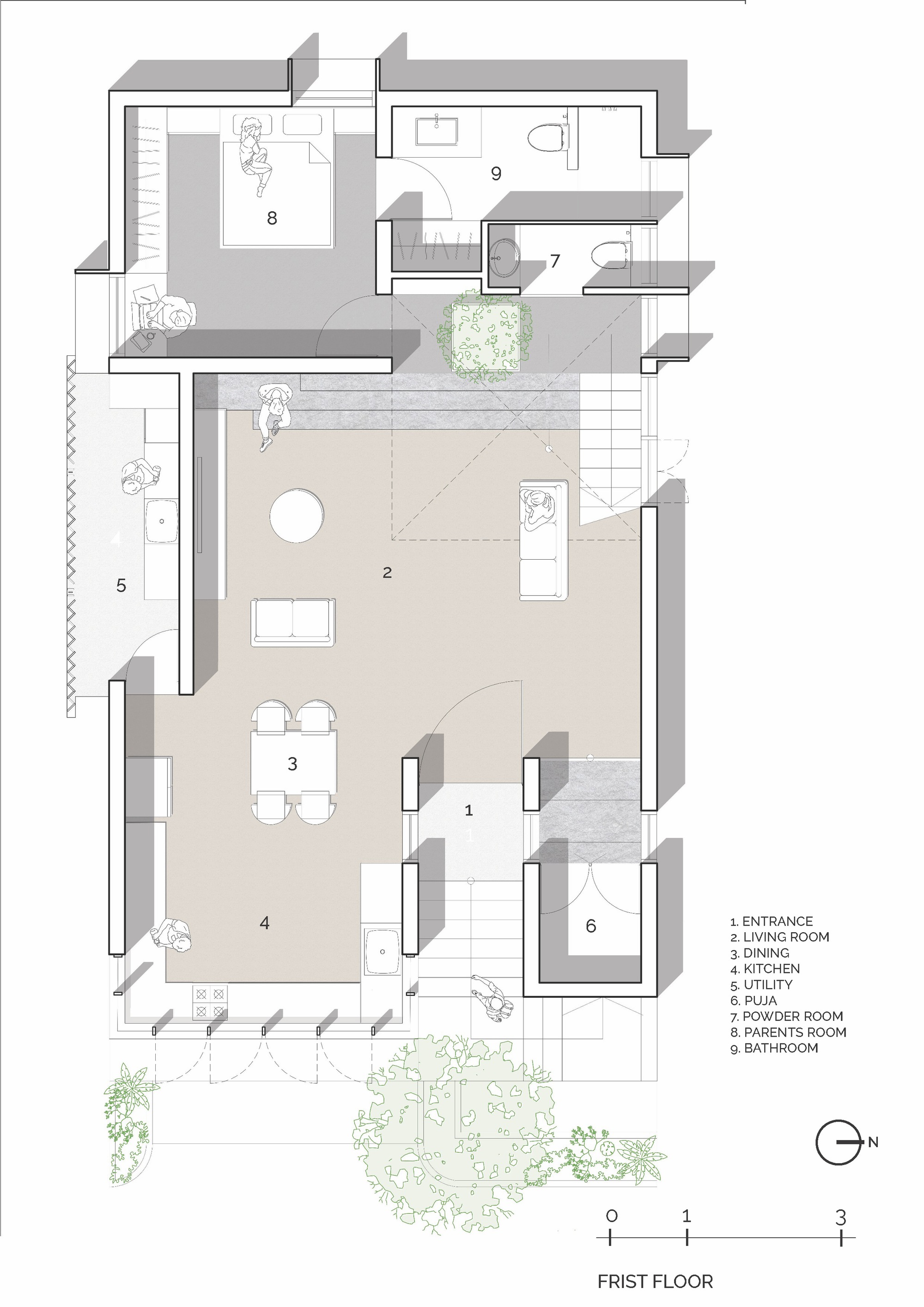

Plan - 1st Floor
Ineffable Light House
Plan - 2nd Floor
Ineffable Light House
Plan - 3rd Floor
Ineffable Light House
Plan - Terrace Floor
Ineffable Light House
Plan - Site


Ineffable Light House

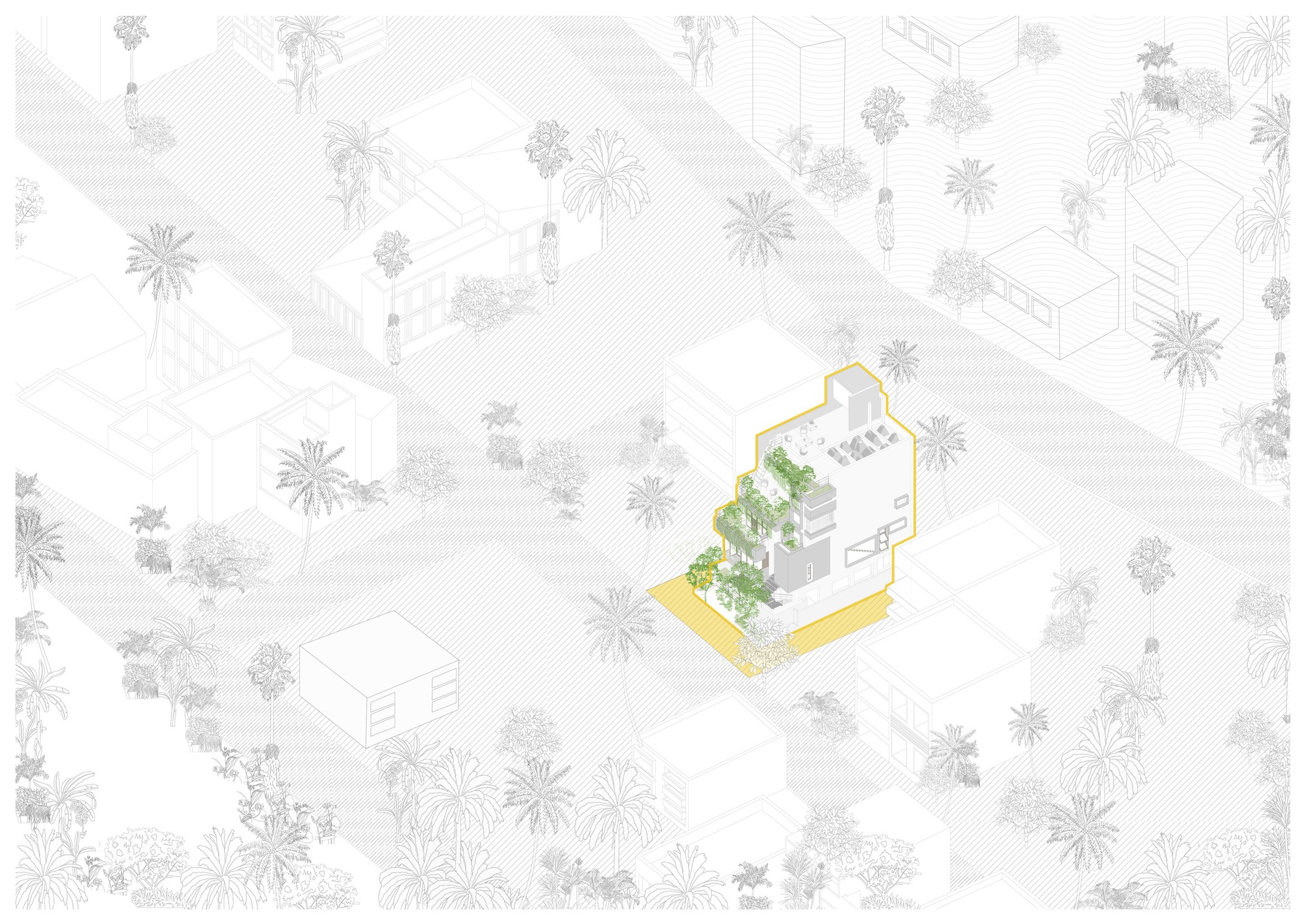

Context Plan
