Dapples Building Elevation

Dapples Building Elevation

LOCALARCHITECTURE

Dapples Building Elevation
© Michel Bonvin

PHOTOGRAPHS
Michel Bonvin

AREA
642 m²

YEAR
2022

LOCATION
Switzerland

CATEGORY
Apartments

Dapples Building Elevation
© Michel Bonvin

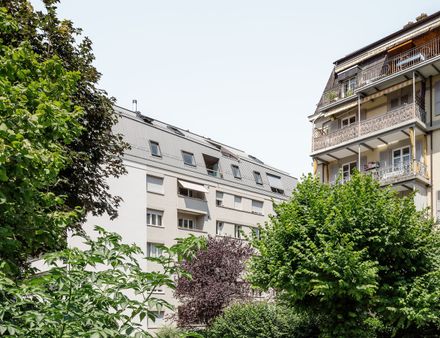

Densify the city. How can we respond qualitatively and not only quantitatively to this need for our cities to evolve? The LOCALARCHITECTURE elevation project at Avenue Dapples 5 in Lausanne offers an innovative approach by focusing on wooden construction.

On the late 1960s existing building, the project proposes an elevation of 2 levels on the roof without interventions on the inhabited floors.

Dapples Building Elevation
© Michel Bonvin
Dapples Building Elevation
© Michel Bonvin

The new construction is entirely made of wood to reduce the overload on the existing structure as much as possible.

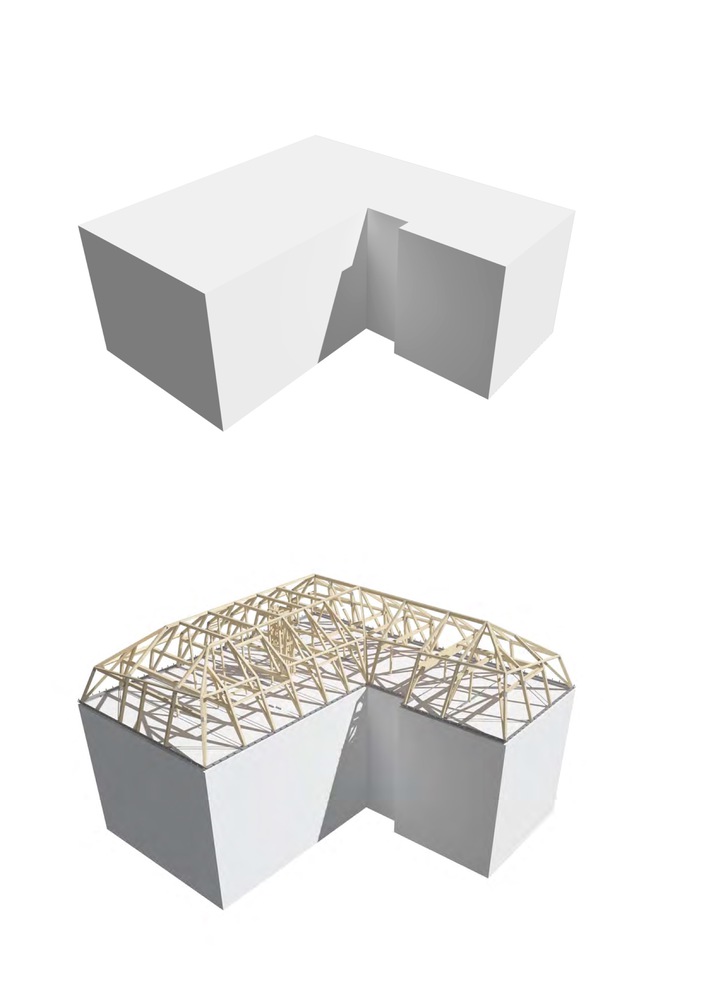

After removing the concrete slope screed and the existing waterproofing complex, a glued-laminated timber frame is placed on the roof slab. It serves as a framework for the elevation which accommodates 10 new apartments.

Dapples Building Elevation
© Michel Bonvin
Dapples Building Elevation
© Michel Bonvin

The stairwells and elevator shafts are extended with wooden panels to meet sound and fire protection requirements.

No concrete element is used in this project. Each apartment then benefits from a loggia balcony, fully glazed around the living spaces.

The section broken gabled roof, inspired by the Mansard roofs of neighboring buildings, thus inscribes the building from the 1960s in the continuity of the heritage of this historic district of Lausanne—densification for the benefit of urban integration.

Dapples Building Elevation
© Michel Bonvin
Dapples Building Elevation
© Michel Bonvin
Dapples Building Elevation
© Michel Bonvin


Dapples Building Elevation
Floor plans
Dapples Building Elevation
Roof plan


Dapples Building Elevation
Elevation
Dapples Building Elevation
Elevation
Dapples Building Elevation
Elevation
Dapples Building Elevation
Elevation


Dapples Building Elevation
Section
Dapples Building Elevation
Section
Dapples Building Elevation
Section
Dapples Building Elevation
Axo


Dapples Building Elevation
Detail
Dapples Building Elevation
Axo
Dapples Building Elevation
Axo
