A 100-year-old house in Shanghai converted by a sculptural spiral staircase

Uchida Shanghai

ARCHITECTS
Uchida Shanghai

MAIN MATERIAL
Steel,bamboo,concrete

DESIGN COMPANY
Uchida Shanghai

DESIGNER
Mitsuhiro Shoji

PROJECT TYPE
Private Residence

AUTHOR OF DESIGN DESCRIPTION
Mitsuhiro Shoji

PHOTOGRAPHER
Eiichi Kano

AREA
1000 sqft - 3000 sqft

AREA
190 Sqm

DESIGN TIME
2019 - 2021

YEAR
2022

LOCATION
Shanghai, China

TYPE
Residential › Private House

A 100-year-old house in Shanghai converted by a sculptural spiral staircase.

A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase
A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase

This is a renovation of a 100-year-old tenement-style house located on yuan road in Shanghai.

In recent years, this neighborhood has been attracting attention, especially among young people, for its cafes and apparel shops that have been renovated from old houses.

A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase
A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase

This house is located in a quiet area, just a few blocks away from the busy street.

Although some of the atmosphere of the former British Concession remains in the neighborhood, the house itself has been haphazardly remodeled by various residents over the years.

A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase
A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase

We began designing the house by restoring the additions to the south side and the central light garden in order to secure floor space, and to make the dimly lit staircase room the center of light-filled living.

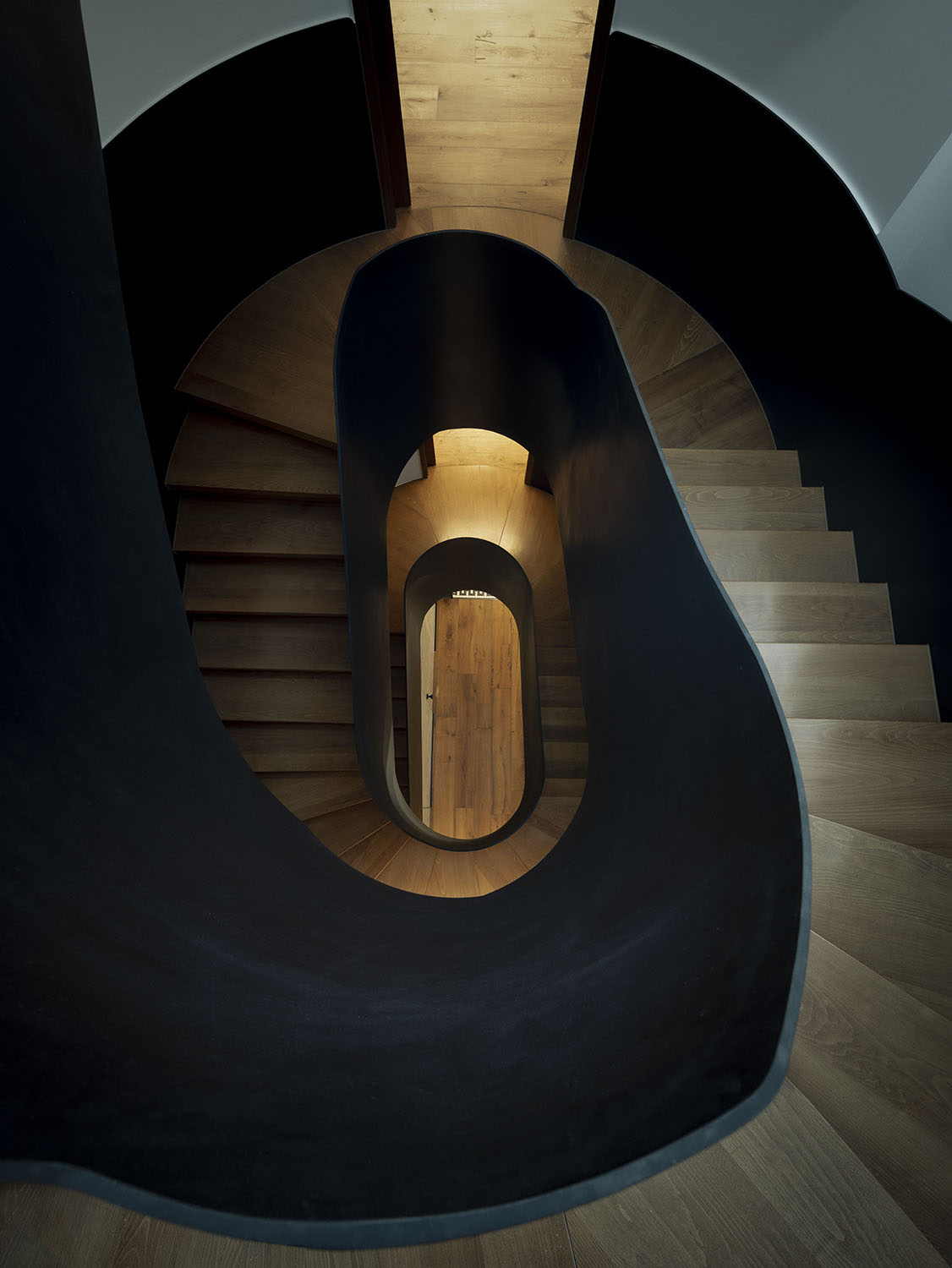

The rooms on the south and north sides of the staircase had originally been built on skipped floors, so we decided to adopt an irregular spiral staircase as a result of repeated staircase studies to see if the rooms themselves could be made continuous.

A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase
A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase

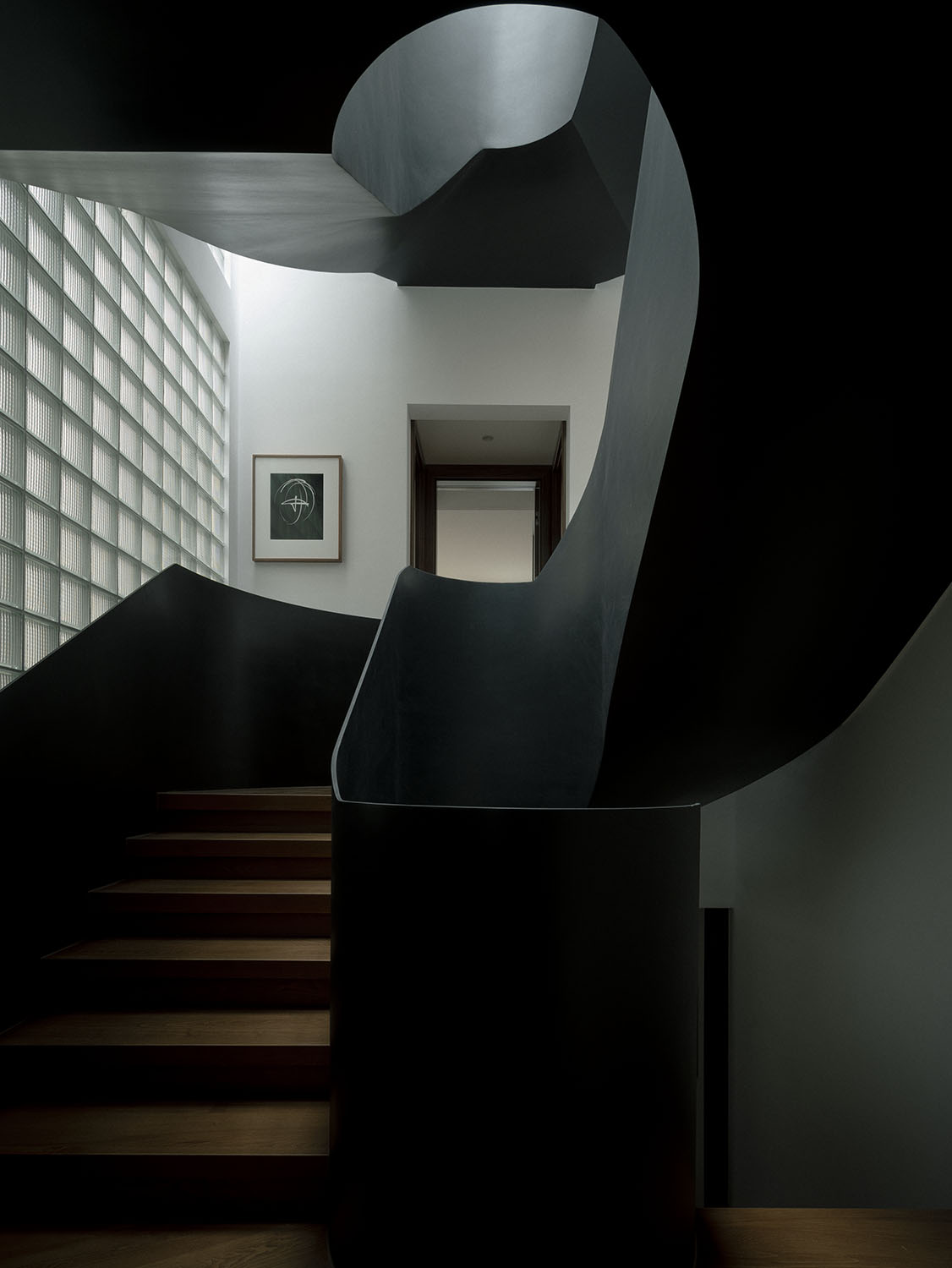

The structure of the steel plate spiral staircase is made of 10mm steel plates, which were fabricated in 3 sections at a factory, and after delivery, on-site welding and on-site painting were done to realize the continuous steel plate design.

The steel reinforcement was installed in the wall to conceal the staircase and to keep its floating appearance.

A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase
A 100-year-old House In Shanghai Converted By A Sculptural Spiral Staircase

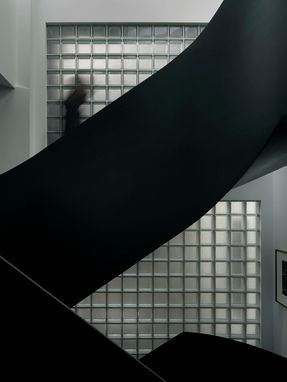

The stairwell is an important void that brings light into the daily life by natural lighting from the top light and the glass block on the east side, and is a junction point for moving from room to room.
