ZIIN Beijing Store

ZIIN Beijing Store

Atelier tao+c

ZIIN Beijing Store
© Wen Studio

ARCHITECTS
Atelier Tao+c

CONSTRUCTION
Shanghai Tianci Architecture Deco, Limited, Co

DESIGN TEAM
Tao Liu, Chunyan Cai, Haojia Song, Weilu Wang, Jingying Cai (Intern)

PHOTOGRAPHS
Wen Studio

AREA
186 M²

YEAR
2022

LOCATION
Beijing, China

CATEGORY
Retail Interiors

ZIIN Beijing Store
© Wen Studio

Atelier tao+c has transformed an old textile warehouse into a showroom for ZIIN, an emerging furniture brand. The project site is part of Langyuan Station, which features a warehouse with a pitched roof and brick walls built in the 60s from last century.

Two intersected square frameworks were erected, meticulously rotated at 45 degrees, staying sole as an individual structure while also connected to the original brick wall, which forms a separate “house within a house” journey. Atelier tao+c sought to balance the relationship between the existing site with new functions, exhibition and sale, background, and objects in the aged industrial space.

ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio

The two interlaced frameworks were treated divergently in transparent and solid, establishing a crystal-like structure. The first hint of the interior space is suggested to the public by a transparent house, clad with corrugated polycarbonate panels.

Most days, the sunshine is welcomed from the south window through the front house to the back one wrapped in timber panels, proposing the overlapping relation of the two stacked frameworks.

ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio

Comparatively being positioned at 45 degrees, the diagonal direction marks a new spatial order and circulation, enriching the depth both visually and experientially.

The carefully curated structure also groups homogeneous rooms in a continuous sequence organized in two sets of identical columns, wherein one designated room leads into another. This route brings, both for different events and spontaneous gatherings, flexible places with different possibilities.

ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio

The negative space, in between the existing brick walls and the new frameworks, flows along the perimeter, introducing the notion of “semi-interior and semi-exterior”. On the mezzanine floor, the unexpected space of a triangle balcony, pergolas, and staircase was adaptively molded into the newly inserted dwelling according to the circulation, becoming interesting elements embedded in the project.

The staircase has been placed in a rather constricted area, ‘seeping out’ purposefully and generating a glass box on the fade in a triangle shape, thus the tension between architectural boundaries and interior components could be revealed.

ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio

These scattered structural elements were employed as an integration while detached from one another, presenting their independence and similarities.

Atelier tao+c aspires to capture the authentic craft of construction and express the narrative of the structure itself.

From the steel structure, timber frame, and the substructure of walls to the assembled finish panels, every component is visible and traceable.

ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio

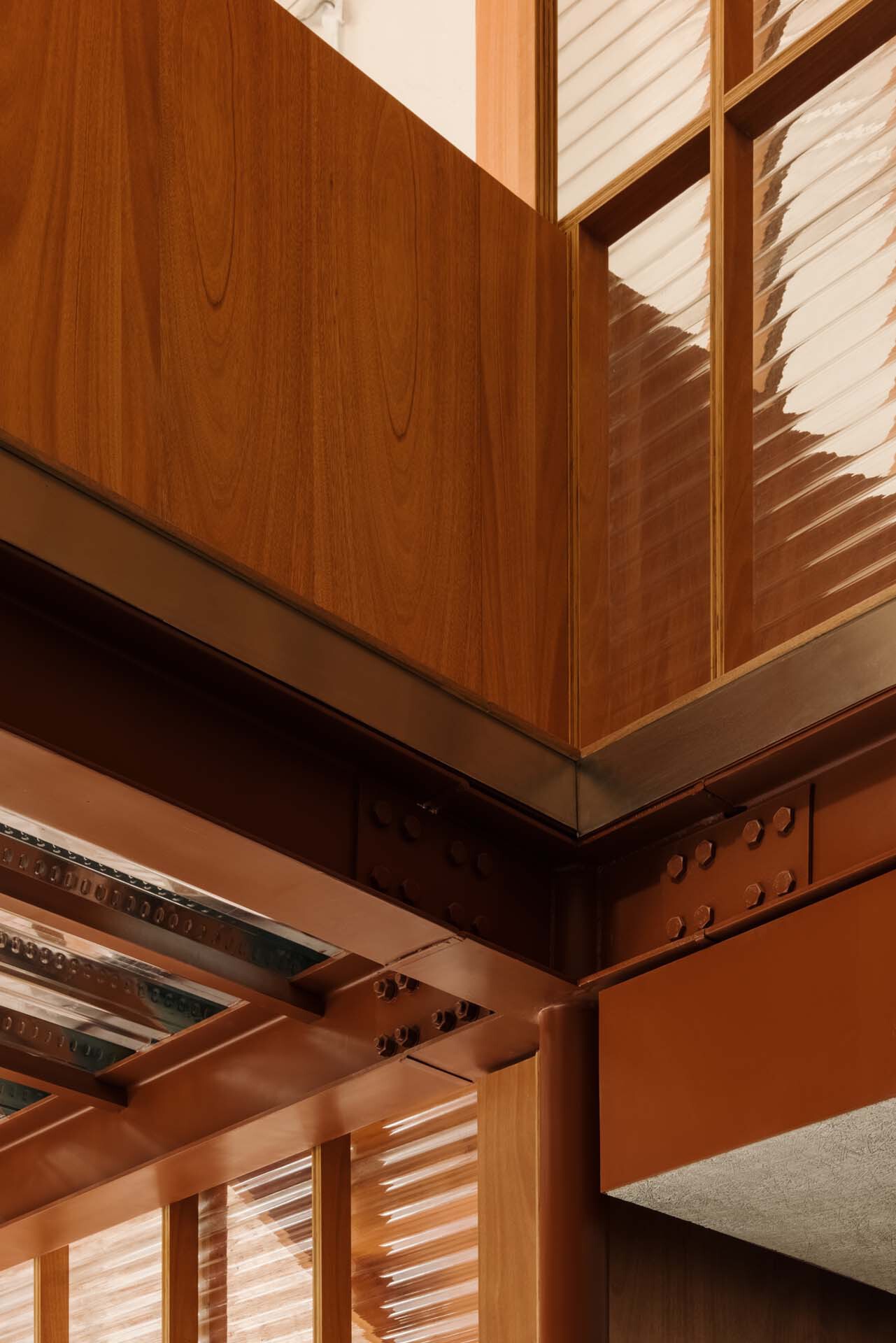

Each layer of the structure was superimposed during construction, amplified from the steel floor decks to the I-beam, the ducts, the piping layer, and the dropped ceiling, simulating layers of the earth, clear and identifiable to the viewer.

They are both the structure and the finish, recording both the design process and the construction process, vividly telling the story of how the frameworks were built.

Common industrial materials, particularly standard steel beams, profiles, timber, and bricks, make up the finish of the project structure regardless of cost and grading, roughness, or smoothness.

ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio

By adopting this material selection, we aspire to eliminate the hierarchy, simultaneously making no distinctions in Ziin Store.

The inherited character of ordinary materials was studied and their juxtaposition was re-combined on one elevation, narrating an embodiment of every detail design while projecting a warm and fun scene.

This is an effective cost-control project that uses basic formal logic, mundane materials, and construction techniques to deliver a deep expression of adaptive reuse space and details.

ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio


ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio


ZIIN Beijing Store
© Wen Studio
ZIIN Beijing Store
© Wen Studio


ZIIN Beijing Store
plan


ZIIN Beijing Store
axonometric


ZIIN Beijing Store
details
ZIIN Beijing Store
sketch
