Nursery School Under Elevated Railway in Machiya

Takahiro Akiyama Architects + Atelier HMC

ARCHITECTS
Atelier Hmc, Takahiro Akiyama Architects

LEAD ARCHITECT
Takahiro Akiyama

PLANTING DESIGNER
Onshitsu

COLLABORATING ARCHITECT
Chiharu Moriyama

TEXTILE DESIGNER
Nuno, Yuki Tsutsumi

CONTRACTOR
Tsukamoto Kensetsu Co.ltd, Amix Co.ltd

MECHANICAL ENGINEERING
Kankyo Engineering Inc.

STRUCTURE ENGINEERING
Tectonica

PHOTOGRAPHS
Atsushi Ishida

AREA
460 M²

YEAR
2018

LOCATION
Arakawa City, Japan

CATEGORY
Day Care

The nursery school is located under the elevated railway in Machiya, downtown Tokyo.

Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects

The project is an initiative to solve the shortage of nursery schools by using spaces under elevated railways.

This is because there is a shortage of nursery schools in urban areas in Japan, but there are no sites on which to build them.

Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida

The elevated railway was built in 1931. Shops and houses were built under the elevated railway, forming a downtown landscape where life overflowed into the streets, but they were evicted to make way for seismic reinforcement of the elevated structure.

After seismic reinforcement, the site remained vacant for a long time but has begun to be re-used, starting with plans for the nursery school.

Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida

In recent years, nursery schools have been closed to the town, and the children and the people of the town have become estranged.

We wanted to create a nursery school architecture that is open to the town so that the people of the town can look forward to watching the children's growth.

Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida

The old, elevated structure crossing the town is low at a height of about 3.9 m under the girders.

The span is also short at about 6 m, giving it a heavy impression.

Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida

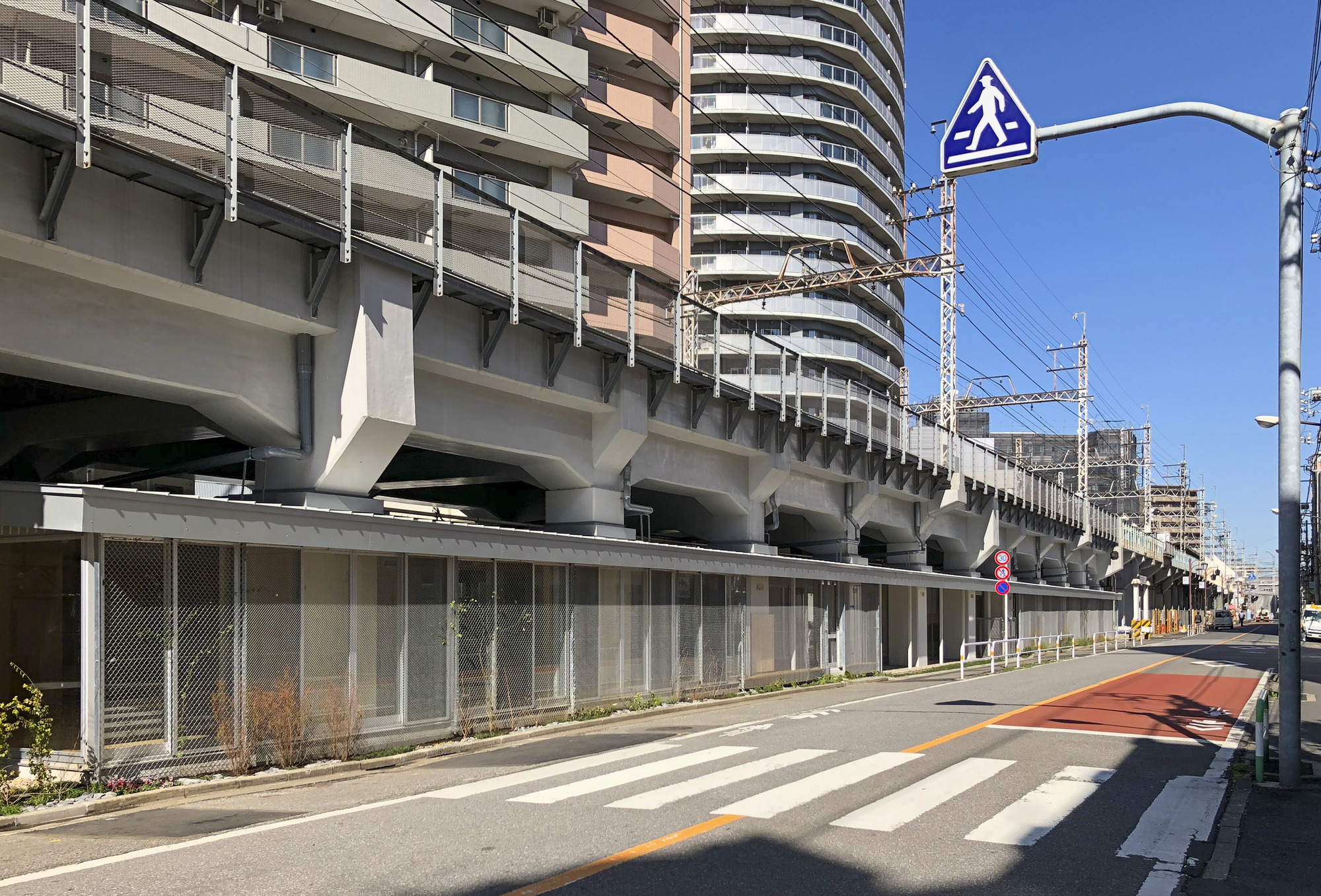

We created a large 67 m long roof to harmonize between the scale of the elevated structure and the scale of the architecture.

The horizontally extending roof creates the facade of the nursery school about the street.

Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida

On the inside, the roof is superimposed on the elevated structure to form a soft and sheltered nursery school space from the station area's hustle and bustle.

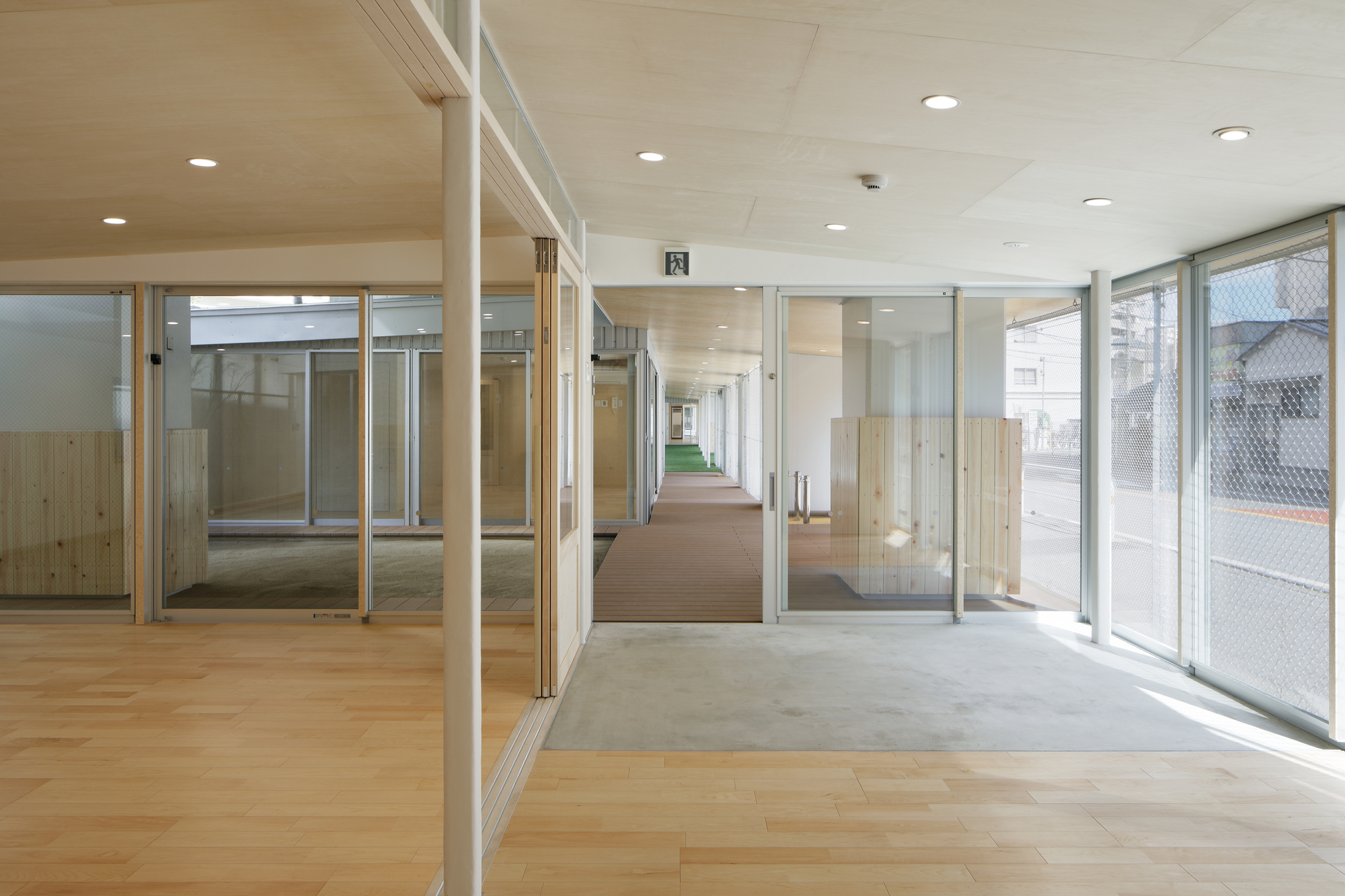

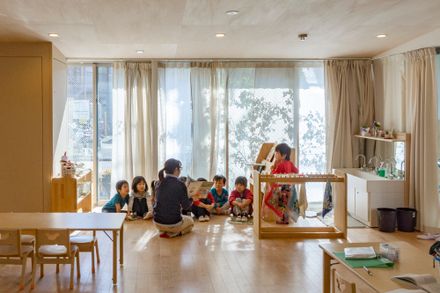

The nursery rooms are distributed in three clusters under the large roof, across a playground, and a sandpit. Each room was connected by a semi-outdoor space under the eaves along the street.

Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida

The activities of the nursery school appear in the street, with a washing area, play equipment, a bicycle parking area, and an entrance porch between each elevated structure on the axis of this 39 m long eaves space.

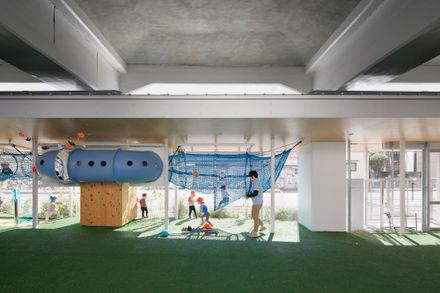

The playground is a unique semi-outdoor space created by the superimposition of the elevated structure and architecture.

Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida

The urban climate in summer is becoming increasingly severe due to the heat island effect. As the primary roof, the elevated structure protects the playground from strong sunlight.

The roof of the architecture protects the movement of people from rain and acts as a light shelf to illuminate the playground with reflected light.

Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects

The darkness inherent under the elevated structure is overturned, making the playground more accessible in the summer months, with the elevated ceiling brightly illuminated.

The nursery school was connected to the town through deep eaves. The sense of security created by the eaves made the place boldly open to the town yet protected.

Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida

Many people in the town enjoy the seasonal flowers and plants planted along the nursery school.

The nursery school was created at a downtown-like distance, where walking along the street gives a glimpse of the nursery's daily life like a picture scroll, and communication naturally takes place.

Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida


Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
© Atsushi Ishida


Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects
Nursery School Under Elevated Railway In Machiya
Courtesy of Takahiro Akiyama Architects


Nursery School Under Elevated Railway In Machiya
Plan and Section
Nursery School Under Elevated Railway In Machiya
Site Plan and Elevation


Nursery School Under Elevated Railway In Machiya

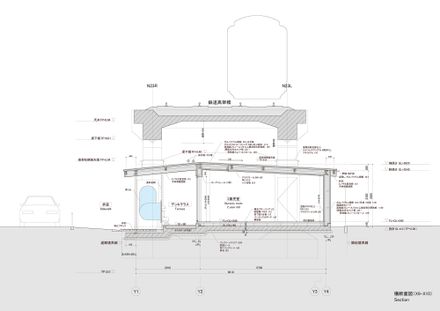

Cross Section
Nursery School Under Elevated Railway In Machiya
Cross Section
Nursery School Under Elevated Railway In Machiya
Cross Section
