Architecture Studio In Wujigeng Building

Architecture Studio In Wujigeng Building
© Yao Li

ARCHITECTURE STUDIO IN WUJIGENG BUILDING

ISO workshop

ARCHITECTS
ISO workshop

ARCHITECT IN CHARGE
Qi Wei

PROJECT ADVISOR
Zhang Lei

COLLABORATOR
Azl Architects

PROYECT TEAM
Qi Wei, Pu Wei, Fang Yunping

PHOTOGRAPHS
Yao Li

AREA
2000 M²

YEAR
2013

LOCATION
Nanjing, China

CATEGORY
Offices, Renovation, Offices Interiors

As part of old Jinglin College campus built in last 20’s to 30’s in Nanjing, Wujigeng Building is regarded as typical Minguo (Republic of China period 1912-1949) style.

Architecture Studio In Wujigeng Building
© Yao Li
Architecture Studio In Wujigeng Building
© Yao Li

Big Chinese roof and masonry grey brick wall as main façade elements, for its representative architectural quality, the left old Jinglin College campus buildings were preserved as major historic and cultural sites under state protection.

Unlike traditional Chinese house using wood and brick wall as main supporting, Wujigeng Building is constructed mainly in concrete structure and wood stripe partition wall.

Here we see the opportunity to transfer its 80 years old small student dormitory rooms to open working space of architecture studio & workshop, for professors and teachers of School of Architecture & Urban Planning of Nanjing University.

Architecture Studio In Wujigeng Building
© Yao Li
Architecture Studio In Wujigeng Building
© Yao Li

Concrete column and slab, wood stripe wall, stone washed floor, wood roof structure etc, almost all representative surfaces and textures from different time in the building are carefully preserved.

Newly added elements are treated as even background to emphasis the historic trace, to set off the brilliance of old.

Architecture Studio In Wujigeng Building


Architecture Studio In Wujigeng Building
© Yao Li
Architecture Studio In Wujigeng Building
© Yao Li
Architecture Studio In Wujigeng Building
© Yao Li


Architecture Studio In Wujigeng Building
© Yao Li
Architecture Studio In Wujigeng Building
© Yao Li
Architecture Studio In Wujigeng Building
© Yao Li


Architecture Studio In Wujigeng Building

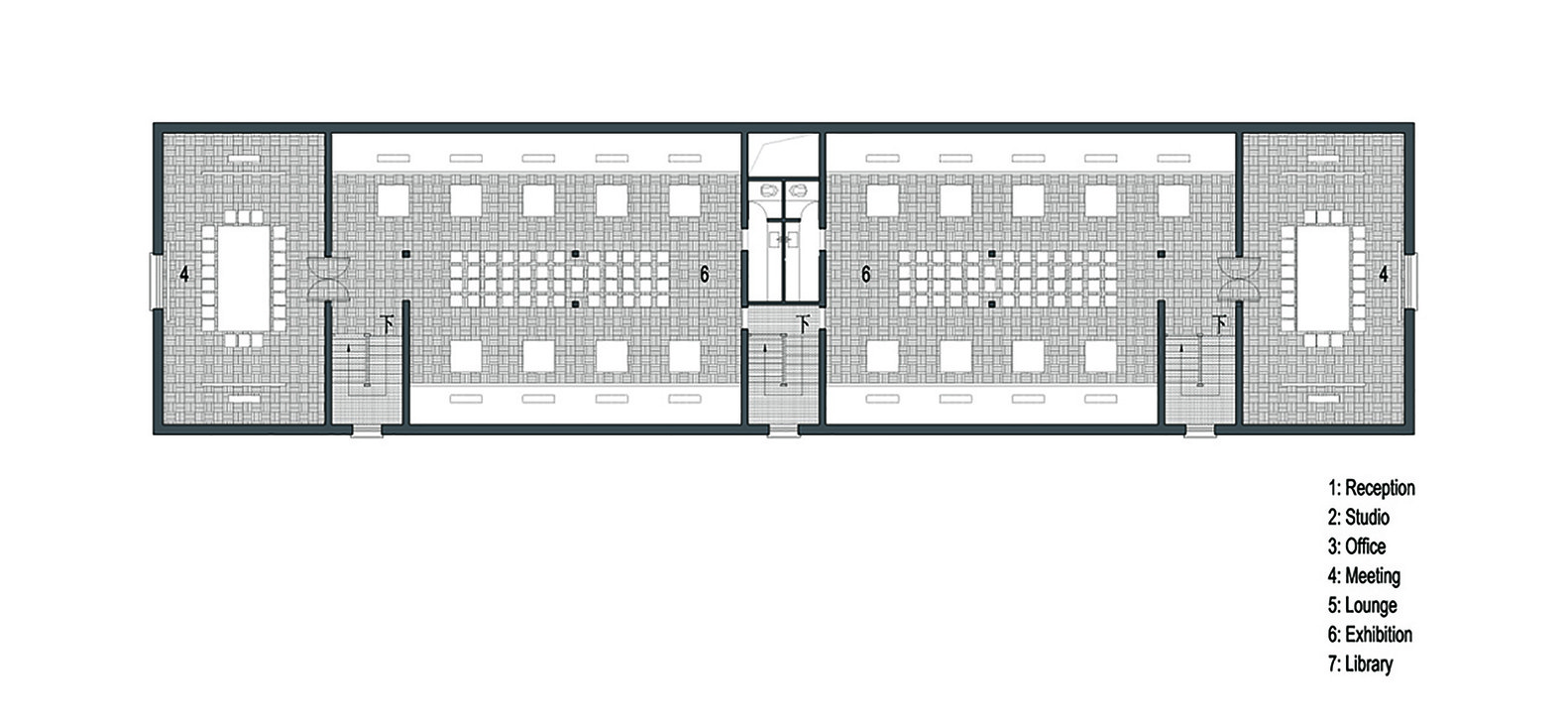

Attic Floor Plan
Architecture Studio In Wujigeng Building

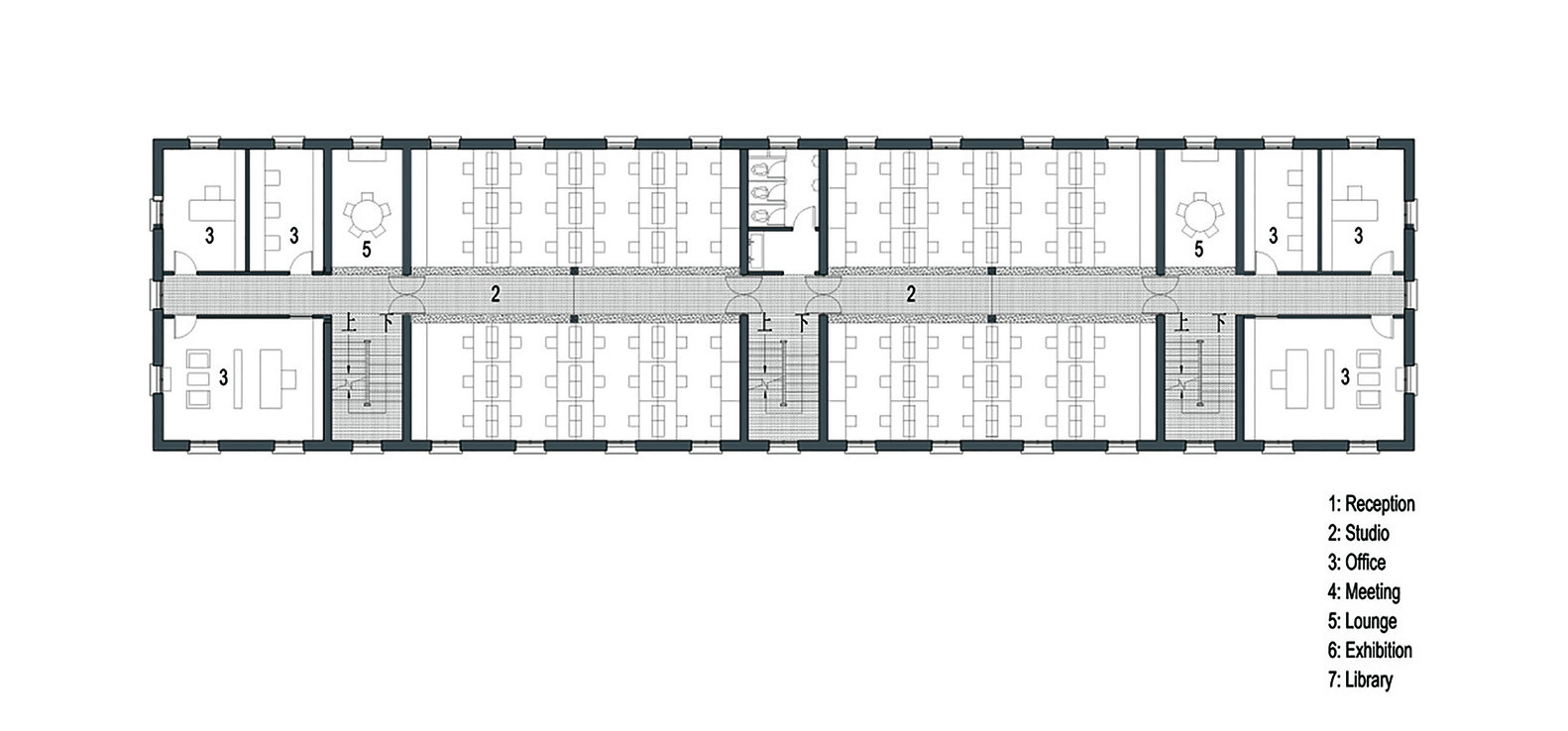

First Floor Plan
Architecture Studio In Wujigeng Building
Ground Floor Plan
