Laboratorio Espresso

Laboratorio Espresso
© John Wood Photowork

Laboratorio Espresso

DO-Architecture

ARCHITECTS
Do-architecture

DESIGN TEAM
Adrian Stewart, Judith Wylie, Ian Gaffney

CONTRACTOR
Young Wilson & Cunningham

AREA
30 m²

YEAR
2013

LOCATION
Glasgow, United Kingdom

CATEGORY
Coffee Shop

Text description provided by architect.

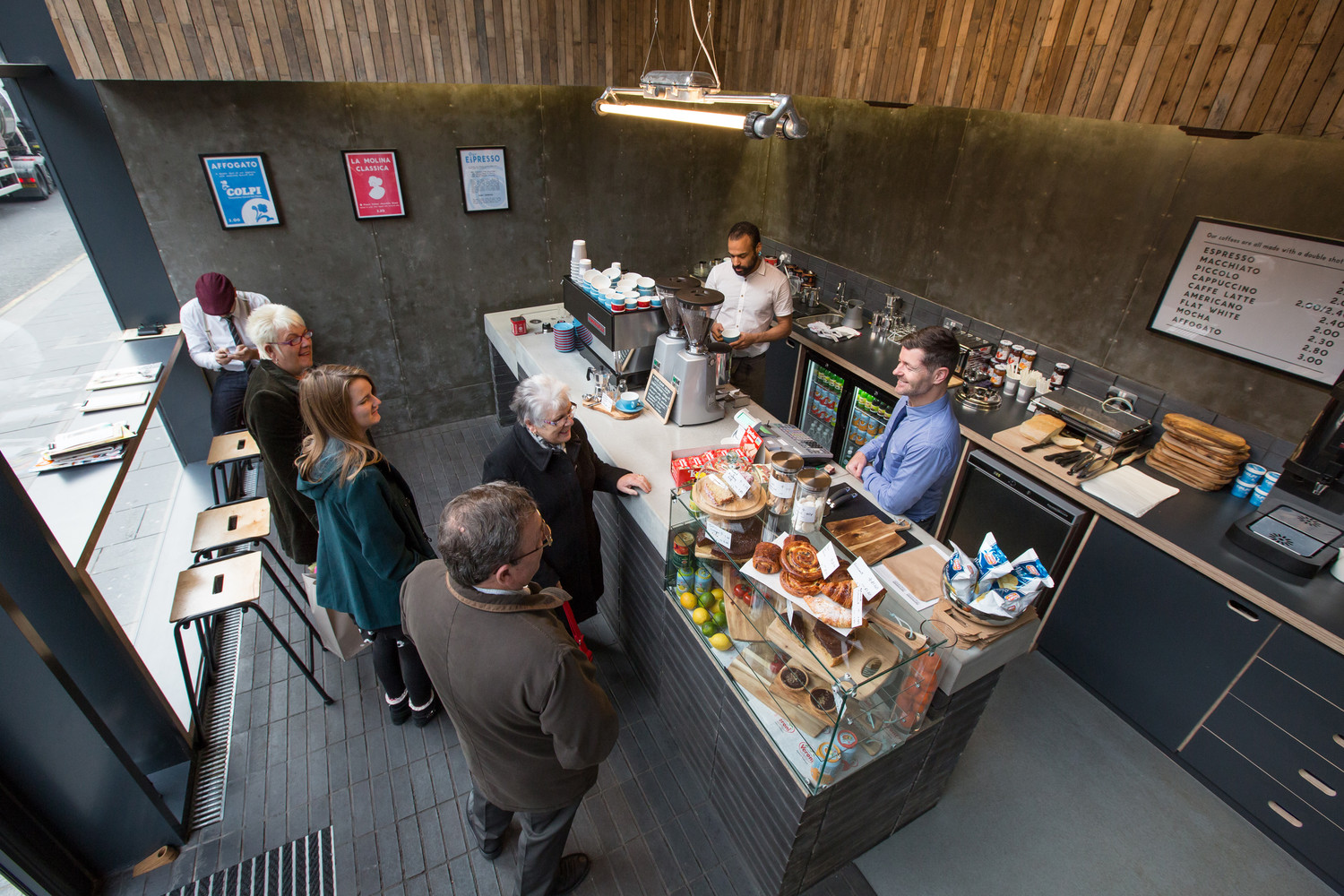

Laboratorio Espresso is a small Milanese streetside cafe, located within the commercial centre of Glasgow.

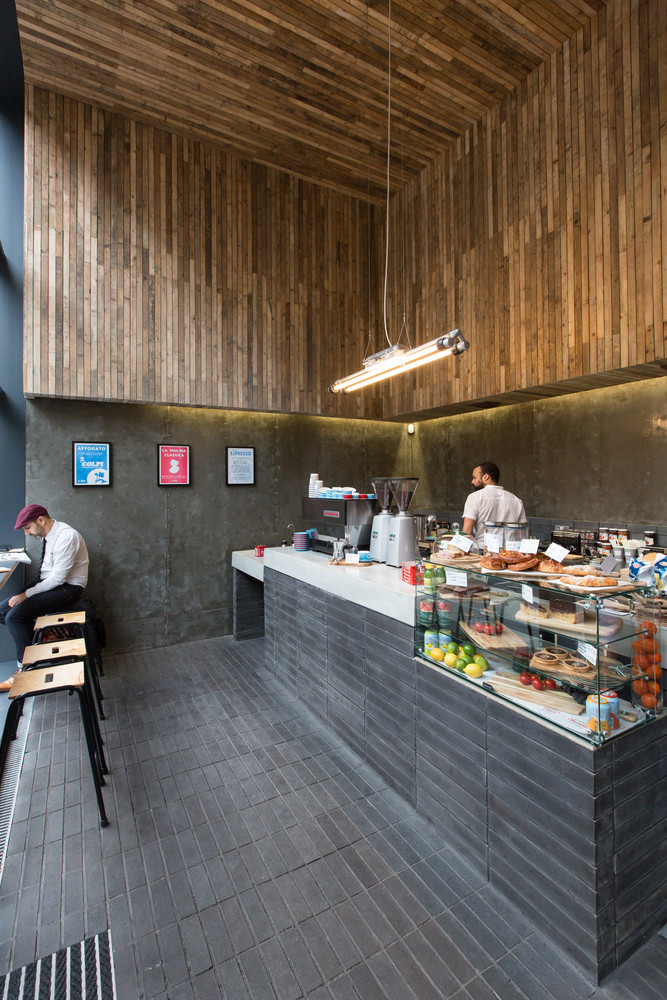

An intentionally simple and robust interior has been carved out of the commercial building within which it sits, revealing timber linings around high level, with concrete, brick and cement particle board forming the backdrop to human activity below.

Laboratorio Espresso
© John Wood Photowork
Laboratorio Espresso
© John Wood Photowork

A restricted total build budget demanded innovation in material selection and details.

This happily coincided with the recovery and re-use of the timber shutter boards from the new Steven Holl Architects' Reid Building 5 for the Glasgow School of Art.

Laboratorio Espresso
© John Wood Photowork
Laboratorio Espresso
© John Wood Photowork
Laboratorio Espresso
© John Wood Photowork

In their former life these timbers defined the concrete surface texture of the Glasgow School of Art.

Formwork linings are generally unseen and discarded after use, however in this instance the texture and richness of the timbers are celebrated.

The brickwork floor is extruded in a stack bond, and capped with precast concrete to create an active plinth from which coffee is served.

Laboratorio Espresso
© John Wood Photowork


Laboratorio Espresso
© John Wood Photowork
Laboratorio Espresso
© John Wood Photowork


Laboratorio Espresso
Section AA
Laboratorio Espresso
Sections: BB, CC


Laboratorio Espresso
Site Plan
Laboratorio Espresso
Floor Plan


Laboratorio Espresso

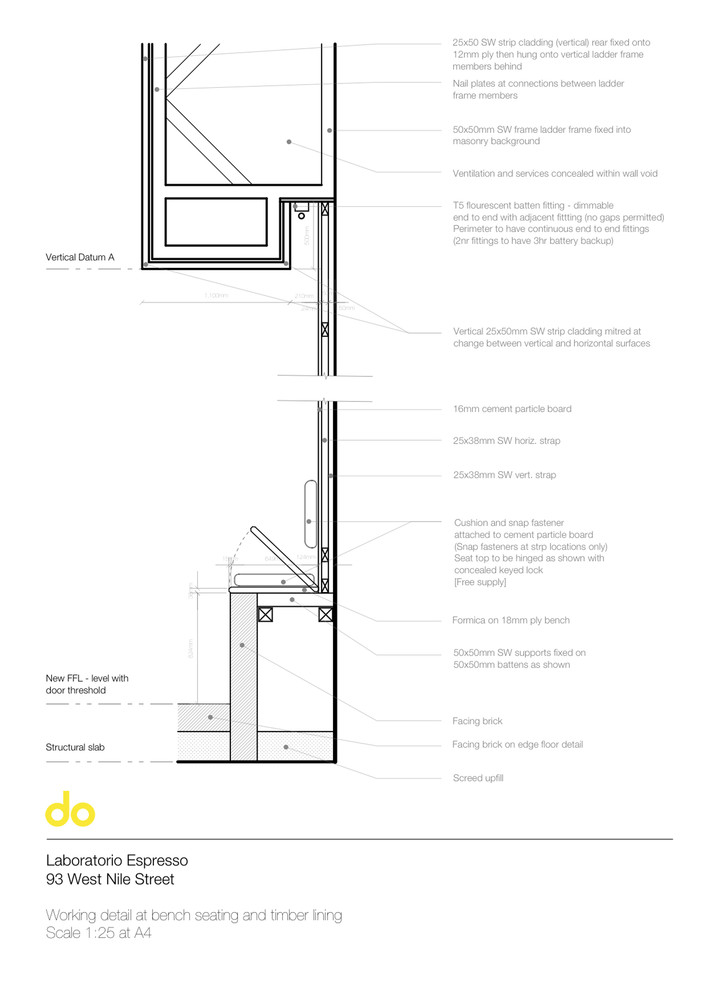

Detail
Laboratorio Espresso
Elevations
