Living room view. Image © HAIYI

SHIYEFENGWU STORE

Tuo + Urban Wave

ARCHITECTS
Tuo + Urban Wave

LEAD DESIGNERS
Xiangyang Wu, Tuo Lin, Mengzhe Tang

CONSTRUCTION TEAM
Yangchun Lu, Chang Cai, Yue Zhang

CONSTRUCTION
Yunnan Shifang Design Group

CLIENT
Yunnan Shiyefengwu Modern Agricultural Development Co., Ltd.

PHOTOGRAPHS
HAIYI, Xiangyang Wu, Yansheng Jin

AREA
108 m²

YEAR
2021

LOCATION
Kunming, China

CATEGORY
Retail Interiors

The store is located at the core of the space, facing the end of the entrance passage. Consider placing important functions, such as map wall, exhibition stand, shared kitchen, to a relatively complete square space in the lower half.

SHIYEFENGWU Store

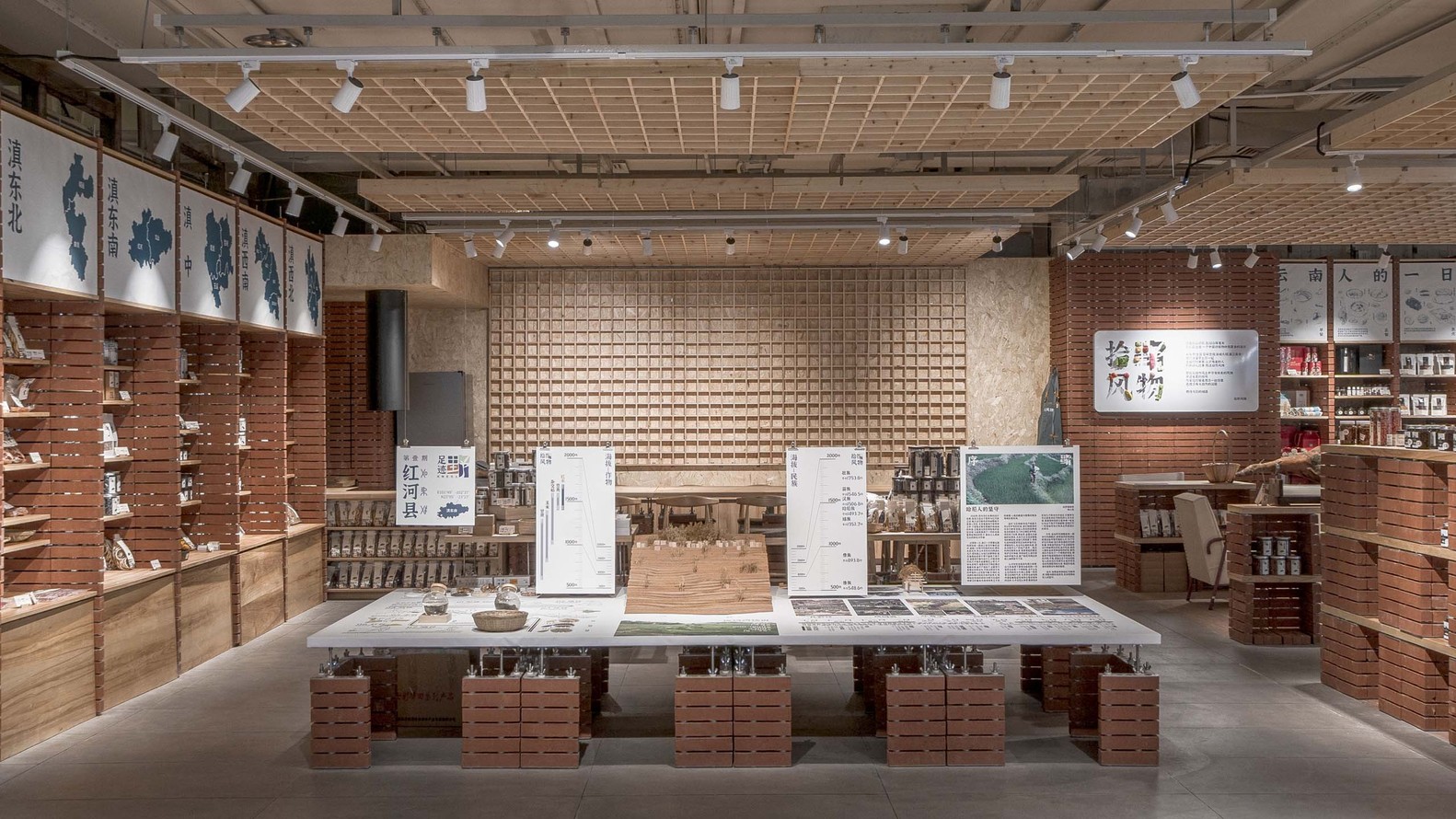

Exhibition View. Image © HAIYI
SHIYEFENGWU Store
Preview. Image © HAIYI

The overall space is relatively limited. Different functions are modularized, becoming partitions of the space. Floorings and ceilings are corresponding to program zones, which increases the richness of experience.

The booth is composed of four modules, with an overall size of 1.8m×3.6m. Different exhibition themes will be arranged according to different seasons and regions. The height of the table surface is changed by different screw lengths.

SHIYEFENGWU Store
red brick and wood as the main material . Image © HAIYI
SHIYEFENGWU Store

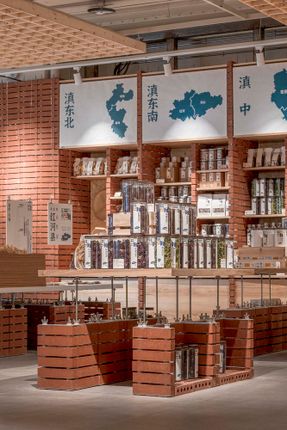

Shelving View. Image © HAIYI

From the booth to the shared kitchen in front of the map wall, the table gradually becomes higher. The purpose is to create an inviting space without forming a line of sight to the map wall.

Extend the ceiling to the wall, "embrace" the kitchen, of which the grille can be used as the frame of the "fengwu map".

SHIYEFENGWU Store
Shelving Module. Image © HAIYI
SHIYEFENGWU Store
Map Wall View. Image © HAIYI

The living area is defined by lower shelves, flooring, and ceilings, which serve as areas for customers to check out, rest, talk and wait.

From the living area to the village direct supply area, the space is defined by lower shelves.

The height of the low shelves gradually increases, breaking the spatial experience of the original functional areas and forming visual continuity to establish a connection between the two spaces.

SHIYEFENGWU Store

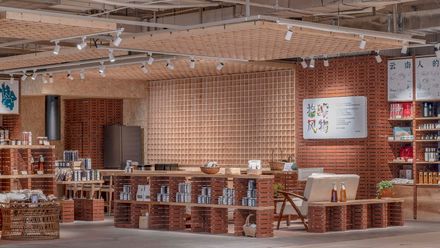

Shared Kitchen View. Image © HAIYI
SHIYEFENGWU Store
Furniture Module. Image © HAIYI

The shelf area is arranged to the concrete wall, and the frame is evenly divided.

The design considers the flexibility of the later arrangement of the partitions, and the vertical spacing can be adjusted according to the size of the goods.

The design uses the traditional materials "red brick" and "wood" , to create a simple and warm tone like traditional buildings. We use modern architectural construction methods to give traditional material modernity.

SHIYEFENGWU Store
Furniture Module. Image © HAIYI
SHIYEFENGWU Store
Map of Local Speciality. Image © Yansheng Jin

Each functional area is composed of smaller "red brick & wood" modular units, and all materials are connected by hardware. Bricks are heavy and wood is light.

Separating the wood board from the bricks and exposing the screw rods strengthen the tension contrast between "lightness" and "heaviness". The furniture module looks more like an architectural unit.

The distance between the wooden board and the brick can be adjusted by screwing the nut so that the furniture module can adapt to the height requirements of different usage scenarios.

SHIYEFENGWU Store
Stack Base View. Image © HAIYI
SHIYEFENGWU Store
Furniture Module. Image © HAIYI
SHIYEFENGWU Store
Mockup. Image © Xiangyang Wu

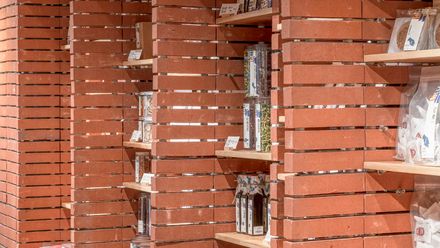

The horizontal pores formed between the bricks can be used as a space where the partitions can be placed freely.

A horizontal "hollow-out" gap is formed between bricks, which dissolves the heaviness of the brick element.

The horizontal hollows, different from the dense joints of traditional brick walls, give the brick wall a "breathing sense" as a partition element.

SHIYEFENGWU Store
Short Shelving View. Image © HAIYI


SHIYEFENGWU Store
Details
SHIYEFENGWU Store
Details
SHIYEFENGWU Store
Details
SHIYEFENGWU Store
Details


SHIYEFENGWU Store
Elevation
SHIYEFENGWU Store
Elevation


SHIYEFENGWU Store
Site Location
SHIYEFENGWU Store
Plan

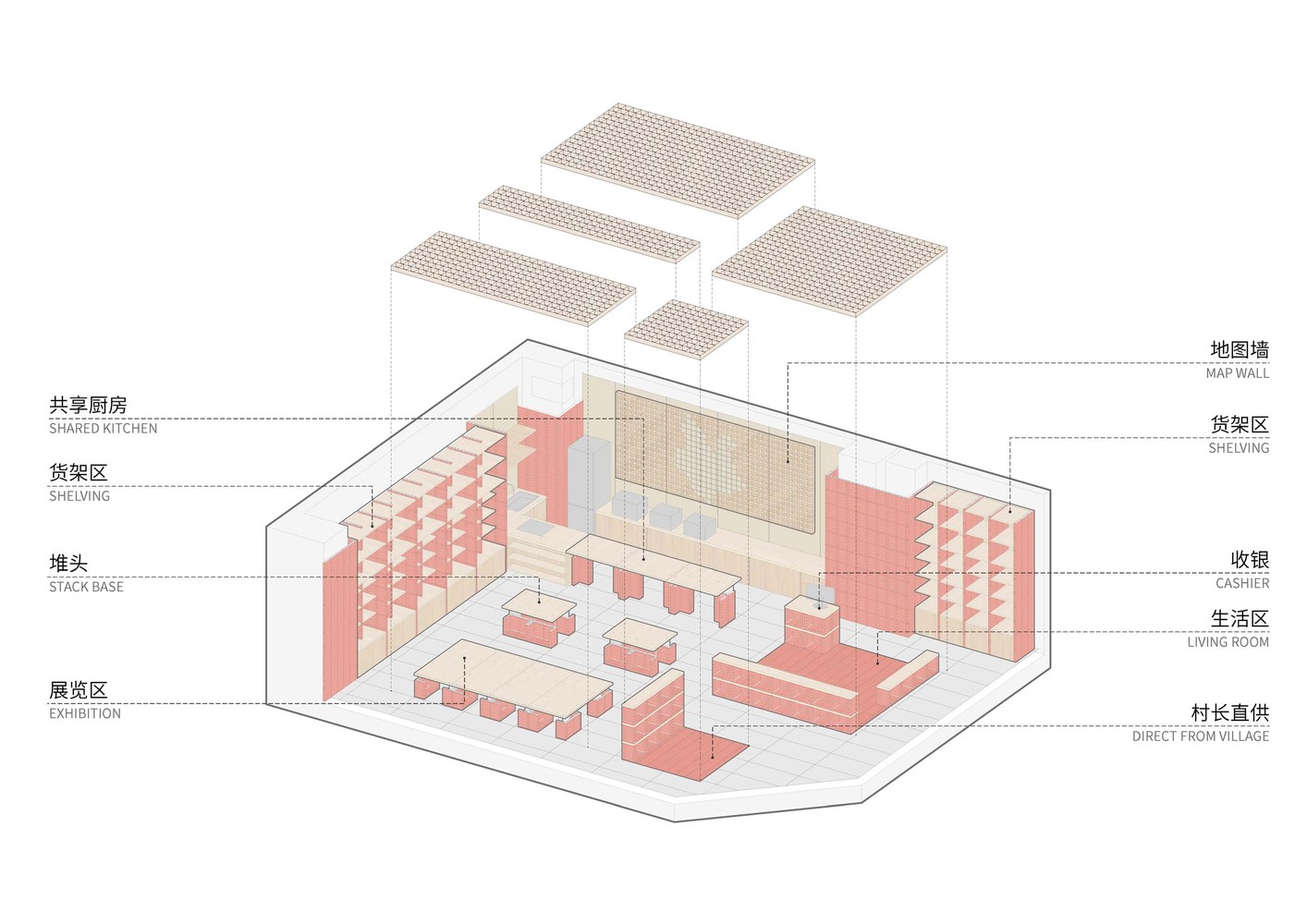

SHIYEFENGWU Store
Axonometric
