Covering Patio Of Polytechnic UA

Covering Patio Of Polytechnic UA
© David Frutos

Covering Patio of Polytechnic UA

Daniel Carratalá, Woha By Antonio Maciá

ARCHITECTS
Daniel Carratalá, Woha By Antonio Maciá

TECHNICAL ARCHITECT
Francisco Rodriguez Navarro

LEAD ARCHITECTS
Woha By Antonio Maciá: Antonio Maciá Y Ana Mora

MANUFACTURERS
Reintegral S.l., Toldos Del Segura S.l.

DESIGN TEAM
Antonio Maciá Mateu, Ana Mora Vitoria, Daniel Carratalá Climent

COLLABORATORS
Ana Fernández Martínez, David Gil Delgado, Juan Antonio García, Rafael Zarza

PHOTOGRAPHS
David Frutos

CONTRACTOR
Reintegral, Sl

YEAR
2019

LOCATION
San Vicente Del Raspeig, Spain

CATEGORY
University, Renovation, Educational Interiors

Covering patio of a building necessarily implies transforming it. To convert an exterior space into an interior one.

Lighting and ventilation conditions must be maintained without altering the thermal balance.

Covering Patio Of Polytechnic UA
© David Frutos
Covering Patio Of Polytechnic UA
© David Frutos

In addition, it must protect from wind and rain. The idea of the project is to go back in time to the light and bright skylights of more than a hundred years ago, although under a contemporary vision.

In ‘patio principal de la Escuela Politécnica Superior’ events, conferences and acts are held, therefore it was necessary to cover it, for this the resulting space must be protected from the direct action of the sun, wind or rain.

The project proposes the design of a new space through the use of a translucent stretched textile structure using the least possible material.

Covering Patio Of Polytechnic UA
© David Frutos
Covering Patio Of Polytechnic UA
© David Frutos

By tilting the existing walls on the edges of the patio in opposite directions and tightening the translucent fabric on the new perimeter, a space is achieved that seems to expand like a soap bubble from the inside.

The fabric forms a surface that seems to float with respect to its perimeter since it does not touch it and the fact of rounding the perimeter meetings makes the space be perceived as continuous and with diffuse natural lighting.

Covering Patio Of Polytechnic UA
© David Frutos
Covering Patio Of Polytechnic UA
© David Frutos

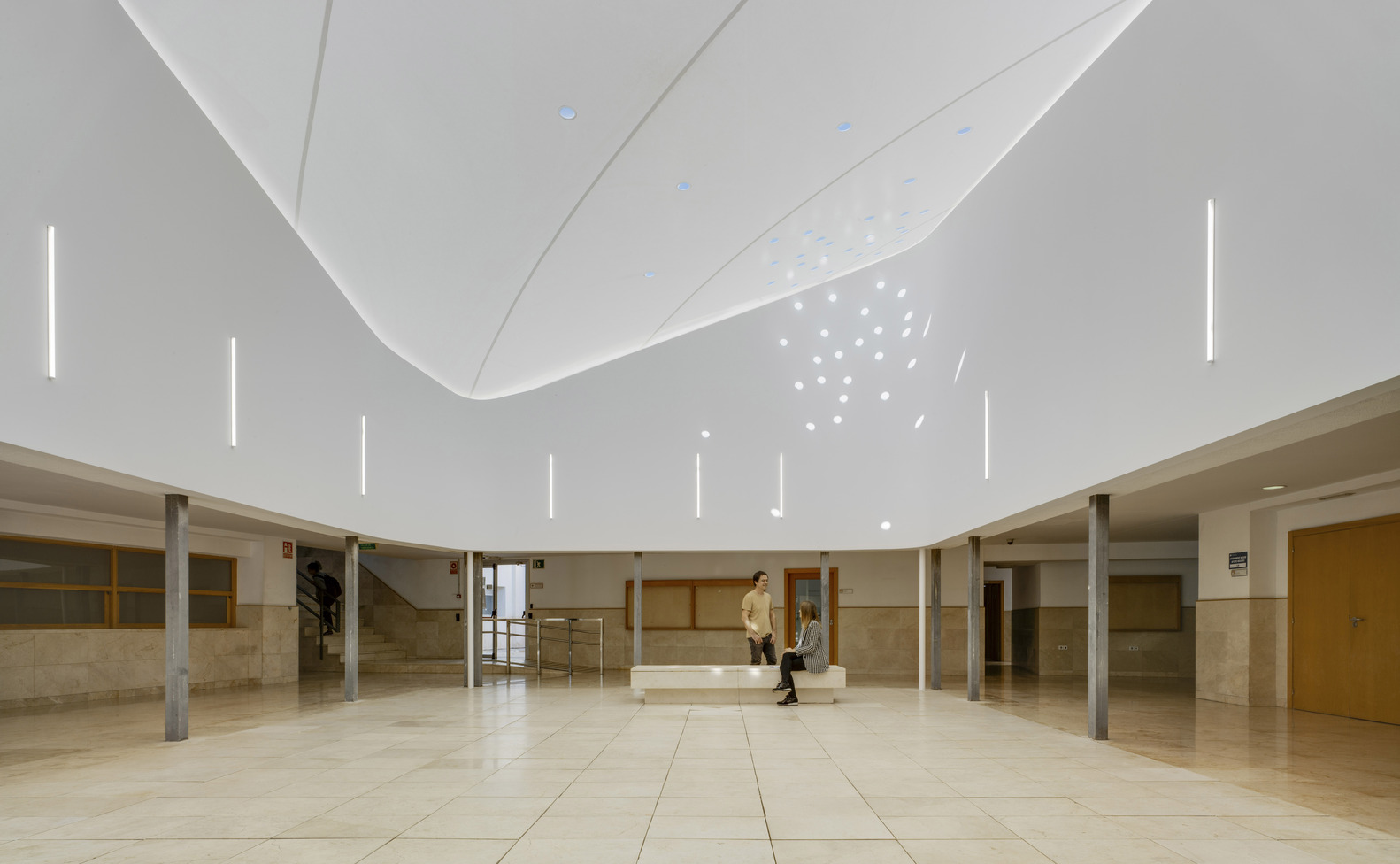

The interior walls act as reflectors and light multipliers. The sheet acts as a "sundial" as it is perforated at the highest points. The fabric separates from the wall around its perimeter 15 cm, allowing cross ventilation.

Double curvature of the roof solves, on the one hand, the slopes necessary for the evacuation of rainwater and, on the other, stability against the action of the wind. The perimeter is reinforced by a metal compression ring through which the reinforced PVC sheet is prestressed. Membrane condition of the textile structure minimizes the thickness: 0.8 mm for a maximum span of 12 m.

Covering Patio Of Polytechnic UA
© David Frutos


Covering Patio Of Polytechnic UA
© David Frutos
Covering Patio Of Polytechnic UA
© David Frutos
Covering Patio Of Polytechnic UA
© David Frutos
Covering Patio Of Polytechnic UA
© David Frutos


Covering Patio Of Polytechnic UA

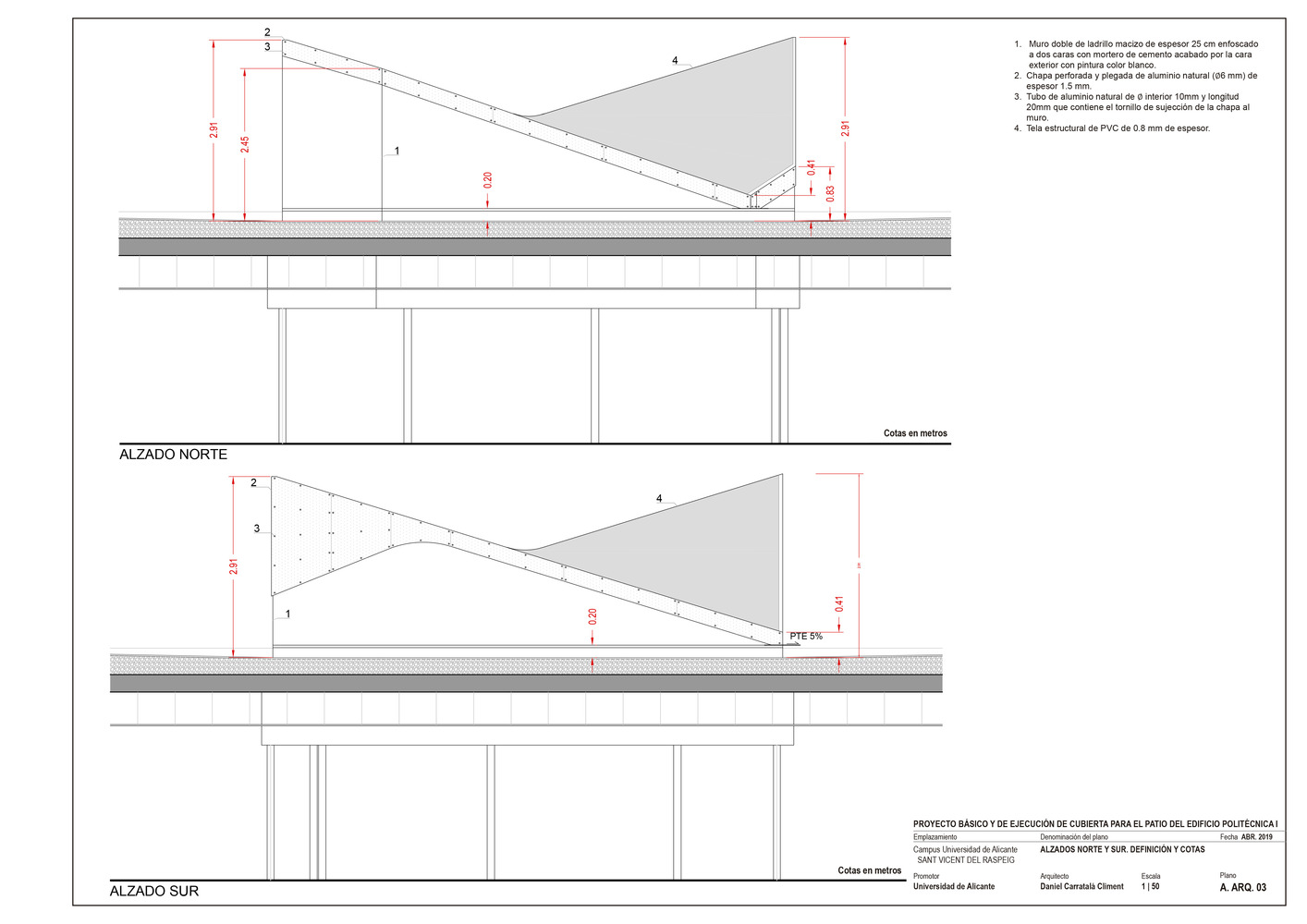

Elevation
Covering Patio Of Polytechnic UA
Elevation
Covering Patio Of Polytechnic UA
Elevation
Covering Patio Of Polytechnic UA
Elevation


Covering Patio Of Polytechnic UA
Details
Covering Patio Of Polytechnic UA
Details
Covering Patio Of Polytechnic UA
Details
Covering Patio Of Polytechnic UA
Details


Covering Patio Of Polytechnic UA
Site Plan
Covering Patio Of Polytechnic UA

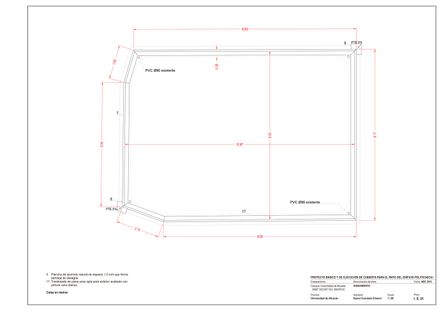

Sanitation Plan
Covering Patio Of Polytechnic UA
Ground Floor Plan
Covering Patio Of Polytechnic UA

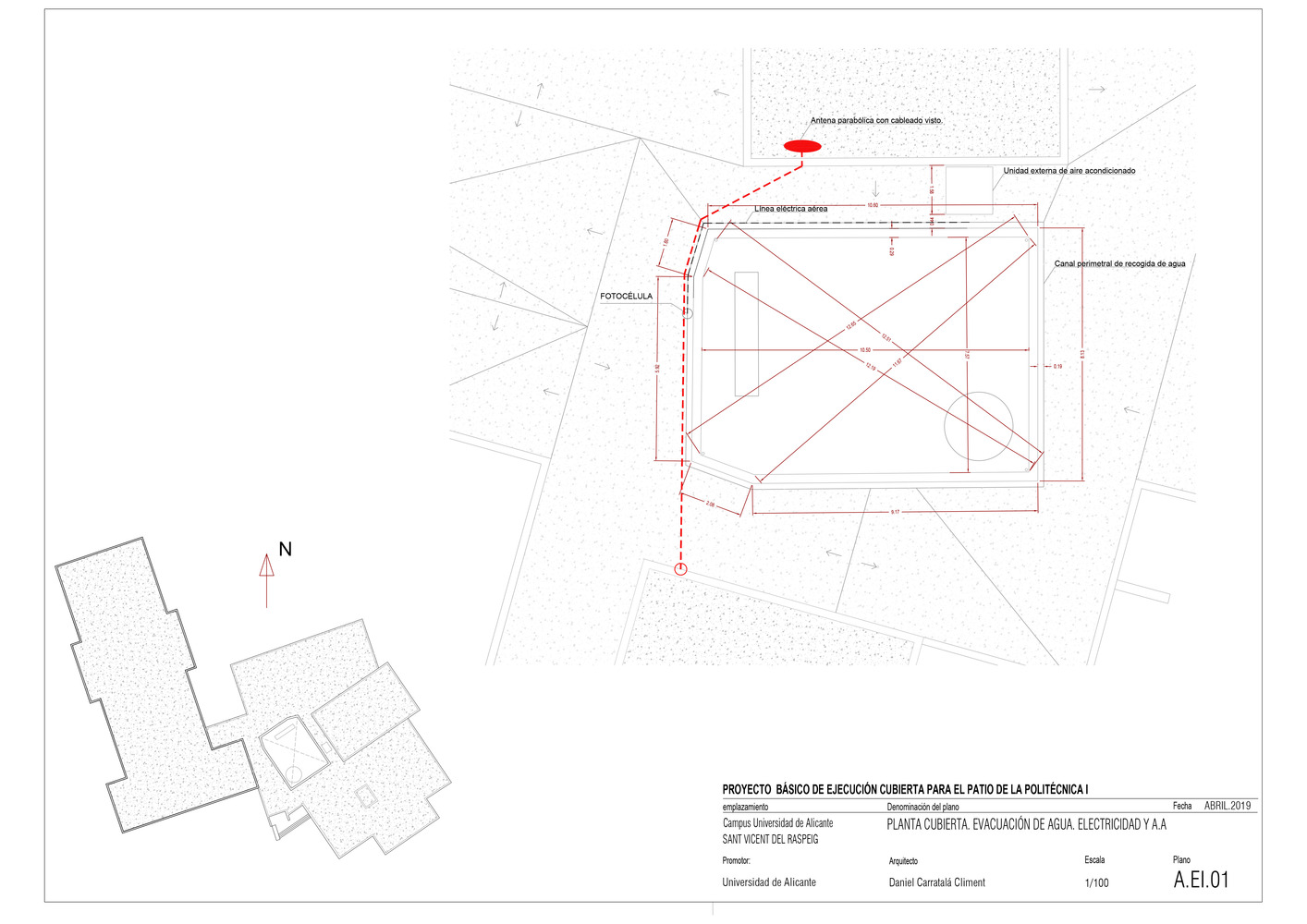

Roof plan
Covering Patio Of Polytechnic UA

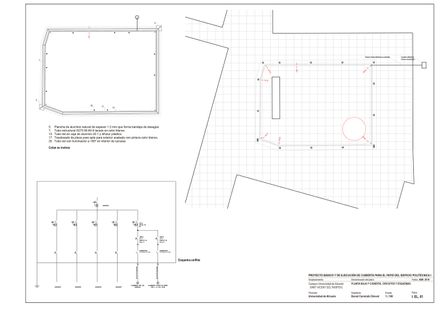

Electric Plan
Covering Patio Of Polytechnic UA
Sanitation Plan
Covering Patio Of Polytechnic UA
Site Plan
Covering Patio Of Polytechnic UA
Roof Plan


Covering Patio Of Polytechnic UA

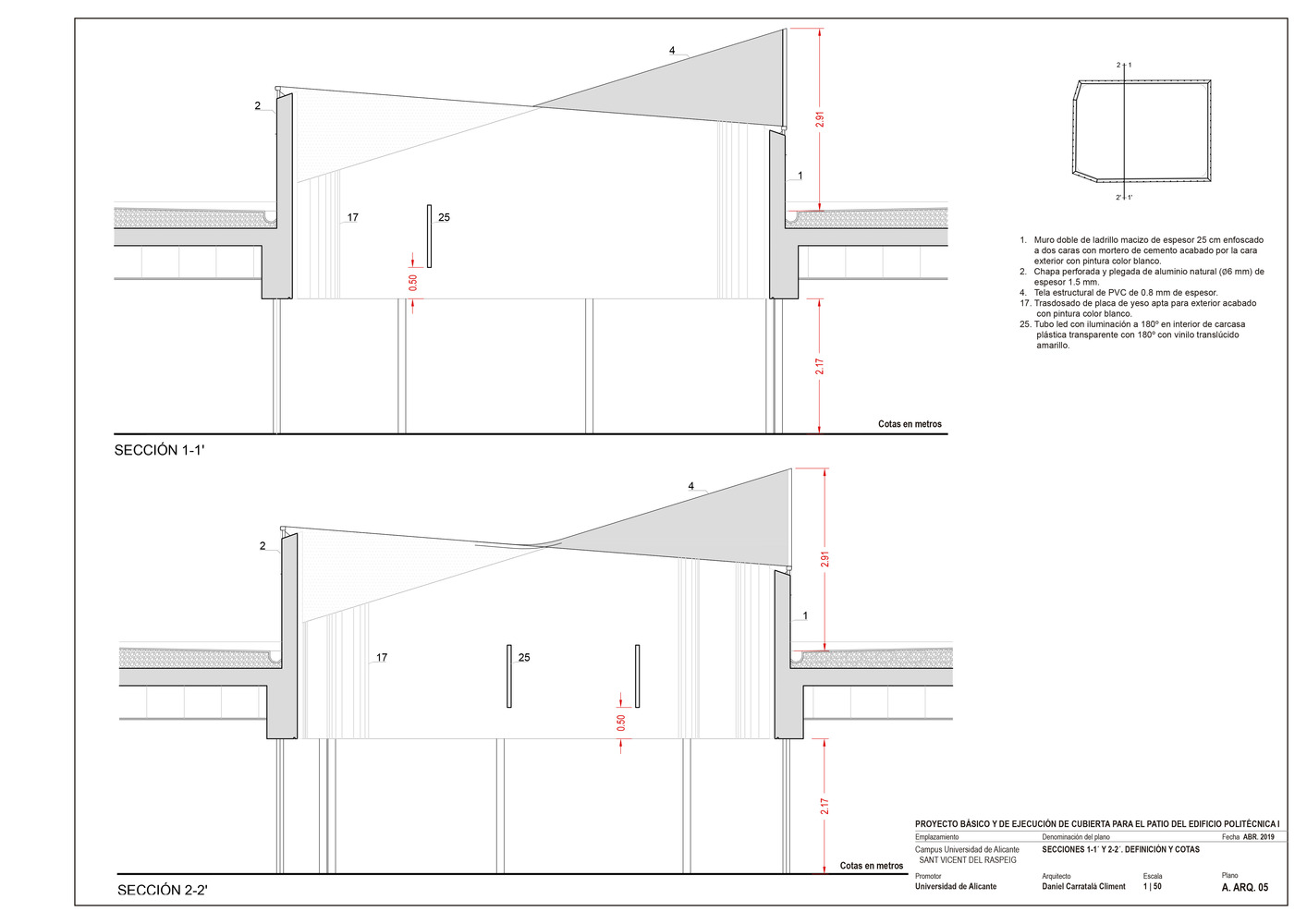

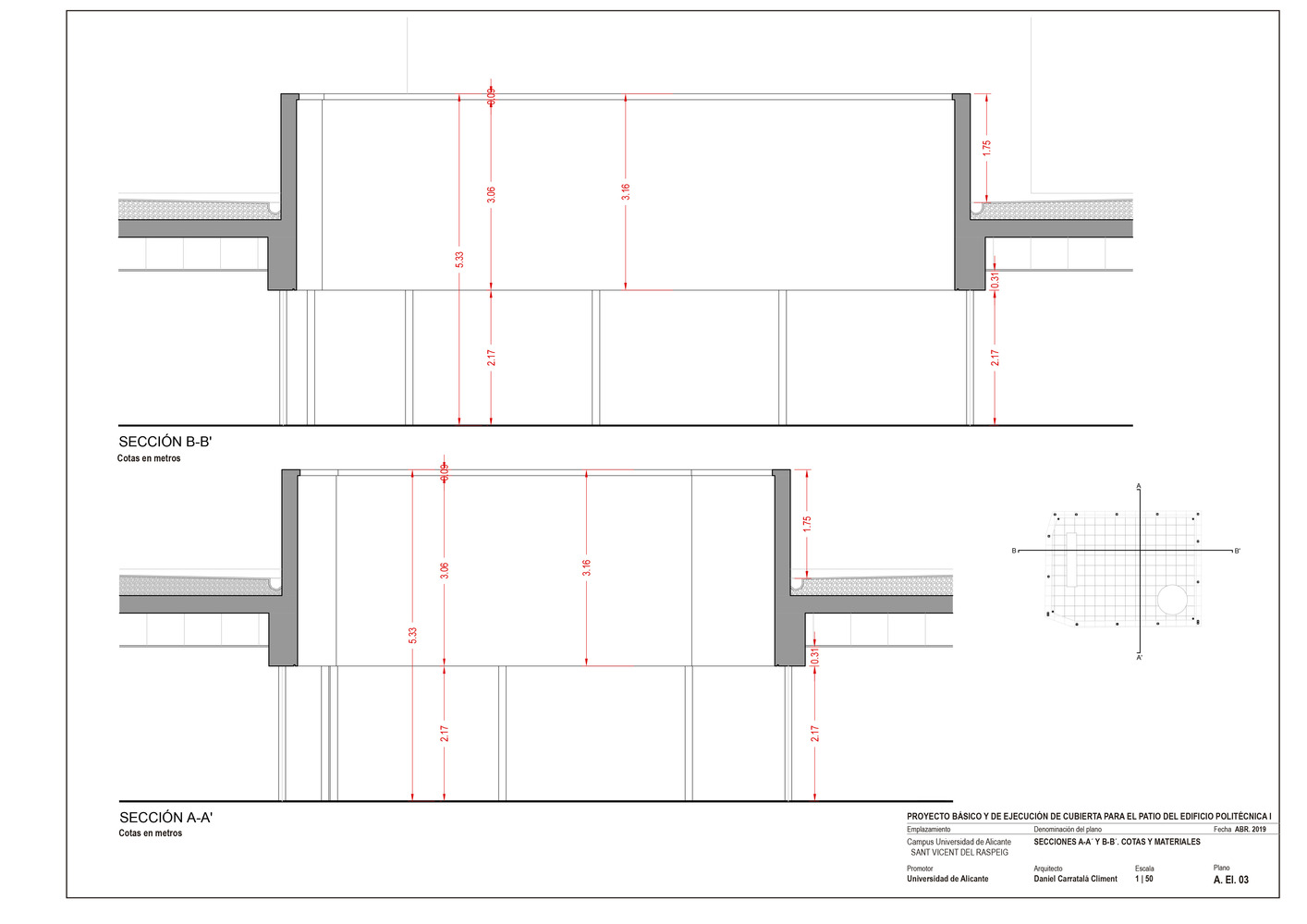

Sections
Covering Patio Of Polytechnic UA
Sections


Covering Patio Of Polytechnic UA
Elevation
Covering Patio Of Polytechnic UA
Elevation


Covering Patio Of Polytechnic UA

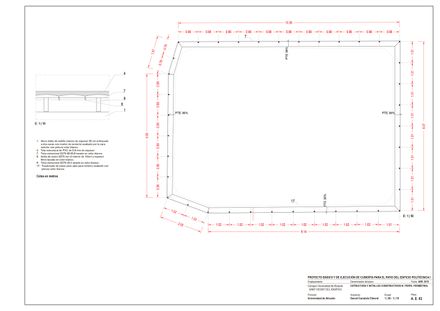

Structure
