WOODEN HOUSE

MAATworks

ARCHITECTS
MAATworks

CONTRACTOR
Kerkhofs Houtbouw, Henrik-Ido-Ambacht

MANUFACTURERS
Metsa Woods, Stora Enso, Züblin

CLIENT
dhr. L. Verbeek

ARCHITECT IN CHARGE
Lidewij Lenders

STRUCTURAL ENGINEER
Raadschelders-Bouwadvies b.v., Spaarndam

AREA
312 m²

YEAR
2010

LOCATION
Amsterda, The Netherlands

CATEGORY
Houses

In spite of the prefab wood elements used in this construction, this private house on Steigereiland in IJburg conjures up the idea of an outsize, five-storey wood-carving. Maatworks architects were commissioned to fill the entire building envelope with a town house inspired by the clients’ beloved Scandinavians houses.

Wooden House
© Marcel van der Burg
Wooden House
© Marcel van der Burg

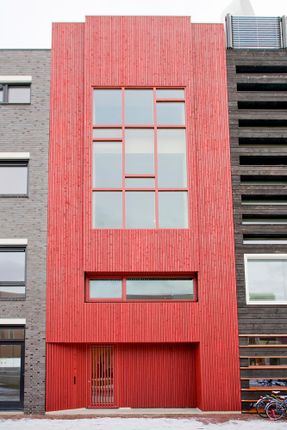

As in previous projects in IJburg, the architects used one material in particular: pine wood.Here that material was even painted bright red for the facade. Behind that eye-catching facade lies a prefab system based on glulam building components that allows the architect to connect nearly all the components both structurally and spatially.

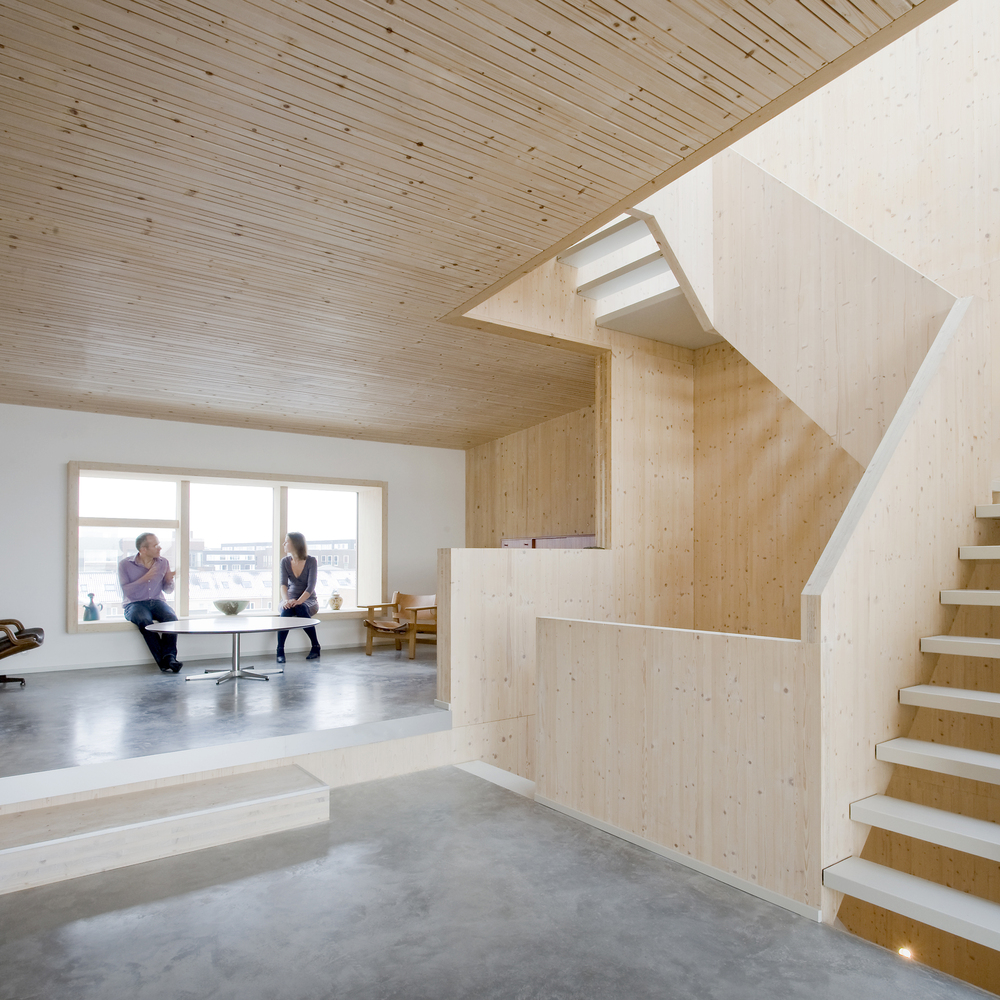

For example, the wall of the staircase are both banisters and walls for the adjoining rooms. Via a large skylight and several small openings in the stairwell, daylight penetrates deep into the house, an effect that is further enhanced by the floor-by-floor widening of the stairwell as it rises.

Wooden House
© Marcel van der Burg
Wooden House
© Marcel van der Burg

The house required minimal detailing because the dimensionally accurate prefab internal walls allowed for plain connections, while all the ducting and recesses for wall sockets were concealed during prefabrication. Pine’s tendency to yellow has been counteracted with a coating of lye.

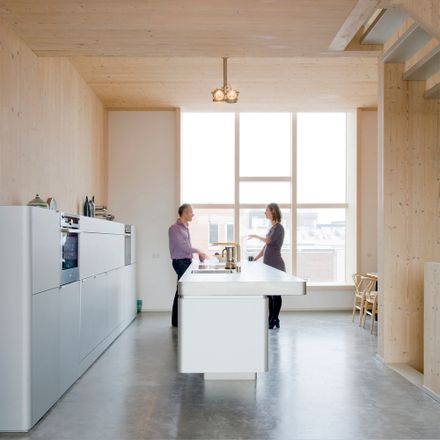

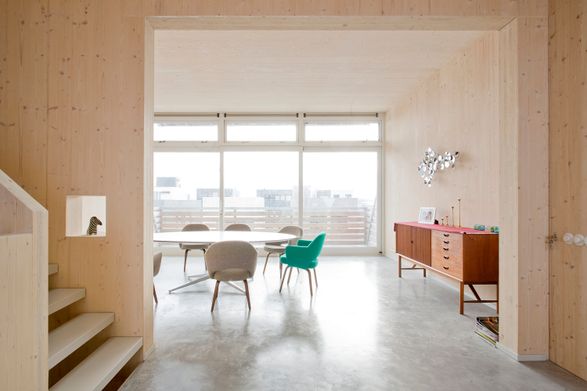

Maat architects avoid monotony in the interior with whitish-grey doors and cement covering floors, with integrated floor heating, finished wit fair-faced concrete.

The house was designed in accordance with the passive solar energy principle: large expanses of south-facing glass ensure that solar heat floods the house in winter, while architectural solar shading in the form of balconies and a roof overhang above the terrace prevent overheating in summer.

Wooden House
© Marcel van der Burg
Wooden House
© Marcel van der Burg

Surplus heat is expelled via the skylight above the stairwell. In combination with the material properties of this “wooden house”, this provides for a pleasant indoor climate and Scandinavian-style domestic bliss in the middle of the big city.

PRODUCT DESCRIPTION.

The wood construction of the house consists of prefab cross laminated elements.

The elements were made by the german company Züblin. Due to the precision of the product, we could even use it for the interior, for example the stairway in this house.

Wooden House
© Marcel van der Burg
Wooden House
© Marcel van der Burg
Wooden House
© Marcel van der Burg
Wooden House
© Marcel van der Burg


Wooden House

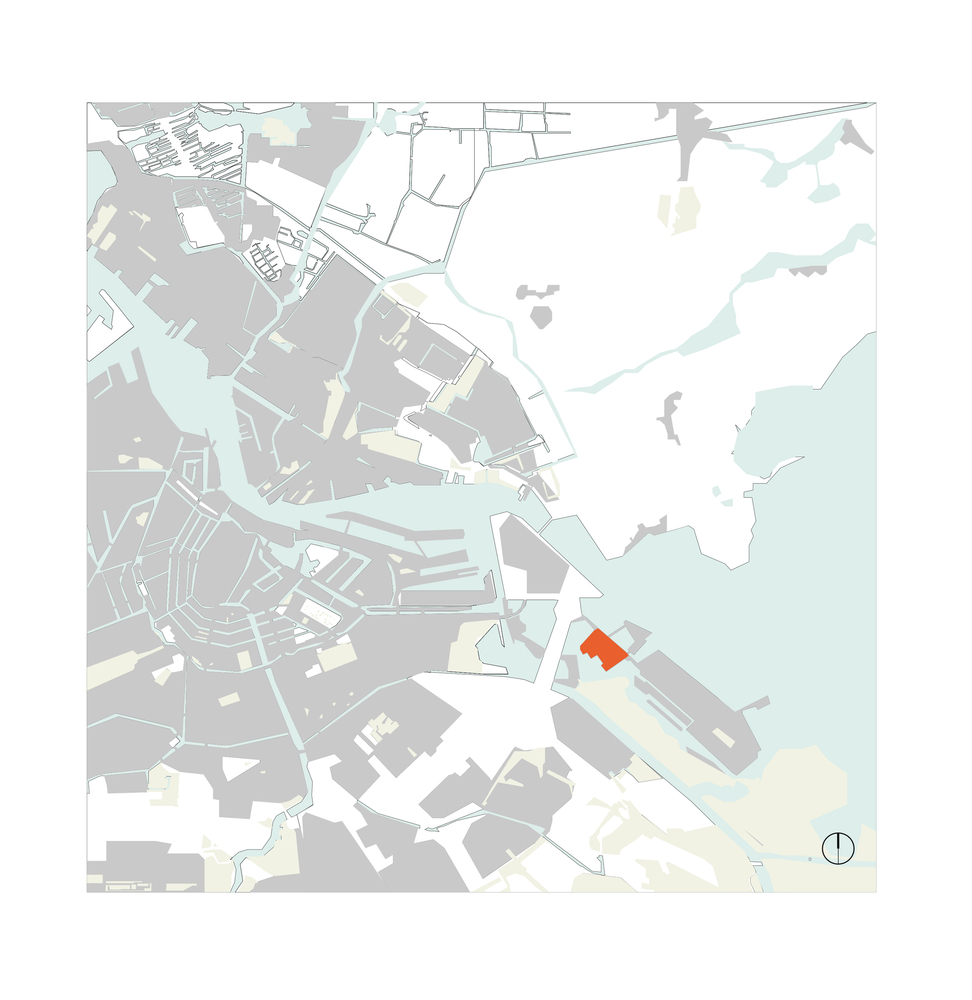

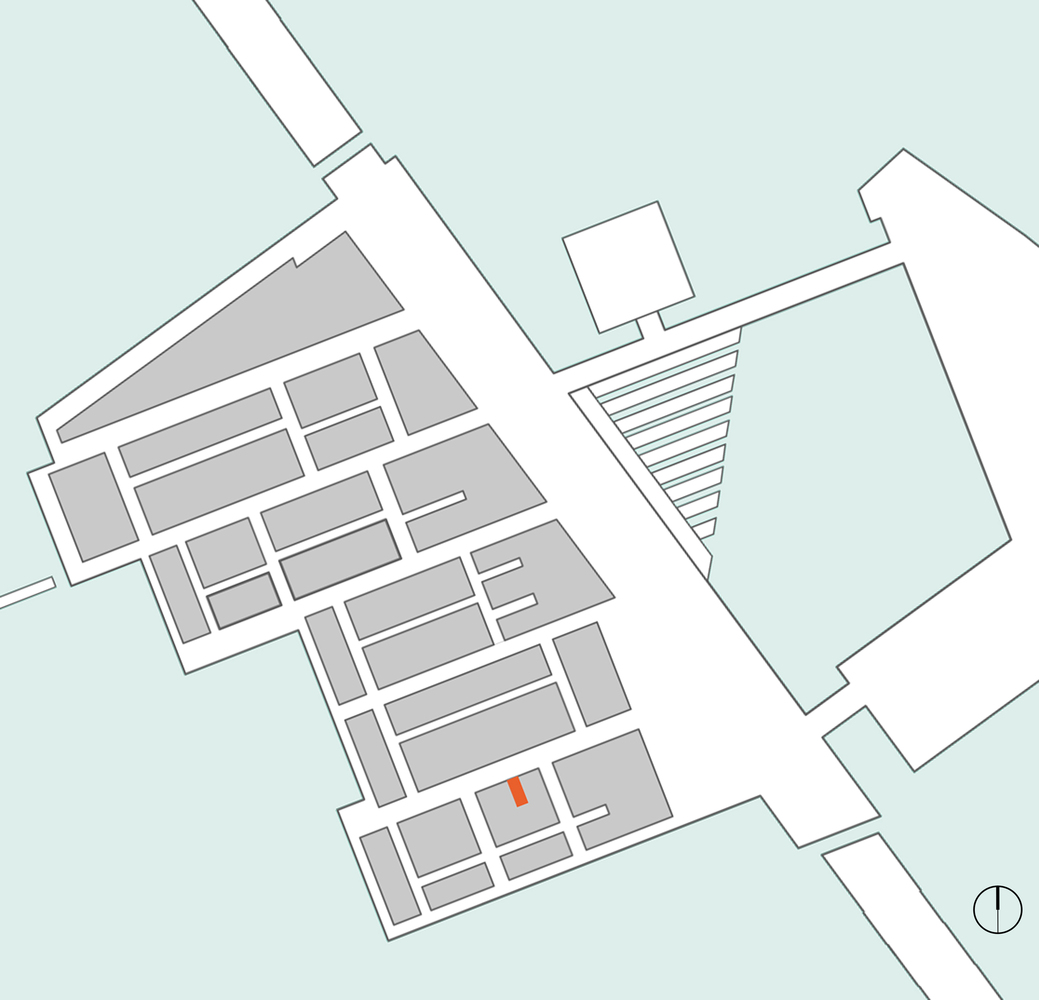

Location
Wooden House

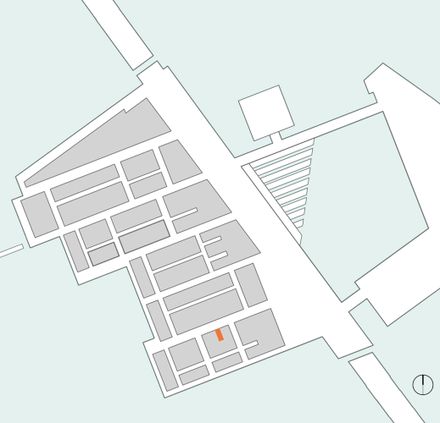

Site Plan


Wooden House

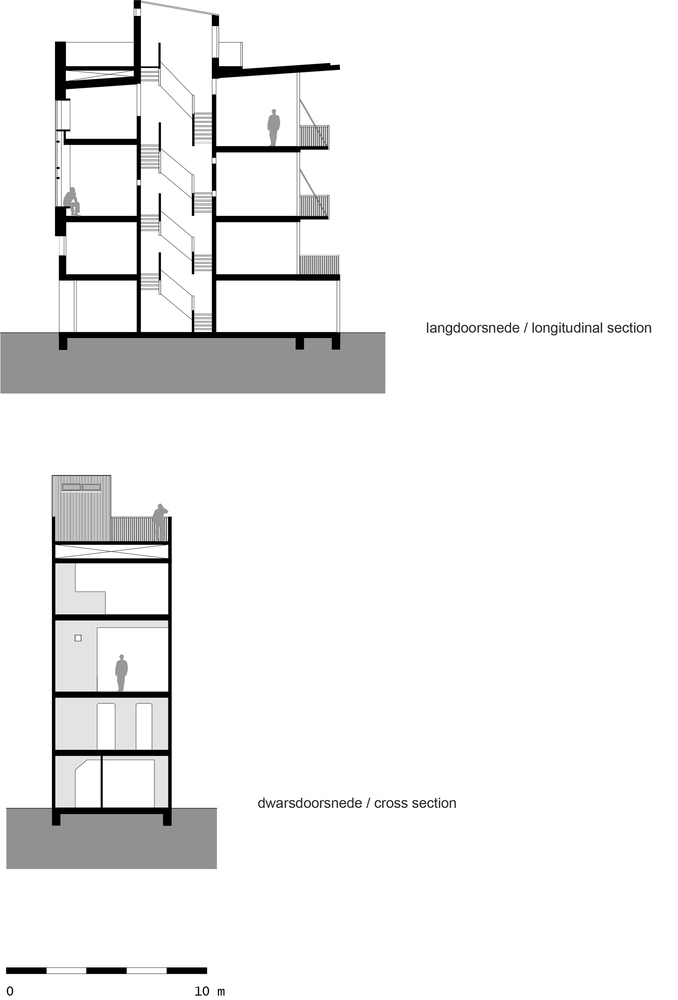

Sections
Wooden House

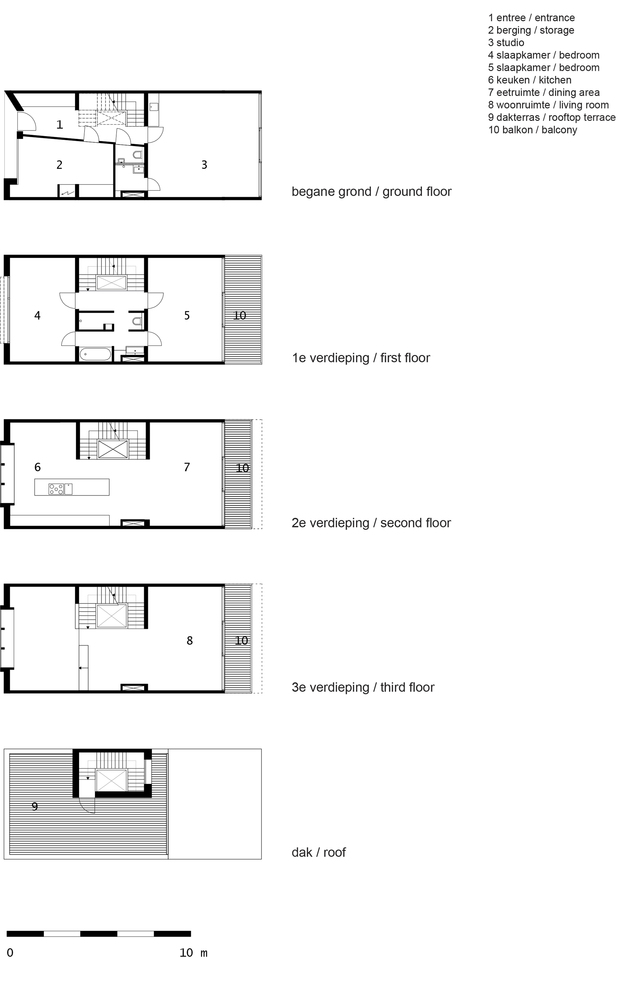

Floor Plans
