PH Scalabrini Ortiz House

PH Scalabrini Ortiz House
© Javier Agustín Rojas

PH Scalabrini Ortiz House

Kohan Ratto Arquitectos

LEAD ARCHITECTS
Brian Kohan + Milagros Ratto

INTERIOR AREA
559 Ft2

EXTERIOR AREA
279 Ft2

AREA
839 ft²

YEAR
2019

LOCATION
Palermo, Argentina

CATEGORY
Houses

Text description provided by architect.

The project is located in the neighborhood of Palermo, in a housing complex in horizontal property of the 40's.

The PH Scalabrini Ortiz is the intervention in the last property of the series, the smallest and closest to the lung of the block.

PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas

Originally conceived as the manager's home and with a total surface area of only 30 square meters, it had undergone successive transformations by the previous owners to the point of being unrecognizable.

The small patio had been roofed to make better use of the surface, but had lost the possibility of expansion, light and good ventilation conditions.

The intervention consisted in first instance in returning a patio to the unit, understanding it as the key condition of the typology of PH dwellings.

PH Scalabrini Ortiz House
© Javier Agustín Rojas

In order to recover the patio, the footprint of the building had to be taken to its minimum expression, and organized into a volume of three levels where each one absorbs a part of the programme.

In this way, a vertical circulation is configured where each stratum establishes a specific interaction with the courtyard and the urban landscape, graduating different situations of intimacy and relationship with the exterior.

The ground floor, with the living room and the kitchen, establishes a completely diluted relationship between interior and exterior, unmarking the limits between the courtyard and the house to shape a continuous and protected space on a double height.

PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas

The studio on the first floor is removed to generate the double height on the ground floor, looking at the patio through the void.

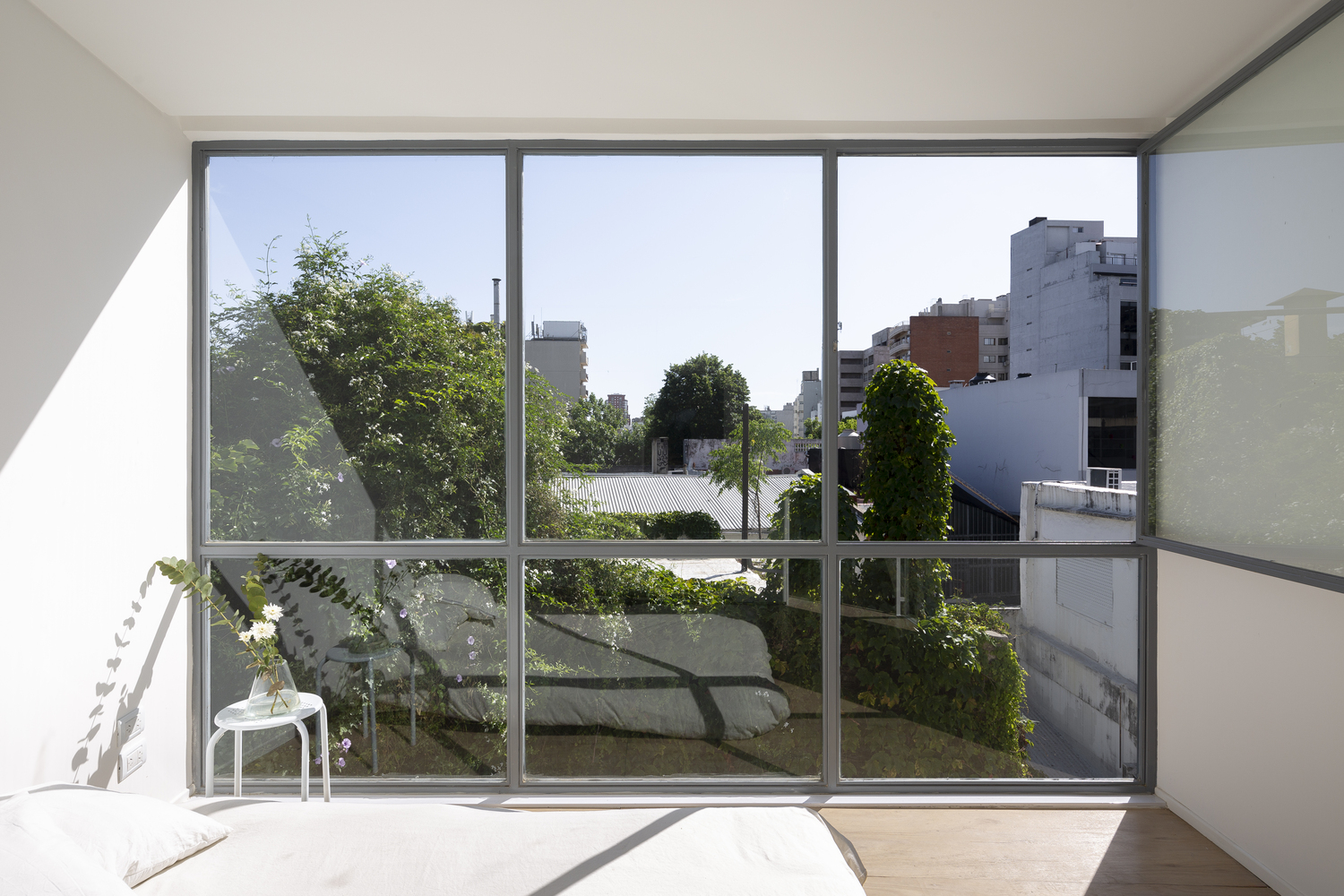

On the second floor, the bedroom rises above the courtyard, recovering the city with a view of the fabric of the block.

Finally, from the terrace-garden, one can contemplate the urban landscape under the shelter of the neighbouring poplar tree.

PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas

The steel-frameing construction system made it possible to minimise the load of the new piece on the pre-existing walls, and also to reduce the execution times of the construction.

PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas


PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas
PH Scalabrini Ortiz House
© Javier Agustín Rojas


PH Scalabrini Ortiz House
Ground floor plan
PH Scalabrini Ortiz House
1st floor plan
PH Scalabrini Ortiz House
2nd floor plan
PH Scalabrini Ortiz House
Roof plan


PH Scalabrini Ortiz House
Implantation


PH Scalabrini Ortiz House
Axonometric 01
PH Scalabrini Ortiz House
Axonometric 02
PH Scalabrini Ortiz House
Axonometric 03
PH Scalabrini Ortiz House
Section 01
PH Scalabrini Ortiz House
Section 02
