Mwworks

Canyon Barn

Canyon Barn
© Tim Bies Photography

CANYON BARN

Mw|works

ARCHITECTS
Mwworks

MANUFACTURERS
Hi-lite Manufacturing, Windowcraft, Marine Grade Fir Plywood

LANDSCAPE
Allworth Design

STRUCTURAL ENGINEERING
Harriott Valentine Engineers

CONTRACTOR
King Construction

INTERIOR DESIGN
Nelleen Berlin Interior Design

WOODWORK
Fine Woodworking

UPHOLSTERY
Village Interiors

AREA
3875 M²

YEAR
2013

LOCATION
United States

CATAGORY
Houses

Text description provided by architect.

Located in the eastern foothills of the cascades, this 3,900-square-foot renovation converted a turn of the century working barn into a three-bedroom re- treat from the city.

Canyon Barn
© Tim Bies Photography
Canyon Barn
© Tim Bies Photography

The building was restored with the intention of creating a comfortable home while retaining much of its original form, character and history.

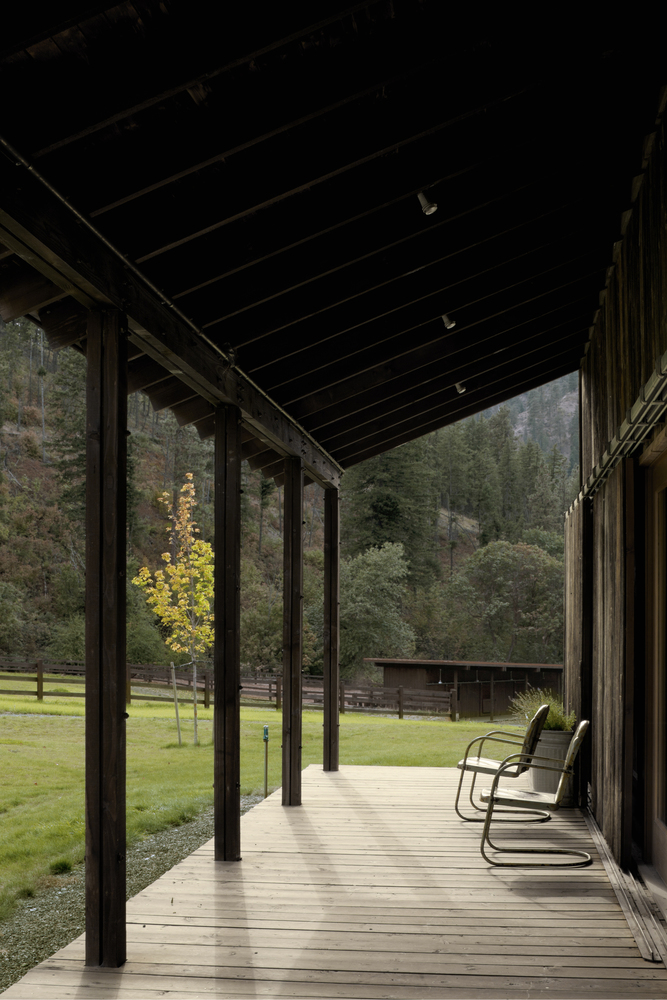

The exterior of the building retains the bulk of its original vernacular form, but adds a deep covered porch and large operable windows and doors.

Structural, waterproofing, and insulation requirements necessitated a nearly a complete new building including a new foundation and framing, new siding and weather barrier, and the addition of insulation throughout. In the end, an entirely new roof structure had to be built over the existing, now decorative, roof structure to bring it up to code.

Canyon Barn
© Tim Bies Photography
Canyon Barn
© Tim Bies Photography

The existing framing and siding was carefully removed and reused as exposed interior framing elements. The living area fireplace was custom-fabricated form sheets of hot-rolled steel.

Paneling, flooring, even fixtures and doors were sourced from either the original building or salvage yards.

Rusting gears, levers, and wire bales found in the adjacent field were transformed into a dumbwaiter and fireplace damper controls.

Canyon Barn
© Tim Bies Photography
Canyon Barn
© Tim Bies Photography

The dining area is lit with a custom-designed fixture created out of an abandoned bale of wire fencing.

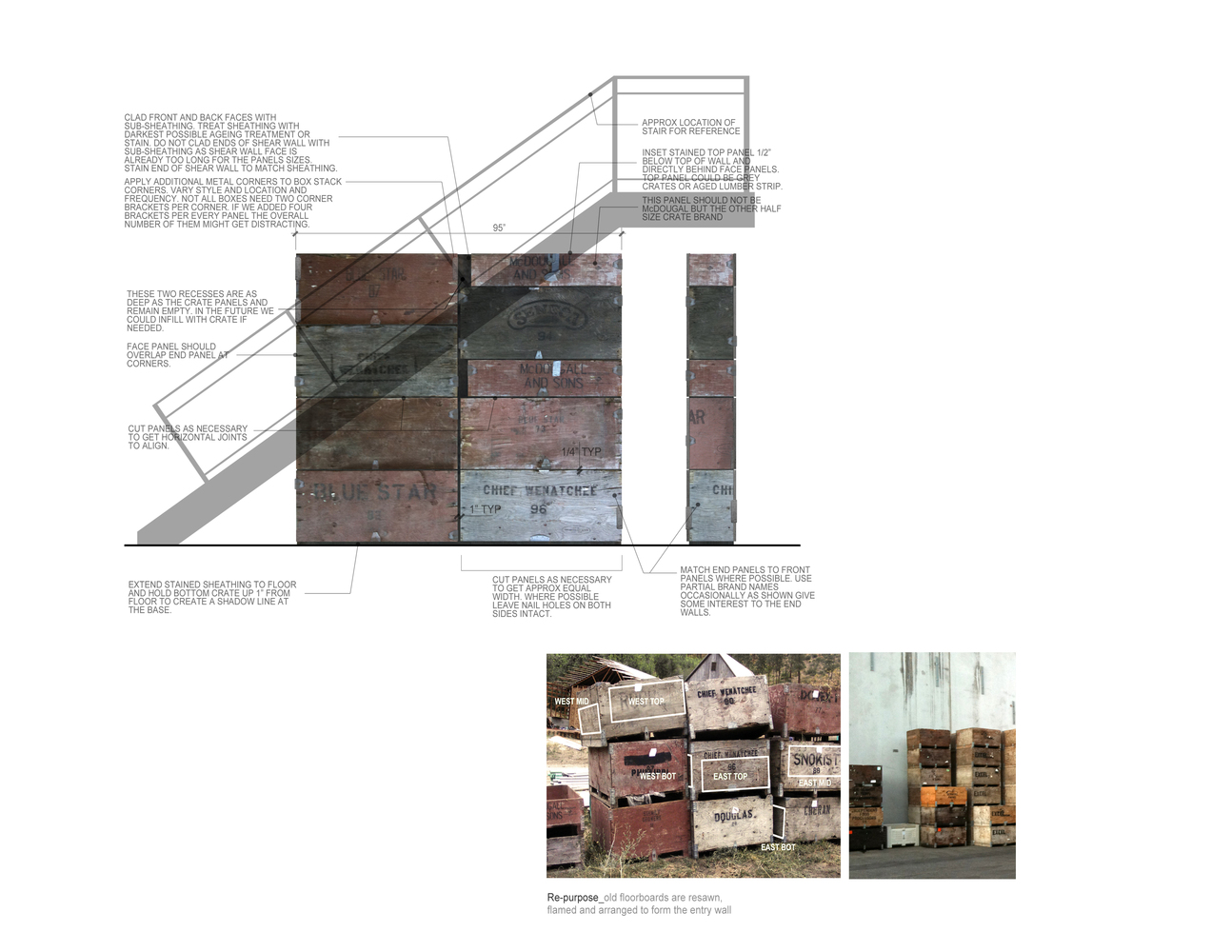

Apple crates from the property were carefully composed into wall panels flanking the stair.

An existing wooden cattle holding pen was carefully removed from the barn and rebuilt as mudroom casework and a pet feeding area.

Canyon Barn
© Tim Bies Photography
Canyon Barn
© Tim Bies Photography
Canyon Barn
© Tim Bies Photography

The kitchen island is decidedly contemporary: hot-rolled steel with an ash butcher block top. Kitchen counters are concrete.

As a barn, lighting had not been a priority; as a living space, however, introducing daylight was critical.

Large expanses of glass were introduced, including a trio of sliding doors that open the den to a sun porch, as well as converting the former hayloft and barn doors into a large glazed facade.

Canyon Barn
© Tim Bies Photography
Canyon Barn
© Tim Bies Photography
Canyon Barn
© Tim Bies Photography

New interventions were carefully considered to have a modern aesthetic while at the same time working within this raw palette.

A blend of preservation and intervention, this project updates an aging barn without losing the memory of its history.


Canyon Barn
Ground Floor Plan
Canyon Barn

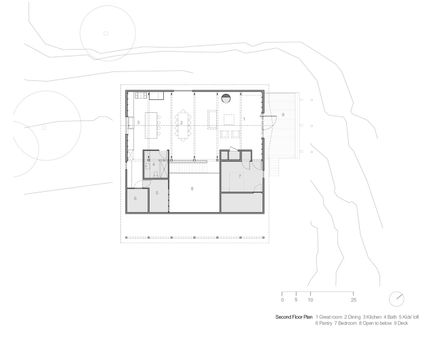

Second floor plan


Canyon Barn

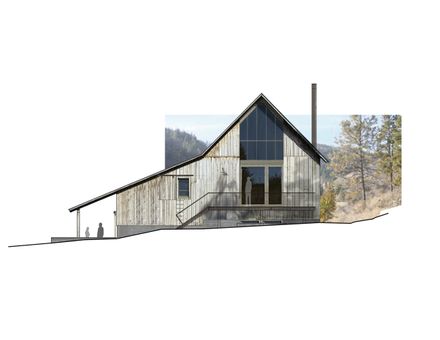

Elevation 01
Canyon Barn

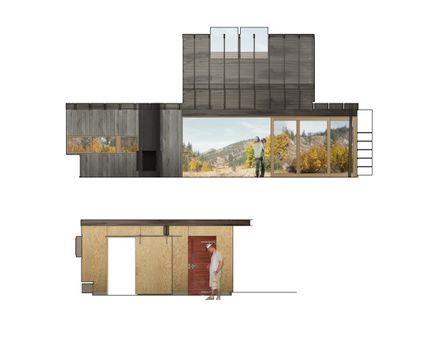

Elevation 02


Canyon Barn
Axonometric
Canyon Barn
Axonometric


Canyon Barn
Interiors
Canyon Barn
Details
Canyon Barn
Living
Canyon Barn
Sink
Canyon Barn
Lamp
Canyon Barn
Render / Stairs. Image Courtesy of mw|works architecture + design
Canyon Barn
Site
