Myntra Thinktank

Myntra Thinktank
© D Murali

MYNTRA THINKTANK

3fold Design

ARCHITECTS
3fold Design

LEAD ARCHITECTS
Praveen M, Santhosh Tv

MANUFACTURERS
3m, Autodesk, Delta Light, Adobe Systems Incorporated, Sugam Engineeers, Trimble Navigation

DESIGN TEAM
Praveen M, Janki P, Suhan Ps

PROJECT MANAGEMENT
Evoxemo

LANDSCAPE
3fold Design

CLIENTS
Myntra

GRAPHIC DESIGN
Evoxemo

ENGINEERING
Bengaluru, Eda Consultants

PHOTOGRAPHS
D Murali

AREA
290 m²

YEAR
2019

LOCATION
Bangalore, India

CATEGORY
Offices Interiors

Set in the Myntra Headquaters, Bangalore the “Think Tank” is a departure from the typical office typology, as the brief demanded a different approach. The space assigned was part of an existing cafeteria and games area.The challenge therefore was that it had to be completely demarcated, visually and acoustically.

Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali

The Studio was conceived as being a cool contemporary workspace for the in house fashion designers and thrives on its ability to transform itself into a fashion event space.The office reveals itself to the audience in case of an event with acoustically treated Sliding/Folding doors that open out from end to end.

The intent throughout the design process was to keep the office flexible thereby giving the designers options to work and collaborate out of different seating and meeting arrangements.

Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali

The intent throughout the design process was to keep the office flexible thereby giving the designers options to work and collaborate out of different seating and meeting arrangements.

All the furniture are on wheels, allowing the interlocking tables to join and form bigger work tables.The mood boards are also movable and can be setup to facilitate the displaying of fabric samples and trims.

Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali

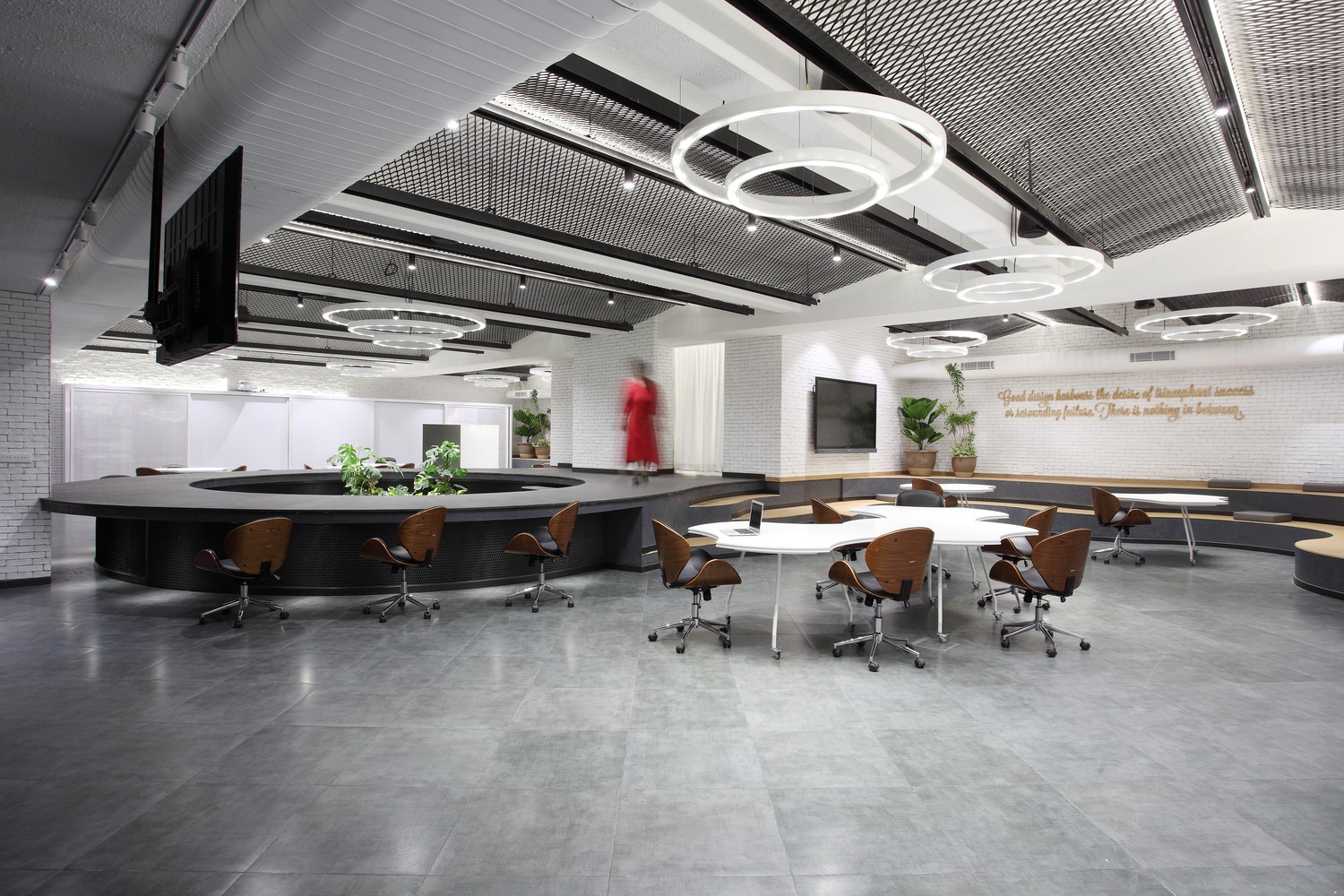

The ramp essentially is the heart of the office. With a dressing and fitting room attached at the back, designers can try out styles on models and modify them as they choose. When not in use it is also used as a work table.

The peripheral walls are storage with some of the sliding door treated with 3M projection/Writing film and some with slot channel to supports shelves.

Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali

This storage shutters double up as being surfaces to make presentations by setting mood boards, sketching ideas and also to project imagery with short throw projectors.

The design proposition from the conceptual stage was to create a comfortable environment for the designers to ideate creatively and effectively.


Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali
Myntra Thinktank
© D Murali


Myntra Thinktank
Diagram 01
Myntra Thinktank
Diagram 02


Myntra Thinktank
Amphitheatre Marking Plan
Myntra Thinktank
Exploded View


Myntra Thinktank
Layout
Myntra Thinktank
Ramp Plan


Myntra Thinktank
Reflected Ceiling Plan Drawing
Myntra Thinktank

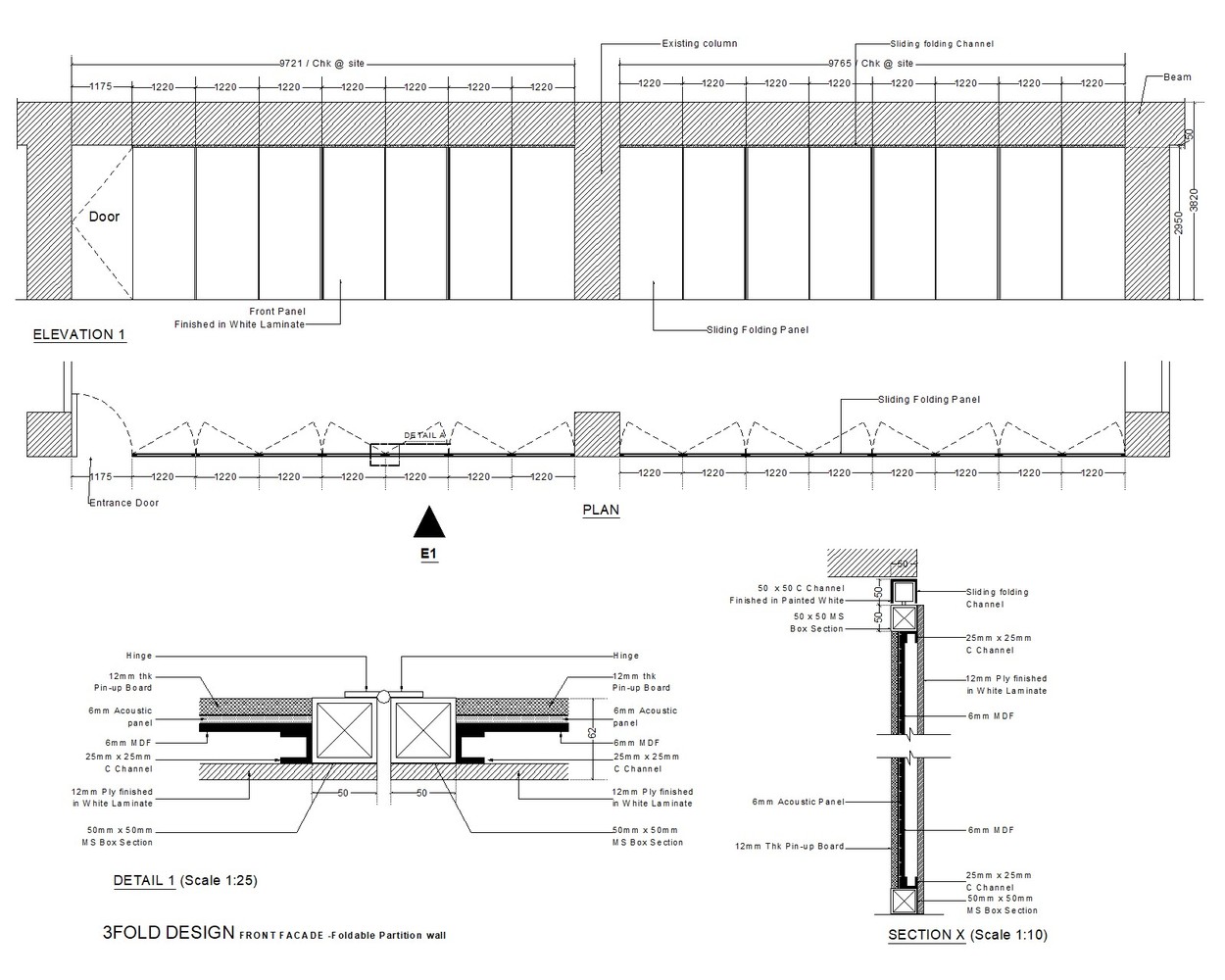

Front Facade partition
