YOGLAR MUSICAL SCHOOL

Enrique JerezInterior Designers: Leal Interiorismo y Diseño

ARCHITECTS
Enrique Jerez

CLIENT
Yoglar (Rocío Madueño)

INTERIOR DESIGNERS
Leal Interiorismo y Diseño

COLLABORATORS
Cristina González Sinobas, Beatriz González Yagüe, Alicia Maraña Diez

RIGGER
Iván Poncelas Ramón

CONTRACTOR
Construcciones Gesdesbur SL

LEAD ARCHITECTS
Enrique Jerez Abajo, Blanca Leal García

CONSTRUCTION FOREMAN
María Paz de Quevedo

MANUFACTURERS
Fritz Hansen, Tarkett, Diamante SL, Faro

PHOTOGRAPHS
Javier Bravo

AREA
205 m²

YEAR
2018

LOCATION
Burgos, Spain

CATEGORY
Schools

Text description provided by architect.

Yoglar is a new school for early music and piano education located in a 1950s’ residential area in Burgos (Spain), where our client wanted to create “a home for the music”.

Yoglar Musical School
© Javier Bravo
Yoglar Musical School
© Javier Bravo
Yoglar Musical School
© Javier Bravo

Our aim was to design a place both unique and functional, which could foster children's creativity while achieving clear results in their music development from 0 to 12 years.

The site, an old garage located in the ground floor of an old housing block, owes its singular shape to 2 projects from the beginning of the 1950s.

The first of them, at the front part of the plot and facing the street, is located under a residential building, where the original garage was placed, according to a project from 1947; it is built by means of an organised structure with load bearing walls parallel to the façade.

Yoglar Musical School
© Javier Bravo
Yoglar Musical School
© Javier Bravo
Yoglar Musical School
© Javier Bravo

The second one, at the back, is the result of an extension from 1952, when the old courtyard was almost fully built in and a new mezzanine level was added over it, to use it as a storehouse; in this area, the structure is much more disorganised, and it is built by means of pillars.

The project tries to take advantage of this quirky container’s values by keeping the outer shell almost untouched.

The floor, the walls and the ceilings are unified by a material and chromatic continuity that leaves almost everything in view and makes the most of the good acoustic qualities of this formless shell.

Yoglar Musical School
© Javier Bravo
Yoglar Musical School
© Javier Bravo

Inside of this concrete-grey and irregular container, the project is divided into 2 different areas:

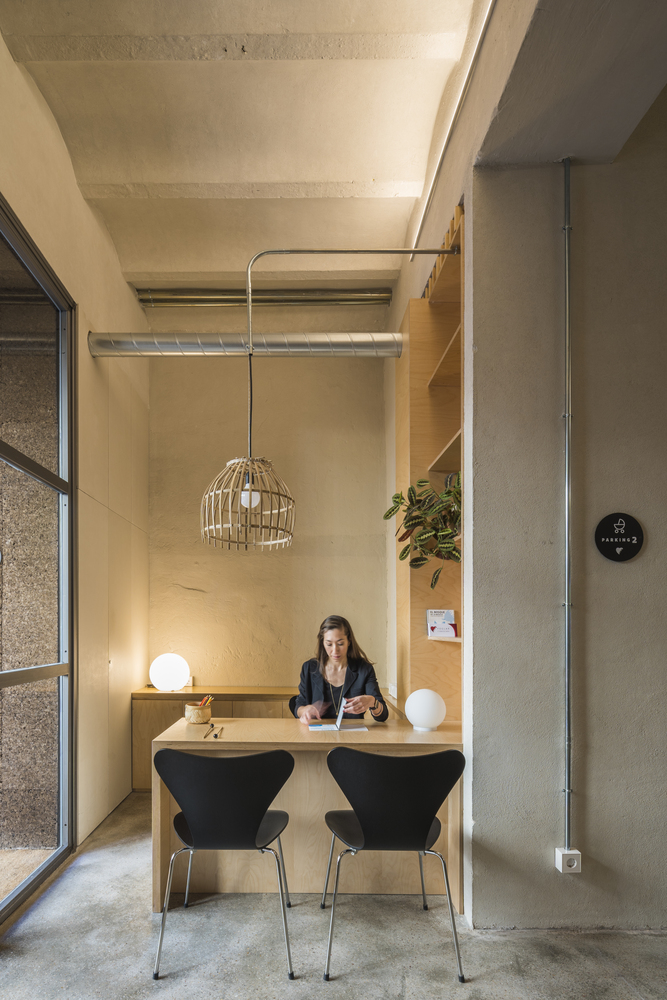

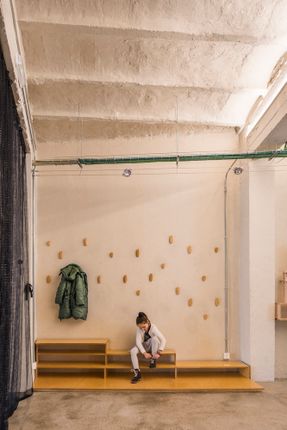

A. The space located under the residential building, with a trapezoidal shape, is the result of the ordered load bearing walls’ structure, and is home to the access hall, the reception desk, the toilets, the manager office and the biggest classroom.

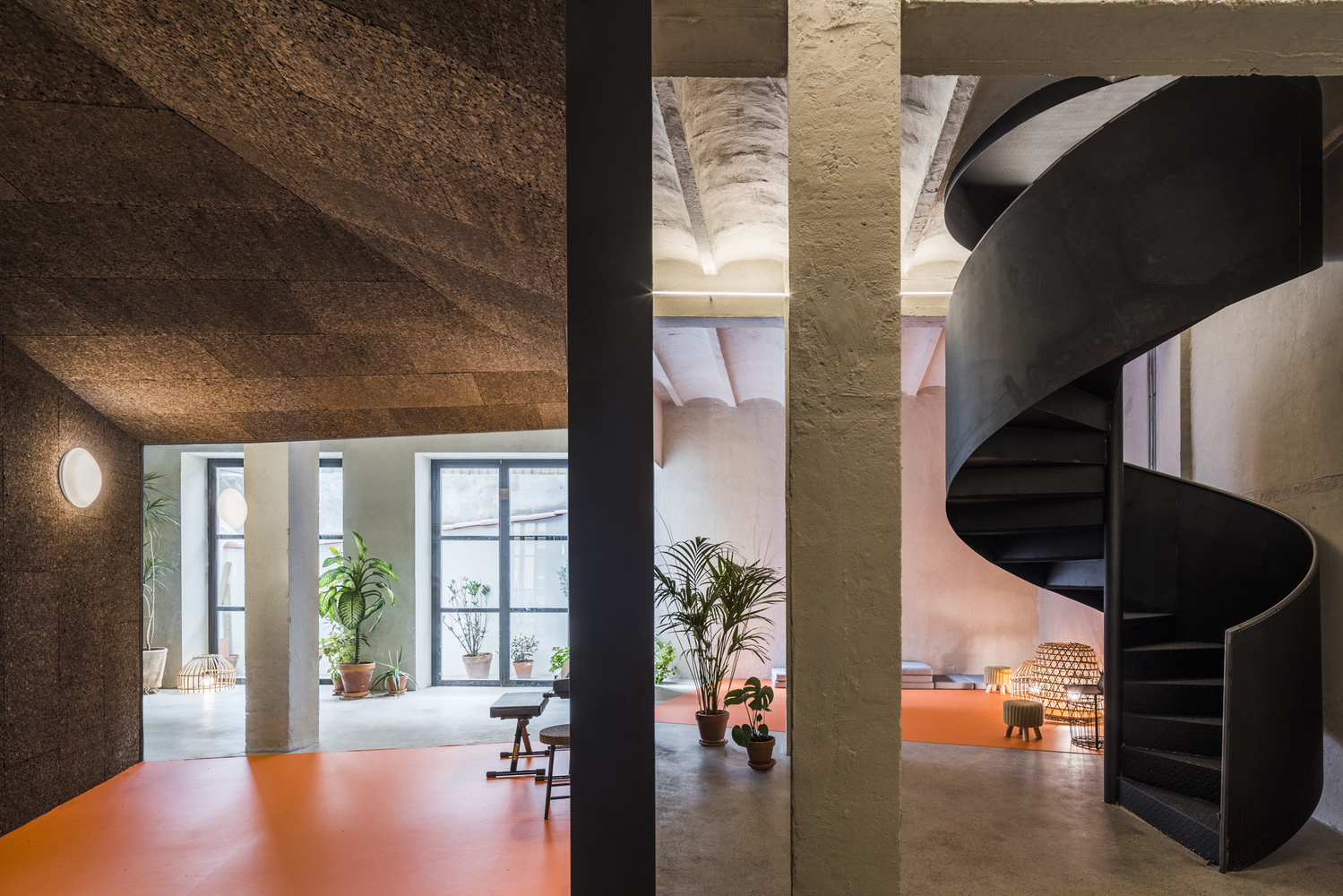

B. The ‘forest’, or the area located where the original courtyard of the building was, has an irregular perimeter and an apparently disorganised structure.

Yoglar Musical School
© Javier Bravo
Yoglar Musical School
© Javier Bravo

Here are placed the remaining two classrooms, or ‘houses’, with an irregular geometry.

One of them is totally covered with 3cm thick natural cork.

The other one, just like an imaginary air volume, is barely shown by its flooring footprint.

Yoglar Musical School
© Javier Bravo
Yoglar Musical School
© Javier Bravo

At the back of this man-made forest, a small patio that can be easily connected with the interior provides the natural light that the school needs.

Together with the dominant grey from the outer shell, the project is softened by some elements that provide the necessary cosiness, such as the “fixed furniture”, made of birch wood.

Yoglar Musical School
© Javier Bravo
Yoglar Musical School
© Javier Bravo

All of that has been done in order to generate a child-friendly place, able to encourage kids’ imagination, creativity and early interest in music.
