RENOVATION OF ST. MARTHA’S CHURCH IN NÜRNBERG

Florian Nagler Architekten

CONSTRUCTION MANAGER
Planungsbüro Zeiser Gmbh, Nürnberg

MANUFACTURERS
Pilkington, Jacobi-walther, Bamberger Natursteinwerk, Beumler, Lehm Ton Erde Baukunst Gmbh, Orgelmanufaktur Jürgen Lutz, Müllerblaustein Holzbauwerke Gmbh

STRUCTURE ENGINEERS
Mittnacht Beratende Ingenieure, Würzburg

BUILDING PHYSICS
Wolfgang Sorge Ingenieurbüro Für Bauphysik

LIGHTING DESIGNERS
Candela Lichtplanung Gmbh, Stuttgart

PROJEKT MANAGEMENT
Florian Nagler

PROJECT MANAGEMENT
Matthias Müller

CO WORKER
Iris Sitbon, Nina Burri

STONE CONSULTANTS
Pro Denkmal Gmbh, Bamberg

PHOTOGRAPHS
Pk Odessa Co

AREA
604 m²

YEAR
2019

LOCATION
Nuremberg, Germany

CATEGORY
Churches, Restoration

Text description provided by architect.

In the year 2014 burned down the 1385 consecrated Church St. Martha Kirche in Nuremberg for unexplained reasons. It was also lost the original historical roof truss over the Church interior.

Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co
Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co

It was the construction task, to rebuild the Church in its formerly outer contour. The interior otherwise could be reshaped with contemporary constructions.

The church St. Martha Kirche is sited in the center of Nuremberg, nearly hidden in the fabric of the city behind a gap between the townhouses of the Königstraße. The church can be reached via a small forecourt.

In the church room are now after the reconstruction diverse ecclesiastical, diaconal and non-church events possible. Further was the reconstruction of the organ loft, the choir room, the sacristy and the bell chair part of the construction task.

From the outside the original materiality has been received (restoration of the historic natural stone walls, new parts replace the building fabric lost due to the fire true to the original).

Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co
Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co

Only the big tracery window at the west gable wall, that was irreparable damaged by the fire and the church portals give an indication of the redesign in the interior.

There arise through the interaction of the historical natural stone construction with the contemporary wood construction a new space, completed by a rammed earth floor.

From the start of planning the reconstruction of the church St. Martha Kirche was understood as a common project. Draft and execution planning were presented to the parishioners and decisions were made together.

Static analyzes and monument conservation studies have been performed to find technically well-founded reconstruction activities.

Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co
Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co

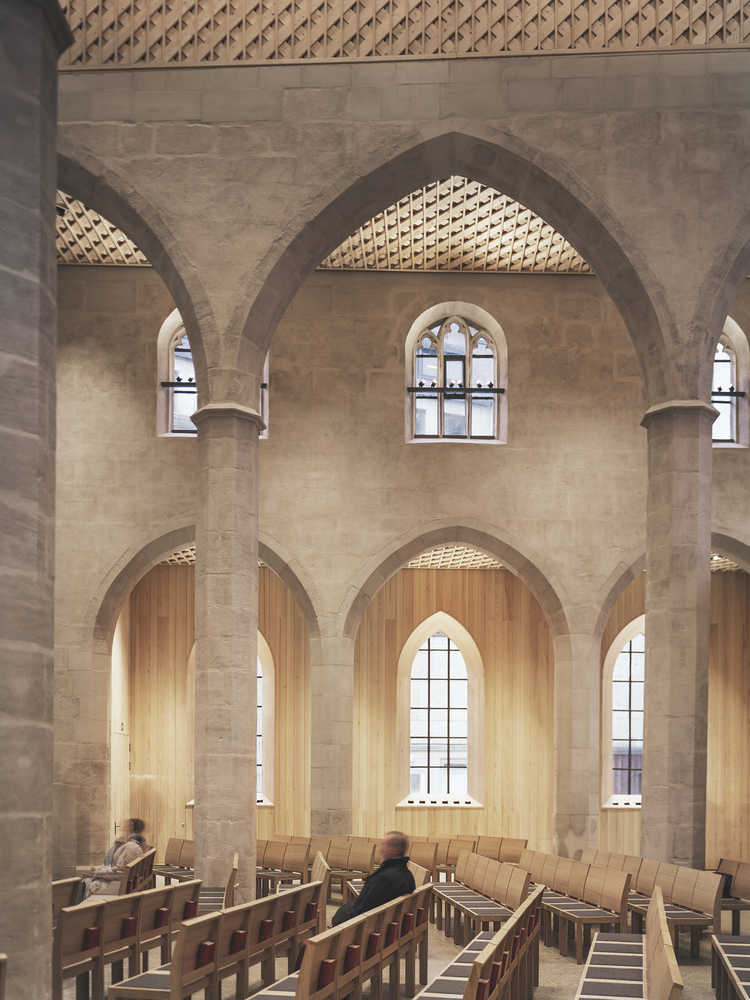

The natural stone constructions have been restored and remained otherwise unchanged. The reconstruction of the roof truss was built as a collar beam roof consisting of unglued solid wood.

To the restored flat ceilings in the laterally church aisles is added a further flat ceiling in the main church aisles, replaces the originally barrel ceiling. The flat ceilings consists of diagonal board layers.

They are linked with the roof structure of the roof truss and act as plates, that cause the longitudinal stiffening of the roof truss and the natural stone walls.

These elements are acoustically effective and the insulation level is arranged in it. The roof itself is a cold roof.

Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co
Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co

The floor consists of vapor permeable rammed earth, which was applied on the found historical floor covering over a mineral insulation layer.

The windows were closed with large-formated fixed glazing, except of some small, necessary ventilation blades. For the glazing are used coated single glazing with improved insulation properties.

The historic stained glass windows in the choir room were expanded at the time of the fire for restoration purposes. So they could be built in at the originally place.

Renovation Of St. Martha’s Church In Nürnberg
© PK Odessa Co


Renovation Of St. Martha’s Church In Nürnberg

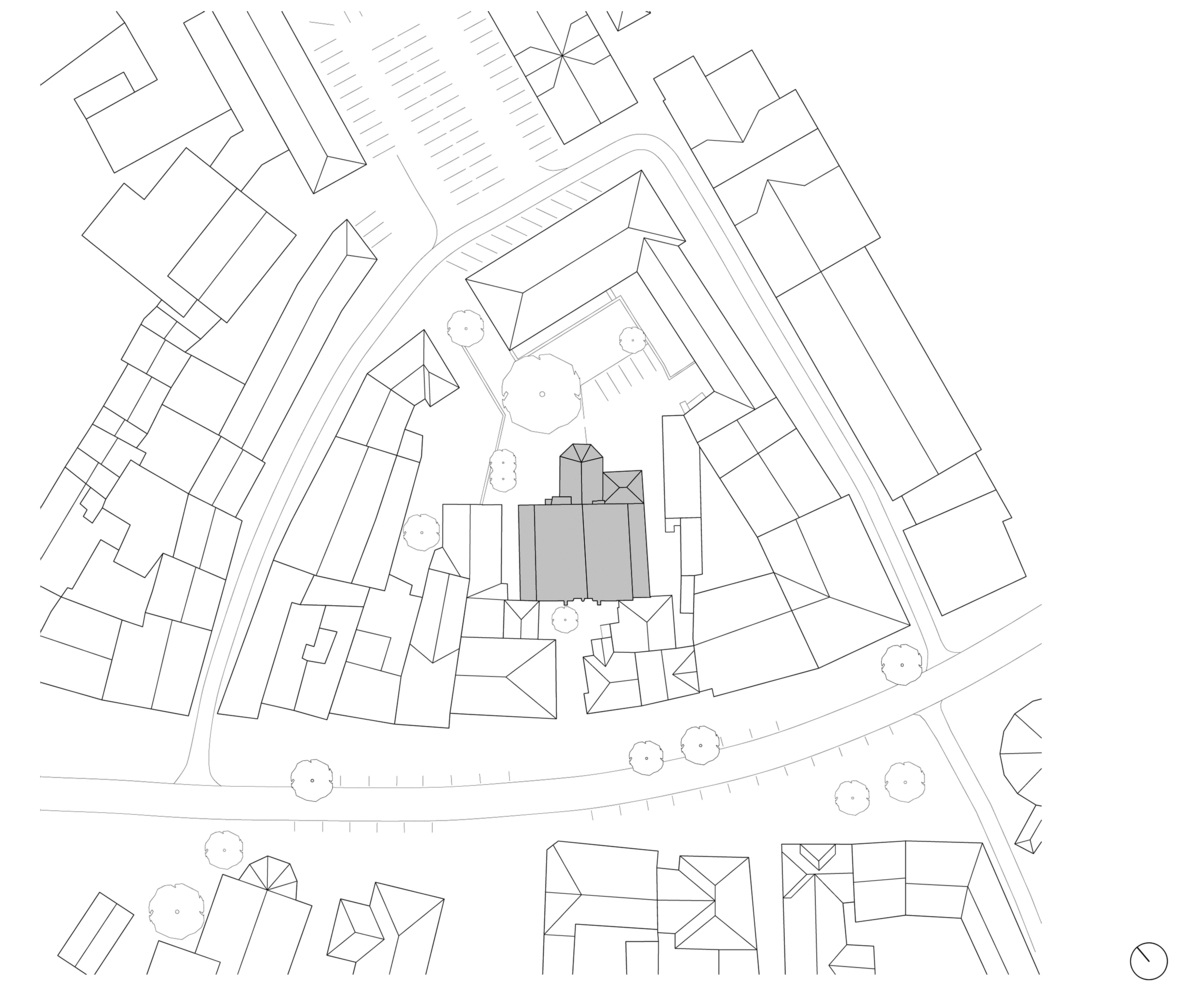

Plan - Site
Renovation Of St. Martha’s Church In Nürnberg
Plan
Renovation Of St. Martha’s Church In Nürnberg
Plan - Site
Renovation Of St. Martha’s Church In Nürnberg
Section - Cross
