Cowork Wayco Ruzafa Extension

Cowork Wayco Ruzafa Extension

COWORK WAYCO RUZAFA EXTENSION

José Costa

ARCHITECTS
Jose Costa

MANUFACTURERS
Actiu, Famo, Tarkett, Ofival, Sp Systems

LEAD ARCHITECTS
Jose Costa

STRUCTURAL CALCULATION
Javier Cases

TECHNICAL ARCHITECT
Ignacio Gazo

CLIENT
Wayco

ELECTRICAL INSTALLATION DESIGN
J. Miguel Sabina

AIR CONDITIONING AND AIR RENEWAL
Leing Ingeniería

DESIGN TEAM
Francisco Pons, Pau Olivares, Marco Grechi. Alejandro Martínez, Bea Aguilera

AREA
17114 Ft²

YEAR
2019

LOCATION
València, Spain

CATEGORY
Renovation, Extension, Cowork Interiors

On the final stretch of the construction works of Wayco Ruzafa coworking space, the opportunity to add the adjacent property arose. A 1590m2 premise that had hosted the Goya cinema in the early 20th century and later the Crisol library.

Cowork Wayco Ruzafa Extension
Cowork Wayco Ruzafa Extension

Transformed into a supermarket during its later years of activity, the personality of the early days had been obliterated. The leitmotiv of the project becomes then to return to the place to its former grandiosity.

The intervention is purposely scenographic. The large central space corresponds to the large cinema room with a surrounding gallery, with several sub-levels, looking out to the spot where once hundreds of films were screened, and which today separates and connects with the main space of the first intervention.

Cowork Wayco Ruzafa Extension
Cowork Wayco Ruzafa Extension

The stairs become the main actors of the scene. The original wide staircase that gave access to the upper floor is readjusted, conforming to current standards. It acquires an intense green colour and intertwines with a wooden grandstand that invites to much more than being a circulation spot.

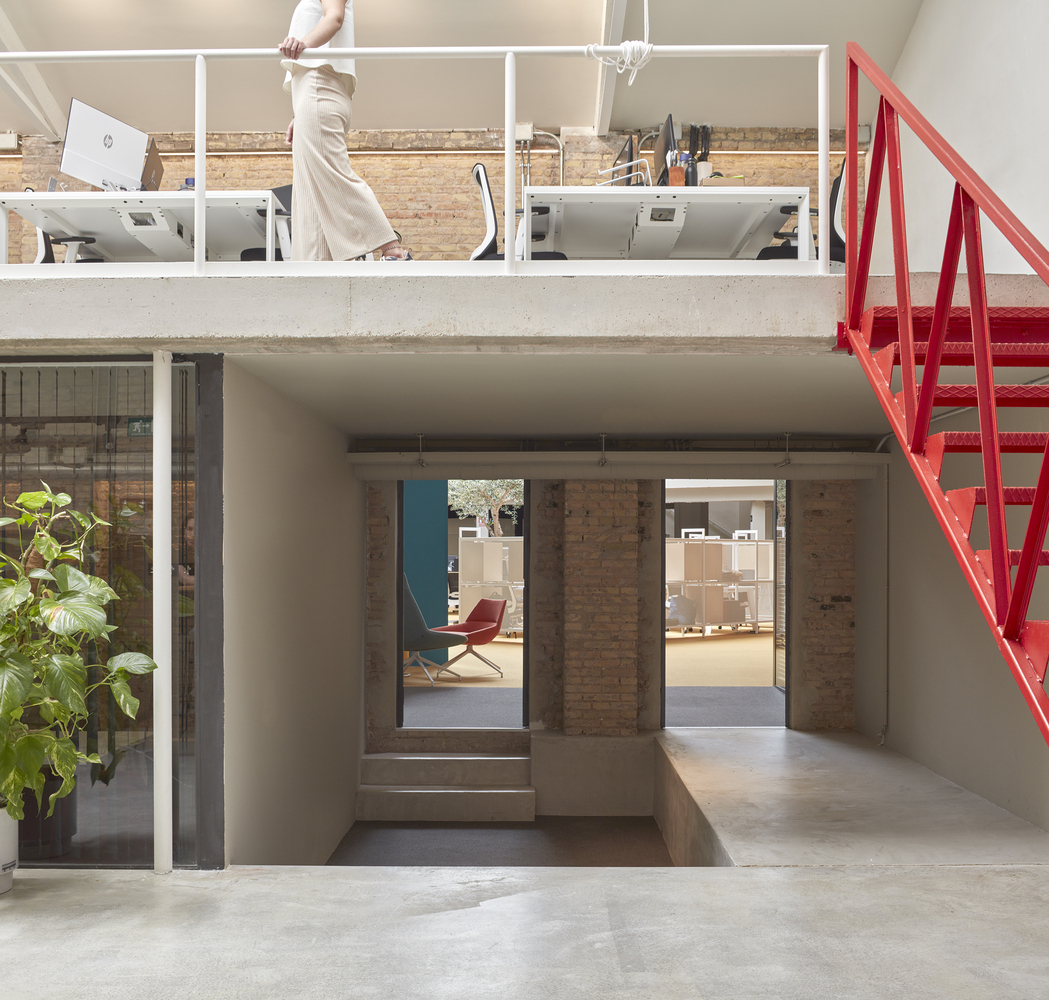

The central space hosts a second staircase, a folded red carpet with a metal lattice structure, following a similar solution to the one that had been tested out in the printing press space (Wayco Ruzafa phase 1). Going up and down acquires a certain aspect of exhibitionism, as if it were the foyer of a theatre.

The programme of the new phase incorporates, in addition to the large open space a series of private offices of various sizes, as well as meeting and video conferencing rooms.

Cowork Wayco Ruzafa Extension
Cowork Wayco Ruzafa Extension

Furthermore, this intervention places great emphasis on offering various solutions for privacy and rest, compensating for the overexposure of the central space. It is as desirable to work in open spaces, as it is necessary to retreat and find several degrees of privacy throughout the day.

Thus, multipurpose spaces are designed such as the Crisol room, treated as if it were a large living room; the Cinema room, a space to take a nap or play ping pong; or the various corners equipped with high sofas, armchairs, benches, etc. that allow different ways of interacting (or not).

Cowork Wayco Ruzafa Extension
Cowork Wayco Ruzafa Extension

The basic operations to re-qualify the new co-working space consisted in removing the false ceilings and installations that compressed the space, eliminating unnecessary divisions and strategically opening a series of skylights in the existing industrial roof, so that natural light became the other leading role of the workspace.

As in the first phase, the plasters in poor conditions were removed and the brick left visible, giving warmth, strength and notion of temporality. An orange carpet covers the ground floor, mitigating noise and giving it personality.

A series of permeable shelves run through the central working area, protecting it from circulation spaces and digging into another recurring idea of the project, the library.

Cowork Wayco Ruzafa Extension
Cowork Wayco Ruzafa Extension

A retractable canopy in the main skylight regulates the amount of sunlight according to the season, under which a young olive tree rests in the center introducing some calmness and freshness.

It is as desirable to work in open spaces, as it is necessary to retreat and find several degrees of privacy throughout the day.

Cowork Wayco Ruzafa Extension
Cowork Wayco Ruzafa Extension
Cowork Wayco Ruzafa Extension


Cowork Wayco Ruzafa Extension
Cowork Wayco Ruzafa Extension


Cowork Wayco Ruzafa Extension
Section 01
Cowork Wayco Ruzafa Extension
Section 02


Cowork Wayco Ruzafa Extension
Plan - General
Cowork Wayco Ruzafa Extension
Plan - Ground Floor
Cowork Wayco Ruzafa Extension
Plan - Superior


Cowork Wayco Ruzafa Extension

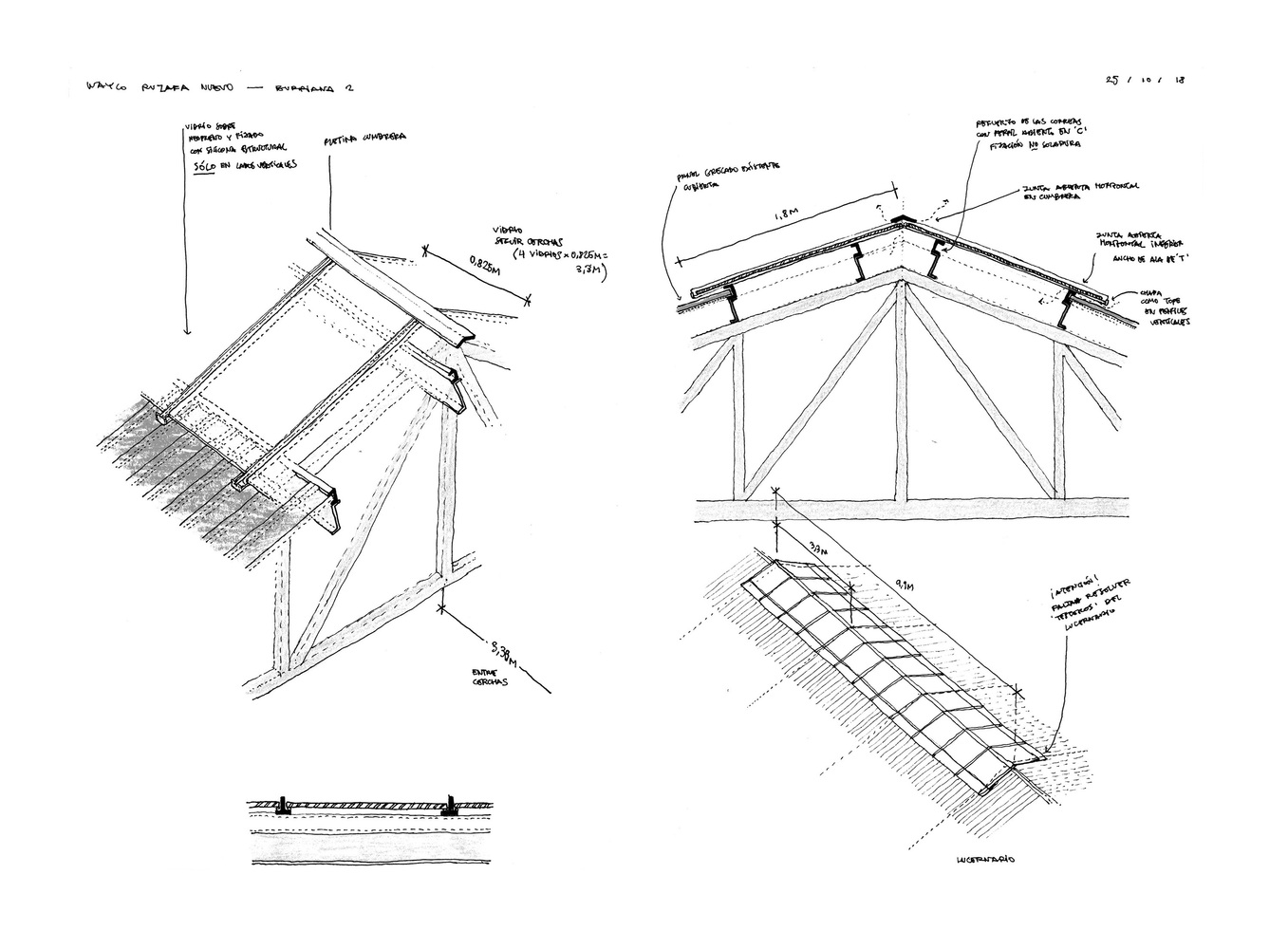

Detail - Skylight
Cowork Wayco Ruzafa Extension

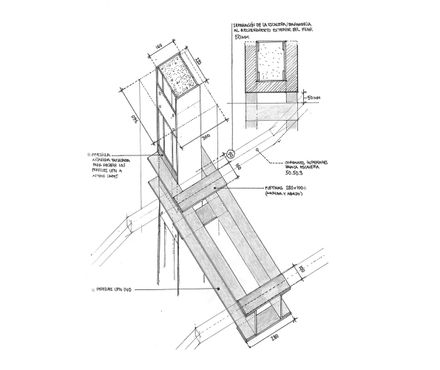

Detail - Staircase bracket
