BAY WINDOW TOWER HOUSE

Takaaki Fuji + Yuko Fuji Architecture

ARCHITECTS
Takaaki Fuji + Yuko Fuji Architecture

ENVIRONMENTAL CONSULTANT
Kensuke Hotta, Akito Hotta

MANUFACTURERS
Lauan Plywood & Plasterer Finish, Lauan Plywood & Steel Beam, Lighting, Teak Flooring

STRUCTURAL ENGINEER
Tomonori Kawata

LIGHTING DESIGN
Atsushi Mitsui

PHOTOGRAPHS
Masao Nishikawa, Shohei Yokoyama

SITE AREA
43.91 m2

B1 F AREA
15.66 m2

1ST FLOOR AREA
21.95 m2

2ND FLOOR AREA
21.61 m2

3RD FLOOR AREA
22.30 m2

ROOF AREA
2.83 m2

AREA
84 m²

DESIGN PERIOD
August 2018 - February 2019

YEAR
2020

LOCATION
Shibuya, Japan

CATAGORY
Houses, House Interiors

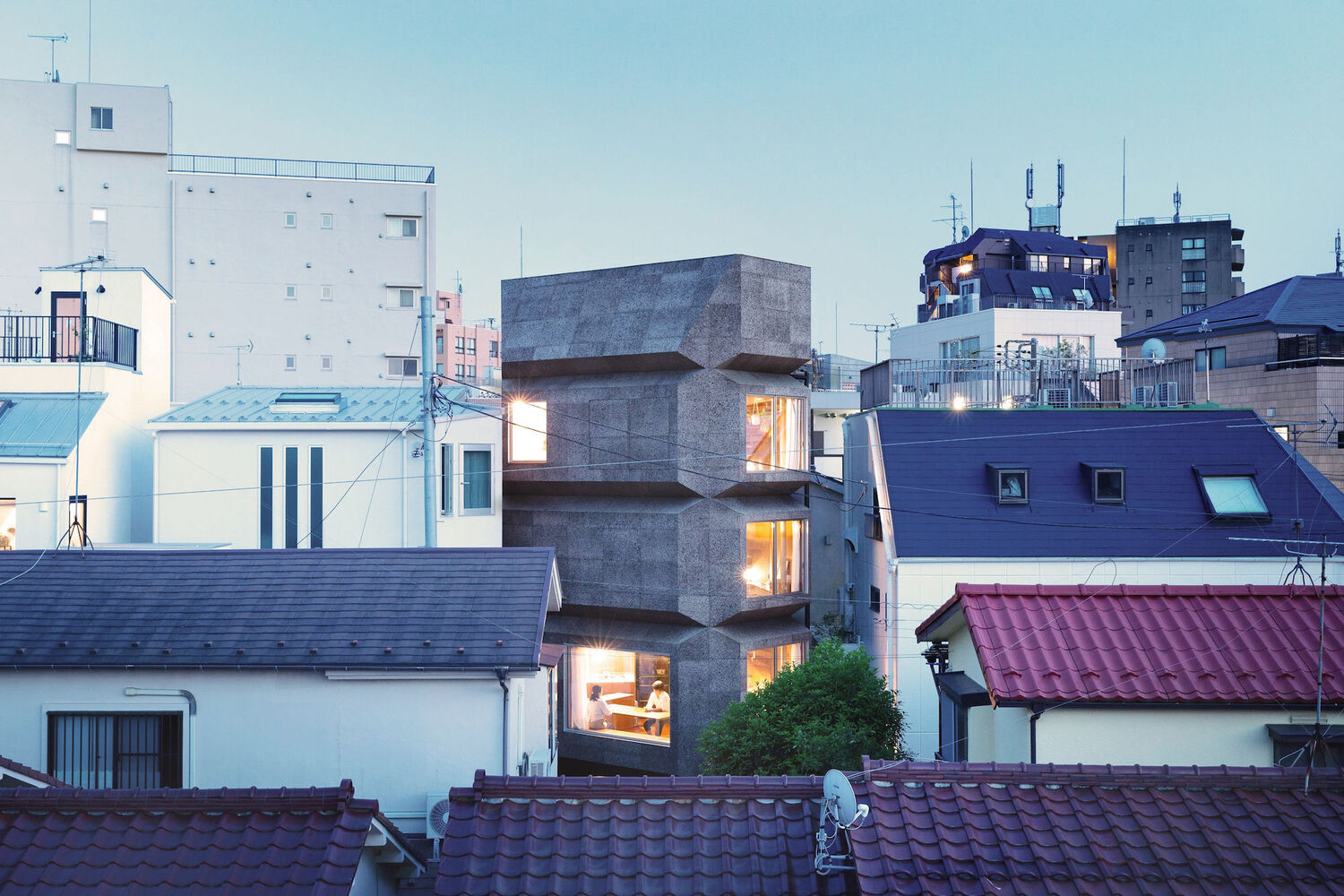

Built for a couple, their two children, and their two cats, this combined residence and office on a tiny urban lot features bay windows on all sides.

Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa

Our research into bay windows from around the world revealed that they take many forms and play many appealing roles, from a device for bringing in light to a type of furniture for sitting on to a decorative interface with the city.

Our design features bay windows on every floor and every side of the building, giving the residents many options for where to spend their time.

Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa

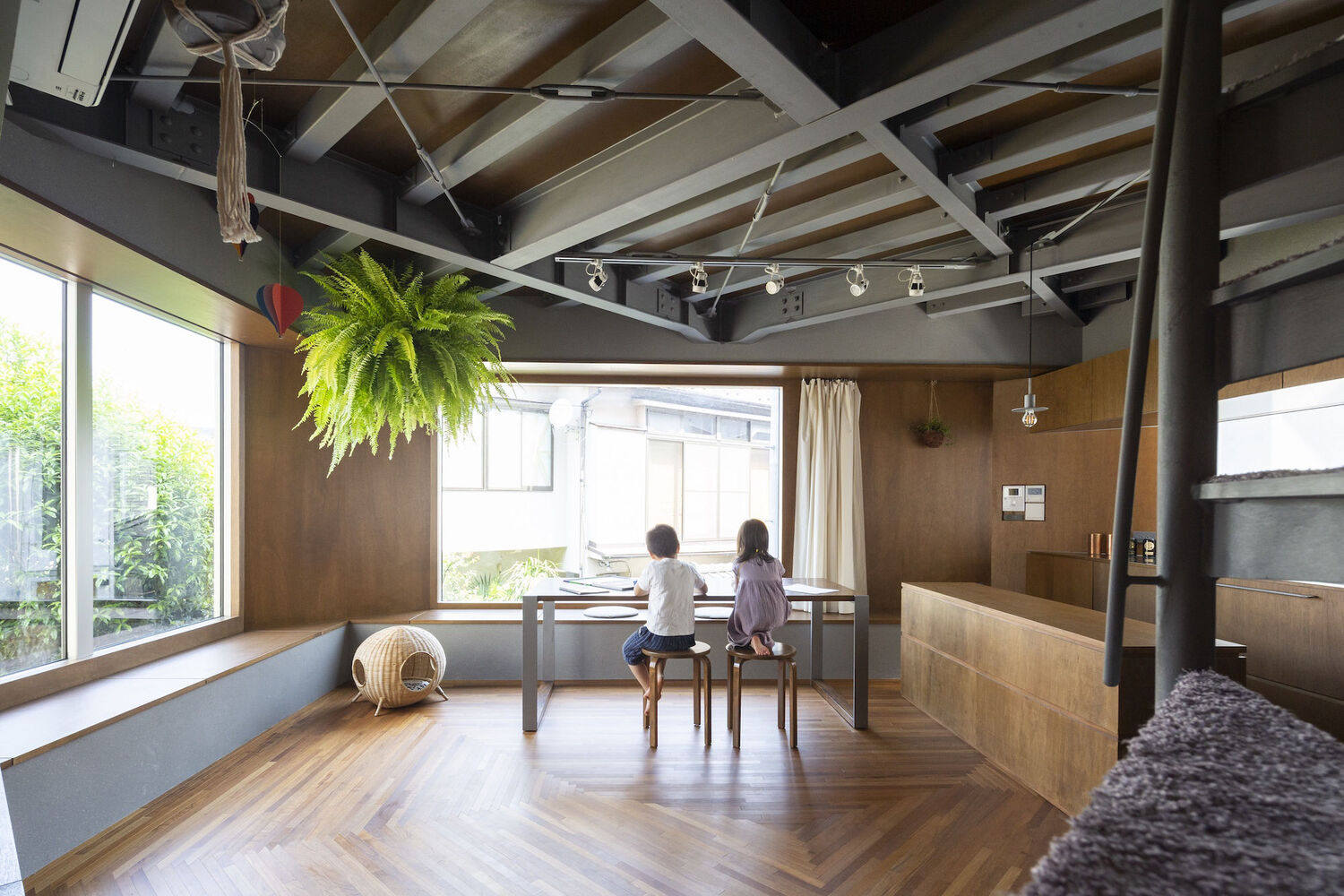

In this tower, windows become sites for sitting, writing, sleeping, decorating, and many other activities.

Another important consideration was how to construct a positive relationship between the tower and the buildings surrounding it, most of which are single-family houses.

Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa

The fate of new buildings on tiny urban lots is often to block the windows of surrounding buildings, leading to a sense of suffocating confinement for neighbors.

We solved the problem by slicing off the corners of the building, creating pockets of space in the four corners of the lot.

Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa

For the tower’s residents, these pockets are little gardens, while for neighbors, the expanded space in front of their windows in a sense turns them into bay windows, too.

Slicing off the corners resulted in an octagonal footprint.In many Asian countries, octagons are viewed as lucky according to feng shui.

This shape is also extremely effective in reducing turbulence in the airflow around the building.

Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa

In addition, we analyzed the surrounding microclimate in order to reduce reliance on mechanical devices such as air conditioning as much as possible.

By observing simulations of light, wind, and heat conditions that included surrounding buildings, we came up with three types of bay windows: transparent windows to let in light; windows that function like openable walls, blocking light and heat but letting in breezes; and windows that function like fixed walls, blocking both heat and breezes.

Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa

We distributed these three types of windows throughout the building in a way that maximized their efficacy in terms of light, ventilation, and heat.

Nevertheless, at certain times of the year parts of the house have a high heat load.

To address this issue, we covered the exterior with carbonized cork, which is light, highly insulating, rot-resistant, and easy to work with.

Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa

The carbonized cork serves as high heat-capacity insulation to lower the heat load.


Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa


Bay Window Tower House
© Masao Nishikawa
Bay Window Tower House
© Masao Nishikawa


Bay Window Tower House
Plan - Site and Ground floor
Bay Window Tower House
Section
Bay Window Tower House
Plan - 1st and 2nd floor
Bay Window Tower House

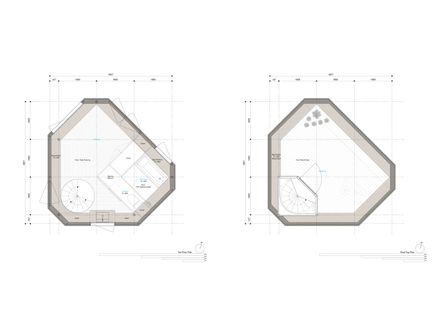

Plan - 3rd and Roof top
