Captaincy Office

Captaincy Office
© Ana Mello

Captaincy Office

Canoa Arquitetura

ARCHITECTS
Canoa Arquitetura

LEAD ARCHITECTS
Mario Moura, Victor Gurgel

LIGHTING
Ricardo Heder

MANUFACTURERS
Electrolux, Herman Miller, Knauf, Reka, Ateliê Laranjeiras, Brastemp, Deca, Fernando Jaeger, Fórmica, Granidomus, Lumitek, Legrang, Miaki Revestimentos, Resinaria, Selvvva

HVAC, MEP ENGINEER
Ramoska & Castellani

SITE SUPERVISION TEAM
Canoa Arquitetura

CLIMATE INSTALLATIONS
Tr Thermica

PHOTOGRAPHS
Ana Mello

AREA
1184 Ft²

YEAR
2019

LOCATION
São Paulo, Brazil

CATEGORY
Offices

Captaincy Office
© Ana Mello

The Capitania Building, located on Brigadeiro Faria Lima Avenue, São Paulo, Brazil, was designed in 1973 by Pedro Paulo de Mello Saraiva and represents an important portion of the architect’s production.

Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello

The project was defined by its structural solution – a significant trace in Saraiva’s works – placing structural columns along the facades on the typical floors, a solution that creates pillar-free, open office spaces and simultaneously reduces the incidence of direct solar rays upon the facades, constituted by large aluminum and glass windows.

Our project, designed for a law practice office which intended to occupy one of Capitania’s commercial areas, sought to explore the building´s original qualities, through the demolition of all plaster ceilings and dry-wall partitions, revealing the concrete structure and, therefore, highlighting the building´s structural characteristics.

Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello

We defined that a broad perception of the space should be a premise; the distribution of the office´s program was guided by the elegant grid of beams, rigidly modulated, and carefully articulated with de facade’s columns.

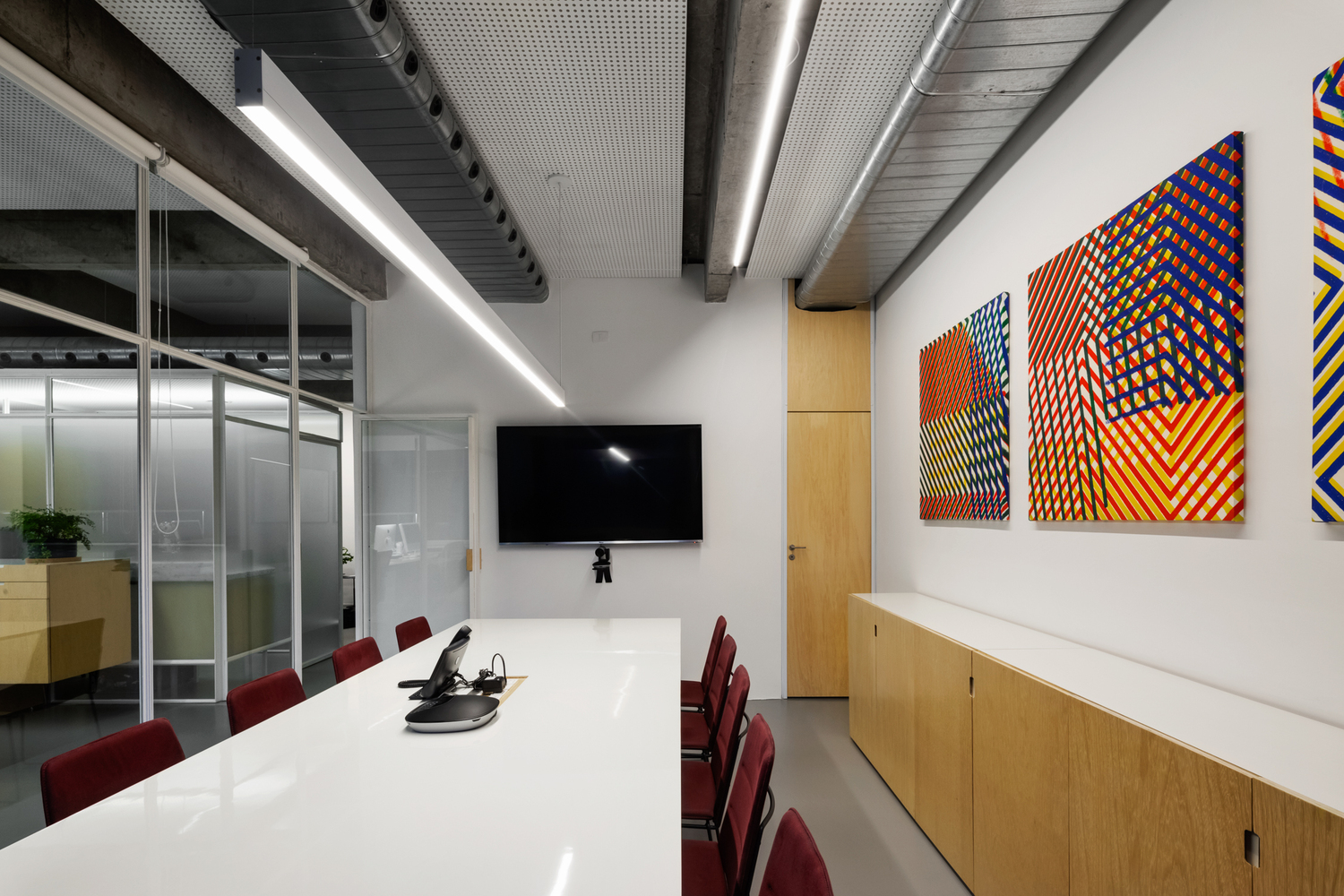

A unique floor-to-ceiling acoustic glass partition – aligned with the building´s core – defined the meeting room.

Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello

A glass volume, detached from the concrete ceiling and modulated by the concrete structure, was positioned in continuation to the existing toilet walls, hence forming two spaces:

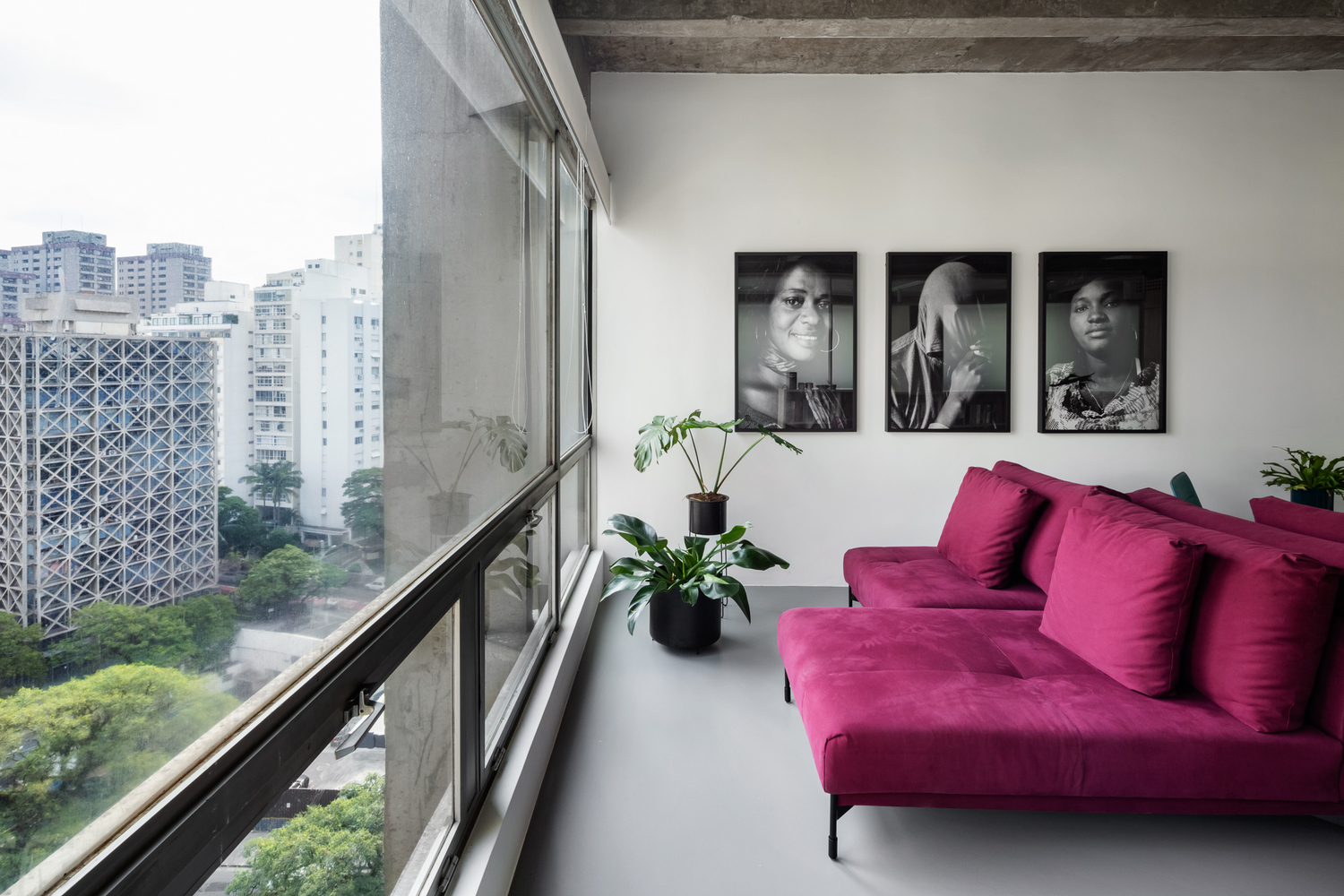

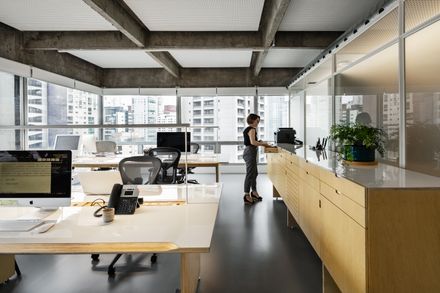

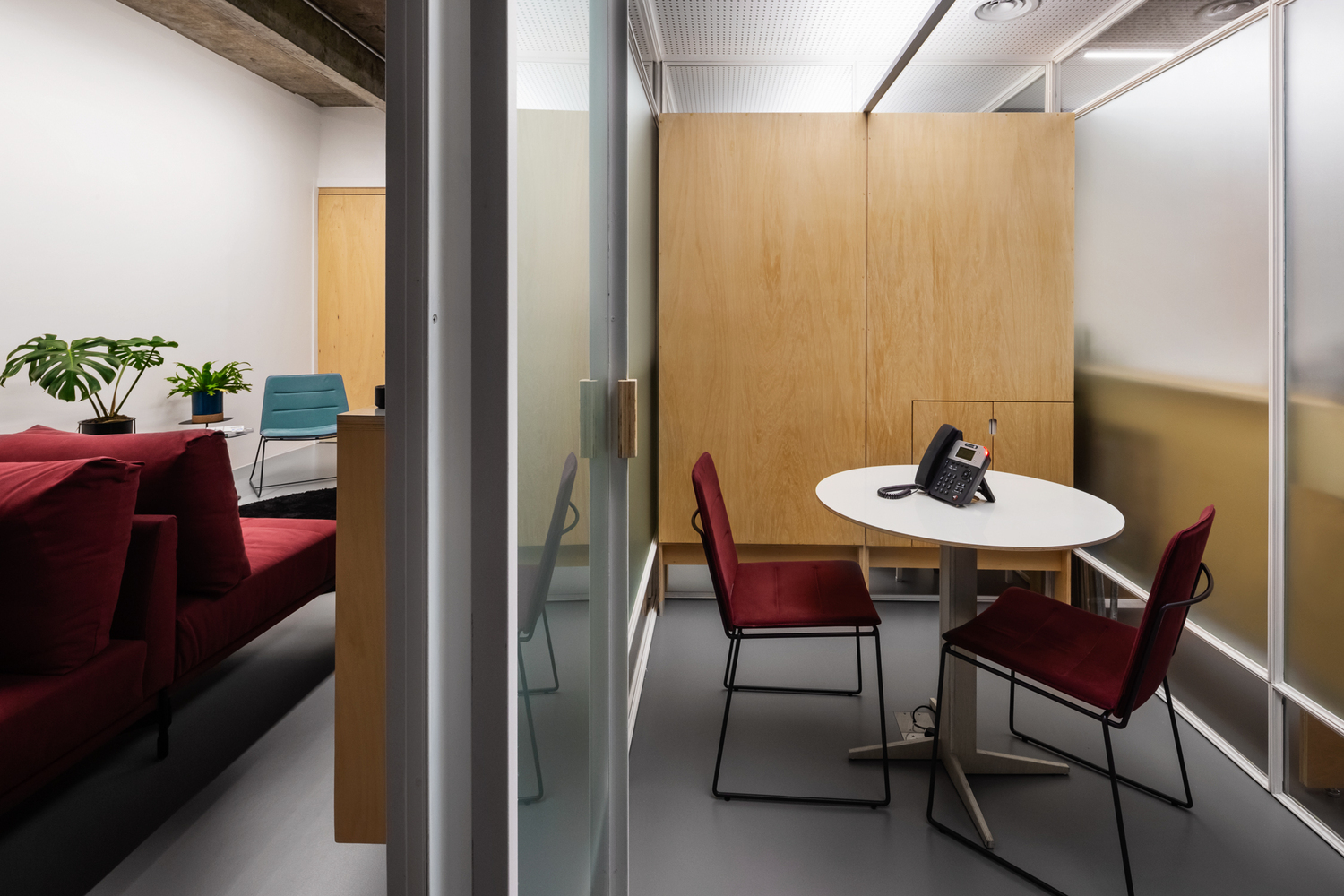

a working area for up to 12 staff members – a specific client demand – and a reception-living room. Inside the translucent glass volume, were placed a small coffee room and a telephone room.

Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello

If, on one hand, the project was oriented by the building´s rigorous structural modulation, on the other, the choice for a monolithic, joint-free epoxy floor, allowed a broad, continuous comprehension of space.

Between the concrete beams, plasterboard perforated acoustic ceiling plans were fixed. The existing air conditioning system was adapted, implementing apparent elliptical galvanized ducts for air distribution.

Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello

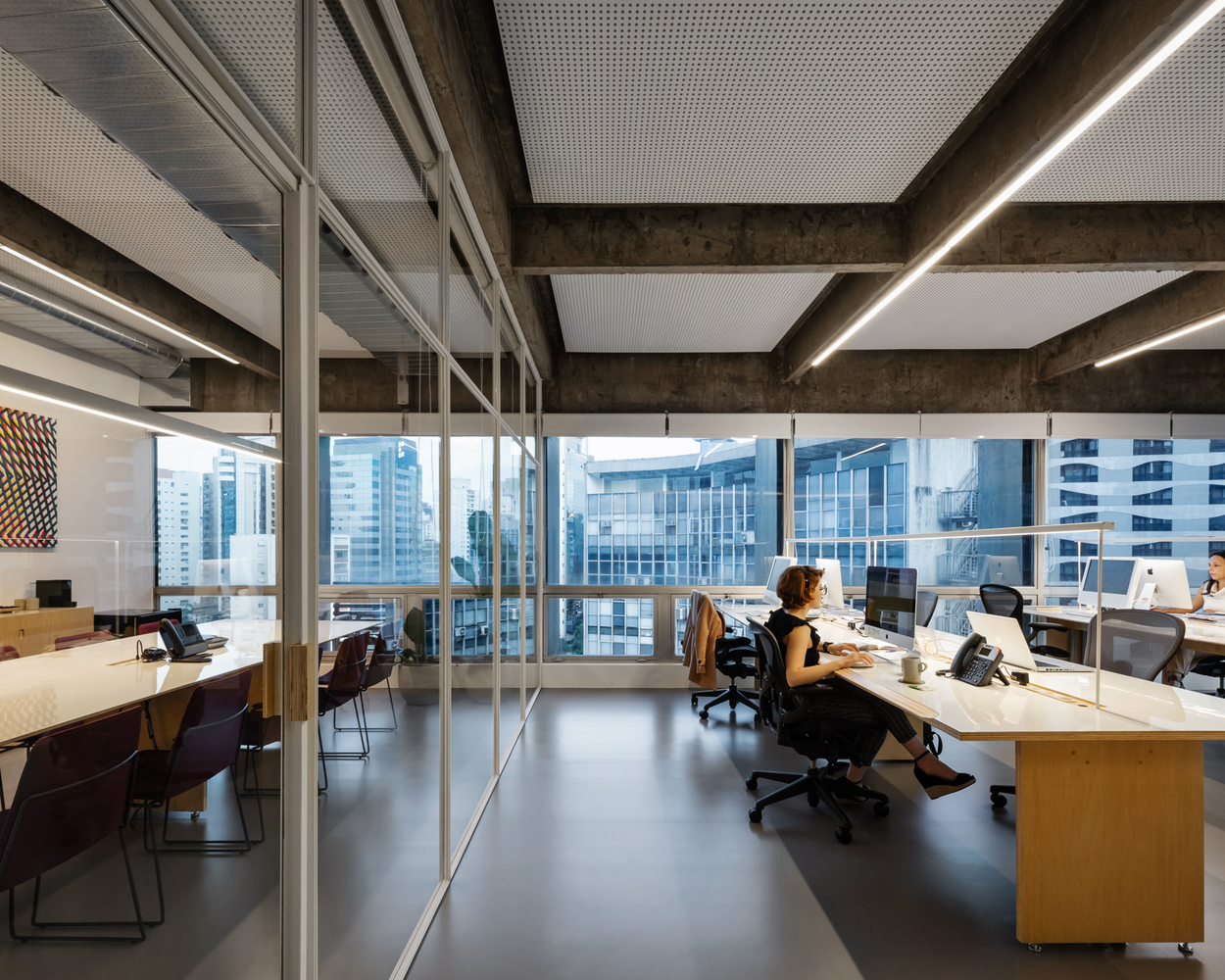

Glass partitions were made of flat steel profiles, chosen because of the remarkable slimness.

The glass divisions were defined in response to transportation difficulties imposed by the building’s limited size elevators and staircases.

Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello

All woodwork, made of naval plywood and white Formica, was personalized: closets, cabinets, sideboards, and bookshelves, as well as working desks, in which special care with ergonomic details was preponderous,such as easy access to outlets and internet plugs, as well as specific lighting.

Inside the coffee and toilet rooms were applied prefabricated granilite panels, sometimes as wall coating, and sometimes as partitions or counters.

Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello

The lighting project took advantage of very concise lines, that illuminate working planes directly, ceilings and walls indirectly, according to each of the environment’s needs.

As a result, one can observe interventions that are extremely sensitive to the building’s specificities, a very pleasant working space, visually integrated, grasping abundantly towards the city’s landscape.

Captaincy Office
© Ana Mello


Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello
Captaincy Office
© Ana Mello


Captaincy Office
Cross section
Captaincy Office
Longitudinal section


Captaincy Office

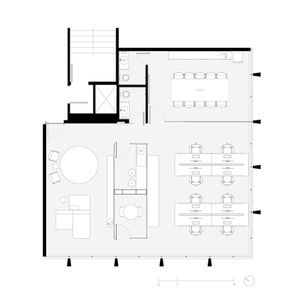

Plan
Captaincy Office
Gif - Diagram
