SANTA EULÀLIA SPACE

Carles Enrich Studio

ARCHITECTS
Carles Enrich Studio

MANUFACTURERS
AutoDesk, Adobe, Roca, Samsung

PHOTOGRAPHS
Adrià Goula

AREA
210 m²

YEAR
2020

LOCATION
Cultural Center , Spain

CATEGORY
Churches, Renovation

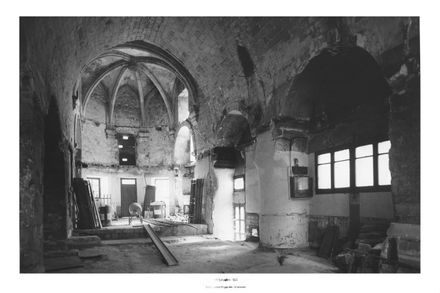

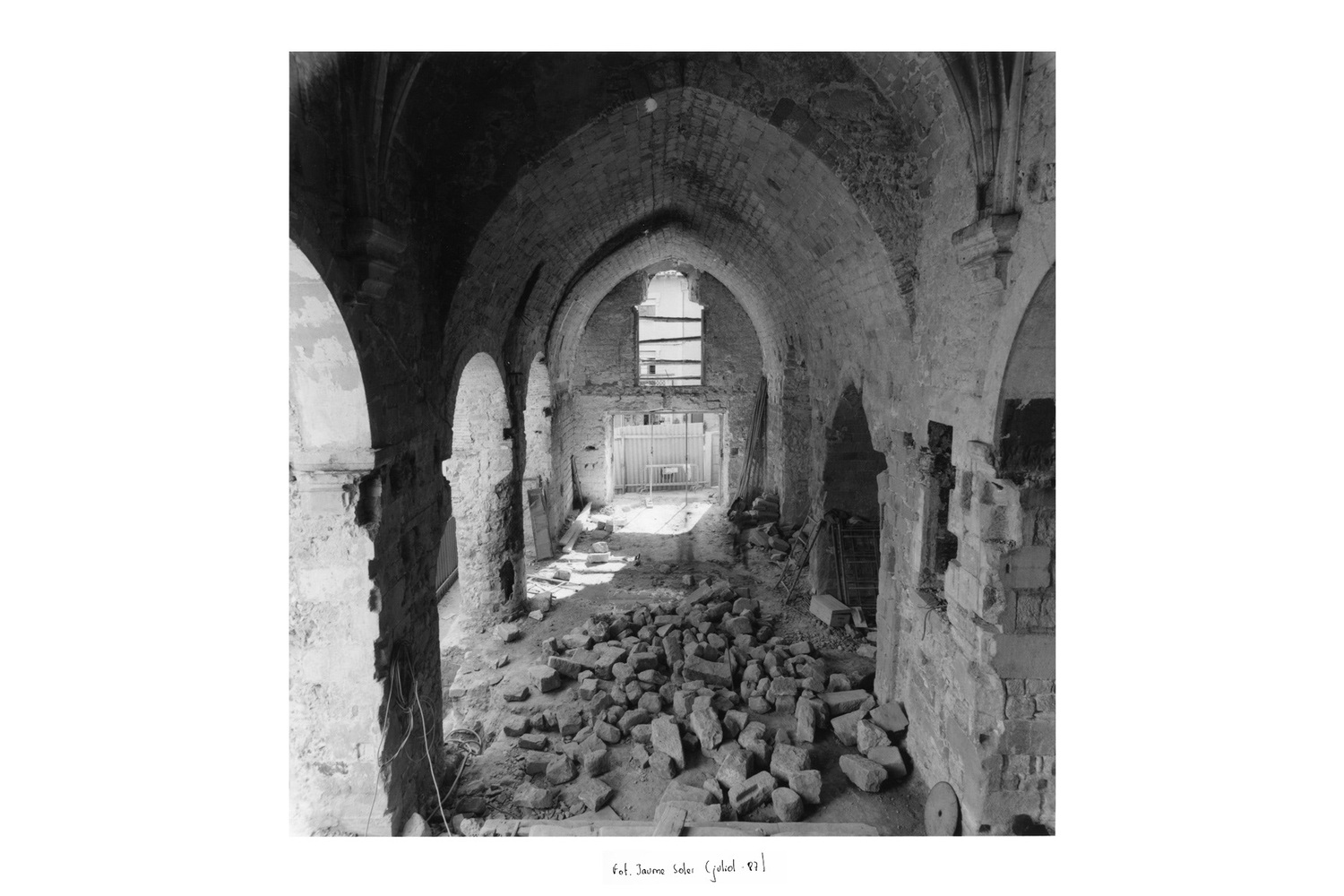

Project brief The former church of Santa Eulàlia in Gironella dates back to the mid-fourteenth century and throughout its six centuries of history it has undergone innumerable changes of use. In 1971, Gironella Council recovered the building in a precarious state of conservation when it was transferred from the previous owner who was unable to guarantee its maintenance.

Santa Eulàlia Space
© Adrià Goula
Santa Eulàlia Space
© Adrià Goula

In 2016, due to the poor condition of the building and the lack of services and facilities, it was necessary to reformulate the space to carry out cultural activities related to the performing arts, especially dance, music and poetry. This intervention was part of a programme to recover existing buildings promoted by Gironella Council.

Intervention criteria The project consists of reading all the historical layers and moments that have settled in Santa Eulàlia with the clear aim of highlighting the virtues of each intervention and understanding them as a sequence of layers.

Santa Eulàlia Space
© Adrià Goula
Santa Eulàlia Space
© Adrià Goula

The planned new use requires the insertion of adapted services and an update of the facilities to comply with regulations for public space. Likewise, the deterioration of facings and floors had caused problems of leaks and damp that required urgent renovation.

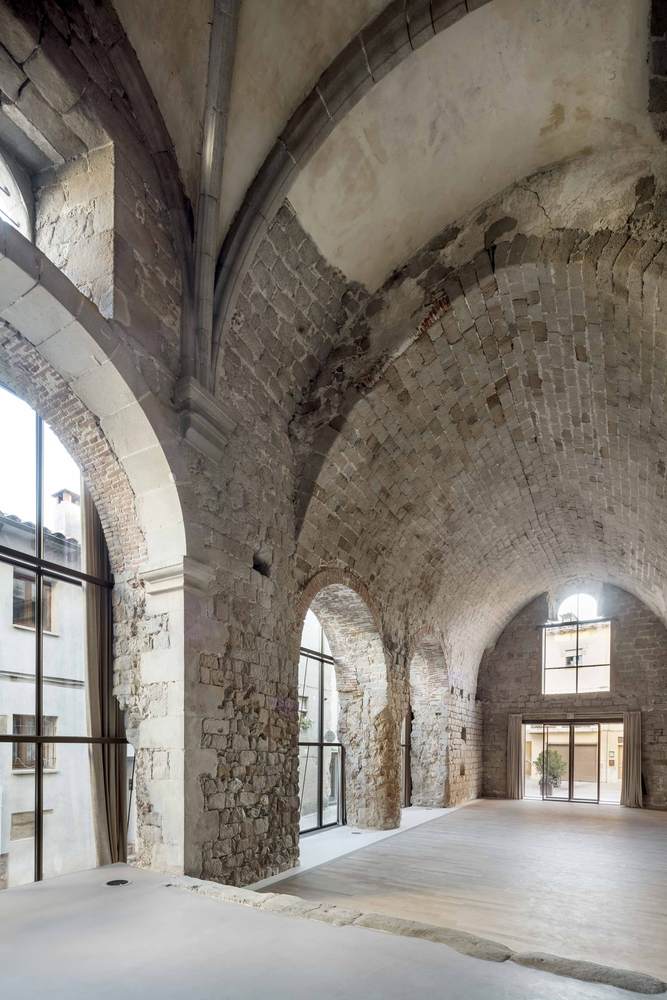

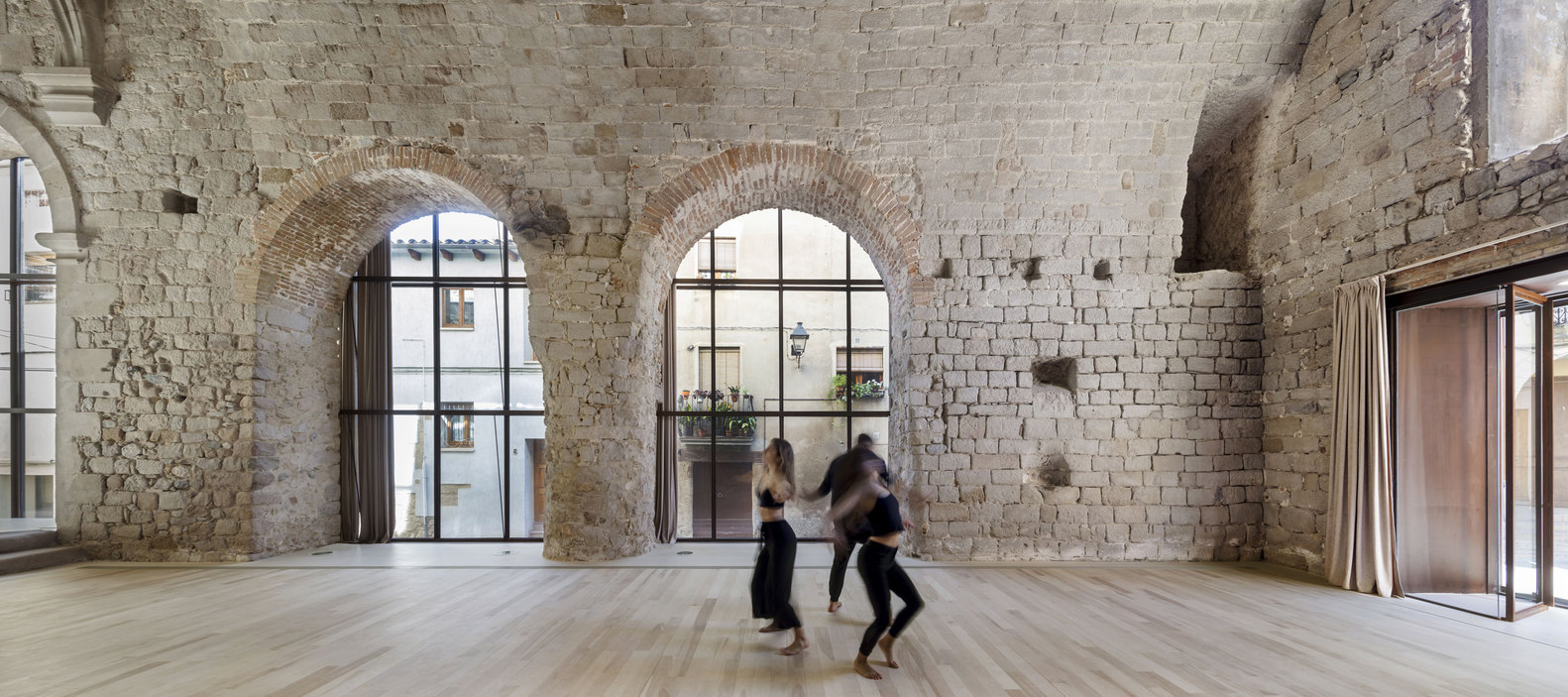

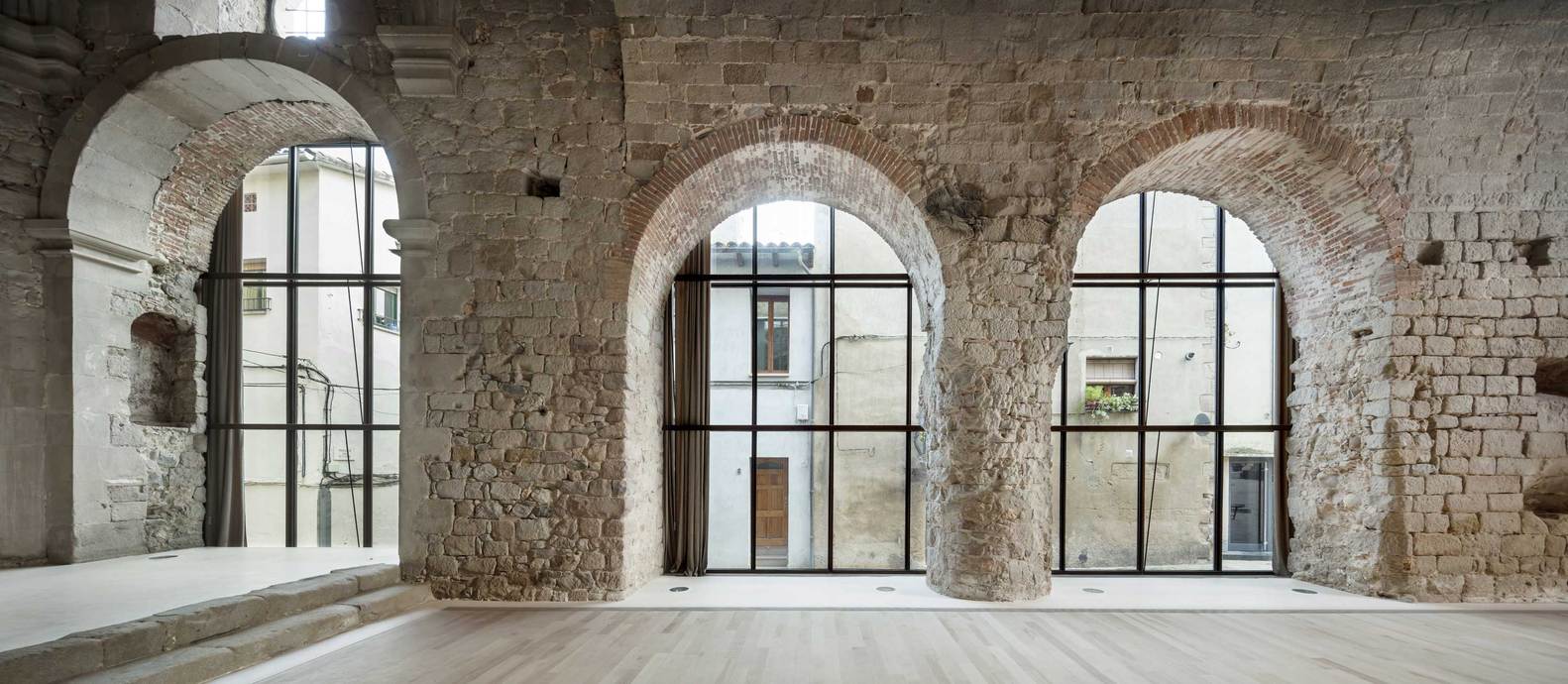

1. Recovering the central space First, the space of the central aisle was recovered to extend the useful space available. A birch wood floor was laid in the central part for dance and theatre rehearsals and to guarantee good insulation.

To avoid differences in level, a continuous self-levelling mortar floor was laid all the way around it, adapting to the geometries of the stone walls.

Santa Eulàlia Space
Santa Eulàlia Space
Santa Eulàlia Space

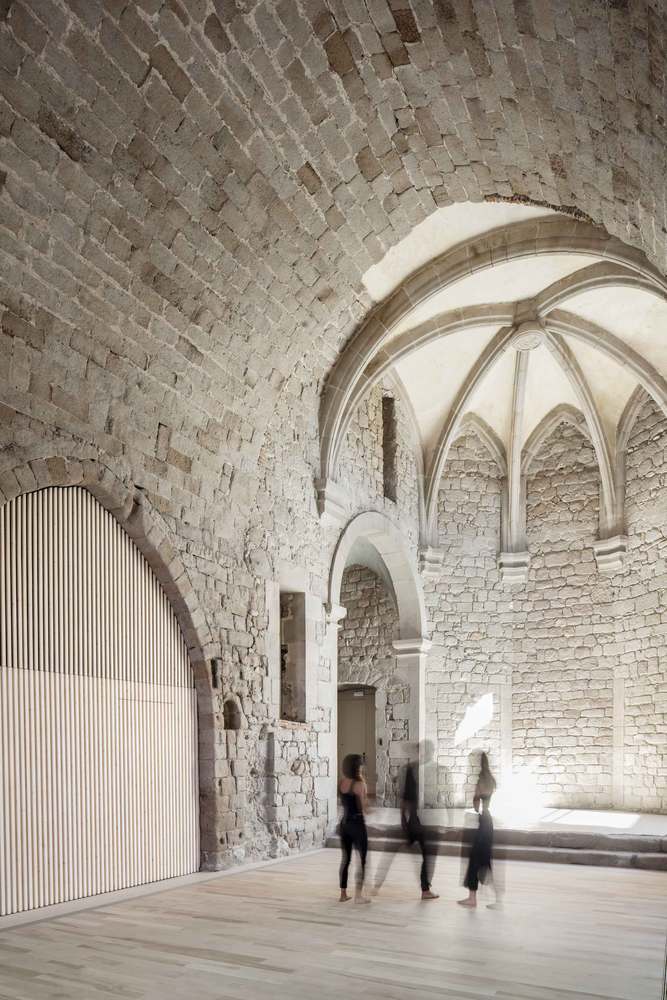

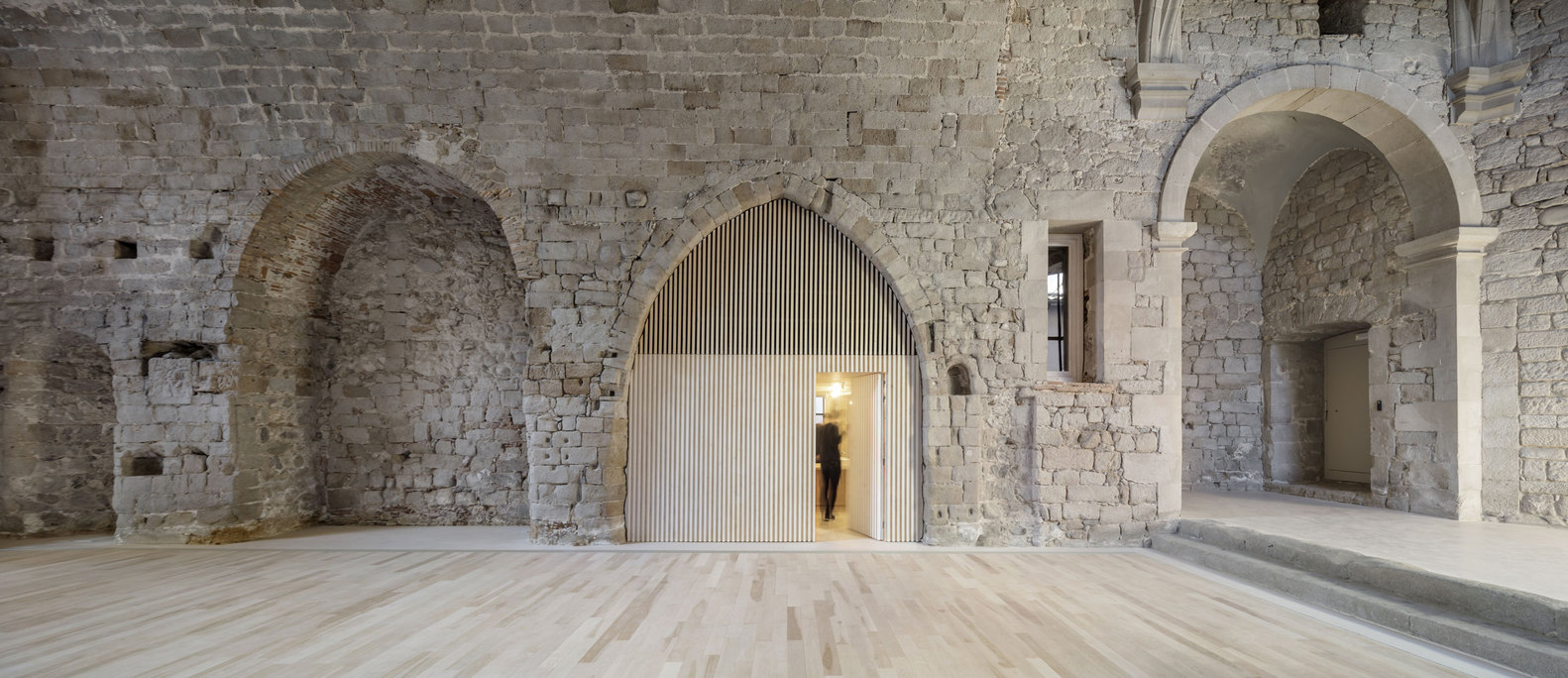

2. Insertion of services Secondly, a service nucleus was inserted into one of the chapels to guarantee accessibility. The restroom takes the form of a pine plywood box with a pine-batten facing to conceal the doorway.

Due to its inertia, the underfloor heating system was not effective for occasional use and was replaced by an air renewal system designed to drive hot air through a grating that delimits the wooden floor in the central area.

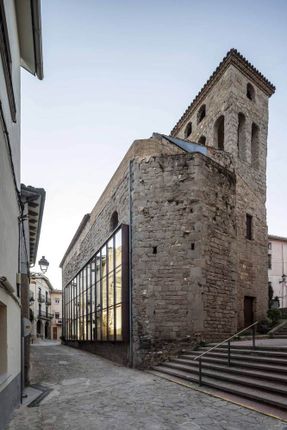

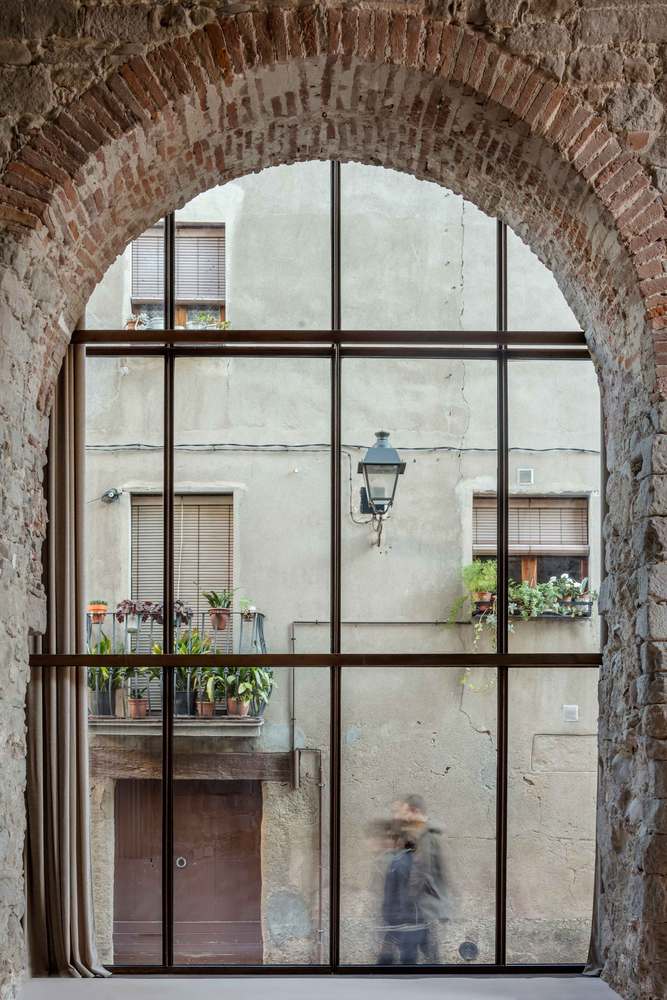

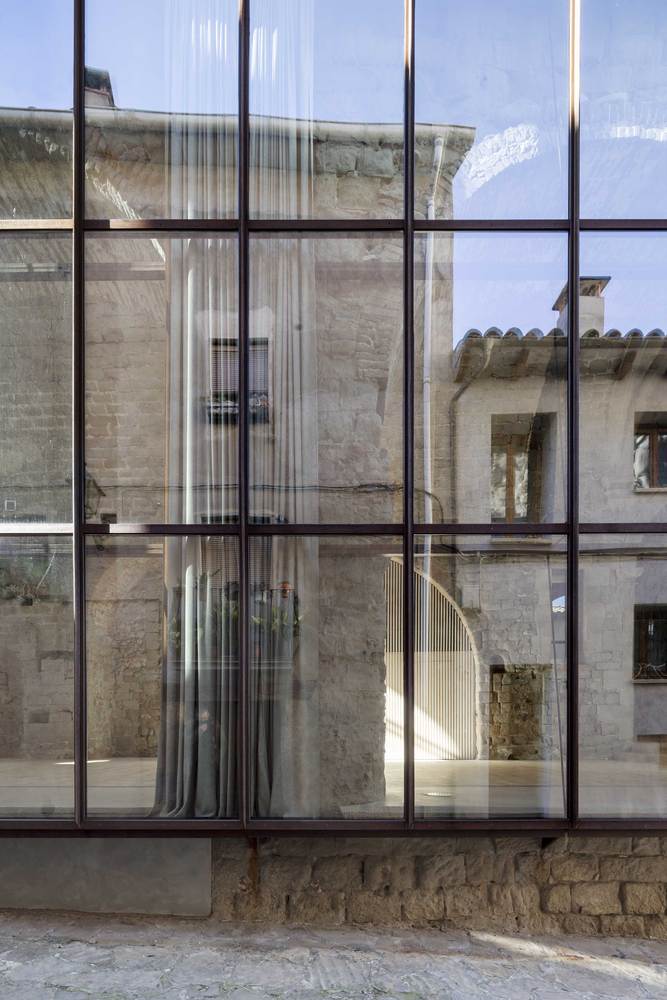

3. Incorporation of the urban landscape Thirdly, the intervention addressed the outer perimeter. The translucent facing of the façades was replaced by transparent glass that expands the field of vision, provides natural light all day, incorporates the street as a second façade and offers views of the church from the outside.

Santa Eulàlia Space
Santa Eulàlia Space
© Adrià Goula
Santa Eulàlia Space
© Adrià Goula

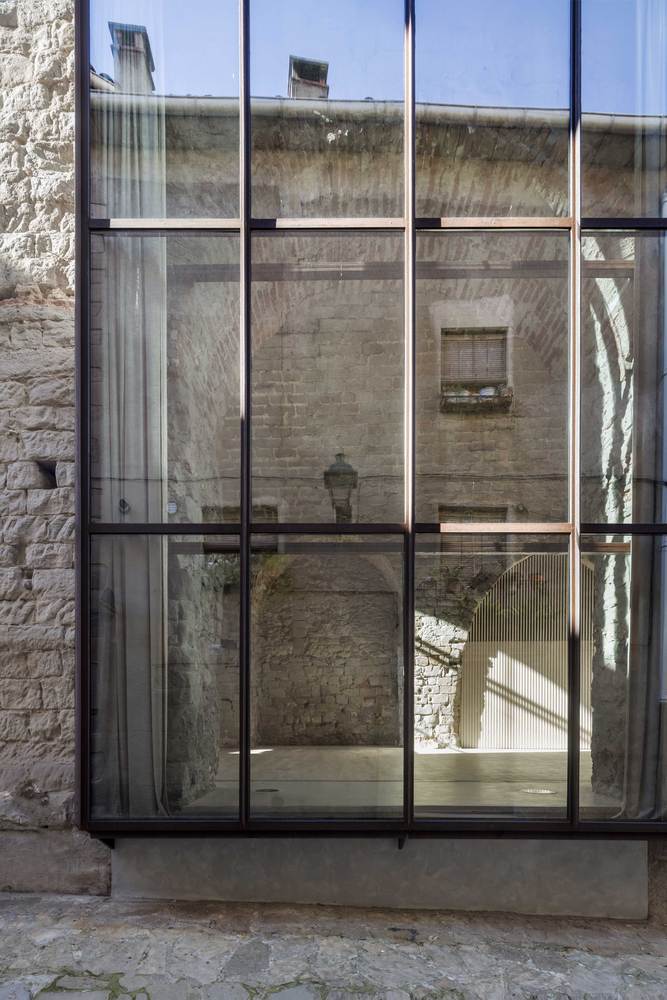

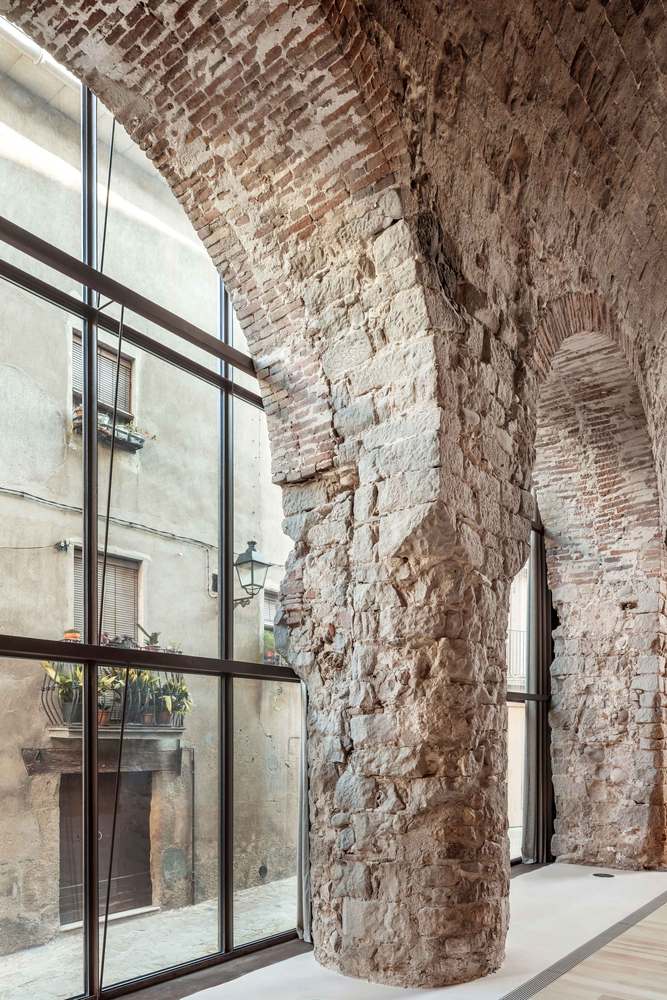

Vertical structures are reinforced and added to generate a rhythm and modulation of smaller glass panes that are easier to replace in case of breakage.

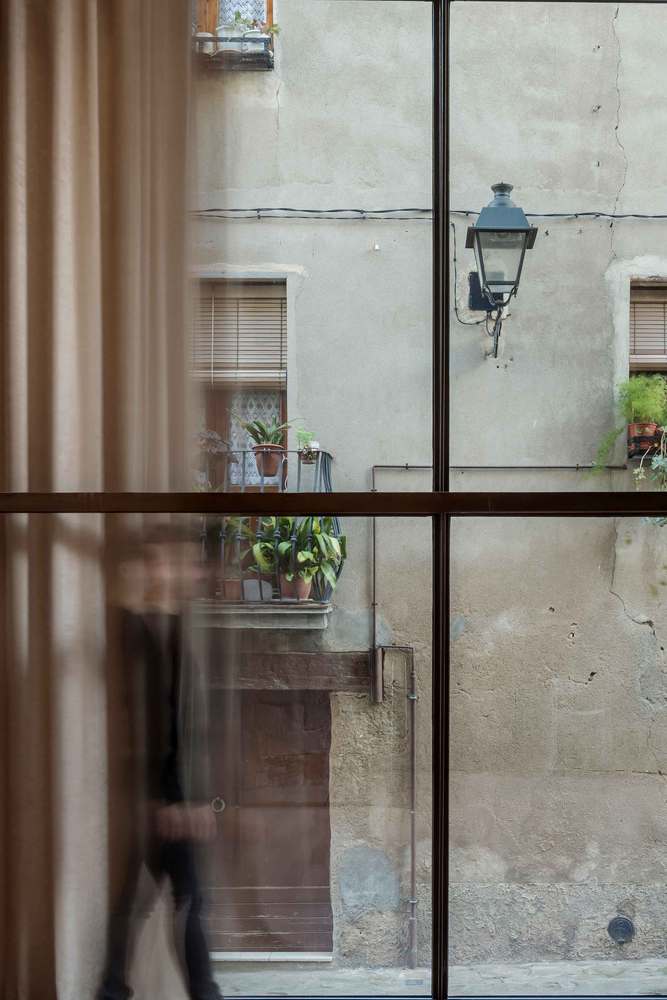

This facing is completed by a fabric curtain on the inside that serves to manage lighting and improve acoustics and insulation depending on the events taking place.

The permeability of this facing highlights the public nature of Santa Eulàlia as an extension of the urban landscape.

Santa Eulàlia Space
© Adrià Goula


Santa Eulàlia Space
Santa Eulàlia Space
Santa Eulàlia Space


Santa Eulàlia Space
© Adrià Goula
Santa Eulàlia Space
© Adrià Goula
Santa Eulàlia Space
© Adrià Goula
Santa Eulàlia Space
Santa Eulàlia Space
© Adrià Goula
Santa Eulàlia Space
© Adrià Goula

Santa Eulàlia Space
Santa Eulàlia Space
Santa Eulàlia Space


Santa Eulàlia Space
Santa Eulàlia Space
Santa Eulàlia Space
Santa Eulàlia Space
Santa Eulàlia Space
Santa Eulàlia Space
Santa Eulàlia Space


Santa Eulàlia Space
Section
Santa Eulàlia Space

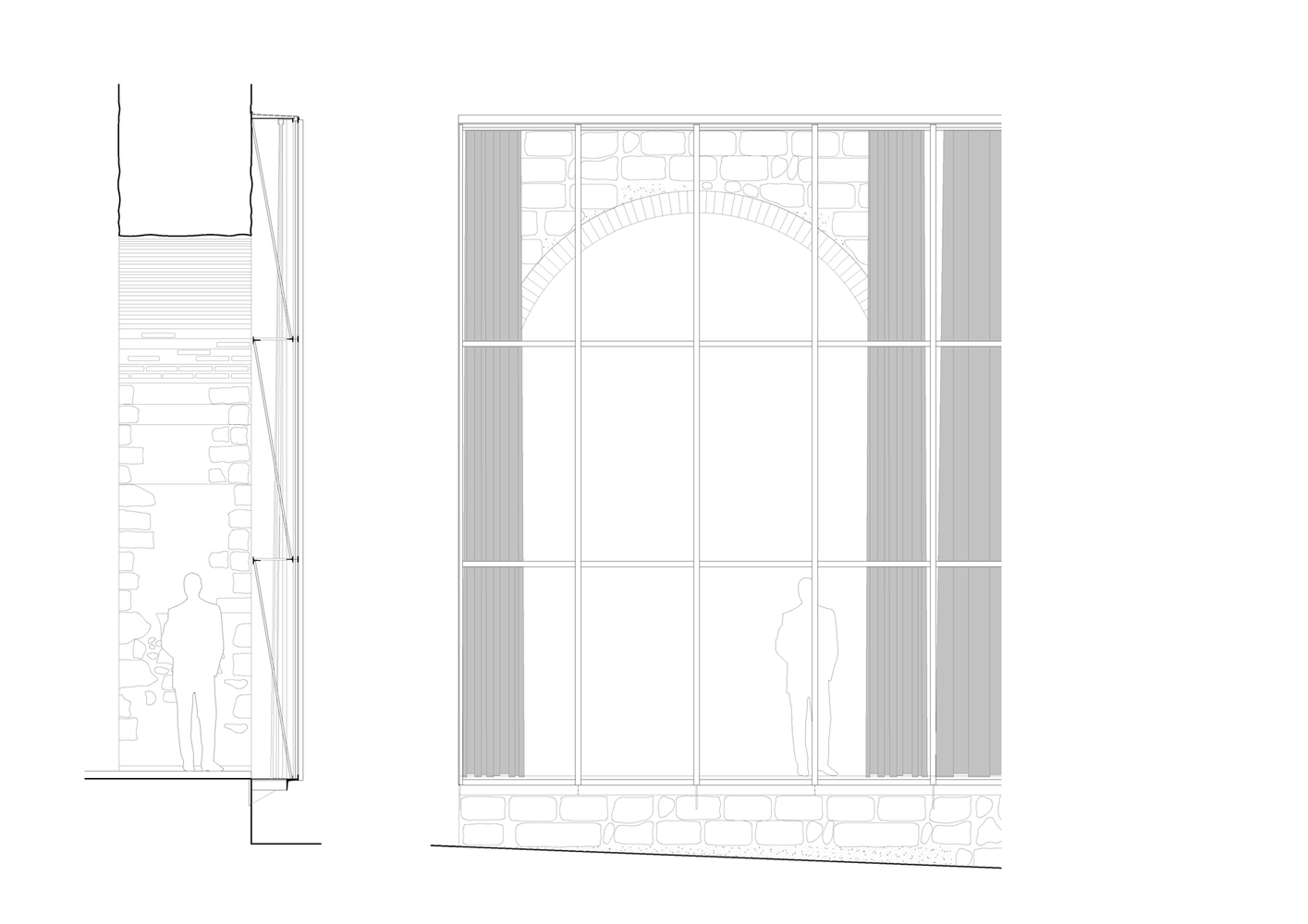

Details


Santa Eulàlia Space
Axo

Santa Eulàlia Space
Axo


Santa Eulàlia Space
Plan
Santa Eulàlia Space
Plan - Site
Santa Eulàlia Space
Plan
Santa Eulàlia Space
Plan
