VY APARTMENTS

H.a

ARCHITECTS
H.a

ARCHITECT IN CHARGE
H.a.

STRUCTURE
Kakale Company Limited

PHOTOGRAPHS
Quang Dam

AREA
85 m²

YEAR
2020

LOCATION
Ho Chi Minh City, Vietnam

CATEGORY
Mixed Use Architecture, Apartments

The site 5m x 17m is located in District 7, between a row of houses with mandatory planning regulations such as height, setback space, and balcony, etc.

Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam

The house is designed for rent, including an office space on the ground floor and four apartments.

The design team wanted to create a house surrounded by tropical gardens.

Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam

The suspended floor structure is used for the ground floor space to remove the column in the angular position, thereby creating a smooth flow connecting the house and garden.

The house is impressive by its staircase, structured like wooden bars designed along the length of the house.

Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam

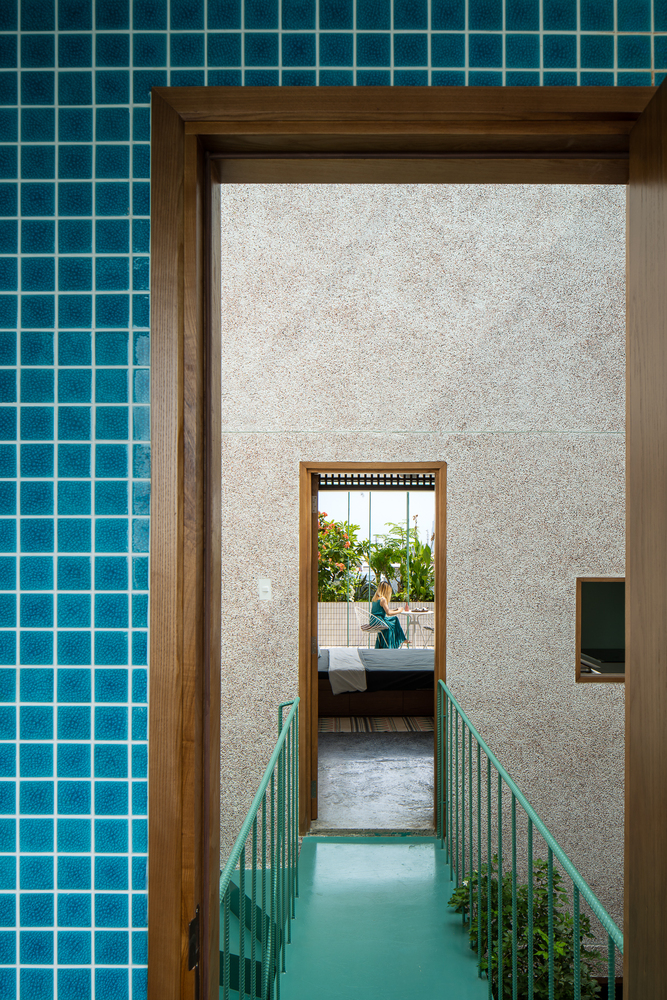

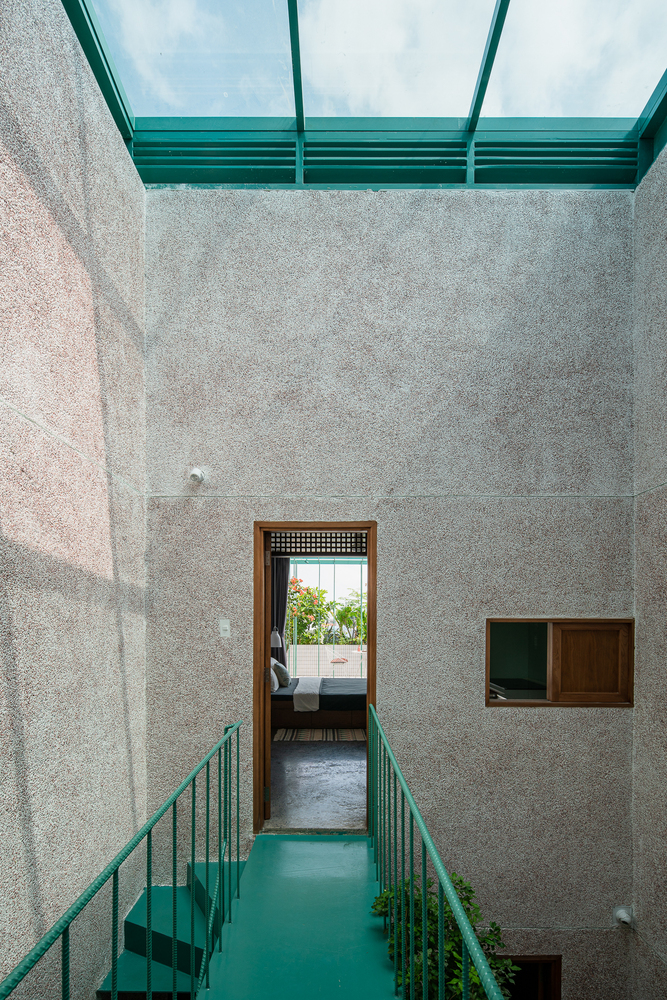

The staircase is not only a transportation axis but also a ventilation opening for all apartments. It is like a garden of light and a resting place for meeting members of the house ...

The house receives a large amount of heat from the west, so the design solution in each apartment is the auxiliary functions that are pushed out, creating a sun filter including 3 layers: a balcony with green garden, curtain and door system and area cooking, eating and reading area to cover the sun for the main living space, but still, ensure a view of the river.

Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam

The process from the design stage to the construction completion took three years.

Thank Vy's parents for their faith in the design team. Three years with many memories. Thank Vy for your hard work with the project.

Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam

Thanks to the members of the design team who have followed the project from the beginning with the highest spirit.


Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam


Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam


Vy Apartments
© Quang Dam© Quang Dam
Vy Apartments
Vy Apartments
© Quang Dam
Vy Apartments
© Quang Dam


Vy Apartments
First Floor Plan
Vy Apartments

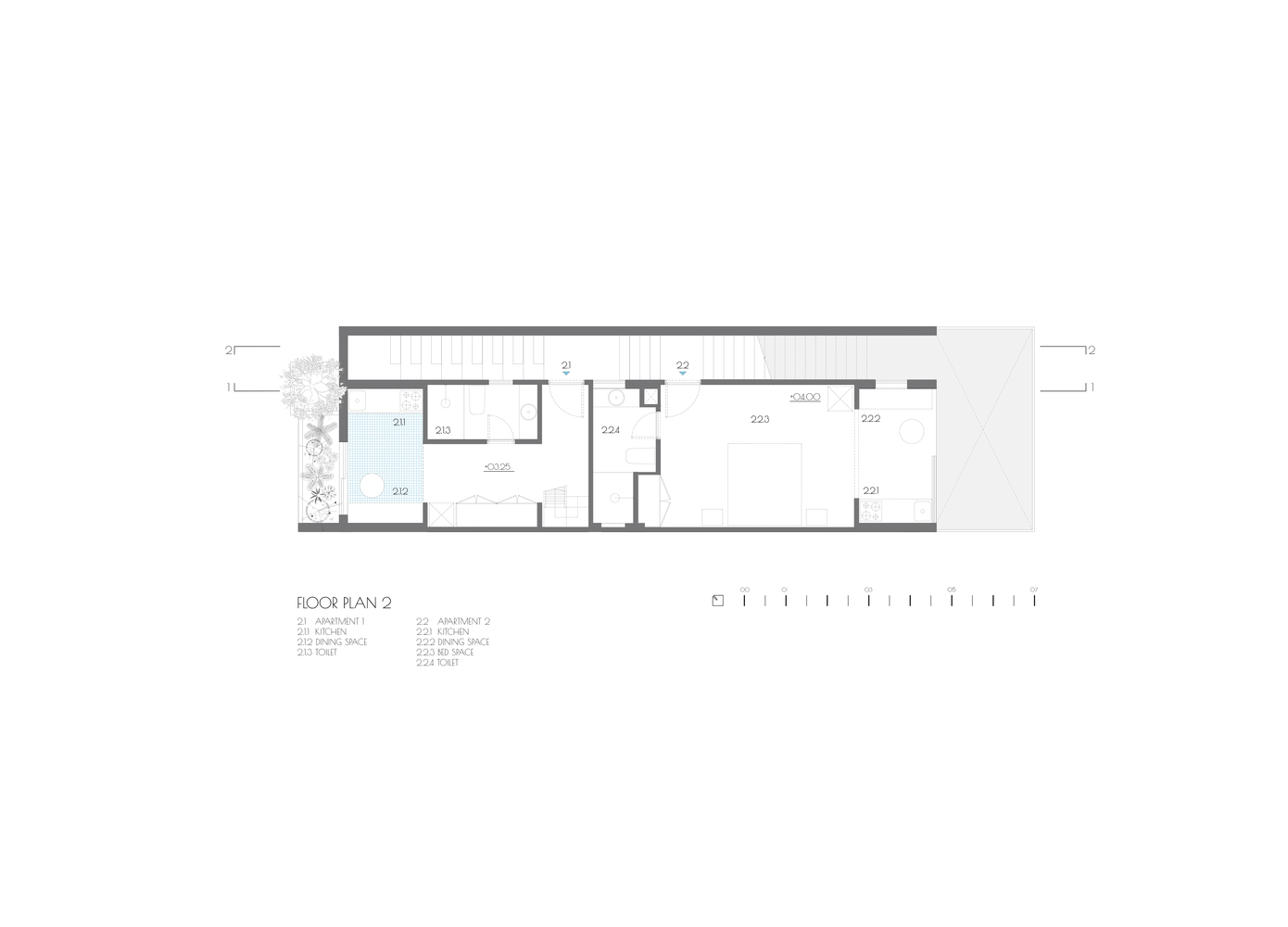

Second Floor Plan
Vy Apartments
Mezzanine Floor Plan
Vy Apartments
Third Floor Plan
Vy Apartments
Fourth Floor Plan

Vy Apartments
Site Plan


Vy Apartments

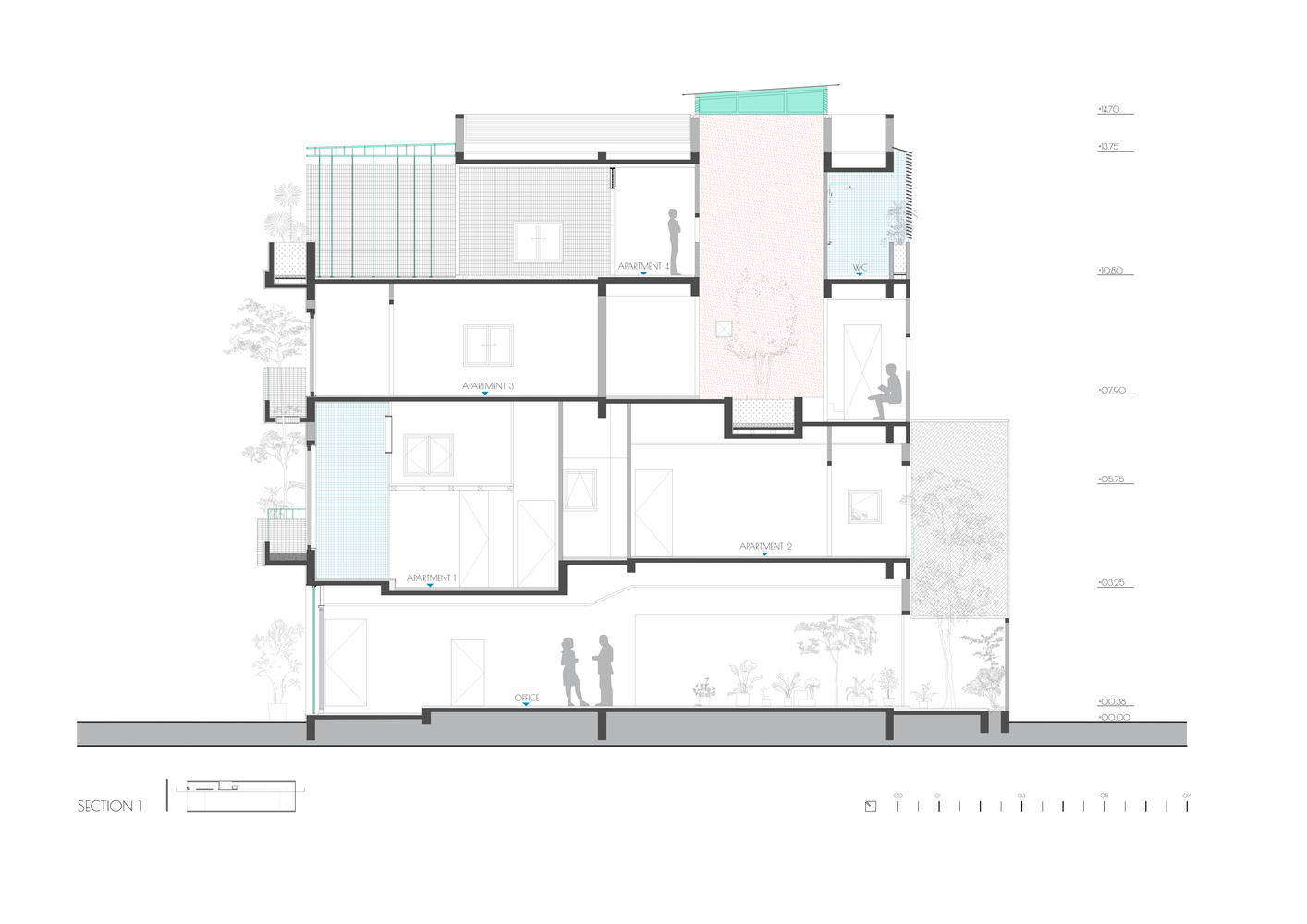

Section 01
Vy Apartments
Section 02


Vy Apartments
Main Elevation
Vy Apartments
Model
