Atelier NgNg

Floating Nest

FLOATING NEST

Atelier NgNg

Floating Nest
© Quang Dam

ARCHITECTS
Atelier NgNg

ARCHITECT IN CHARGE
Dung Ngo, Phi Nguyen

STRUCTURAL ENGINEER
Viet Technical

MANUFACTURERS
AutoDesk, Jotun, LG Electronics, Philips, Rhino

DESIGN TEAM
Ngo Viet Hung, Do Van Dung

PHOTOGRAPHS
Quang Dam

AREA
192 m²

YEAR
2020

LOCATION
Vietnam

CATEGORY
Houses, House Interiors

Floating Nest
© Quang Dam

Floating Nest, like many other tube houses in Saigon, is located on a narrow lot(4x12m) in a crowded residential area of the city, which is blocked by neighboring buildings on three sides, having only one side facing the exterior, yet, toward the West.

Coming to NgNg, the owner, passionate about gardening, wanted foremost an airy and relaxing space after a tiring working day, with abundant green areas to satisfy her hobby back in the countryside.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

To resolve the above-mentioned constraints while enhancing natural lighting and ventilation, we decided to omit partition walls within the house, using "greenery" and "void" to separate functional spaces.

There are three large voids: a front and a back gardens, spanning all three floors, separating the streets and the house; a central light well, across the two upper floors, separating the home office from the resting area, the garden from the place of worship.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

Small gardens are used similarly to separate the interior and exterior; the toilet and bedroom or kitchen; the bedrooms and stairs.

This solution creates smooth spatial transition while ensuring that all functional spaces are in contact with nature.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

Materials used are a combination of contemporary and traditional, reminiscent of spaces in Vietnamese villages: bamboo, wood, combined with glass, iron.

Bamboo is a natural material that is plentiful locally, both environmentally friendly and economical.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

The bamboo screen that runs the length of the facade - the "rattan walls" in traditional architecture in Vietnamese countryside, protects the whole house from the severe West sunlight and maintain a high degree of privacy.

Besides, the woven bamboos allow for natural ventilation.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

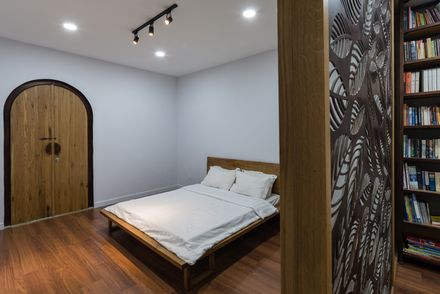

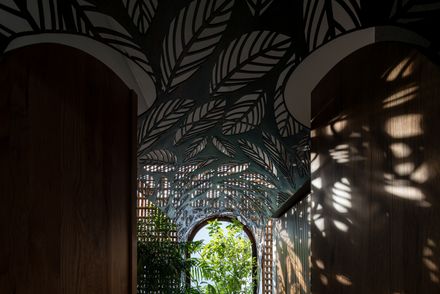

This bamboo curtain rolls up to shade the rooftop. The CNC iron paritions with cut leaves, a stylized version of the traditional wind screen (binh phong), function as a light and air convection device.

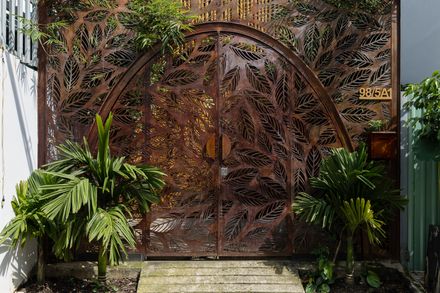

CNC iron is also used as sunshades on balconies and for the entrance gate.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

They altogether create the feeling of a house as an open, connected whole.

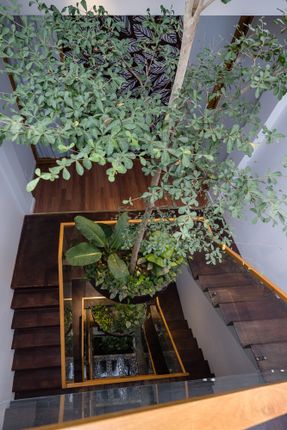

The bamboo ceiling at the backyard skylight, right over the stairs, is made up of vertical bamboo stick.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

This enables a visual connection with the facade while serving as a sunshade.

It also lets light go through, creating not only interesting shadows but also happy sounds like wind chimes hung in gardens.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

Thin sheet iron is used for architectural components that are often built with concrete such as stairs, plant pots, balconies, sunshades to reduce structural weight. Moreover, they are designed to look like being hung freely in the air.

This material is also used as the backdrop for the alter, worshipping area – the most important space within the house, which extends into the lower floor and becomes the meditation space.

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

These different strategies make the whole house feel light, as if it were floating in a large green space and filled with light.

At dusk, when the sun sets, the light from inside the house shines through the gaps between the bamboo trunks and the leave cuts on the iron walls, making the house look like a lantern in the middle of the neighborhood.

Floating Nest
© Quang Dam


Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam


Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam


Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam

Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam


Floating Nest
© Quang Dam
Floating Nest
© Quang Dam
Floating Nest
© Quang Dam


Floating Nest
Ground Floor Plan
Floating Nest
Mezzanine Plan


Floating Nest

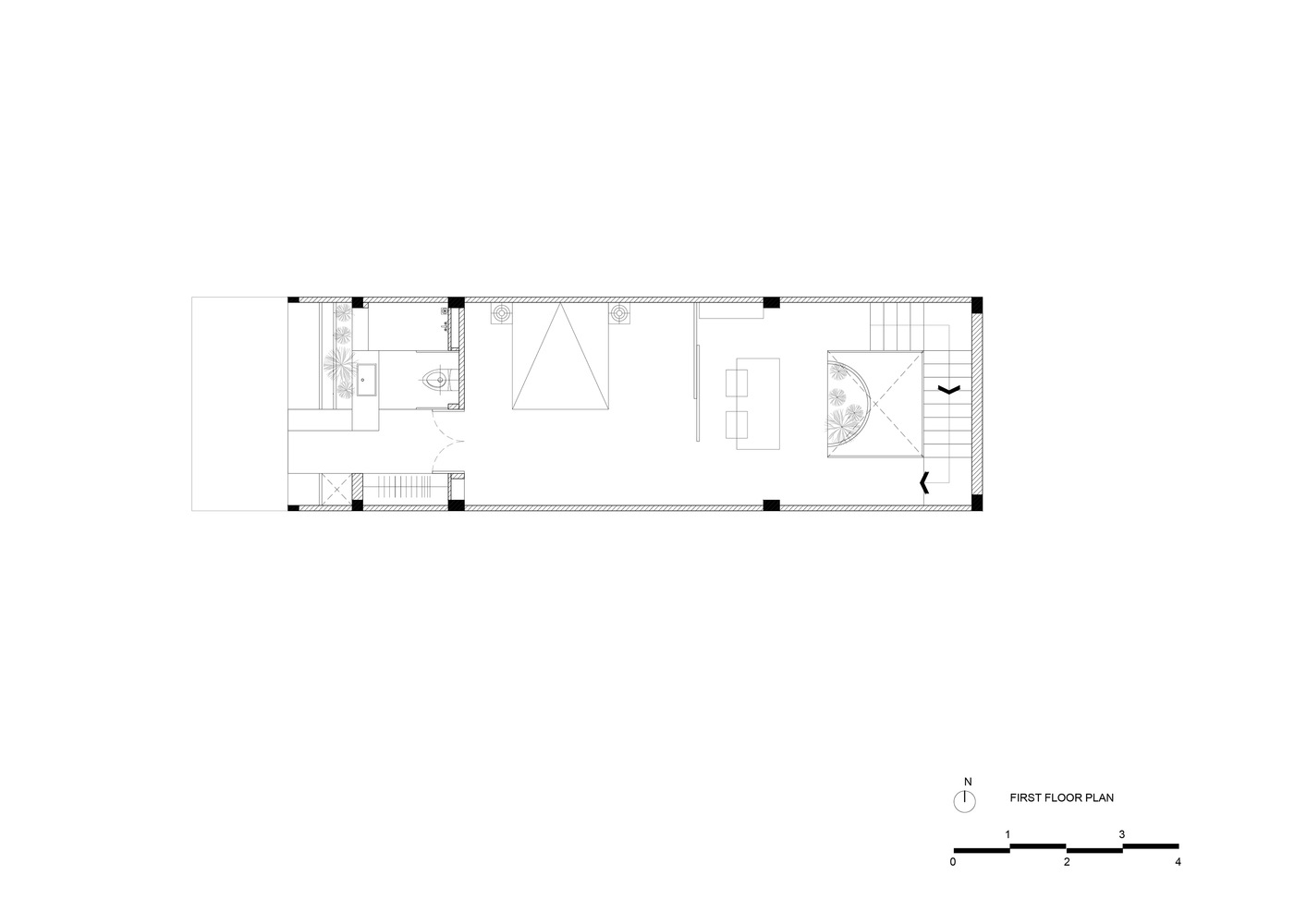

First Floor Plan
Floating Nest
Second Floor Plan


Floating Nest
Rooftop Plan
Floating Nest
Roof Plan


Floating Nest
Section Diagram
Floating Nest
Section


Floating Nest
Elevations
