LIBRARY AND SEMINAR CENTRE BOKU VIENNA

DELTA, SWAP Architekten

ARCHITECTS
DELTA, SWAP Architekten

CLIENTS
Bundesimmobiliengesellschaft m.b.H. - BIG

ELECTRICAL
TB Braun

DESIGN TEAM
SWAP Architekten

ENGINEERING
Bollinger + Grohmann

MANUFACTURERS
AutoDesk, Ardex, Creation Baumann, Stora Enso, Eva, Gleichweit, IVAN, Lengauer, Lieb Bau, Schmid, Steinerbau, Stora Enso Firmware, emc

BUILDING TECHNOLOGY
Team GMI

COLLABORATORS
DELTA

BUILDING PHYSICS
IBO

PHOTOGRAPHS
Florian Voggeneder, Hertha Hurnaus

AREA
5000 m²

YEAR
2020

LOCATION
Wien, Austria

CATEGORY
Library, University, Extension

The campus of the University of Natural Resources and Life Sciences (BOKU) in Vienna was extended by a timber construction with 3,000 m² of usable floor area.

The new building offers space for a seminar centre, a library, offices for several departments and shared areas.

Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus

The open entry-level and the public terrace create a communicative interface for students and faculty members from surrounding buildings.

In addition to the atmospheric qualities of the wood surfaces, the high proportion of daylight contributes to a pleasant learning and working environment.

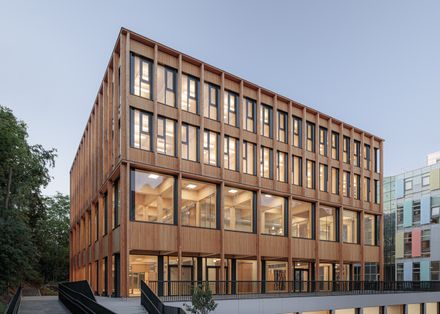

The appearance of the building is characterized by its timber skeleton construction.

Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus

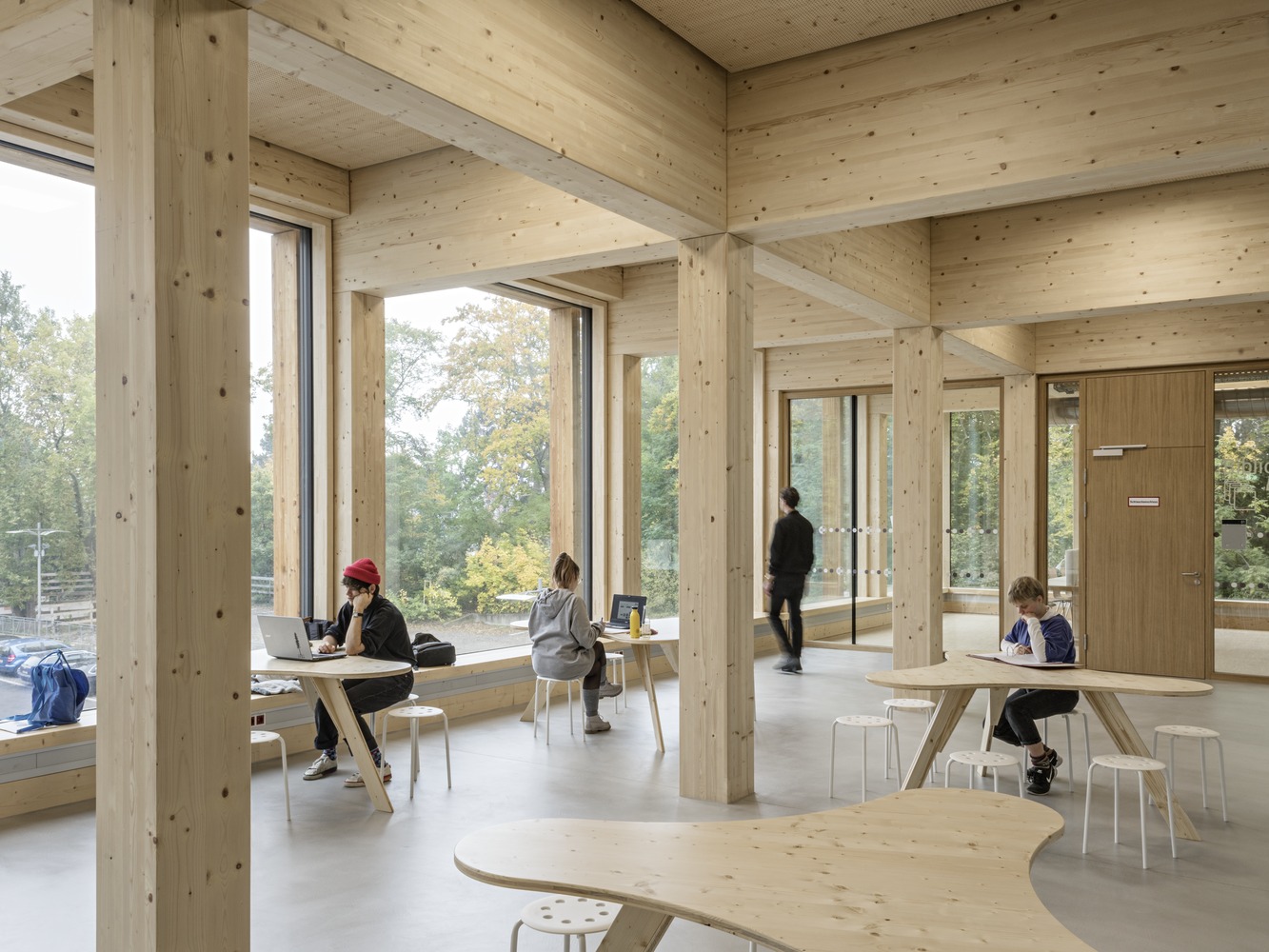

The façade grid of untreated wood is continued in the interior of the entrance level and the library as a structural grid of the ceiling.

The support structure becomes a design element. Full-height glazing creates a dialogue between the interior and the surroundings.

Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus

During the warm season, individual glass elements can be opened to the terrace, thereby creating a meeting place for students.

The four-story wooden structure was constructed from prefabricated cross-laminated timber elements.

The base, which is partially underground, and the stairwell are made of reinforced concrete.

Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus

Public and highly frequented rooms are situated on the lower levels. The two large seminar rooms on the entrance level can be joined and opened towards the foyer to provide a large space for events.

The learning spaces in the library, as well as the seminar rooms below, are orientated to the park in the northeast with its dense vegetation.

The departments, each of which comprises offices, a meeting room, and a small kitchen, are on the top two levels.

Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus

Modern digital technologies were used for planning and construction. After the design team had worked together to create a comprehensive BIM model, it was used to extract all relevant information to manufacture the individual CLT elements.

Then ‘Stora Enso Wood Products’ fitted these elements with digital sensors to continuously capture the temperature and the humidity during transport and assembly.

Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus

This information is used to ensure no environmental thresholds were crossed for any of the elements. The building has been recognized for its sustainable design.

It scored 965 out of 1000 possible points of the Austrian klimaaktiv building standard and was thus awarded the gold certificate.

Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus

In addition to the climate-neutral construction materials, the compactness of the building and its positive effect on energy efficiency was applauded.

Library And Seminar Centre BOKU Vienna
© Hertha Hurnaus
Library And Seminar Centre BOKU Vienna
© Florian Voggeneder


Library And Seminar Centre BOKU Vienna

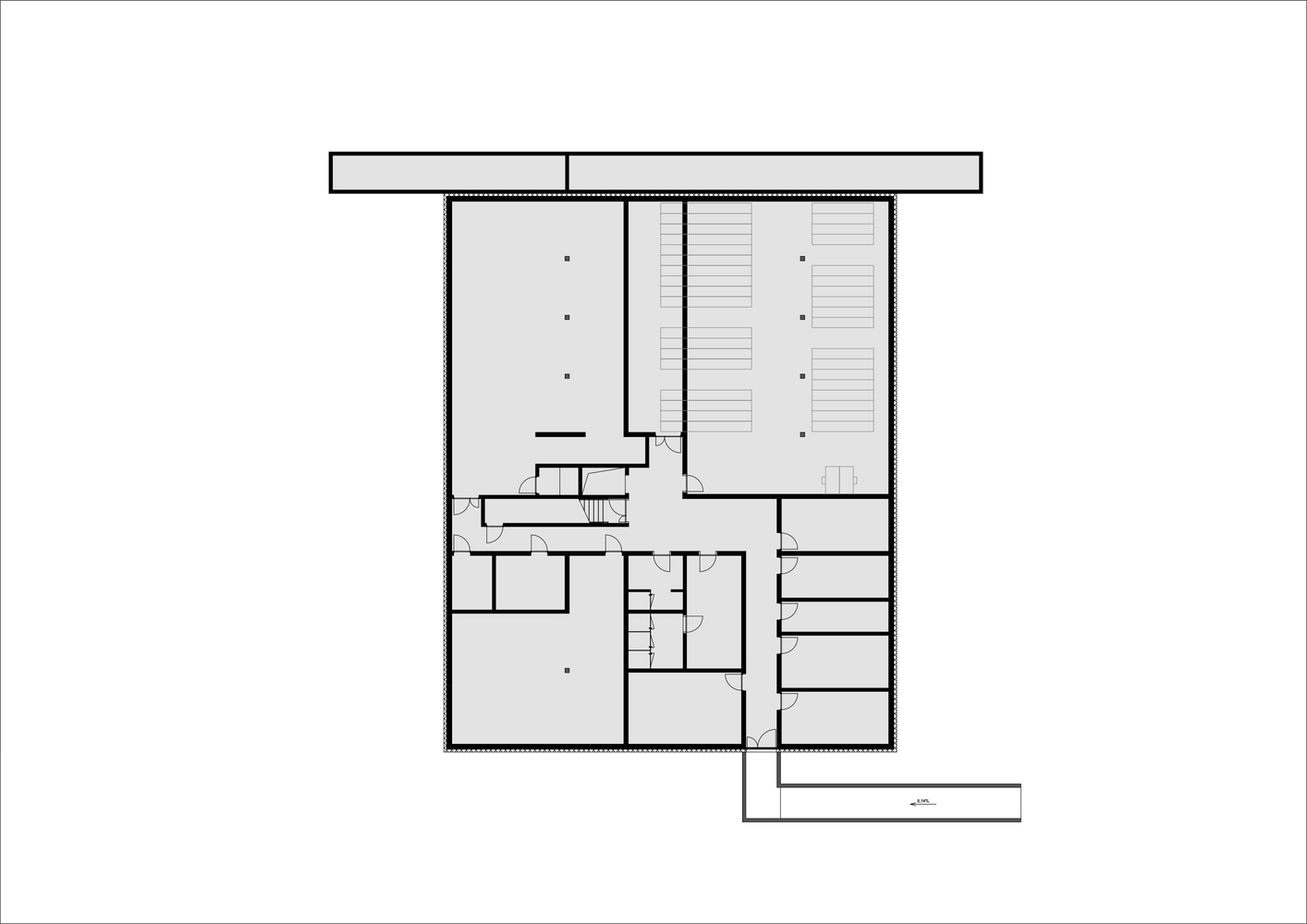

Plan
Library And Seminar Centre BOKU Vienna
Plan
Library And Seminar Centre BOKU Vienna
Plan
Library And Seminar Centre BOKU Vienna
Plan
Library And Seminar Centre BOKU Vienna
Plan
Library And Seminar Centre BOKU Vienna
Plan


Library And Seminar Centre BOKU Vienna
Plan - Site
Library And Seminar Centre BOKU Vienna
Axo - Section


Library And Seminar Centre BOKU Vienna
Elevation - North
Library And Seminar Centre BOKU Vienna
Elevation - East
Library And Seminar Centre BOKU Vienna
Elevation - South
Library And Seminar Centre BOKU Vienna
Elevation - West


Library And Seminar Centre BOKU Vienna

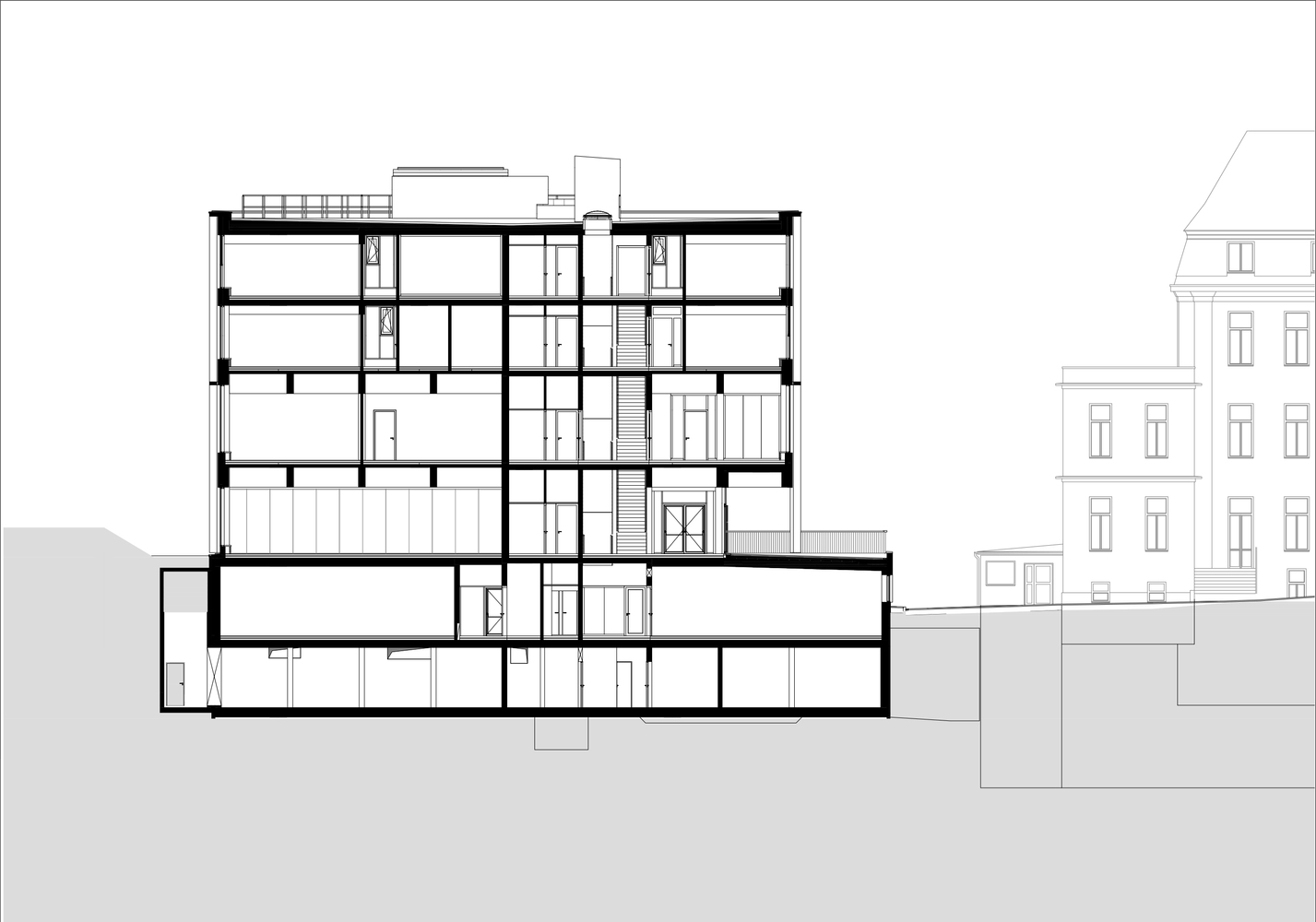

Section
Library And Seminar Centre BOKU Vienna
Section
