RAFAEL PAIVA'S OFFICE

Urbanode Arquitetura

ARCHITECTS
Urbanode Arquitetura

LEAD ARCHITECTS
Alessandra Fassina, Eduardo Paiva Ribeiro

MANUFACTURERS
Artlux Cortinas, Durafloor, Eliane, KWA Iluminação, L&M Serralheria, Marcenaria Nova Canaã, Mezas, SOS Vidros, Zero Máquina

CLIENTE
Rafael Paiva Ribeiro

PHOTOGRAPHS
Marcelo Donadussi

AREA
301 ft²

YEAR
2021

LOCATION
Porto Alegre, Brazil

CATEGORY
Medical Facilities

In general, when we are hired to design a small office space, we seek to bring the steady program together. Sometimes we propose 1 or 2 volumes that are multifaceted and help in solving the program in general.

Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi

In the case of this physiotherapy and osteopathy practice, we did not need considerable space for storage, so the most important was to propose free areas and fluidity (as a more abstract concept).

In programmatic terms we had to solve the reception area, exercise area and handling on the stretcher (with circulation around).

Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi

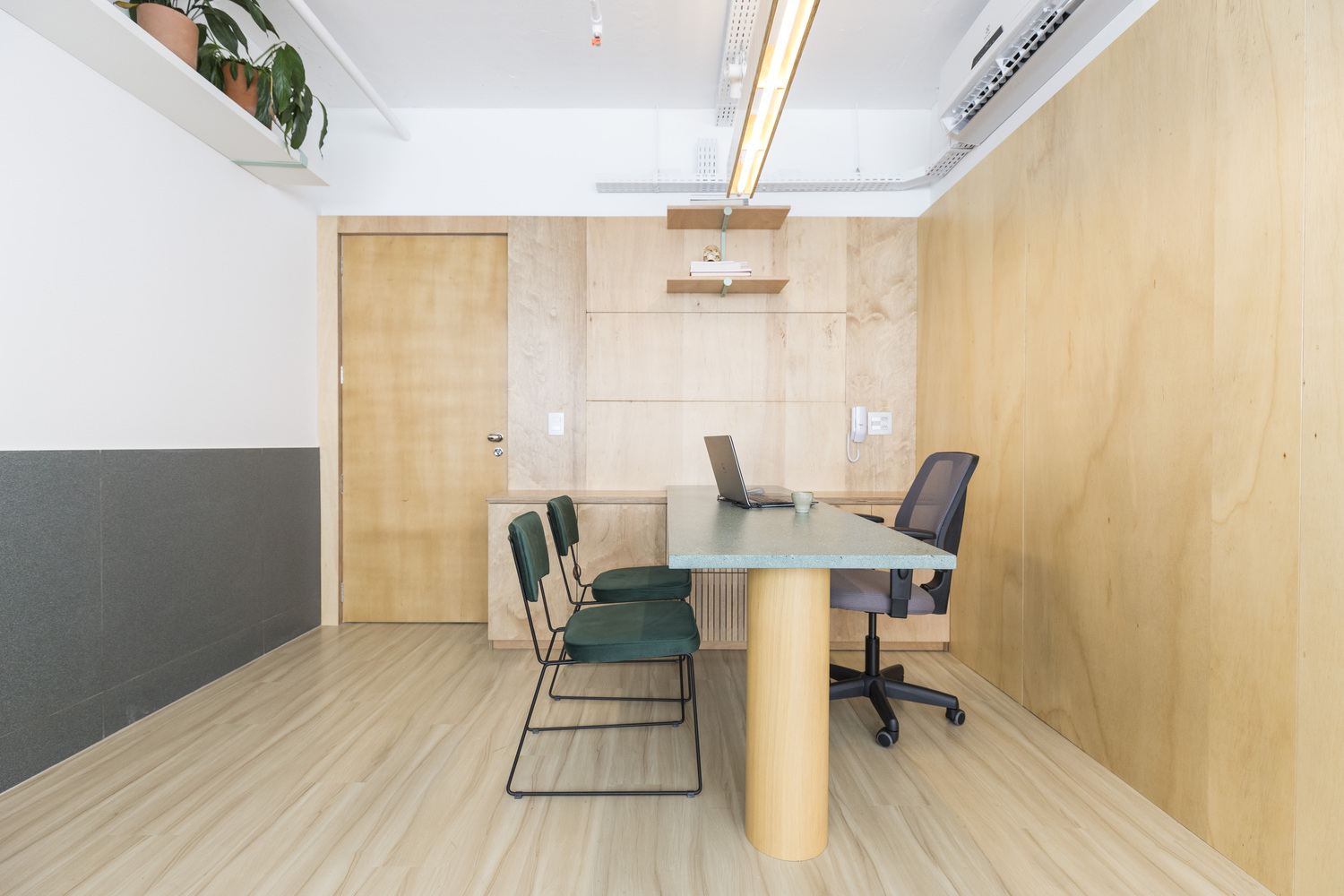

We opted to position the table immediately next to the access door, since the width of the space there is smaller due to the volume of the toilet. The measures were sufficient to place two chairs for patients and still have good circulation.

We use navy plywood joinery to solve more than one problem: the access wall is the one that has the presence of the installations (circuit breaker box and intercom), and, to organize, we move the panel away, creating a false bottom.

Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi

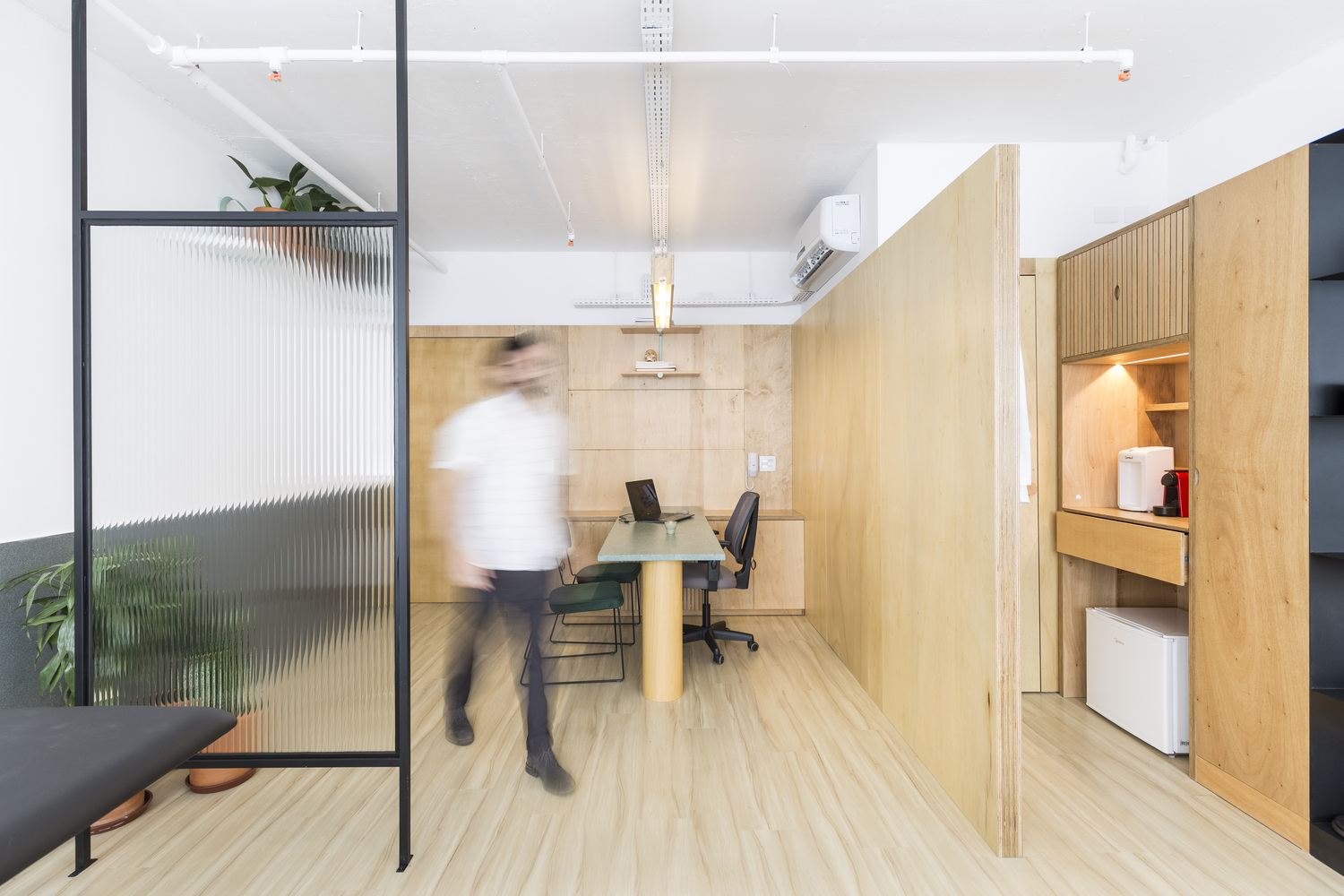

Another issue was the visibility of the pantry (which had a predetermined position by the building's infrastructure) that would be in the angle of view of whoever entered, so we wanted to create a filter.

Thus, we prolong the joinery and thicken (for aesthetic reasons) the panel up to the limit of the cup volume. This alignment is the imaginary line that separates reception from the exercise and manipulation zone.

Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi

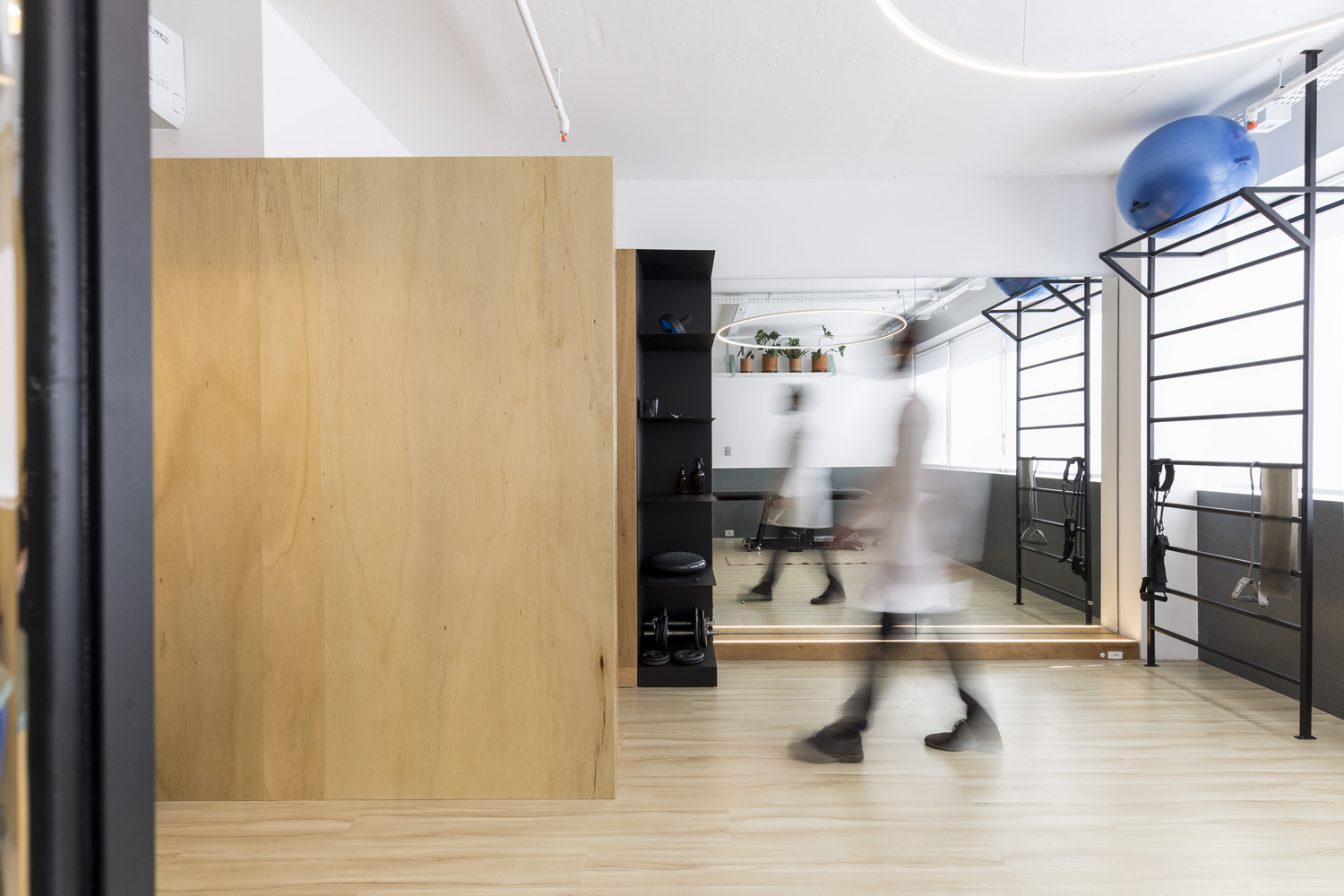

It is from this same line that we chose to exchange the materiality for a black painted metalwork, subtly defining the project areas. The partition in metalwork and corrugated glass was thought to give privacy to the stretcher.

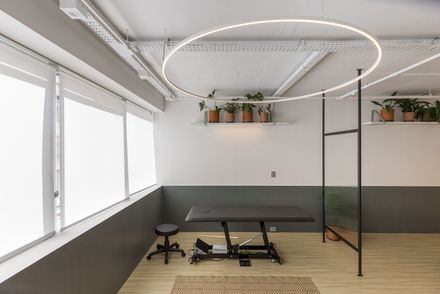

The metallic elements of the project dialogue with the lighting infra (and exposed concrete slab painted in white) exposed, including the round metal lamp that was designed and executed by our team.

Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi

One last important detail that highlights how the design solutions were designed is the consistency established in relation to the vertical plan of the project.

The height of 2.20m is the limit of joinery, metalwork, mirror and shelves; upwards, there are only the installations that are distributed by cable trays, lower to the walls and run behind the panels.

Rafael Paiva’s Office
© Marcelo Donadussi


Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi


Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi
Rafael Paiva’s Office
© Marcelo Donadussi


Rafael Paiva’s Office
Elevations
Rafael Paiva’s Office
Sketch
