BUILDING BETWEEN PARTY WALLS IN HOSTAFRANCS

Estudi08014

ARCHITECTS
Estudi08014

LEAD ARCHITECTS
Adrià Guardiet, Sandra Torres

STRUCTURE COLLABORATOR
Xavier Gimferrer

CONTRACTOR
Contrast Building

PHOTOGRAPHS
Pol Viladoms

AREA
142 m²

YEAR
2020

LOCATION
Barcelona,Spain

CATEGORY
Adaptive Reuse, House Interiors

Previous state: Building between party walls consisting of three volumes of GF+3, GF and GF+1, the last two of which are located on non-building land and must be demolished.

The project area includes the first two stories, where there was an industrial workshop which we are asked to transform into a house. The interior is chaotic with very low ceiling spaces and very little natural light and ventilation.

Building Between Party Walls In Hostafrancs
© Pol Viladoms
Building Between Party Walls In Hostafrancs
© Pol Viladoms
Building Between Party Walls In Hostafrancs
© Pol Viladoms

Emptying: The goal is to define a 2-storey house, with open and higher spaces and good ventilation and natural light conditions.

The out-of-regulation buildings are demolished in order to gain light, ventilation and an interior patio. The rear facade is demolished in order to gain light and ventilation.

The intermediate slab is demolished and the ground floor level is lowered by 50cm in order to gain height.

Building Between Party Walls In Hostafrancs
© Pol Viladoms
Building Between Party Walls In Hostafrancs
© Pol Viladoms
Building Between Party Walls In Hostafrancs
© Pol Viladoms

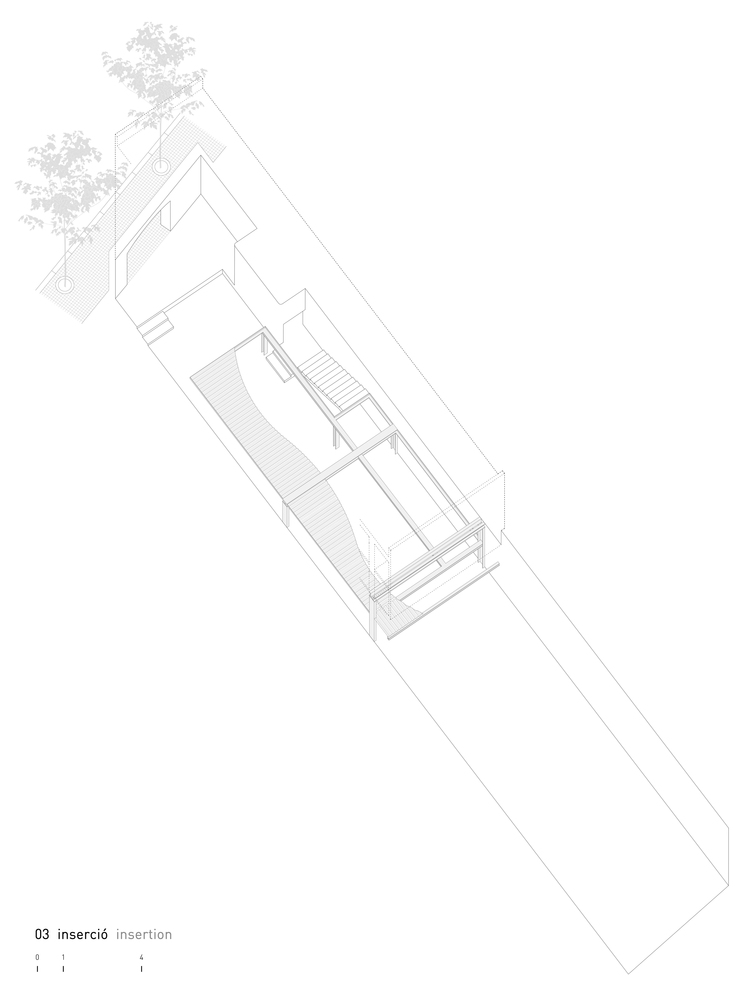

Insertion: A steel structure that supports the first floor is introduced within the existing volume. The structure is about 6m setback from the main façade, defining a double height access.

In cross section, the structure arranges the space into a 1/3 width 'server strip' and a 2/3 width 'served strip'. In longitudinal section, the structure defines a sequence of chained spaces that links the street with the patio.

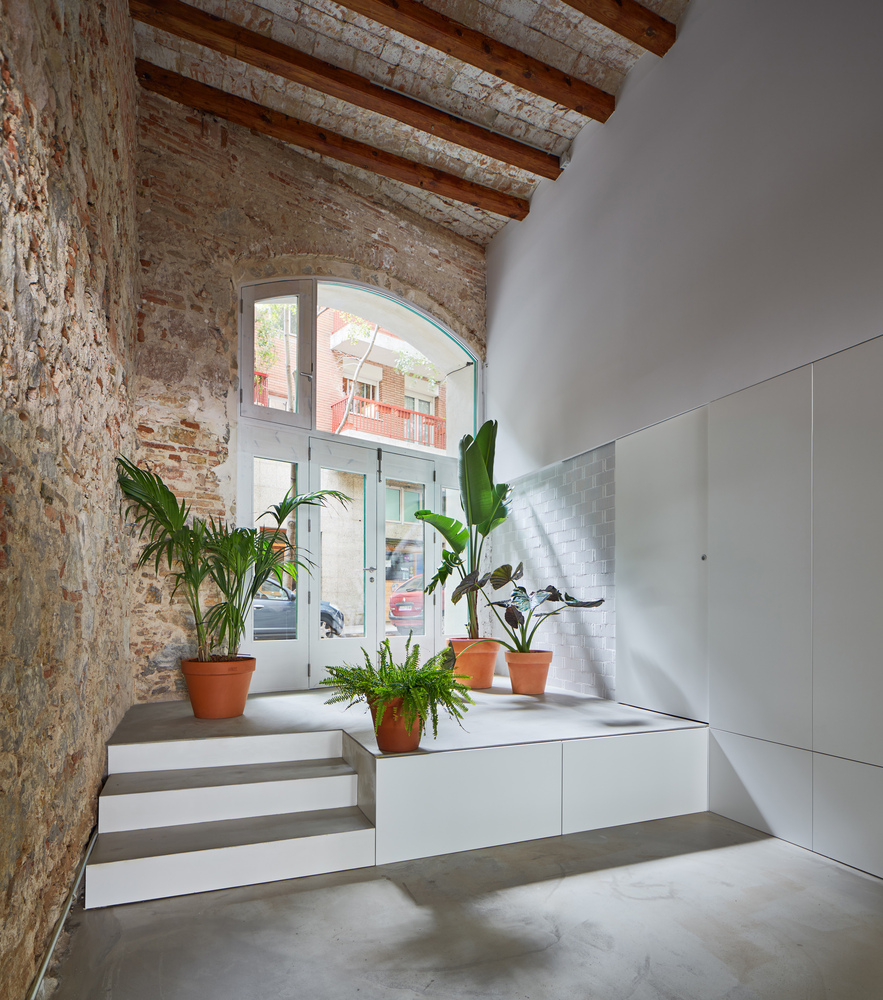

Energy and matter: The entrance to the house takes place through a double height, without a specific use, which operates as a bioclimatic regulator.

Building Between Party Walls In Hostafrancs
© Pol Viladoms
Building Between Party Walls In Hostafrancs
© Pol Viladoms

The materiality mixes the roughness of the original structure with the white and aseptic surfaces of the new construction. The courtyard incorporates a mineral part -an extension of the dining room to the outside- and a vegetal one where medium-sized species are planted.


Building Between Party Walls In Hostafrancs
© Pol Viladoms
Building Between Party Walls In Hostafrancs
© Pol Viladoms
Building Between Party Walls In Hostafrancs
© Pol Viladoms
Building Between Party Walls In Hostafrancs
© Pol Viladoms


Building Between Party Walls In Hostafrancs
Cortesía de estudi08014


Building Between Party Walls In Hostafrancs
Elevation
Building Between Party Walls In Hostafrancs
Plan


Building Between Party Walls In Hostafrancs
1st Floor Plan

Building Between Party Walls In Hostafrancs
Ground Floor Plan


Building Between Party Walls In Hostafrancs
Previous State
Building Between Party Walls In Hostafrancs
Emptying
Building Between Party Walls In Hostafrancs
Intersection
