COWORKING SPACE SP245

Oficina Conceito Arquitetura

ARCHITECTS
Oficina Conceito Arquitetura

EXECUTION
Bloccos Construtora; BG Engenharia

TEAM
Maurício Ambrosi Rissinger, Guilherme Nogueira, Tiago Scherer, Yasmin Feijó Jaskulski, Sophia Frantz Do Amaral, Alessandra Mello, Victória Potrich Manfroi, Amanda Hoffmann De Abreu, Alice Bernardo Tremarin, Júlia Külzer, Camila Eisenhut, Luiza Coimbra.

MANUFACTURERS
Ananda Metais, De Lazzari, Eliane

FURNITURE
De Lazzari Mobiliário Urbano

ART
Jotapepax

PHOTOGRAPHS
Marcelo Donadussi

AREA
250 m²

YEAR
2020

LOCATION
São Geraldo, Brazil

CATEGORY
Offices, Renovation, Cowork Interiors

The building is located in the 4th district, in Porto Alegre / RS. Much is debated about this region of the city, since from the 1970s the industries that operated there migrated to other cities in the Metropolitan Region and the state and the interest of Porto Alegre residents in living in the 4th District started to decrease and the region started to degrade.

Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi

The object of architectural requalification, the building had several improvements implemented to adapt to the new use. The building's upper floor was used as a dwelling, but it had been abandoned for some years.

In this new proposal, we adapted the pre-existence to become a space with office rooms and shared work environments.

Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi

Access is via the ground floor, through a staircase that shares the facade with another property for industrial use, independent of the second floor.

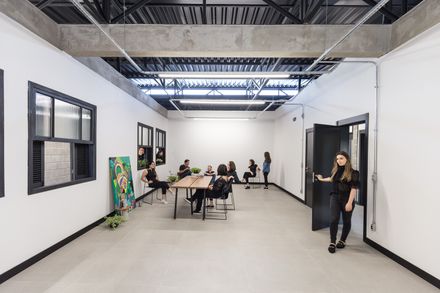

Arriving at the floor where the intervention was proposed, we eliminated the partitions of the old residence to make way for a large central room that functions as an island of shared work.

Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi

The wet area of ​​bathrooms and kitchen was positioned on the periphery of the floor plan, adjoining a wide range of circulation and conviviality that serves as support for the workplaces there.

Next to the main facade of the building, private work rooms were positioned, and the meeting room shares the lighting patio with the circulation.

Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi

The purpose of the intervention was to keep the existing walls to the maximum, modernize the layout and enhance the characteristics of the property.

We demolished the essentials to enable the new use, reorganized the spans and spacing of the windows of the main facade, removed the plaster of some existing walls and rebuilt the necessary walls of structural concrete block to serve as support for the new roof, a highlight of the intervention.

Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi

The old residence had its roof composed of a plaster ceiling and a very deteriorated ceramic tile roof. When we realized that it would be impracticable to maintain such a fence, we decided to promote a major improvement: a metallic structure covered by several sheds was designed to receive trapezoidal metallic tiles (Aluzinc + EPS + Aluzinc) and to allow ventilation and indirect lighting of the environments.

The contrast of the modernity of the black metallic tile with the old bricks and shutters sets the tone for this architectural requalification.

Coworking Space SP245
© Marcelo Donadussi


Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi


Coworking Space SP245
© Marcelo Donadussi
Coworking Space SP245
© Marcelo Donadussi


Coworking Space SP245
Planta
Coworking Space SP245
Schematic Section


Coworking Space SP245

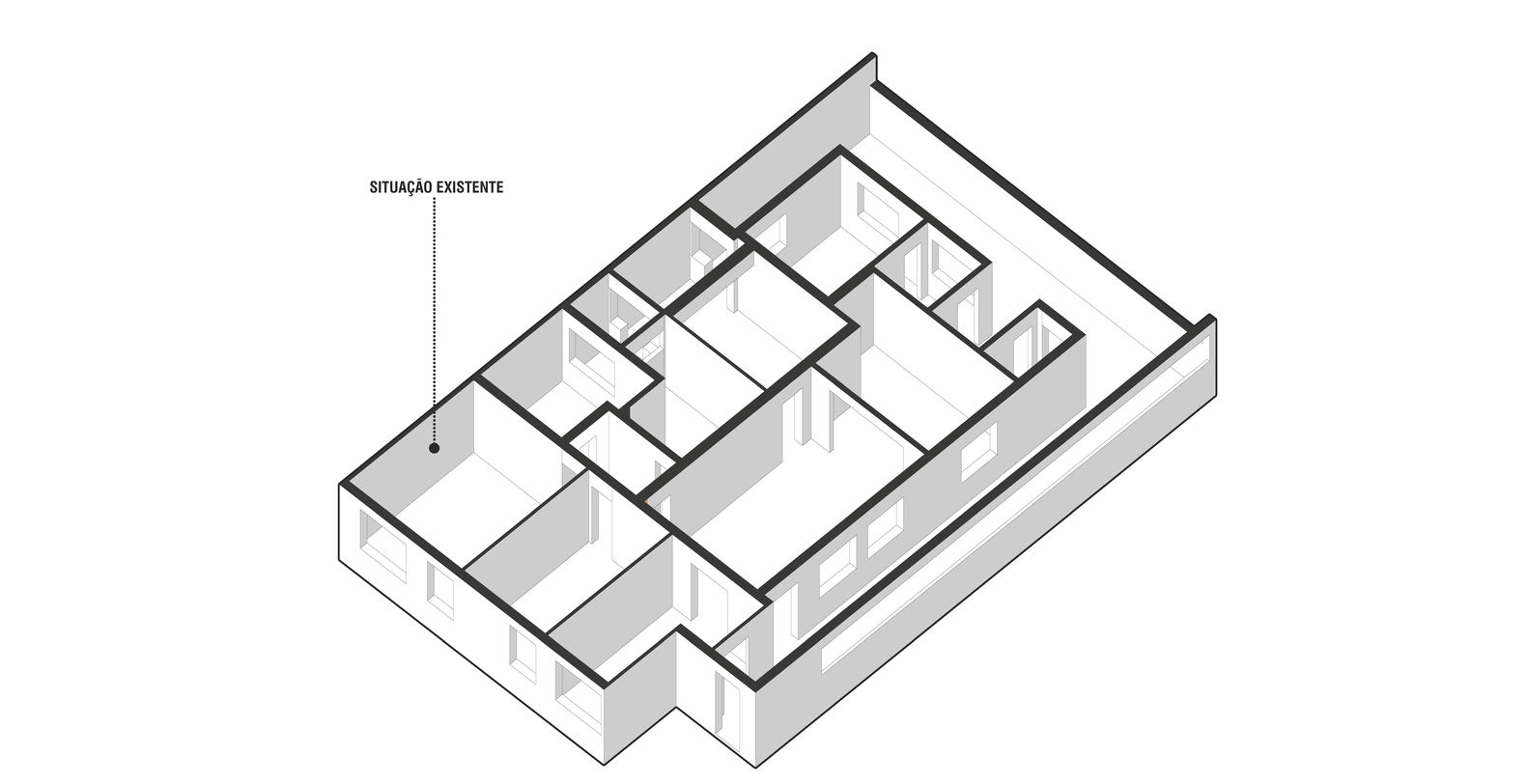

Axonométrica - Situação existente
Coworking Space SP245

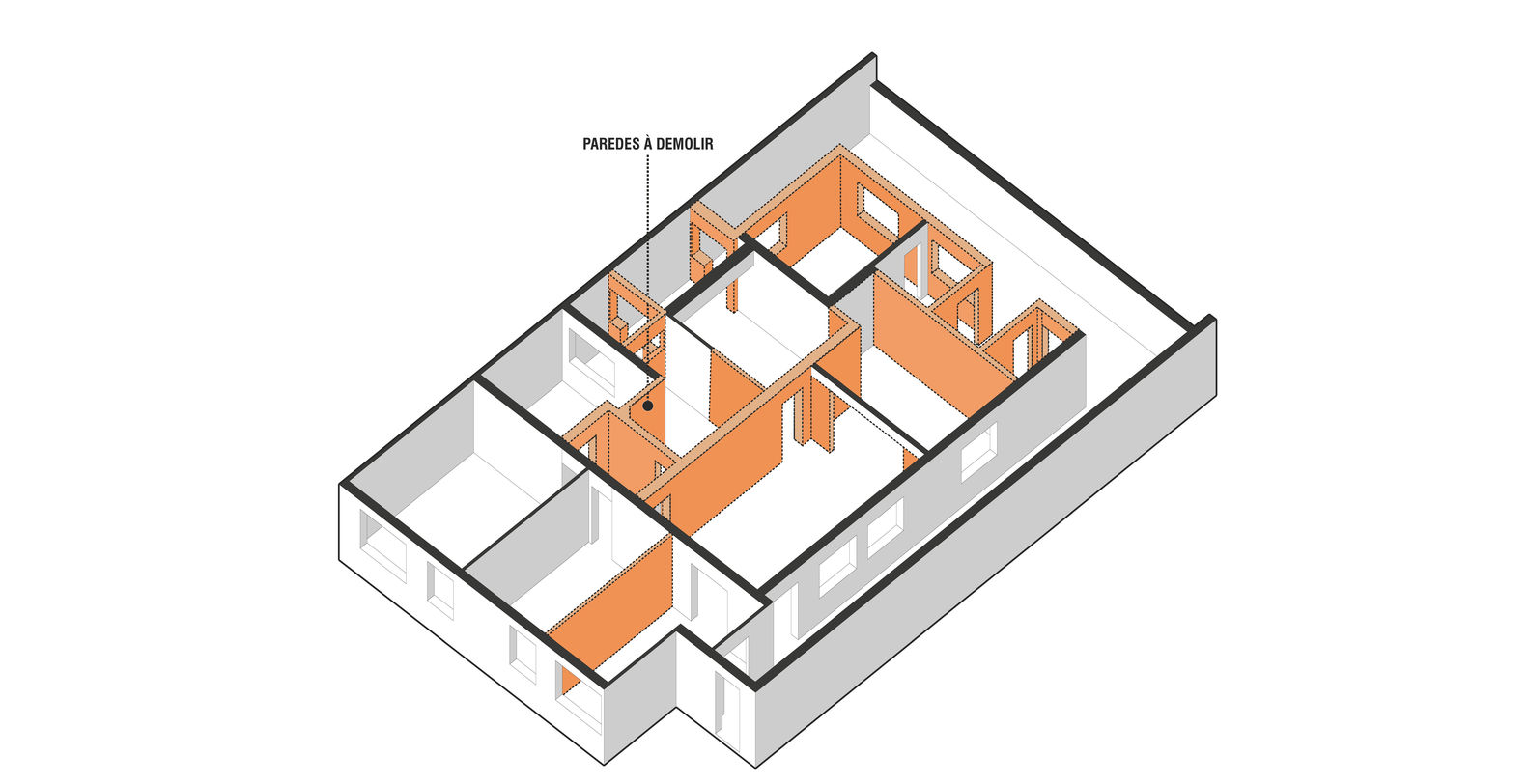

Axonométrica - Paredes à demolir
Coworking Space SP245
Axonométrica - Abertura de vaos
Coworking Space SP245
Axonométrica - Paredes à construir
Coworking Space SP245
Axonométrica - Divisão de sala 01
Coworking Space SP245
Axonométrica - Divisão de sala 02
Coworking Space SP245
Axonométrica - Divisão de sala 03
Coworking Space SP245
Axonométrica - Proposta final

Coworking Space SP245
Axonométrica - Zoneamento
