HL HOUSE

Chi.Arch

ARCHITECTS
Chi.Arch

ARCHITECT IN CHARGE
Truong Minh Tung

CONSULTANTS
SACI

PRODUCTS USED IN THIS PROJECT
Renders / 3d Animation

CLIENTS
Khanh Hung, Gia Linh

ENGINEERING
Huynh Thanh Phu Quy

MANUFACTURERS
AutoDesk, Enscape, Jotun, Adobe, Anfaco Lighting, Egger, Gach Bong Viet, STA Interior, Trimble Navigation, Xinfa

DESIGN TEAM
Truong Minh Tung, Ho Nguyen Thuy Quynh

PHOTOGRAPHS
Thanh Pham, Chi.Arch

AREA
250 m²

YEAR
2020

LOCATION
Vietnam

CATEGORY
Houses, House Interiors

HL-House occupies a small site 4x18m hemmed in by other residences in the residential area called Binh Thanh District, Ho Chi Minh city.

HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch

This area is very near the city center, convenient place to go to work. However, this is the old residential area near the center.

The alley is very narrow, less than 2m, with a dense building density, low drainage, quality of life is not good enough.

The owner of the house is three people young family, with the desire to have a living space full of natural light and ventilation.

HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch

They want to stay away from stuffy of urban living after all day long working.

The limitation is narrow façade, less than 4m, the solution chosen by architect is to open.

A large atrium at the center of the house, provide natural light for all the spaces and rooms, the void at the end of the house make space for natural ventilation.

HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch

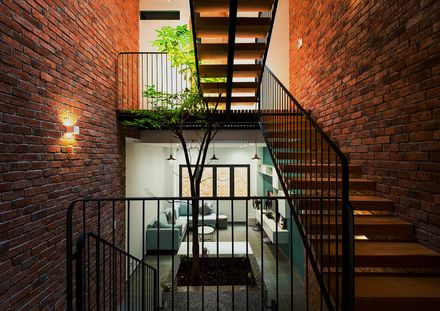

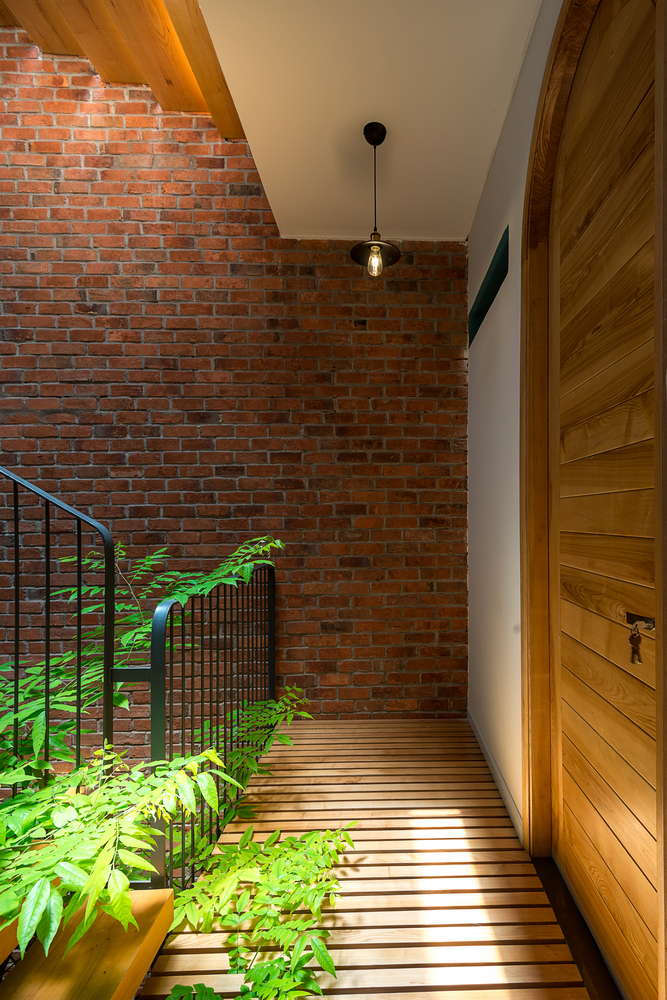

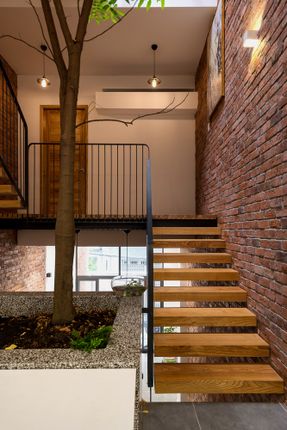

The criteria is just enough area for rooms, almost 1/3 area of building be share for the atrium. Stair steps material is wood with steel structure.The corridor floor material is wooden slats, red ancient brick for all.

The wall at the atrium, this place is connection space for all indoor areas.

You can communicate with each other through this void.

HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch

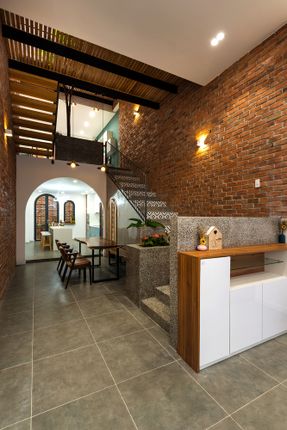

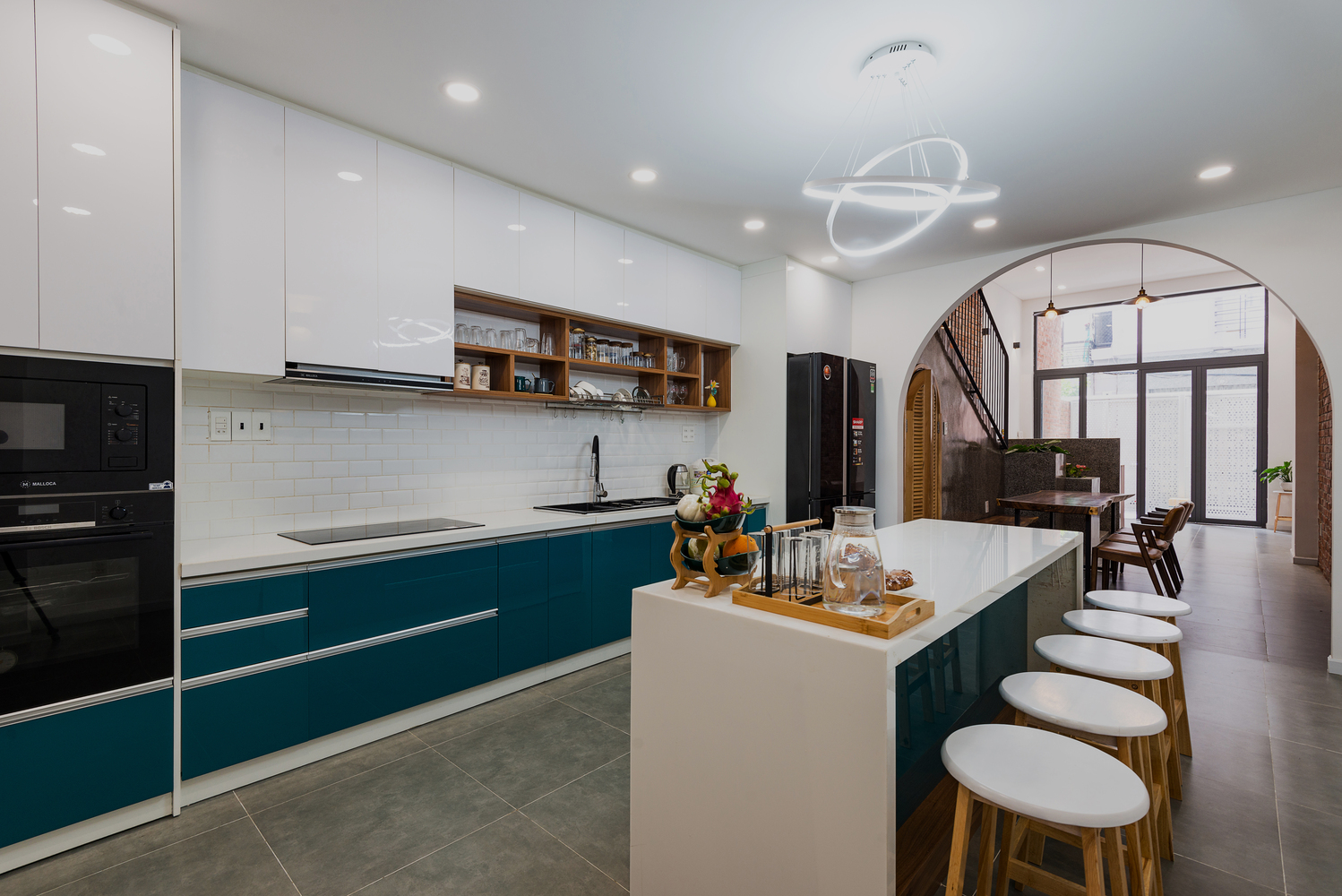

The ground floor start with the entrance, the piano space, main area is kitchen and bar behind the house, the dining table is located at the atrium area.

While, the living room is placed at the mezzanine to free up area for the ground floor.This place have the view to the main door, the master bedroom.

HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch

And this area is suitable for the split-level floor house, creating more space lively in the house.

All functional spaces in the house contact with natural light, ventilation, and tree, this is also desirable right from the start of design process of the owner and architect.

HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch

Limited area and hard to approach in the narrow alley is a common disadvantage of a townhouse in Vietnam, especially in the old residential area.

The only way to create a real living space if you want to put wind.

And sunny in the house is taking out a part of the building area. Design team contribute a part of making that space, and the owners of the house are the people who complete that space and make home.

HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch


HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch
HL House
© Thanh Pham, Chi.Arch


HL House
Section 01
HL House

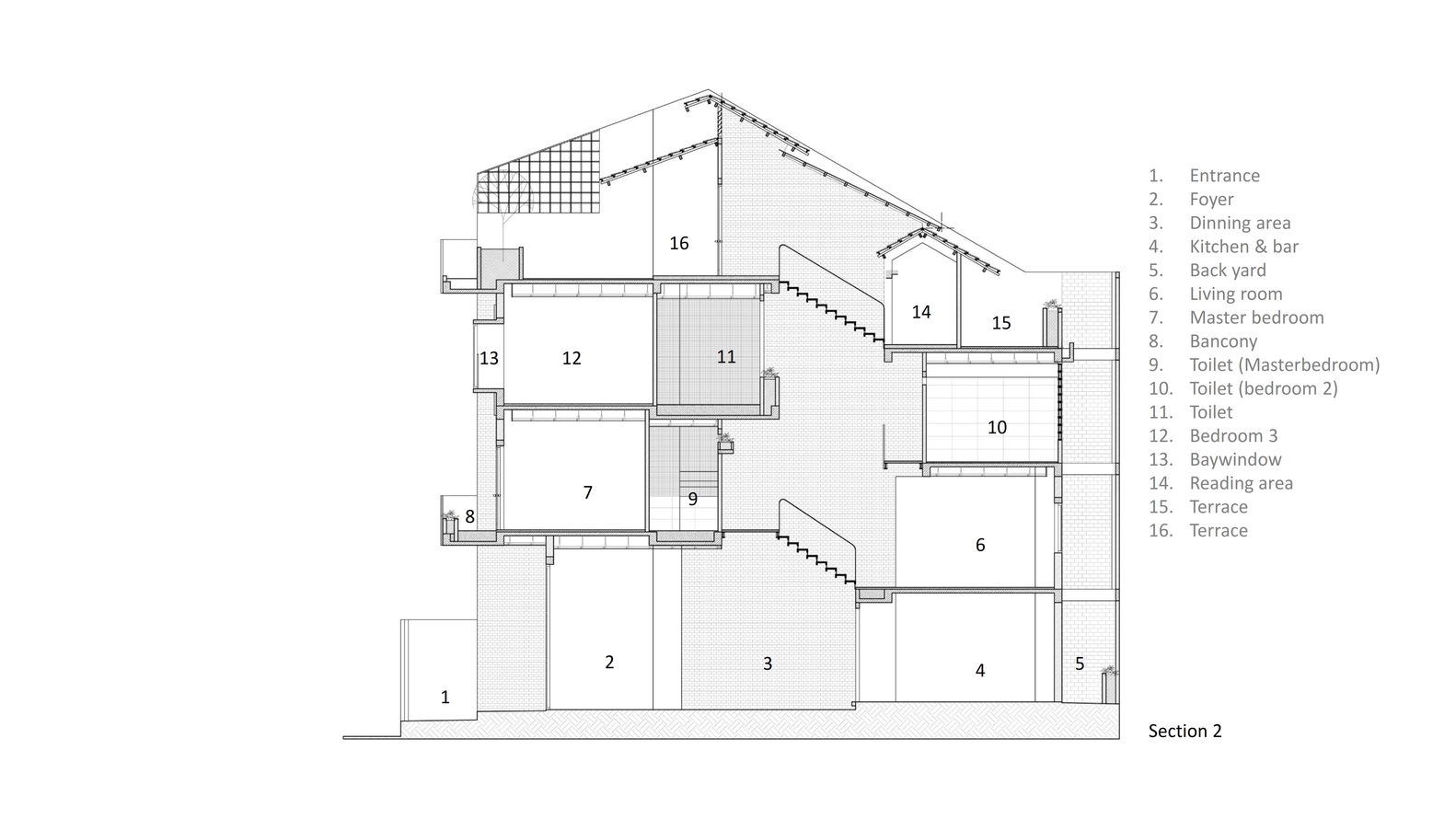

Section 02


HL House
First Floor Plan
HL House
Second Floor Plan
HL House
Third Floor Plan
HL House
Fourth Floor Plan


HL House

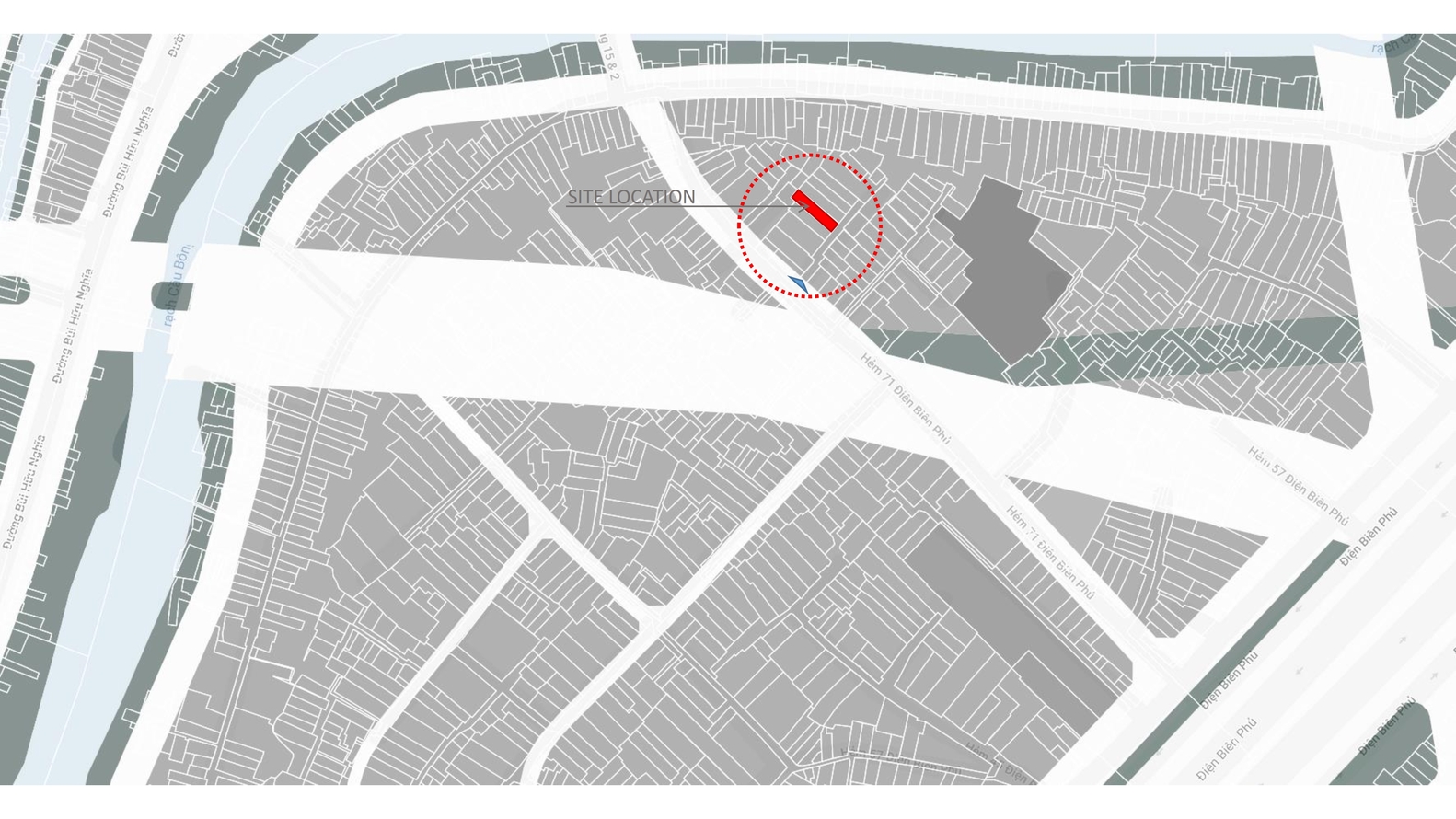

Site Location
