SENS NICARAGUA

Atv Arquitectos

ARCHITECTS
Atv Arquitectos

LEAD ARCHITECTS
Federico Azubel, Ignacio Trabucchi, Walter Viggiano

LANDSCAPE
Bulla

ENGINEERING
Ángel Santos, EyP Ingeniería

PHOTOGRAPHS
Albano Garcia

AREA
7000 m²

YEAR
2020

LOCATION
Palermo, Argentina

CATEGORY
Apartments

This building is located in Palermo, one of the neighborhoods of Buenos Aires City, on the tree-covered Nicaragua street with a strong identity in terms of neighborhood sub-centralities, on a 34 meters width plot, between party walls, and variable 26 m to 50 m length towards the block core, being this a considerable block portion regarding its scale within the configuration of the urban fabric.

SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia

This design represents a turning point from different points of view, regarding its planning and development.

On one hand, as architectural structure it maintains and deepens the project material-structure matters, it explores the modern ways of inhabiting going in depth about the inhabitant construction, and location and dimensions of external spaces interconnected with each inhabited internal space; on the other hand, it defines a clear position understanding the environment and preexistences, particularly taking into account that a building of scale may be established as a Manifesto for that matter in a block and its surroundings.

SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia

The architectonic material structure Dividing the plot into eight 4 m units, the geometrical construction of the project from the front to the rear facade defines measurement of the living spaces.

In the other direction, two central structural supporting partitions, which make the vertical circulation nucleus, go up along the building connecting with the columns, partitions, and beams, thus defining the project structural construction.

SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia

This construction becomes expressive and apparent, sometimes as a boundary between internal spaces, sometimes as an assembling element between interior and exterior.

In addition, four 1 m-height beams laid every two levels go through the whole front facade of the project defining three programmatic groups with diverse situations regarding space, emptiness, continuities and typologies, which are the edge interconnecting the building, the urban space, and the preexistences.

SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia

This project structure appeals a person to change its perception of the architectonic object scale, in dialogue with the existing house fabric and low-and-medium-density buildings, inviting it to investigate and perceive the project as a unit -with the intention of balancing its composing elements- being expanded towards the interior and showing interconnection between the whole and its parts.

Two big central green courtyards interconnect with the immediate surroundings and integrate the project units in their connection between front and rear facade.

SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia

The air flows in the interstices between the own and the already existing constructions, creating from those contact points new shared exterior spaces and links between urban air, courtyards, and block interiors.

These structures strengthen the adjacent emptiness and place new continuities between interiors and urban space in diverse heights, thus creating continuous and crossed views between their own and others’ expansions.

SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia


SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia
SENS Nicaragua
© Albano Garcia


SENS Nicaragua
Ground floor plan
SENS Nicaragua
First floor plan
SENS Nicaragua
Second floor plan
SENS Nicaragua
Third floor plan
SENS Nicaragua
Fourth floor plan
SENS Nicaragua
Fifth floor plan
SENS Nicaragua
Sixth floor plan
SENS Nicaragua

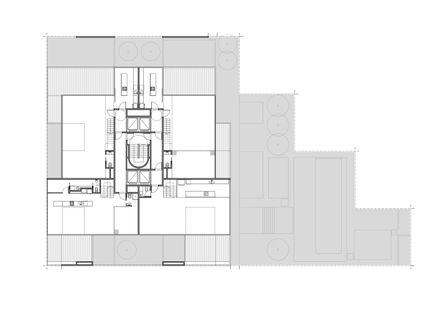

Seventh floor plan
SENS Nicaragua
Eight floor plan
SENS Nicaragua
Ninth floor plan


SENS Nicaragua

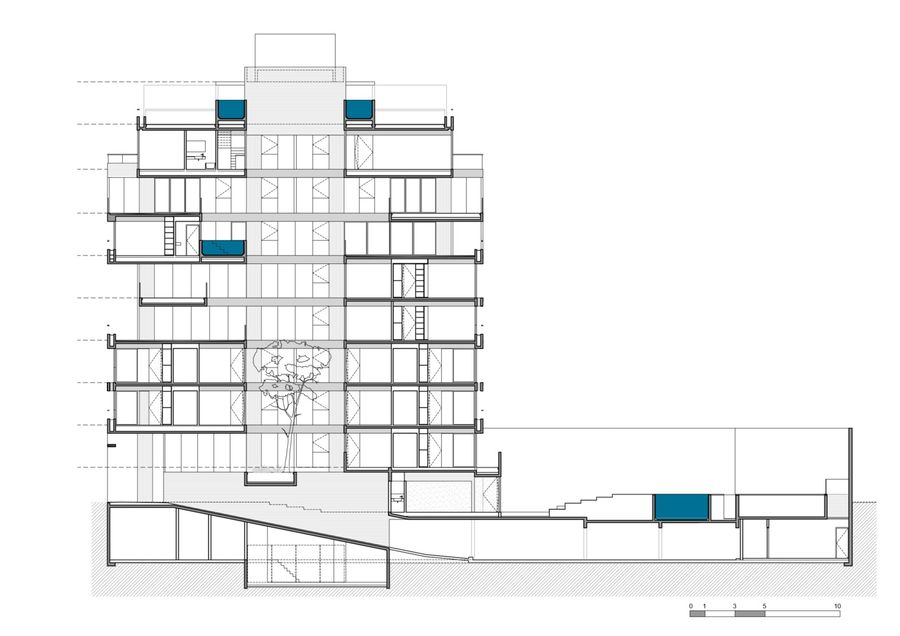

Section
