Duplex Tibbaut

Duplex Tibbaut
© José Hevia

DUPLEX TIBBAUT

Raúl Sánchez

ARCHITECTS
Raúl Sánchez

ARCHITECTURE COLLABORATORS
Pau Just, Victor Lorente

STRUCTURE
Francisco Moyano

MANUFACTURERS
Sancal, DomesticoShop, HAY, Menu, Santa & Cole, Softline, ZANOTTA, nanimarquina, ISIST, SP HAUS

ENGINEERING
Marés ingenieros

PHOTOGRAPHS
José Hevia

AREA
110 m²

YEAR
2017

LOCATION
Barcelona, Spain

CATEGORY
Restoration, Apartment Interiors

The starting point was two independent dwellings on top of each other on the ground floor and mezzanine of a modest, old apartment building between dividing walls in the heart of the Raval (Barcelona).

Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia

Both dwellings were in an absolute state of neglect and disrepair.

The client's requirement was to concentrate the main living spaces on the mezzanine floor and expand them on the ground floor with other spaces with more diffuse functions that could be used as living room, study, work area...

The proposal is clear and direct: in the middle of the space, insert two 2-meter side squares rotated 45º over the dominant axis, their vertices overlapping without touching the original walls, and extruded through both floors.

Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia

Thus, the stairs are enclosed in one of the volumes, and their spiral pattern aims to disorient and conceal to surprise at the landings;for the same purpose, there are multiple axes of symmetry that double up circulation and enhance the spatial experience, for example, at the landing on the ground floor with two possible exits, or all those axes that are placed at the squares' vertices; the enclosed bathroom area on the upper floor, the most isolated and private of the whole, mirrors and unfolds its negative space.

A double-height empty area linking both floors; the highly reinforced top floor structure is cut off before touching the façade to reach it with a glazed floor pane, linking both floors, and thus isolating the existing façade wall, including the outer sliding carpentry are placed in that wall’s interior plane;

Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia

no element touches the volumes, which are read independently inside, ending just before they touch the ceiling; lights, door knobs, shower heads, drains ... all elements replicate the 45° turn with respect to the surface where they are inserted ...

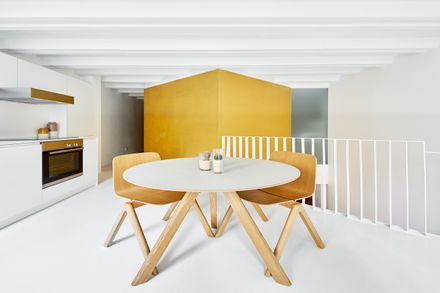

The treatment of colours and materials highlights the two extruded volumes, which are coated in glossy, gold finish paint mixed with gold powder and varnished, surrounded by white cladding (micro-cement and paint) covering and coating the existing perimeters.

The inside of the staircase dug into one of the volumes, is a dark world of black contrasting with the exterior whites, just as the bed area in the bedroom, excavated into another of the volumes and covered with painted OSB wood boards and varnished in black.

Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia

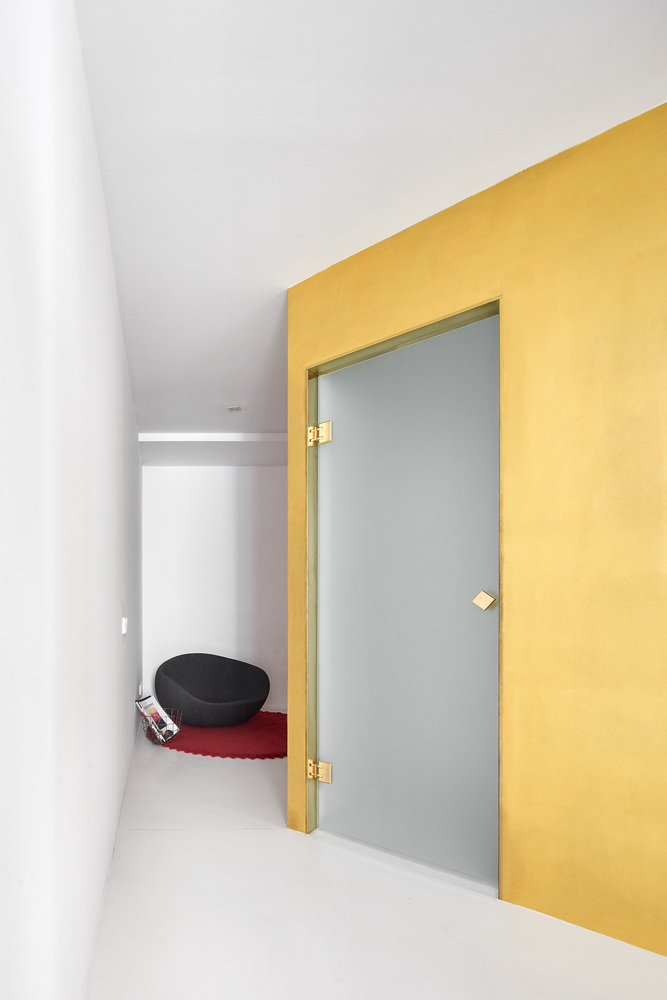

The door frames (all glass) and openings are either brass or black steel, depending on the area to which they give access; hinges and handles are also brass or chrome ...

The material and colour code always matches the nature of the element where it is applied, whether existing or new, either inside the squares or outside.

Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia

From the outset, the structural intervention required overhauling the foundation, high precision in placing the central squares, as well as the precise cutting of the existing wooden beams for the openings and double heights.

The cut wooden beams either rest on the new steel porticos or lean on the lower wing of the new beams, always for the purpose of allowing the clean extrusion of the squares.The duplex is equipped with underfloor heating with a highly efficient air-therm system.

On the ground floor, three existing paintings of Brazilian origin have been preserved, and the proposed inside circulation places them right at the stairs exit.

Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia

These paintings are the reason the client, of Brazilian origin herself, initially decided to buy these two properties and undertake the project.

Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia


Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia
Duplex Tibbaut
© José Hevia
Duplex Tibbaut
Before
Duplex Tibbaut
Before


Duplex Tibbaut
Section 1
Duplex Tibbaut
Section 2


Duplex Tibbaut
Axonometic
Duplex Tibbaut
Axonometic
Duplex Tibbaut
Exploded Axonometic


Duplex Tibbaut
Model 1
Duplex Tibbaut
Model 2
Duplex Tibbaut
Model 3


Duplex Tibbaut
Floor Plans
Duplex Tibbaut
Floor Plans B


Duplex Tibbaut
constructive details
Duplex Tibbaut
Location Plan
