House Between Buildings

House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo

HOUSE BETWEEN BUILDINGS

Guidi + Hernández Arquitectos

ARCHITECTS
Guidi + Hernández Arquitectos

COLLABORATORS
Julián Nogara, Narella Frattini, Gonzalo Montoya

MANUFACTURERS
Patagonia Flooring, HACHE Amoblamientos, Quinta Fachada

GREEN TERRACES
Quinta Fachada

STRUCTURE
Gabriel Macedo

PHOTOGRAPHS
Walter Gustavo Salcedo

AREA
192 m²

YEAR
2016

LOCATION
Rosario, Argentina

CATEGORY
Houses, Houses Interiors

The project develops in a small urban terrain of Rosario city, in Argentina, between two buildings, 30 and 19mts height.

On the site existed a typical dwelling of our urban plot dating back to 1920.

House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo

On the sidewalk, appear two trees approximately 30mts high.

It is inevitable, so as to understand the project description, take the preexistences as a part of the design process which strongly mark its guidelines.

House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo

When the city presses, the spaces respond stacking themselves and flowing vertically. Save this picture!

A triplex typology allow us to response programmaticaly and also dialogue with the preexisting urban scales.

House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo

 A concrete piece folds over itself, embeds in the space between buildings and complete the urban vacuum.

Is the structure and the space at the same time, being also the language of the work. Reinforced concrete is chosen to solve big lights, obtaining the possibility of building free, flexible and versatile plants.

House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo

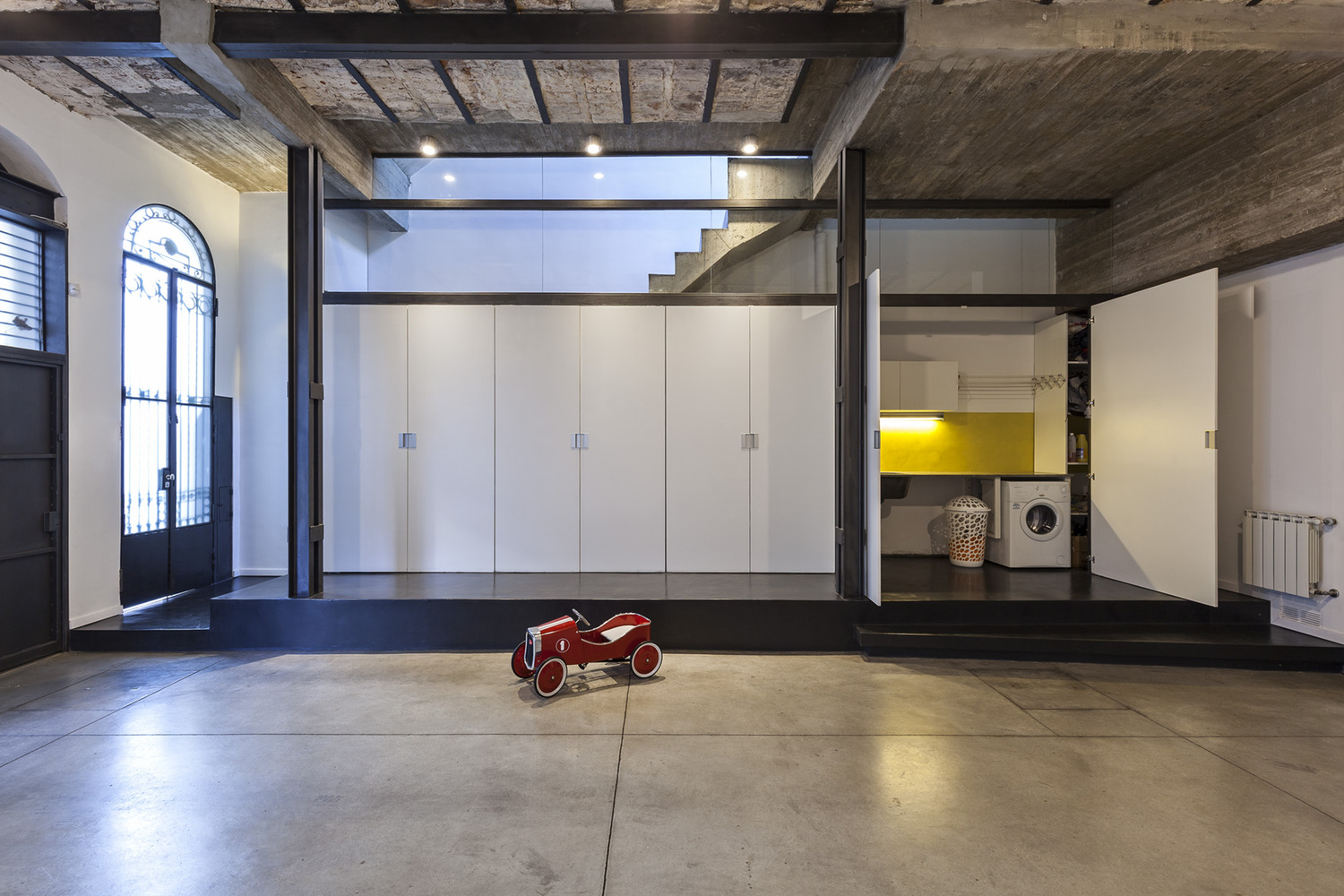

A multiple uses space in ground floor is achieved by emptying the existing house and completing its patio’s space with a ribbon concrete that folds.

This structure take different forms responding to different needs, it is a staircase in ground floor and it is a patio, a stonecutter and a pool on first floor.

House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo

The first floor is the heart of the house; living room, kitchen and patio coexist in a direct dialogue. Due to emphasize this action, great openings materialized the division between interior and exterior ensuring the visual continuity, allowing a physical connection without limits when opened totally, turning covered space into a semi-covered space.

The Second floor contains the private spaces, the bathrooms on the border walls allow flexibility in the rest of the plant, achieving versatility.

House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo

The project looks to dialogue with the urban scale without losing the domestic scale, verticality allows simultaneity and variety of situations in a small vacuum that the densification of the city had not been completed.


House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo
House Between Buildings
© Walter Gustavo Salcedo


House Between Buildings

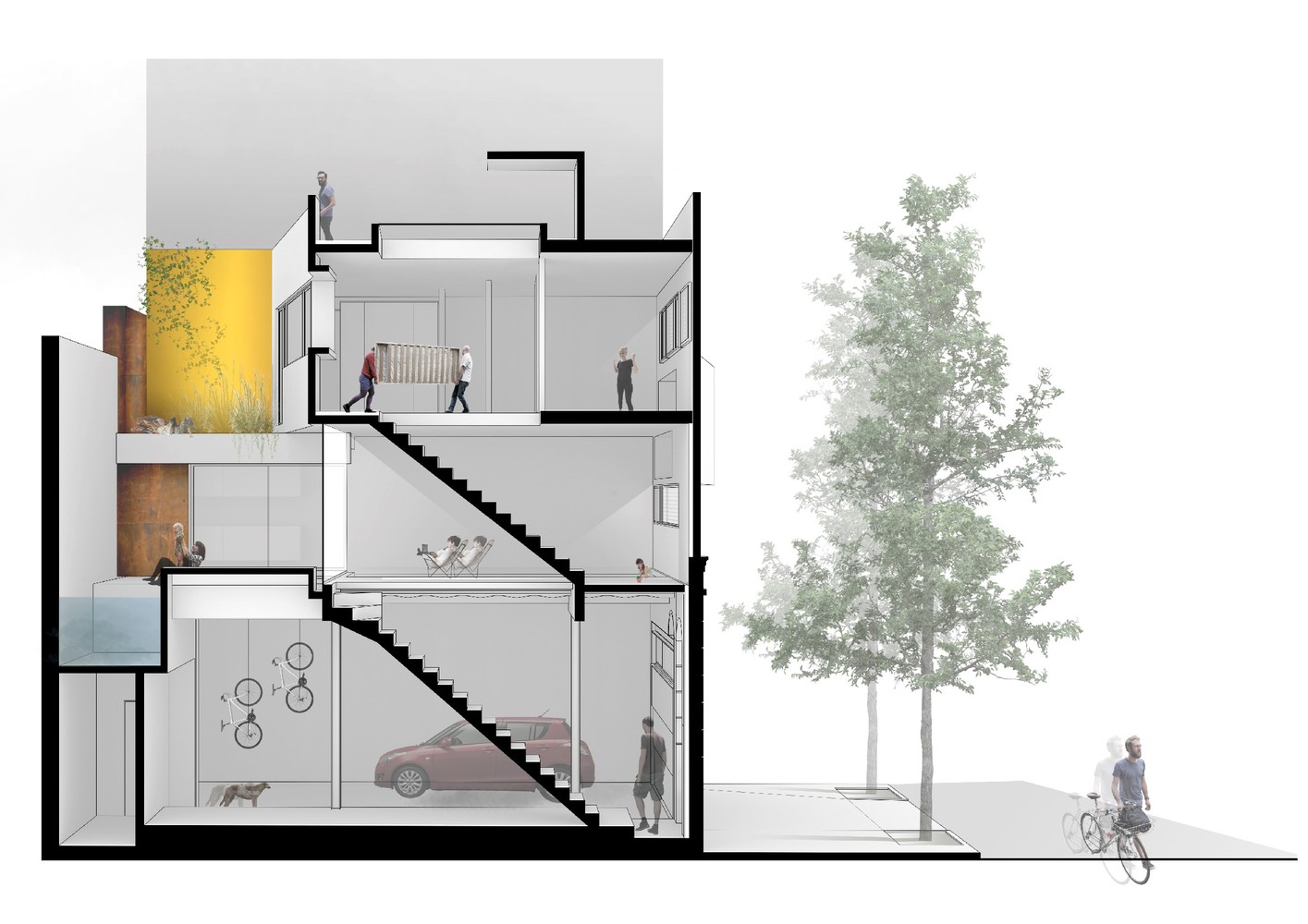

Isometric Section
House Between Buildings
Diagram


House Between Buildings
Ground Floor Plan / First Floor Plan
House Between Buildings
Second Floor Plan / Roof Floor Plan


House Between Buildings
Facade / Section A-A
House Between Buildings
Section B-B / Section C-C
House Between Buildings
Section D-D
House Between Buildings
Section E-E


House Between Buildings
Axonometric
House Between Buildings
Site Plan
