SAXONY STATE EXHIBITION 2020 ENTRANCE PAVILION

AFF architekten, Georgi Architektur, Ilja Oelschlägel Produkt Design

Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink

DESIGN TEAM
Sven Fröhlich, Markus Jahnke

CLIENTS
Staatsbetrieb Sächsisches Immobilien- und Baumanagement

EXHIBITION DESIGN
Holzer Kobler Architekturen

ENGINEERING
Ingenieurbüro BauArt

LANDSCAPE
AFF Architekten

BUILDING PHYSICS
Iproplan

PHOTOGRAPHS
Hans Christian Schink

AREA
6600 m²

YEAR
2020

LOCATION
Zwickau, Germany

Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink
Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink
Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink

Saxony is the cradle of industrialization in Germany. With the decision to present the leading exhibition on 500 years of industrial culture history as part of the 4th Saxon State Exhibition in the Audi Hall in Zwickau, a concept was sought that not only addresses the technical requirements of the high flow of visitors but also addresses issues of sustainability in our time takes a stand. The implemented design concept goes beyond that.

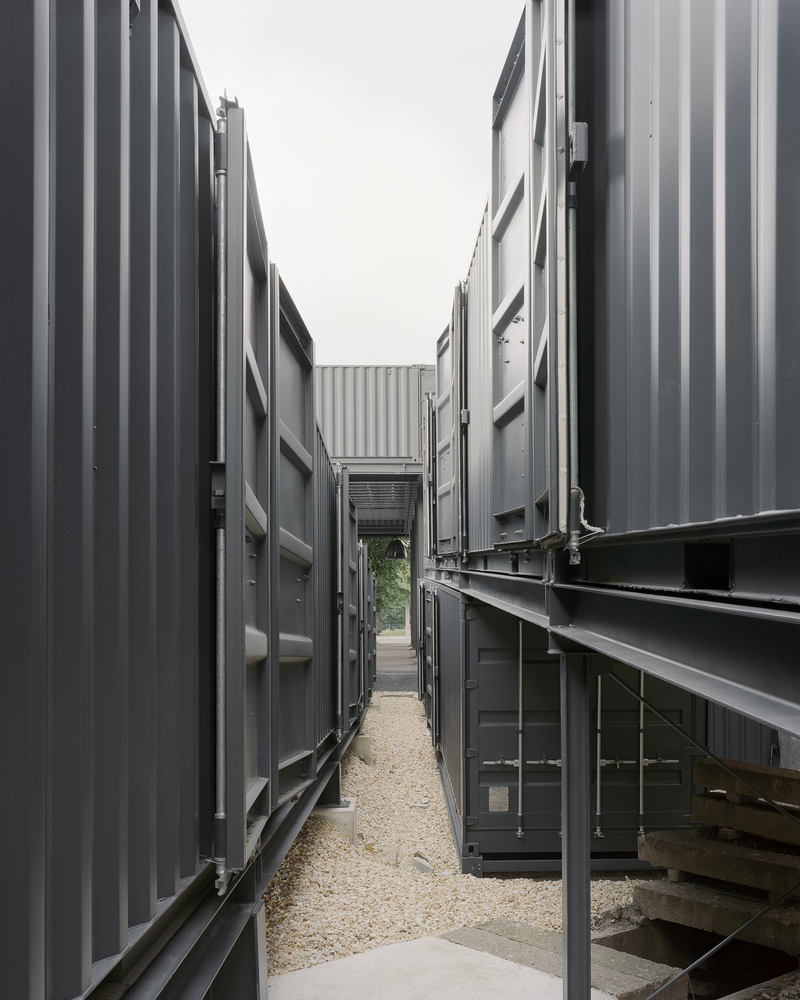

It uses existing industrial goods repetitively and combines them to form an entrance building with a ramp system in order to receive visitors to the exhibition and to guide them into the former assembly and production hall.

Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink
Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink

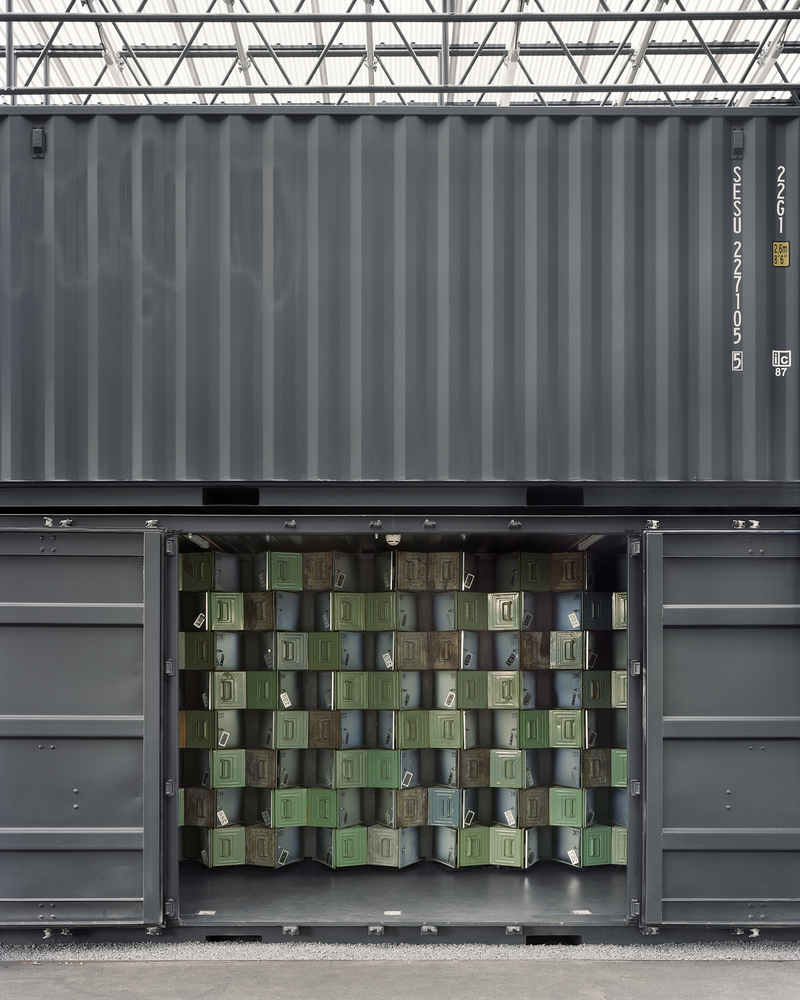

In accordance with the implementation of all new construction volumes from sea containers, the development of the equipment elements such as counters and lockers from toolboxes, seating furniture from car tires consistently follows the model of subsequent use.

Topics such as industrial heritage, product exchange, and recycling processes can thus be read as a form-defining aesthetic.

Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink
Saxony State Exhibition 2020 Entrance Pavilion
Courtesy of AFF architekten

The existing building, built by Th. Quaysin for Audi-Union AG in 1938-39, was built at the time with the aim of making the greatest possible savings and the aim of a construction method that was as low in iron as possible.

All current interventions and renovation work are designed according to the same principle and underline the original character of the building.

Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink


Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink
Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink
Saxony State Exhibition 2020 Entrance Pavilion
Courtesy of AFF architekten
Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink
Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink
Saxony State Exhibition 2020 Entrance Pavilion
© Hans Christian Schink


Saxony State Exhibition 2020 Entrance Pavilion

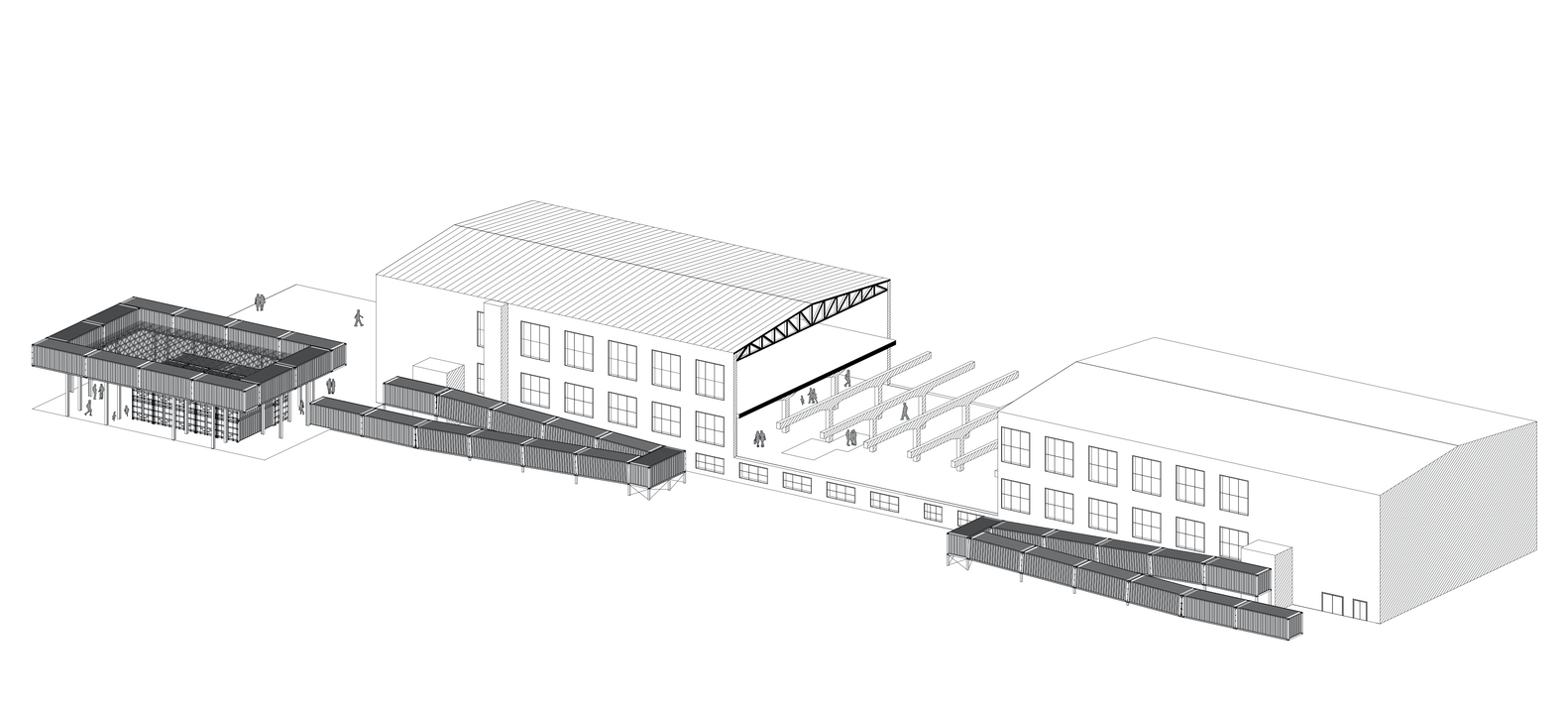

Axonometric


Saxony State Exhibition 2020 Entrance Pavilion

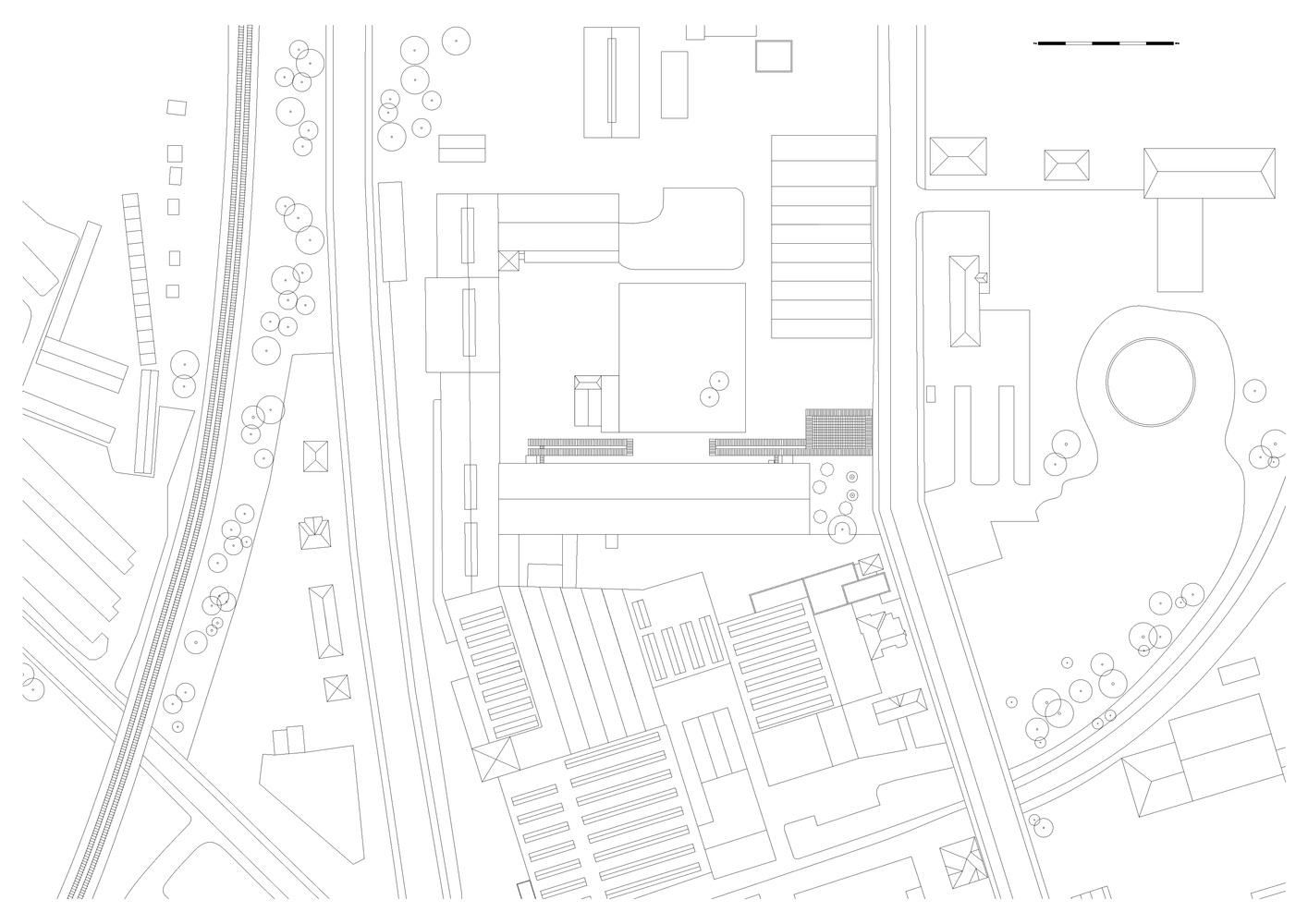

Site plan
Saxony State Exhibition 2020 Entrance Pavilion

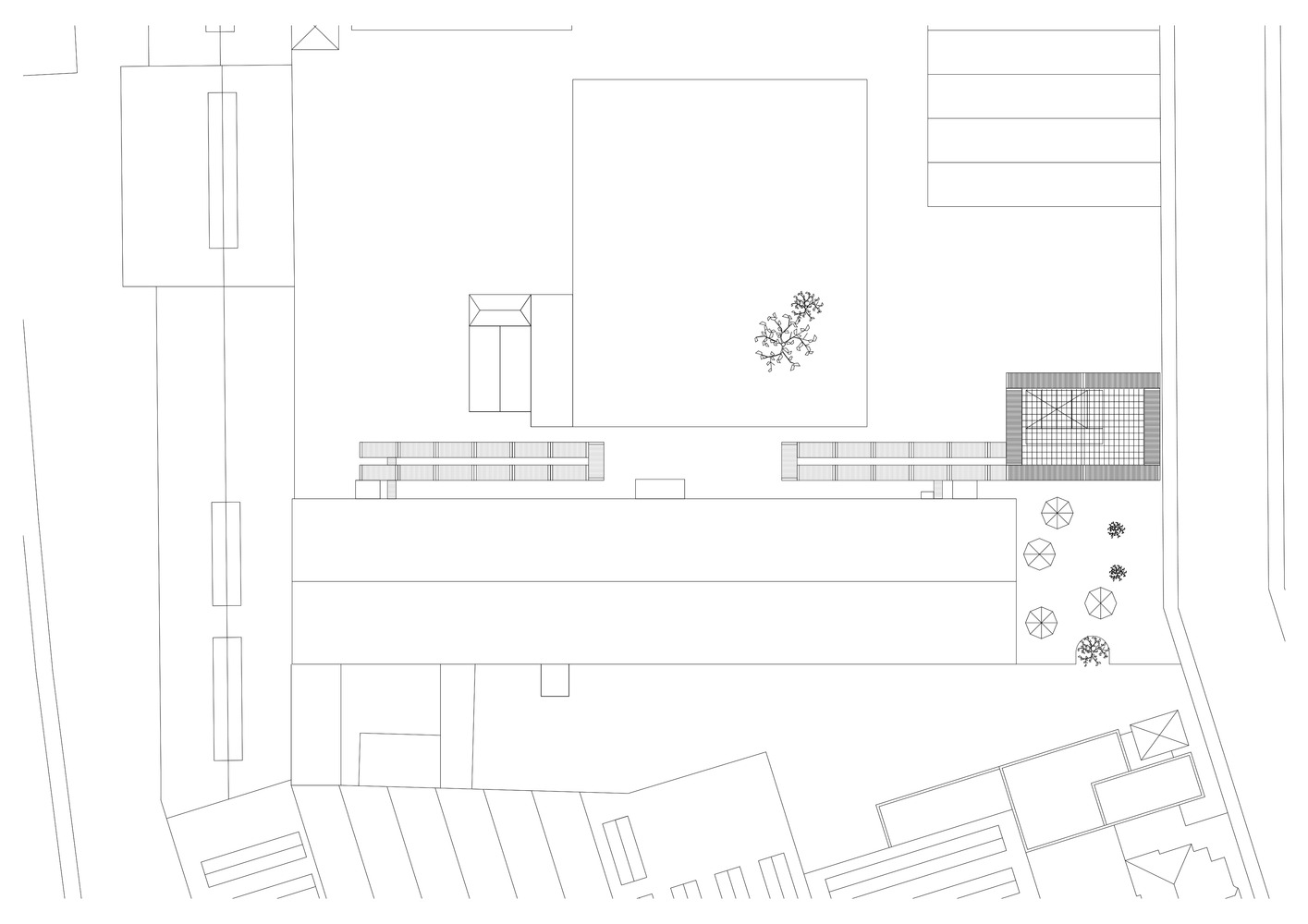

Roof plan
Saxony State Exhibition 2020 Entrance Pavilion

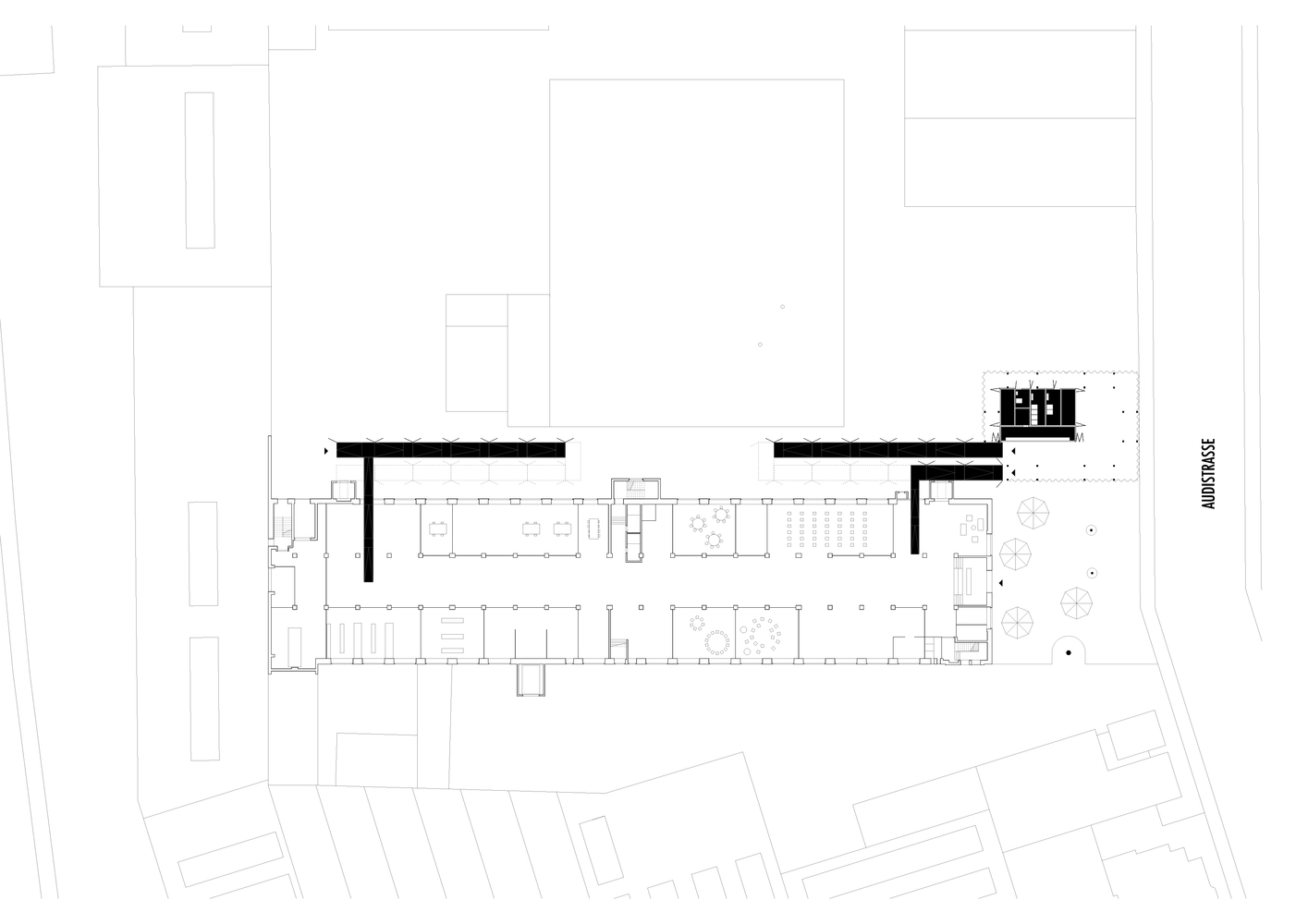

Ground floor plan
Saxony State Exhibition 2020 Entrance Pavilion

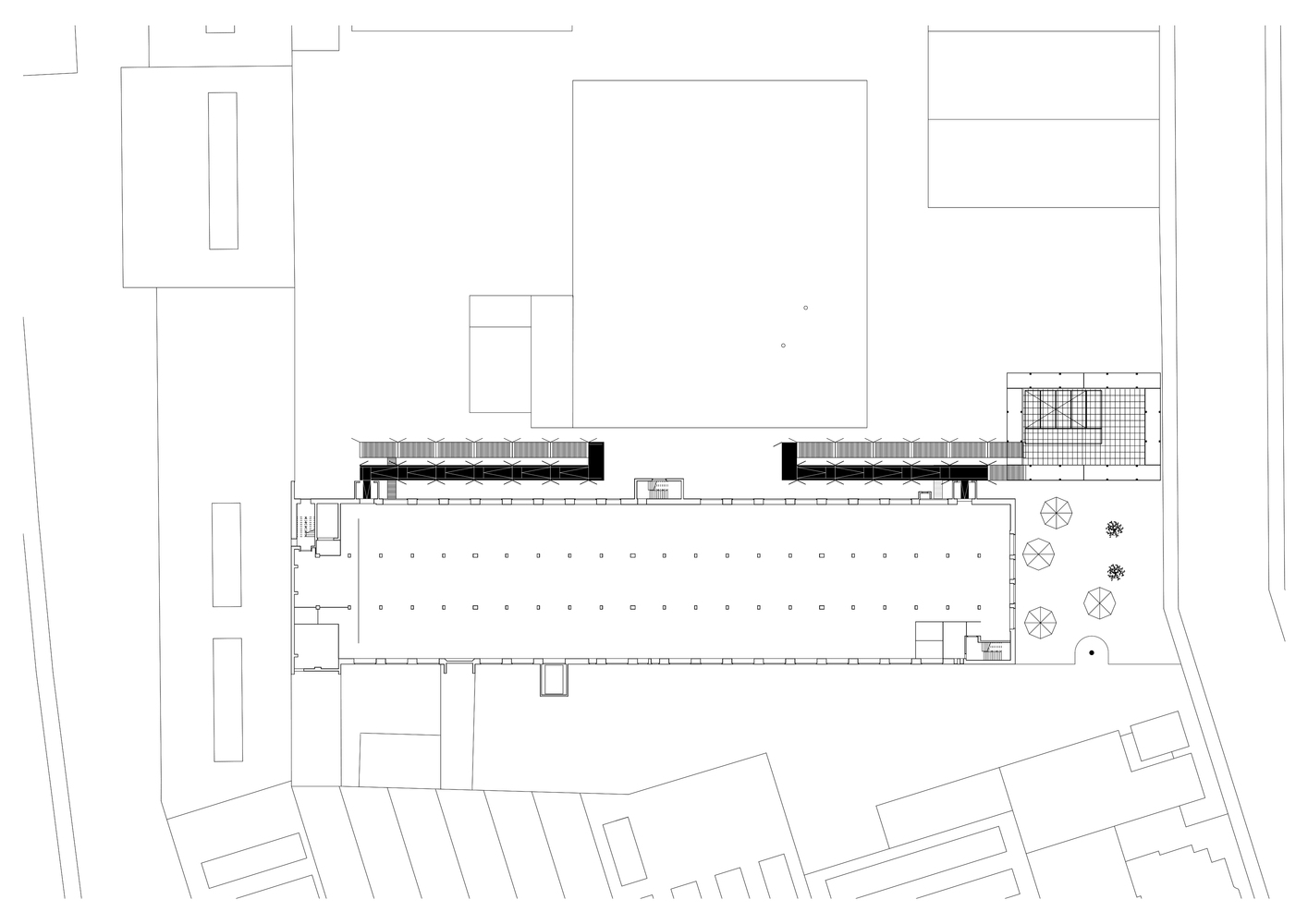

First floor plan
