BUILDING REFURBISHMENT IN PAMPLONA

Alfonso Alzugaray

ARCHITECT IN CHARGE
Alfonso Alzugaray, Carlos Urzainqui

CONSTRUCTOR
Construcciones COMAL

COLLABORATORS
Leire Leoz

STRUCTURE
FS estructuras

PHOTOGRAPHS
Luis Prieto

AREA
188 m²

YEAR
2012

LOCATION
Pamplona, Spain

CATEGORY
Apartments

This is a project about the restoration of a building between two party walls defined by a medieval division into lots old town.

Building Refurbishment In Pamplona
© Luis Prieto
Building Refurbishment In Pamplona
© Luis Prieto

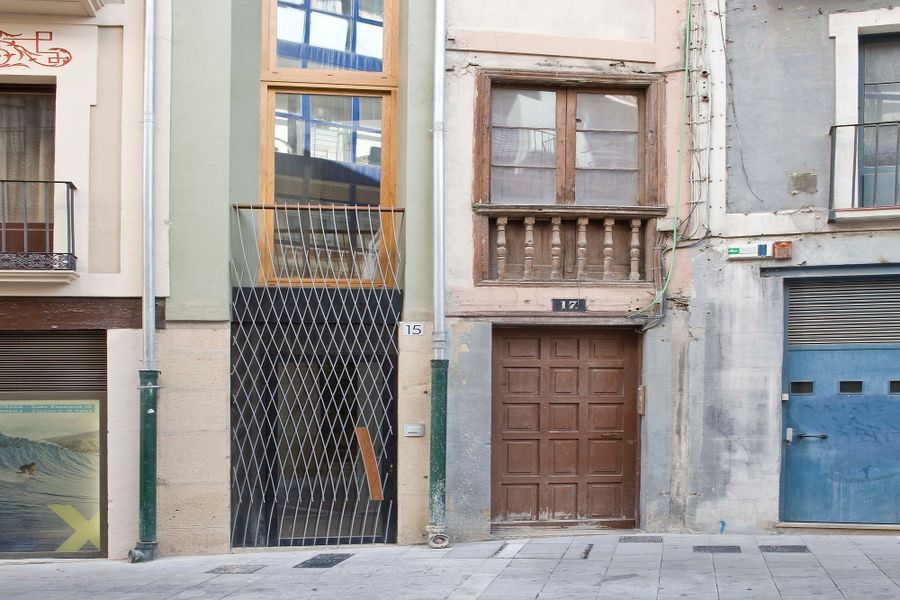

The plot is stretched in order to light up in two parallel streets and around 19 meters far from each other. The minimal width of 2.20 meters makes it worthy of being qualified as "unagi no nedoko", which are narrow residual plots in Japanese cities.

The dimensions, which are truly difficult to reconcile the strict rules of habitability required in any housing intervention, became the first appeal of the proposal.

Although in such cases the idea of aggregation of plots is often used to obtain comfortably habitable dimensions, due to a series of administrative complications the owners had to investigate the possibilities of carrying out the process without taking into account the adjacent buildings.

Building Refurbishment In Pamplona
© Luis Prieto
Building Refurbishment In Pamplona
© Luis Prieto

Initially we obtained planning permission with a project that distributed two dwellings alternating thanks to flights of crossed stairs.

However during the construction process suggestive cross views and transparencies from street to street became visible and made us, both technicians and owner, to work on a single block on five levels.

As it is easy to understand, the only feasible distribution gave to the building a centered position of the stairs that enabled units to each side with lighting and also ventilation to each of the facades.

Building Refurbishment In Pamplona
© Luis Prieto
Building Refurbishment In Pamplona
© Luis Prieto

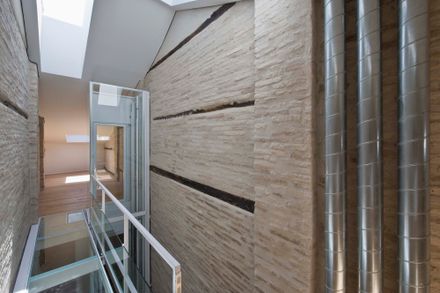

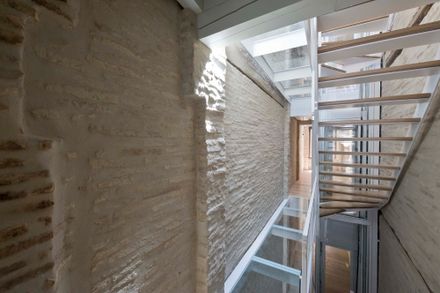

The heart of the building is composed of the staircase, the glass paved walkway that enables good lighting to the whole central portion, and the small domestic elevator.

These three elements solve the program with little added divisions and changing and attractive usage possibilities thanks to some mobile furnishing.

The project builds its image in the only constructive elements that defined the building: wood structure and brick party walls.

Building Refurbishment In Pamplona
© Luis Prieto
Building Refurbishment In Pamplona
© Luis Prieto

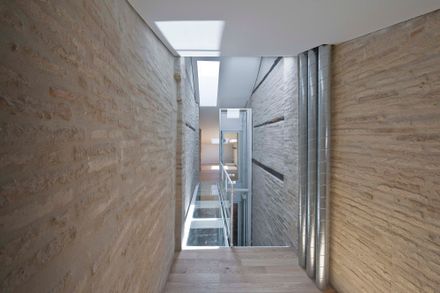

These walls, which are hidden behind thick plaster layers, were recovered, cleaned and grouted with lime mortar in the well-preserved canvases.

The project sought to show up the expressive power of this rough and uneven material facing lightness and smoothness of the new contributions, which are mostly metal and glass pieces and smooth surfaces that are painted white.

Lighting also seeks to support those effects, so that the gradient light emphasizes the expressiveness of brick, while points of light, which are hidden in the wooden structure, emit light to the white surfaces enabling any lighting piece hanging below the structure.

Building Refurbishment In Pamplona
© Luis Prieto
Building Refurbishment In Pamplona
© Luis Prieto

Neatness of spaces is consequently shown up by setting value on the preexisting composition in front of the added elements. We are able to enjoy an entire volume basically defined by its powerful brick party walls.


Building Refurbishment In Pamplona

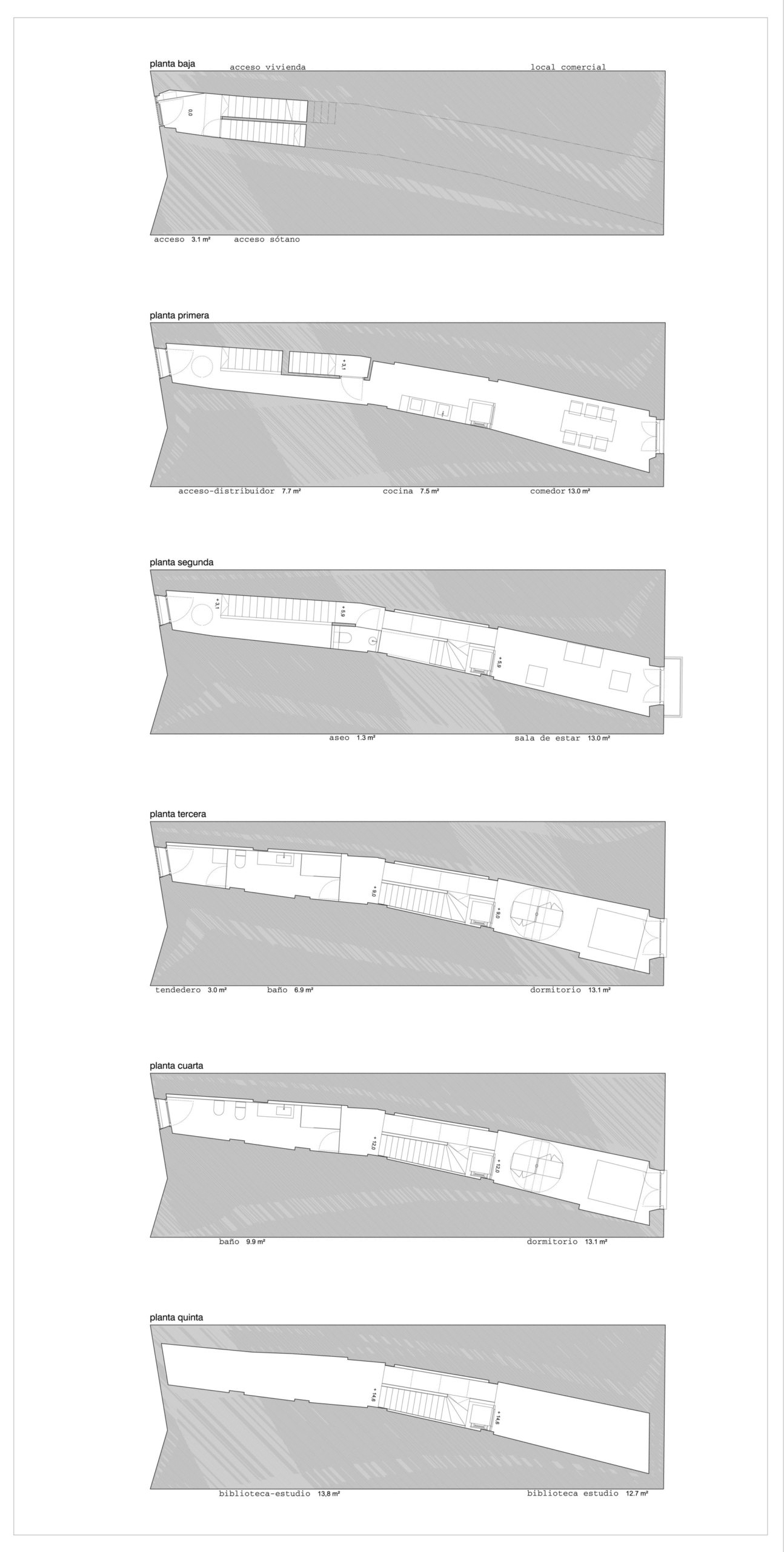

Floor Plan
Building Refurbishment In Pamplona

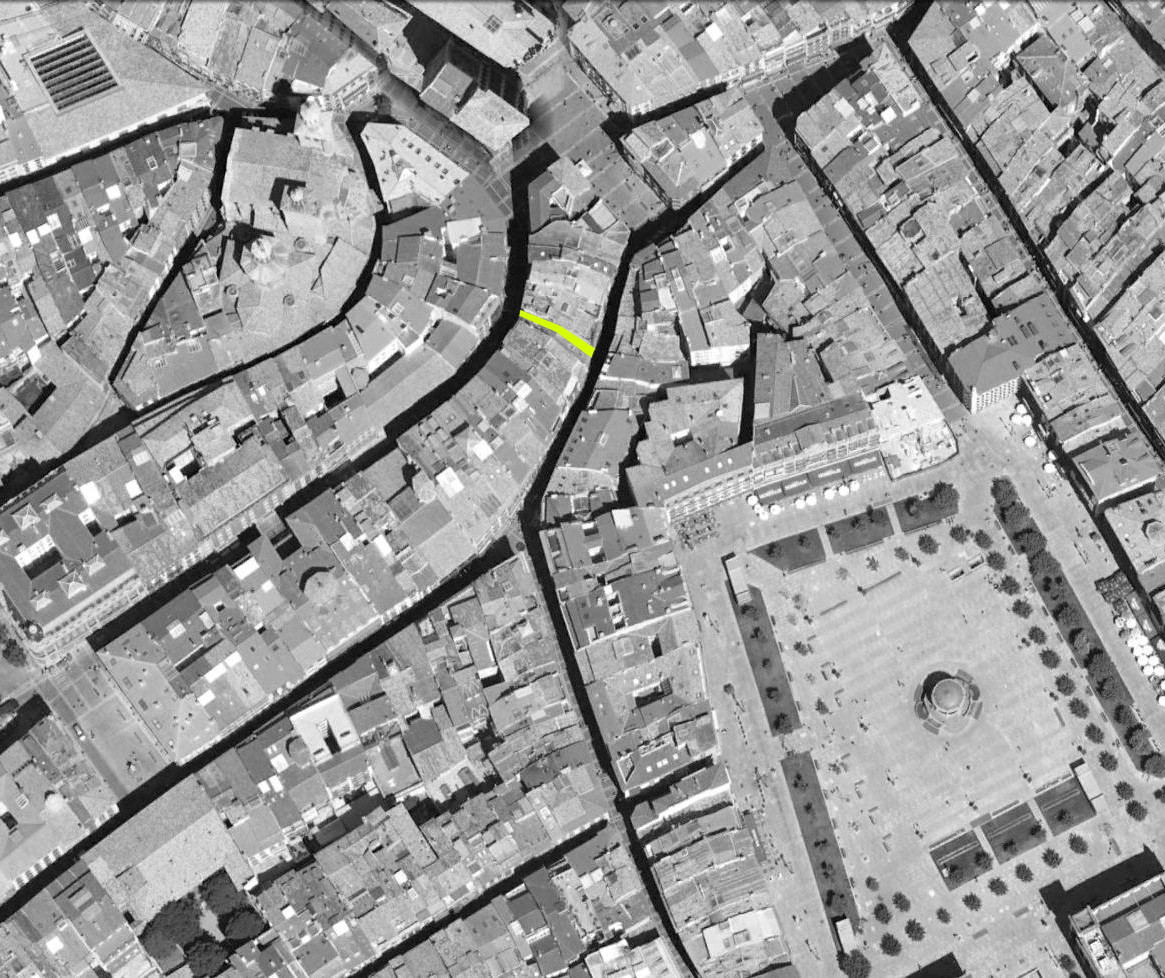

Site Plan


Building Refurbishment In Pamplona

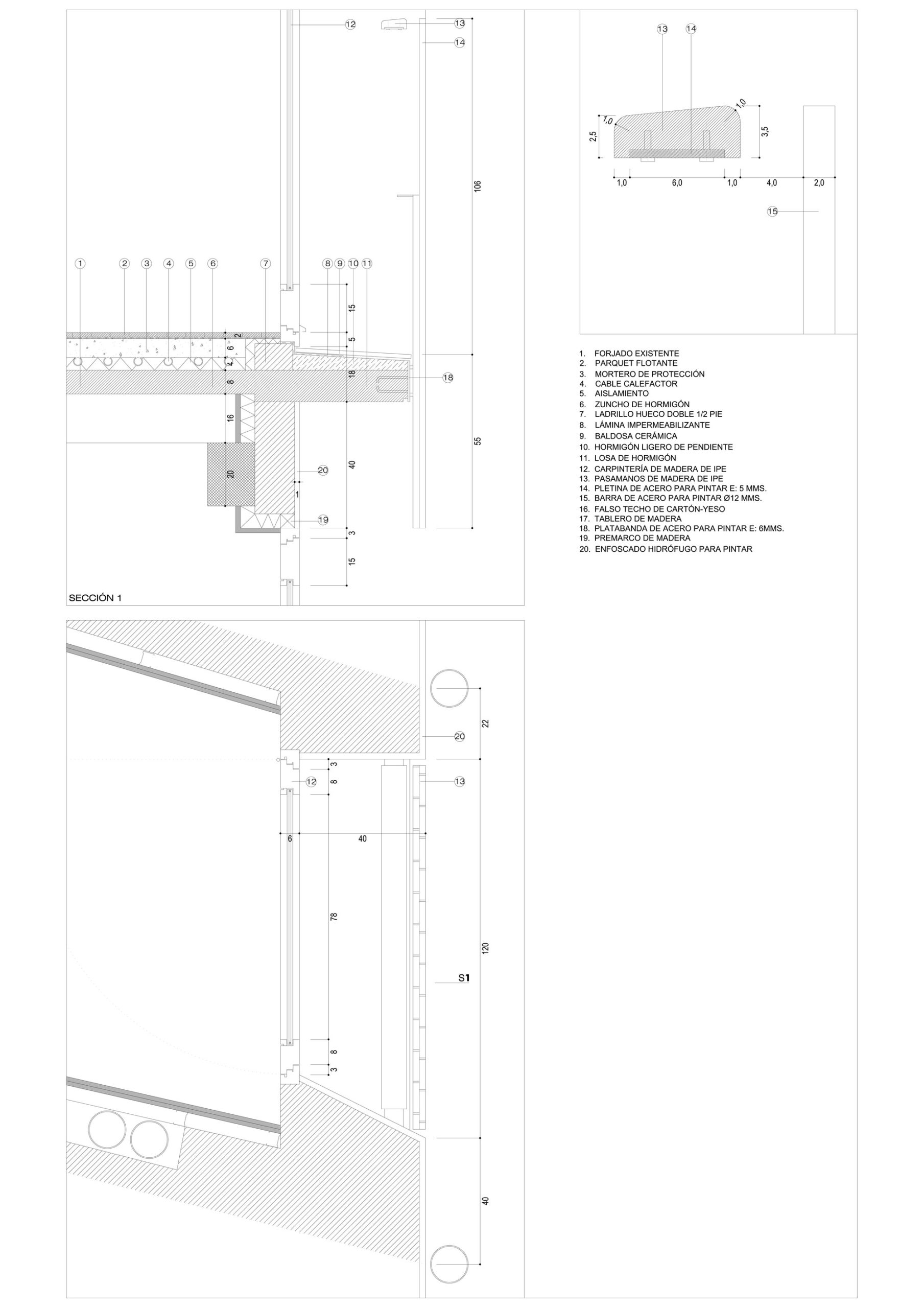

Detail
Building Refurbishment In Pamplona

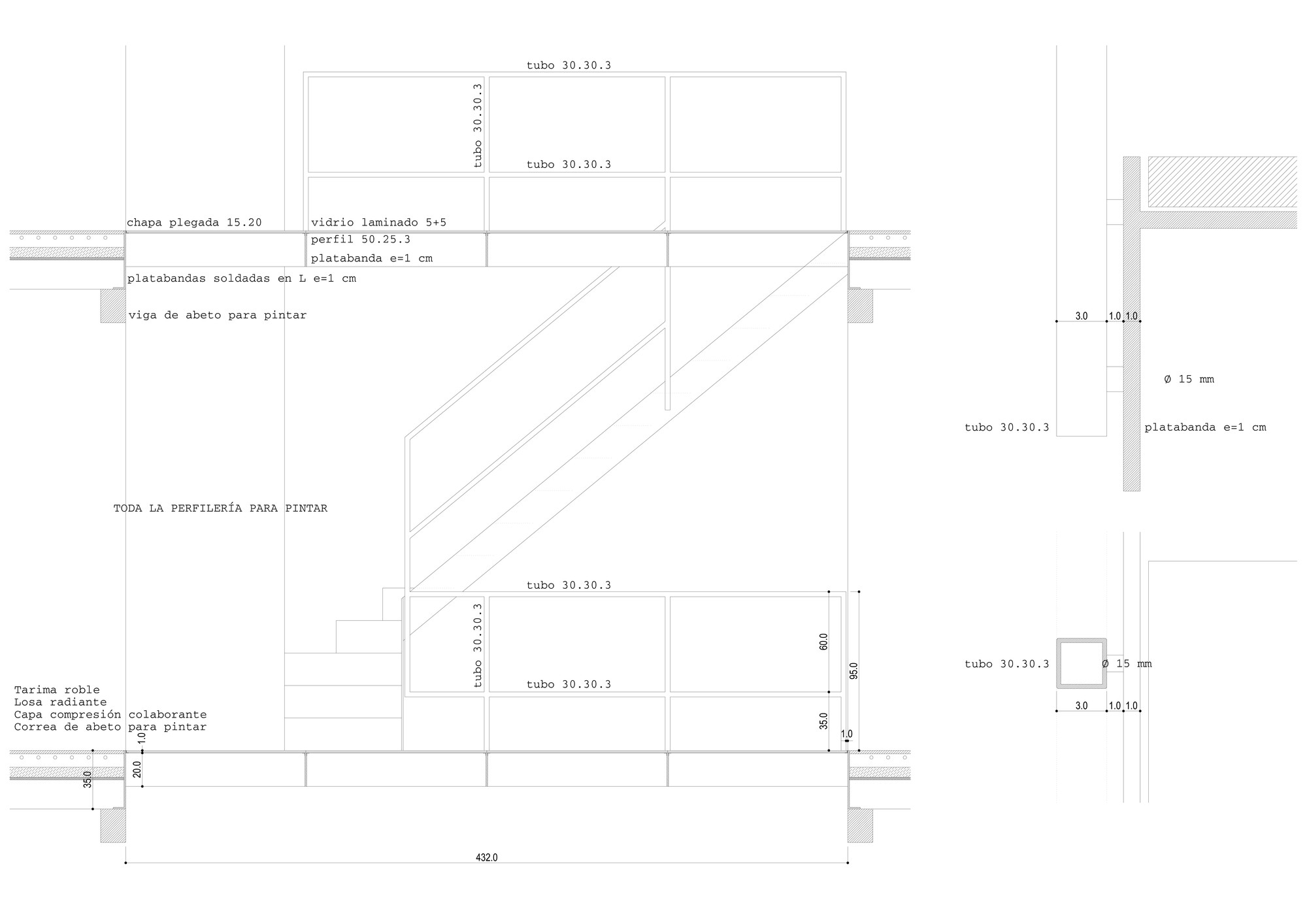

Detail
Building Refurbishment In Pamplona

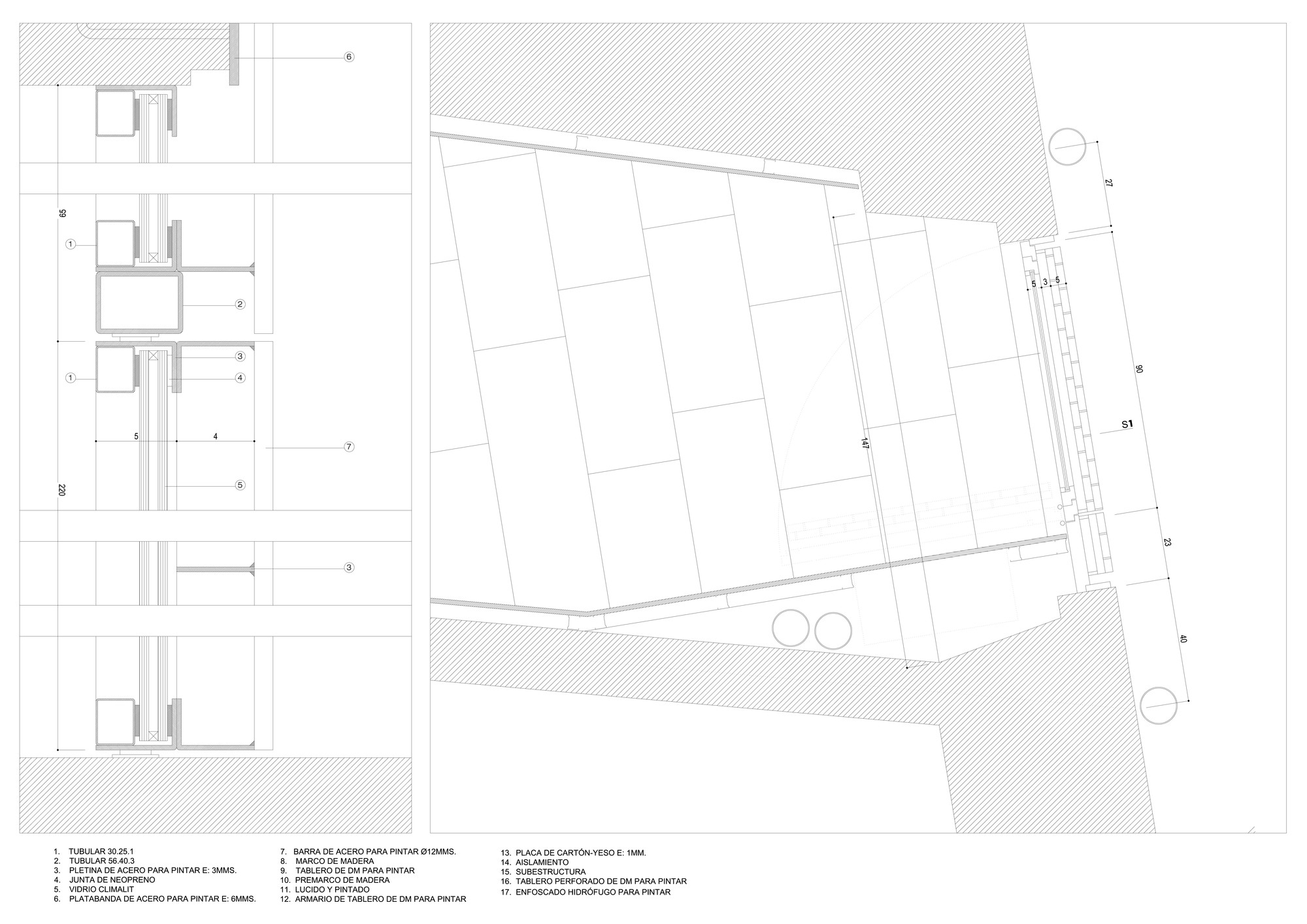

Detail


Building Refurbishment In Pamplona

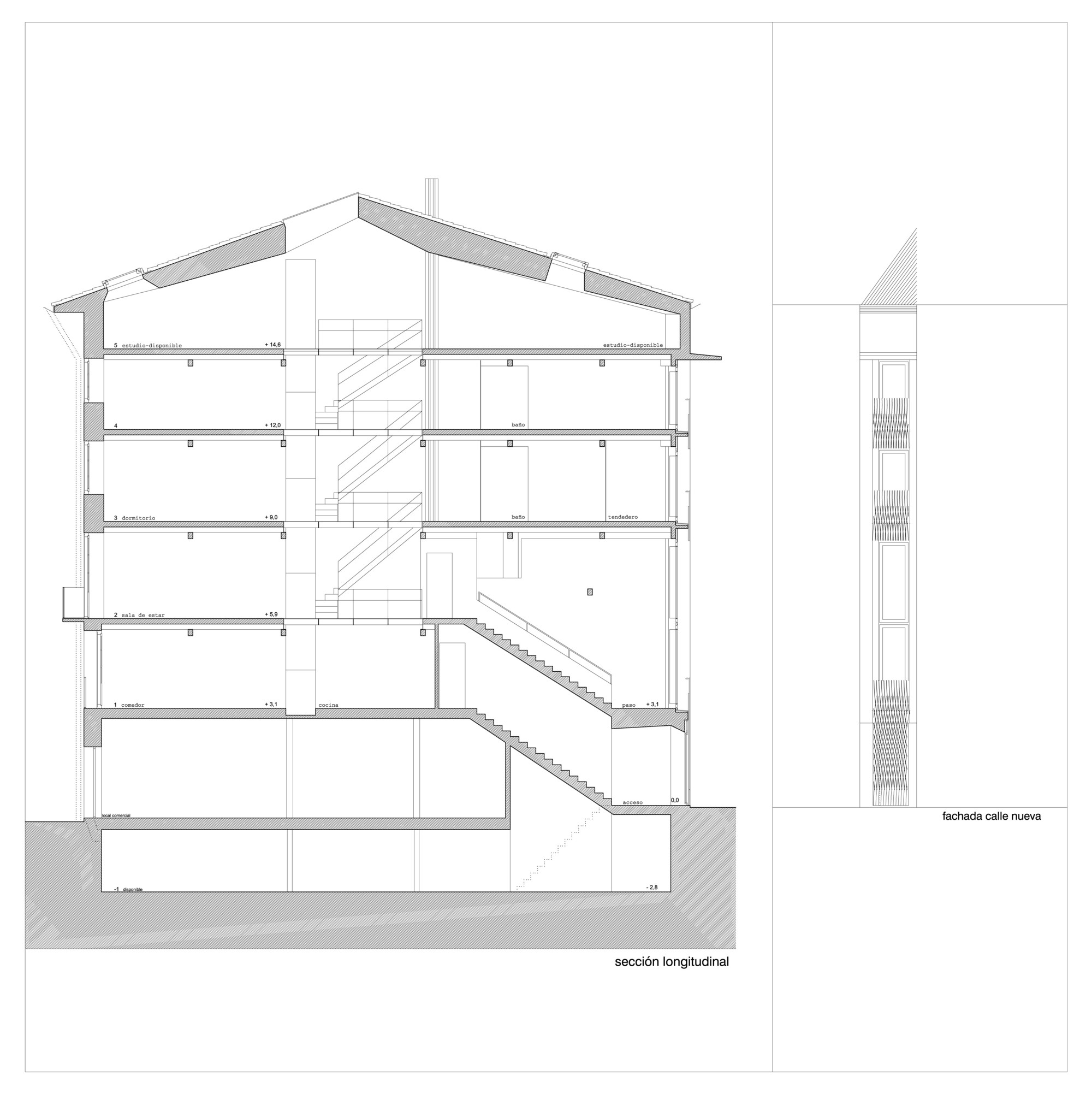

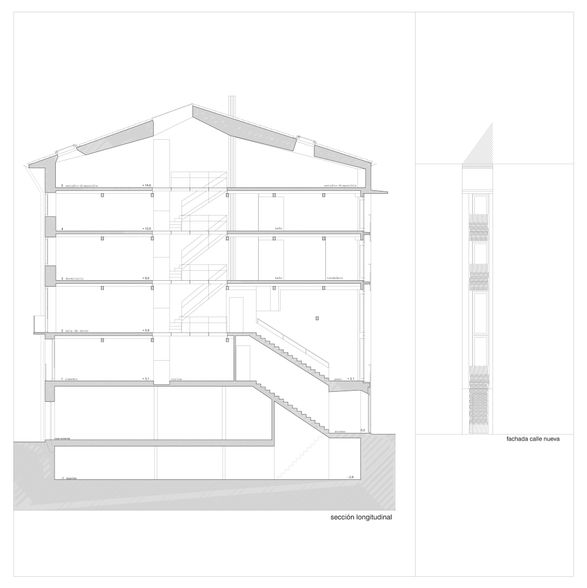

Section
