Riviera Cabin

Riviera Cabin
© Anna Positano

RIVIERA CABIN

llabb

ARCHITECTS
llabb

MANUFACTURERS
Fratelli Villa, Woodstock

CONTRACTOR
Zena Costruzioni s.r.l.s.

LEAD ARCHITECTS
Luca Scardulla, Federico Robbiano with Beatrice Piola and Floria Bruzzone

PHOTOGRAPHS
Anna Positano

AREA
35.0 m2

YEAR
2017

LOCATION
La Spezia, SP, Italy

The project consists in the renovation of a studio apartment in a Ligurian coastal town. The client’s request was to reorganize the 35 square meters in order to divide the environment into living and sleeping areas.

Riviera Cabin
© Anna Positano
Riviera Cabin
© Anna Positano

The nautical culture that characterizes this region in Italy was fundamental to the development of this project. The optimization of storage spaces inside sailboats and the minimum dimensions within these spaces were the inspiration for the development of the project.

An “equipped wall” crosses the interior of the apartment, containing several functions. It accompanies, like a path, the visitor from the entrance to the living area, the heart of the house.

Riviera Cabin
© Anna Positano
Riviera Cabin
© Anna Positano

In the vestibule, the less deep wall houses a small technical room, as well as the primary storage space. You continue on with a small dressing room/wardrobe, where you can undress, leaving the day behind.

This brings you to the living area onto which, as in a square, the sleeping area, structured on two levels, overlooks.

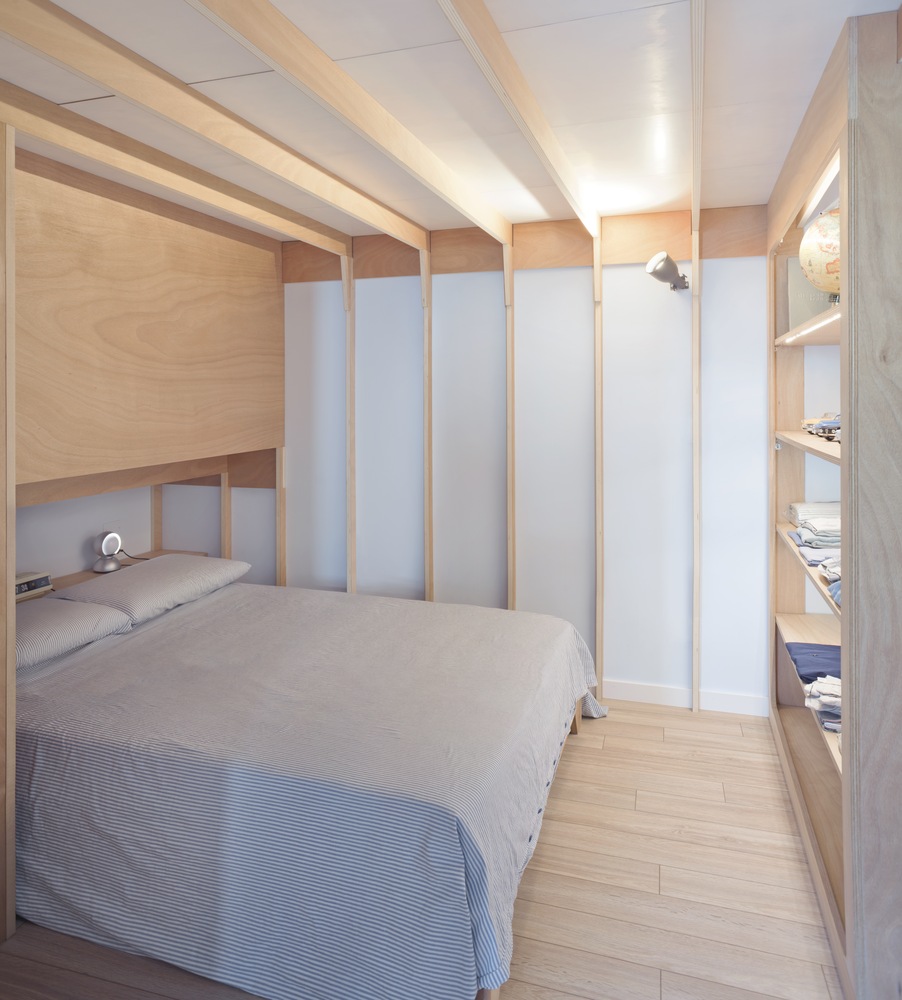

The master bedroom is accessible through two large doors and its interior - conceived almost like the inside of a whale’s ribcage - is wrapped by structural wooden ribs.

Riviera Cabin
© Anna Positano
Riviera Cabin
© Anna Positano

This room, just like a cabin, contains the essentials; a king-size bed and minimal storage space.

The final part of the wall, through a small portico, leads to the second night space, that one reaches through a steep staircase as if climbing up a mansard of a small fisherman’s house.

The small openings that give light to the room are designed as windows overlooking the living area.

Riviera Cabin
© Anna Positano
Riviera Cabin
© Anna Positano

The “equipped wall”, made of okoumé (also known as marine plywood), is laminated in white and blue.

And the continuity between hull and sky is interrupted by the waterline that leads the eye from the entrance of the entire apartment.

The kitchen, located at the end of the walkway + waterline, is stretched slightly like a sail inflated by the wind.

Riviera Cabin
© Anna Positano


Riviera Cabin

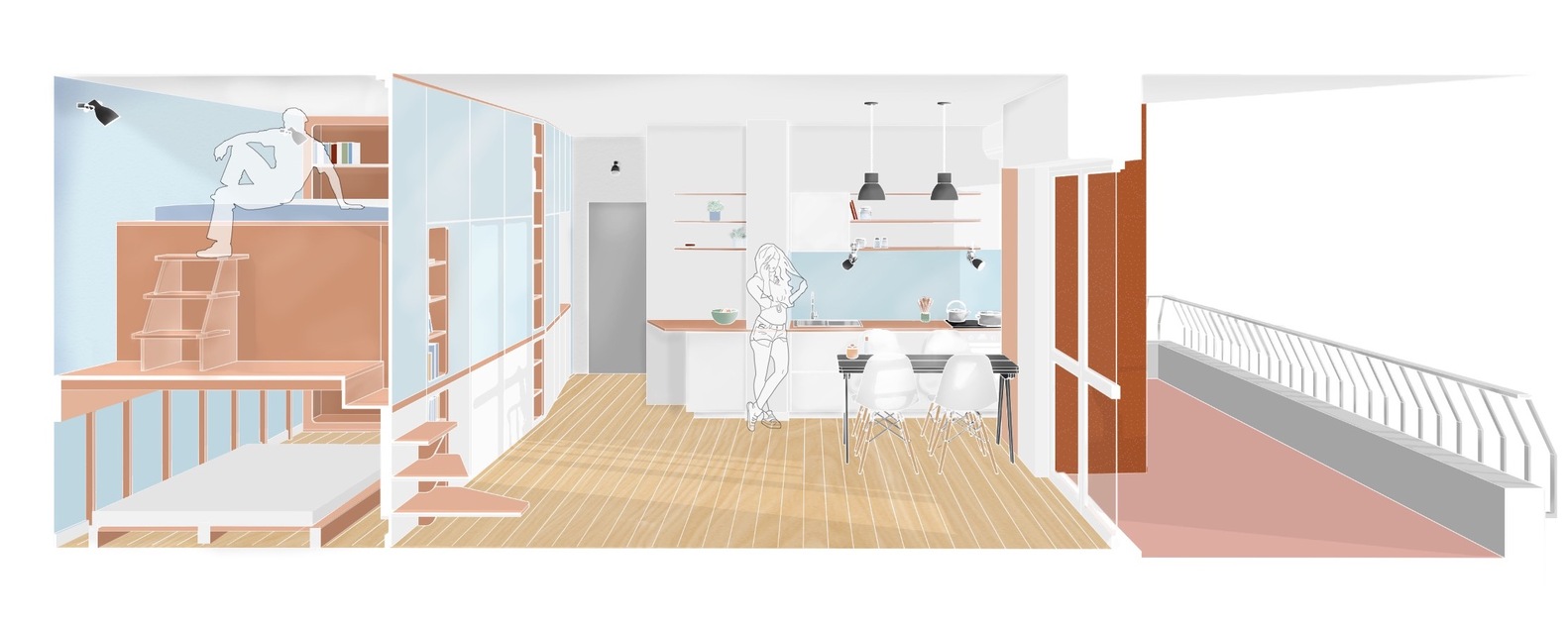

Longitudinal Section
Riviera Cabin

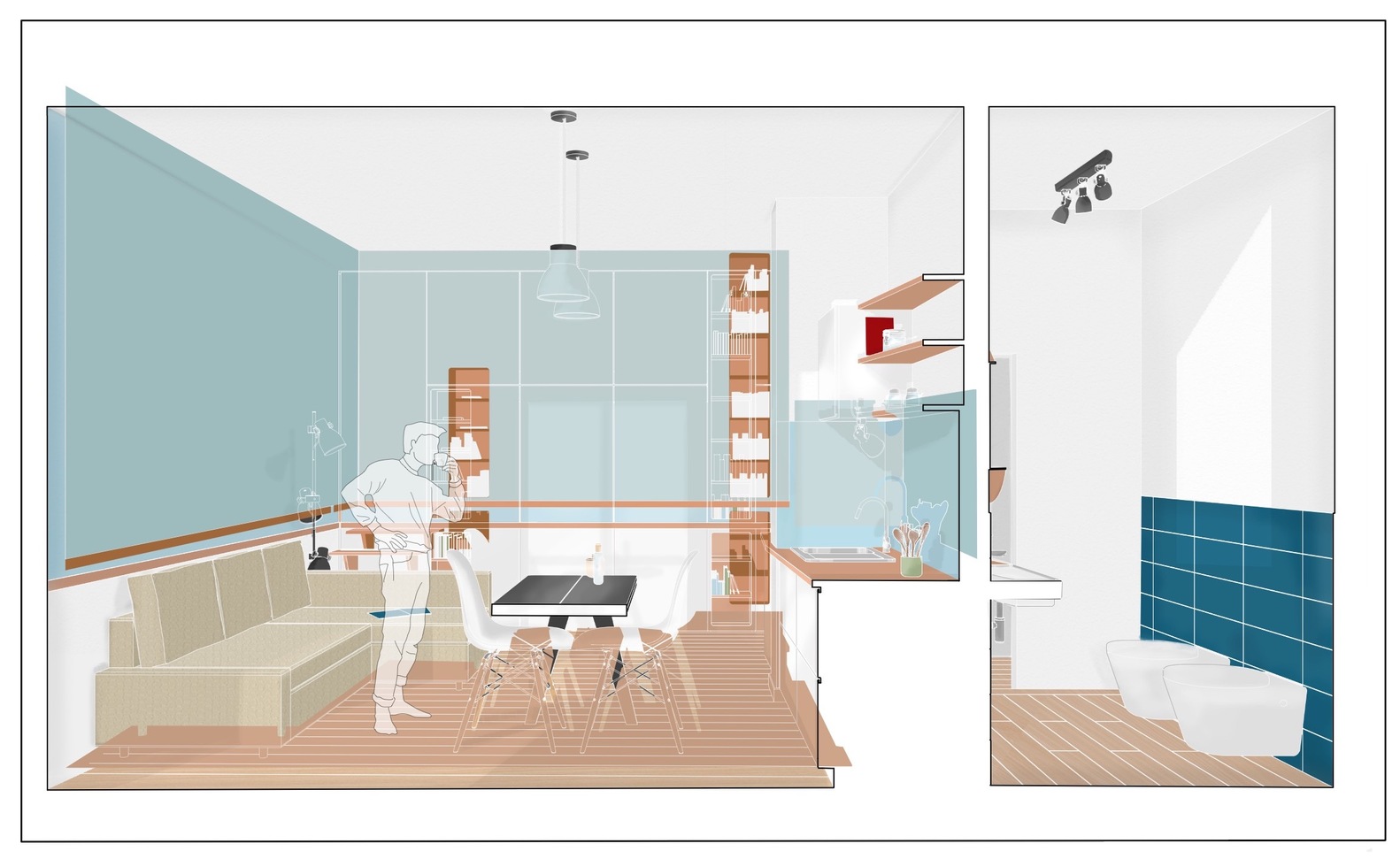

Transverse Section


Riviera Cabin

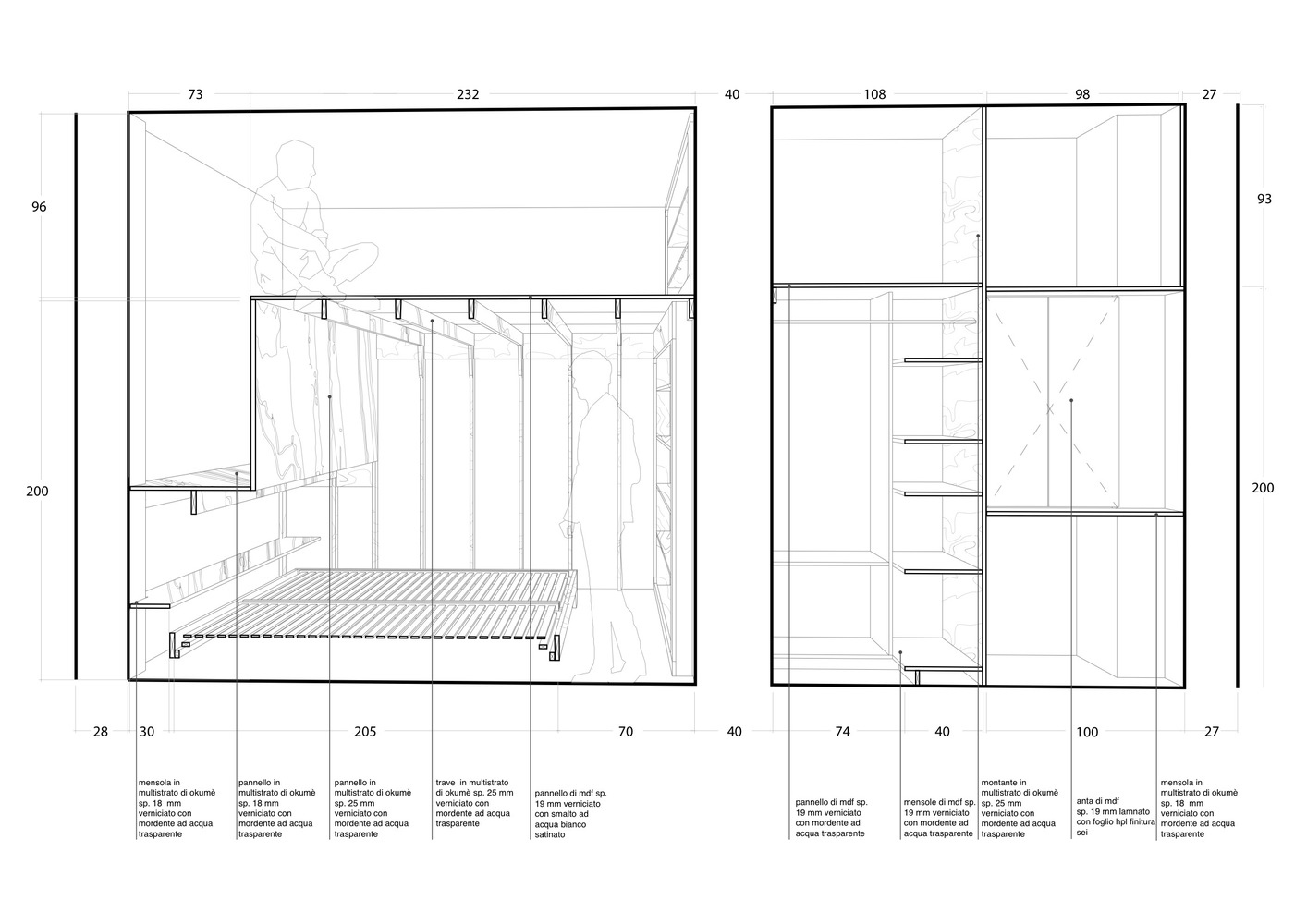

Technical Section
Riviera Cabin
Technical Section


Riviera Cabin

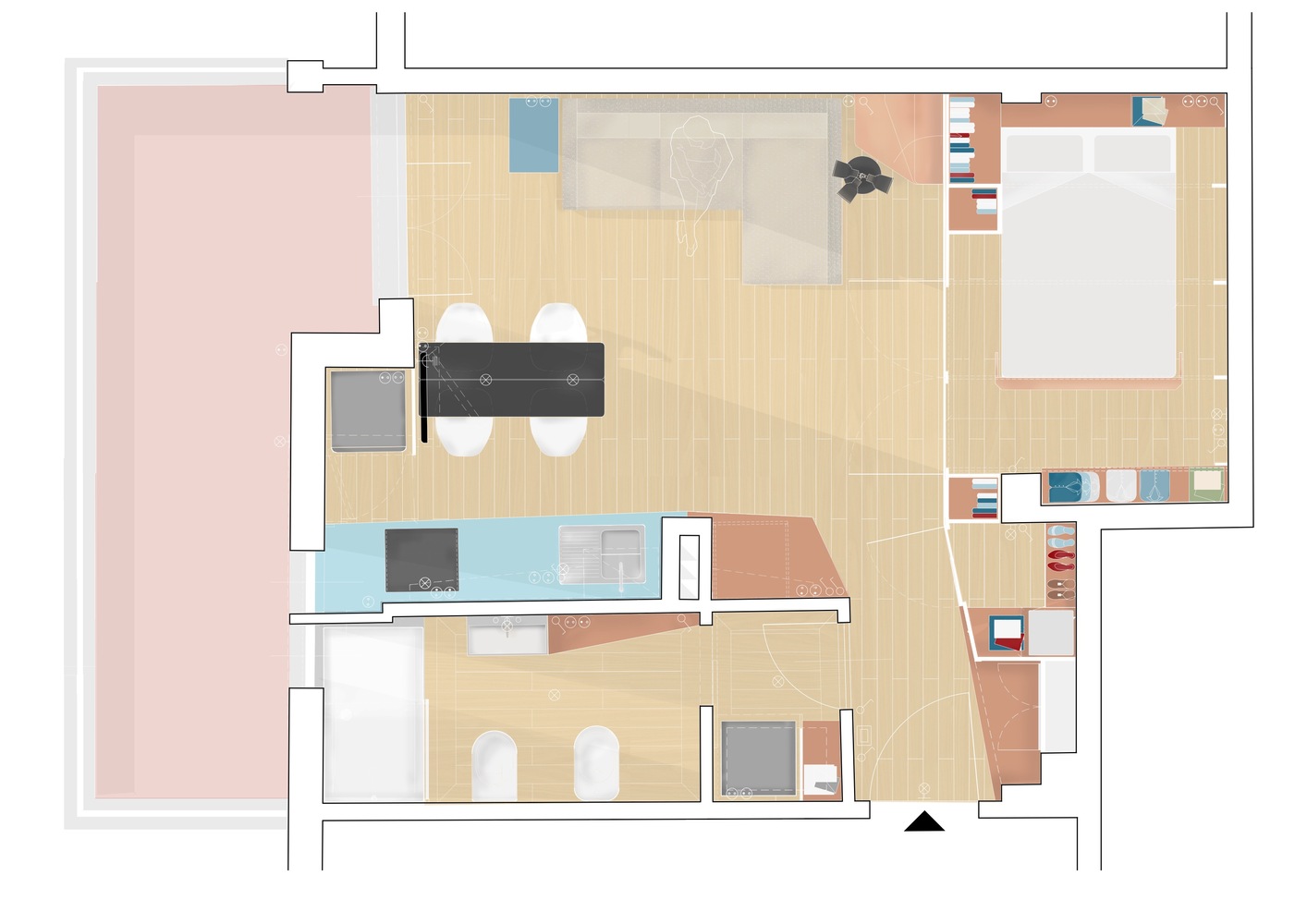

Floor Plan
