LAS BÓVEDAS
ARCHITECTS
- = + x -
ARCHITECTS IN CHARGE
Francisco Tomboly, Sonia Carisimo
STRUCTURAL CALCULUS
Carlos Escobar
STRUCTURAL ADVICE
Denes Tomboly
PHOTOGRAPHS
Alejandro Patiño, Leonardo Méndez
AREA
400.0 m2
YEAR
2009
LOCATION
Luque, Paraguay
CATEGORY
Houses Interiors
Text description provided by architect.
The project is set in a semi-rural area, in the limit of Luque and Asuncion, which are part of a cluster of cities called Gran Asuncion.
It is near Ñu Guazú park (a green area of 25 ha.) and the airport.
It is situated on high territories which allows cool temperatures and more wind breeze than in urban areas.
Both paired houses lie on a 12m x 36m ground, opening all spaces to the east and west orientation.

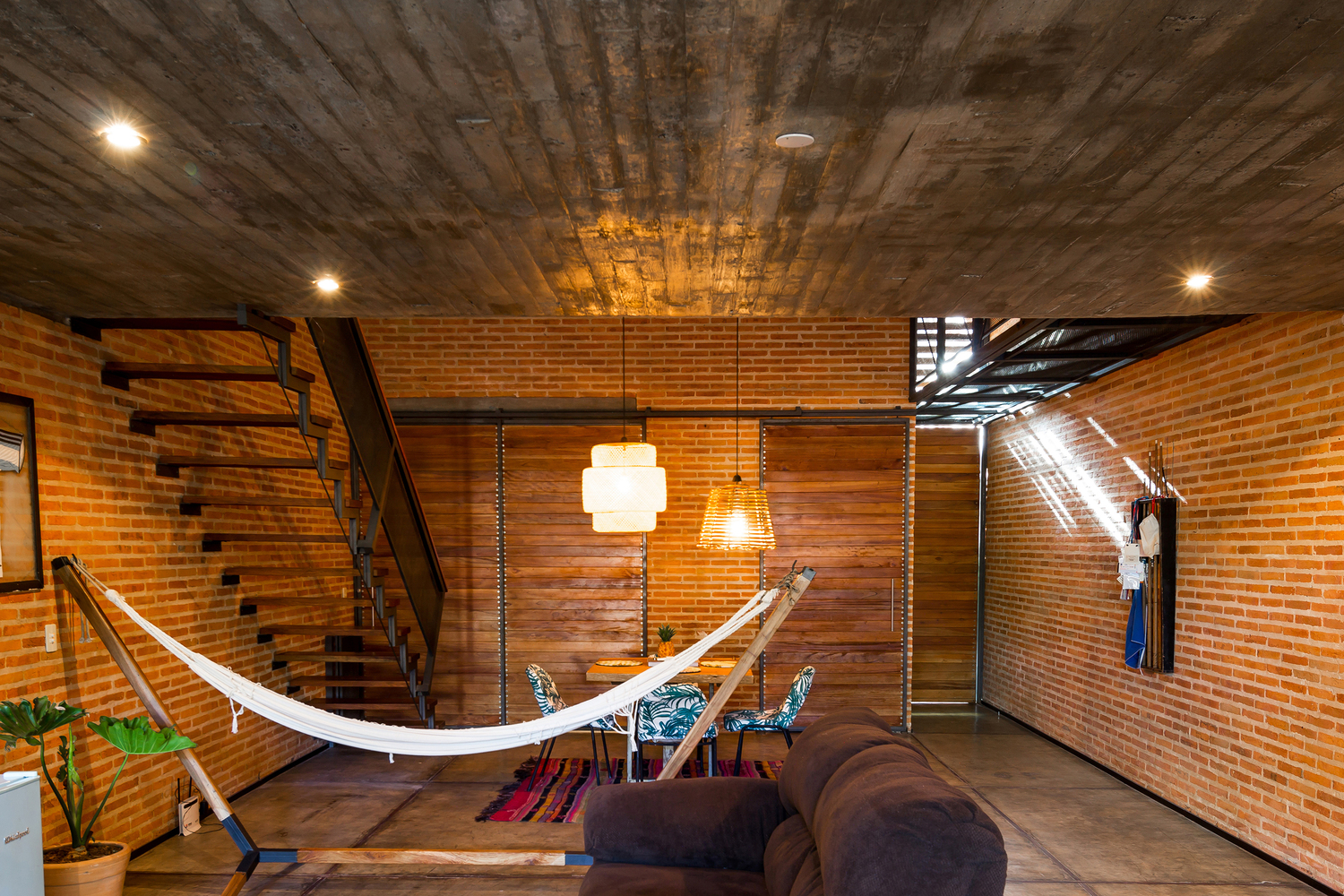

On the lower stage, service spaces are situated in the front, leaving more open space for the social areas, connecting to a yard, under a brick vaulted roof that unifies all spaces of the house in double height.

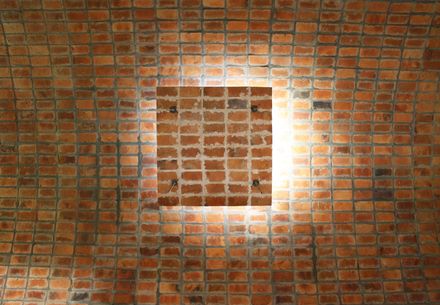

The warmth of the brick texture is enhanced by a brick sky light that hangs from the vault, and acts as a heat chimney.

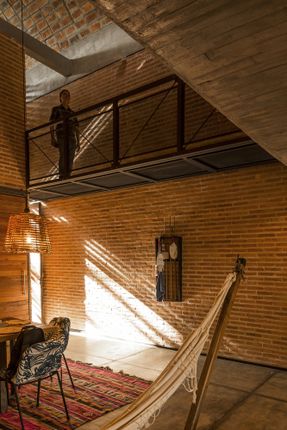

On the higher floor there are two volumes, one in the front and one in the back, connected by a light bridge in which the bedrooms are placed, leaving a central space in double height.
The Project is synthetized by two ceramic vaults on a concrete structure which act as water gutters on the ground limits.
