Private Clubhouse

Private Clubhouse
© YANG Chao Ying

PRIVATE CLUBHOUSE

Crossboundaries

ARCHITECTS
Crossboundaries

PHOTOGRAPHS
YANG Chao Ying

AREA
4550.0 m²

YEAR
2016

LOCATION
China

CATEGORY
Renovation,interiors Architecture

Text description provided by architect.

Located in the Hebei Province, the building serves as a private clubhouse to host the owner’s VIP guests during their visits.Crossboundaries stepped into the project.

When the shell and core of the building already had been completed. The intervention had to consider limitations such as low ceiling heights, rigid column grid.

Private Clubhouse
© YANG Chao Ying
Private Clubhouse
© YANG Chao Ying

And a standard hotel plan layout with a central dark corridor and rooms on the sides. The program includes a restaurant, 11 private dining rooms, KTV, 17 standard hotel rooms.

Bar, SPA, resting areas, 10 suites, offices, meeting rooms and the chairman office. To create a spatial experience from the moment one enters the building,

The design concept concentrates on a continuous, central "path” that absorbs the visitor and channels him to the different excitements and rooms of the club.

Private Clubhouse
© YANG Chao Ying
Private Clubhouse
© YANG Chao Ying
Private Clubhouse
© YANG Chao Ying

In order to achieve this, the former cuboid corridor was adjusted so that walls are slightly angled. Depending on the needs of the activities.Further modification such as lowering or lifting the ceiling is implemented. The corridor is reshaped to expand its previous volume and functionality.

Functions such as an open restaurant, lobby, resting areas and one meeting.Room are integrated into the corridor as part of a continuous sequence. This changes the traditional spatial arrangement within hotels, where different social activities are fragmented.

This sense of continuity of the “path” is further enhanced by the play of light of materials. Lights follow the slanted ceiling and angled wall, changing the dynamics of the corridor. Throughout the ceiling and wall is a perforated steel surface while the floor is covered by woven vinyl of the same steel color.

Private Clubhouse
© YANG Chao Ying
Private Clubhouse
© YANG Chao Ying

The sleek, steel-colored corridor presents an immediate coolness of a machine aesthetic. Yet behind the metal paneling are walls painted in different colors.

Representing different emotions, these colors subtly speak variety and intrigue through the perforation, arousing visitors’ interest of the unknown behind the walls.

The metal surface allows further for the integration of diverse art pieces and enhances the visitor’s experience.

Private Clubhouse
© YANG Chao Ying
Private Clubhouse
© YANG Chao Ying

Its content sequence starts with the evolution of knowledge from the basic primitive forms on the ground floor philosophy and politics on the upper level.


Private Clubhouse
Perspective section through corridor

Private Clubhouse

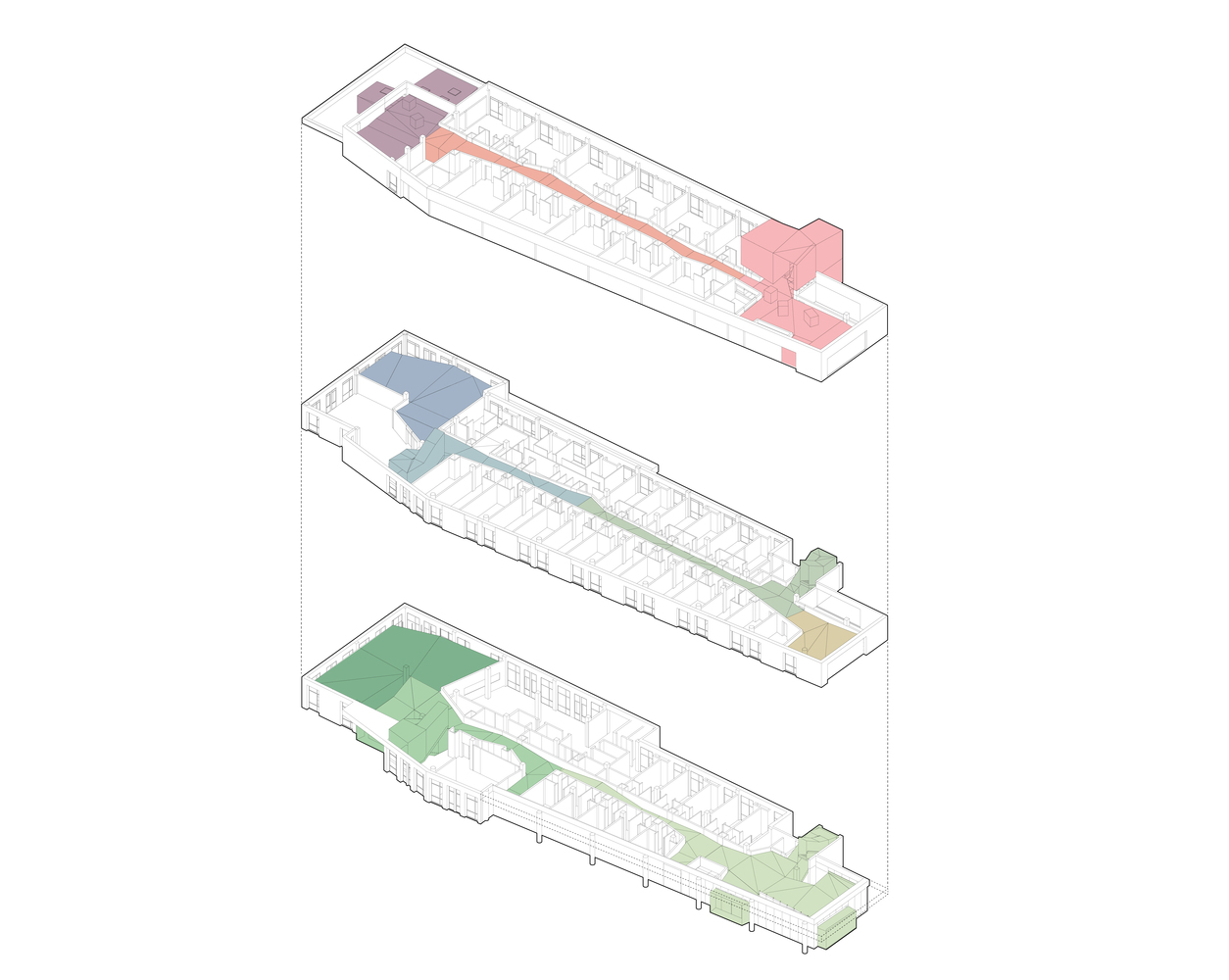

Exploded Axonometry
Private Clubhouse
Corridor Activities


Private Clubhouse
1st floor-color studies
Private Clubhouse
2nd floor-color studies
Private Clubhouse
3rd floor-color studies
