DUPLICATE-DUPLEX

TOUCH Architect

ARCHITECTS
TOUCH Architect

CLIENTS
Ms. Najaree Ratanajiajaroen, Mr. Chanon Treenet

CONTRACTOR
Legend Construction Group

PRODUCT
Formica

PHOTOGRAPHS
Chalermwat Wongchompoo

AREA
11.0 m2

YEAR
2018

LOCATION
Khet Ratchathewi, Thailand

CATEGORY
Houses Interiors

Text description provided by architect.

A major pain point of staying in 64 sq.m. of a duplex condominium unit, which is used for a home-studio for an animator and an artist, is that there is not enough space for the dwelling.

Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo

Moreover, a double-volume space of living area with a huge glass curtain wall faces west. High temperature occurs all day long since it allows direct sunlight to come inside.

In order to solve both mentioned problems, three additional items are proposed which are, GRID PARTITION, EXTENSION DECK, and STEPPING SPACE.

Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo

A glass partition not only dividing space between kitchen and living but also helps reduce electricity charge from air-conditioning.

Grid-like of double glass frame is for stuff and stationery hanging, as to serve the owners’ activities.

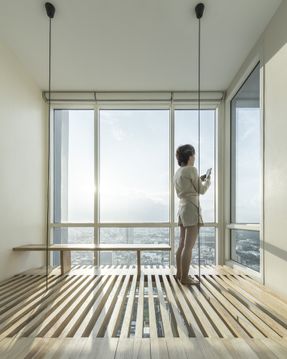

Extension deck would help filtrating heat from direct sunlight, since an existing high glass facade facing West.

Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo

An existing staircase for going up to the second-floor bedroom is added by a proposed space above since this condominium unit has no enough space for dwelling or storage.

In order to utilize the space in a small condominium, creating another staircase above the existing one helps increase the space.

The grid partition and the extension deck help ‘decrease’ the electrical charge, while the extension deck and the stepping space help ‘increase’ the space for 11 sq.m.

Duplicate-Duplex
© Chalermwat Wongchompoo


Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo
Duplicate-Duplex
© Chalermwat Wongchompoo


Duplicate-Duplex
Floor Plans
Duplicate-Duplex
Section
Duplicate-Duplex
Stair
Duplicate-Duplex
Axonometry
