Suchánek Architektonická Kancelária, s.r.o.

Gastro Passage Foodcourt

Gastro Passage Foodcourt
© Bedrich Schreiber

GASTRO PASSAGE FOODCOURT

Suchánek, Architectural Office

GENERAL CONTRACTOR
Dynamik holding a.s

CLIENTS
Ingka Centers Slovensko s.r.o

PHOTOGRAPHS
Bedrich Schreiber

AREA
5950.0 m2

YEAR
2018

LOCATION
Ivanská cesta 5740/16, 821 04 Bratislava, Slovakia

CATEGORY
Shopping Centers

Text description provided by architect.

The idea of the new food court in Avion Shopping Park stems from significant changes in the market, most notably reduction and renovation of the original hypermarket and a need to expand the capacity of existing food court which is overcrowded during peak hours.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

The position of the new food court emerged from various studies done between 2014 and 2016.

And an invited architectural competition was held in the first half of 2016.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

The area of the new food court is approximately three times larger than the old one. The new location was in the place that was previously occupied by Hypermarket.

The new location had few disadvantages which needed to be addressed with an appropriate architectural solution.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

It was mainly access from the secondary mall service line as opposed to access from the main concourse.

The basic space available is 72 m deep and 24 m wide with 8,5 m clear height. Basically, the space was too high for an ordinary retail unit but not high enough to fit two floors.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

There was a need for easy identification and introduction. For these very reasons we designed a strong spatial object, an exclamation mark, which invites the visitors into the F&B zone

The cantilevered UFO like structure on V-shaped columns is visible from the service line and from the main mall line as well.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

This is a beginning of an architectural journey that pulls people inwards and invites them to wander around. The central s-shape axis is articulated in a different floor material and suggests the movement towards units deeper in space

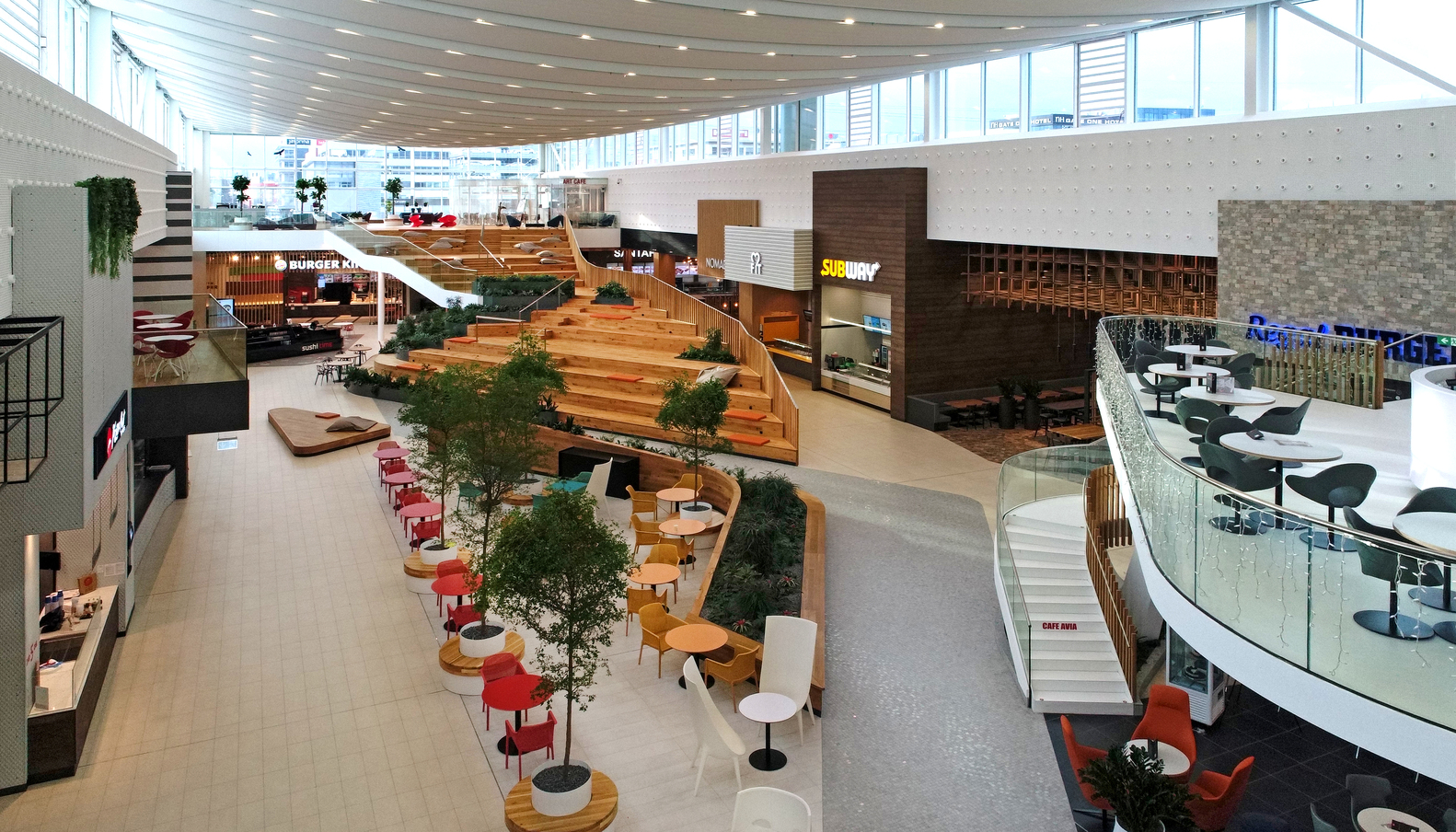

It's flanked by green planter and grand stairway - the central sculptural architectural element. The grand stand/staircase, functions as a optical-spatial trick that aims to bring people up, deep into the space and creates pocket-like spaces for seating or rental units.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

It optically shortens the depth of the space. Customers can explore various spatial conditions such as elevated interior terrace, outdoor garden and pocket-like seating zones.

F&B units on each side of the central sculptural stand are designed as volumes that vary in size and materials and create a rhythm, similar to a street frontage.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

Ceiling that tops the clerestory windows is shaped as a spherical segment and together with the form of the stand help to optically shorten the great depth of the space.

It’s made of acoustic fabric and steel grooves where technical equipment such as sprinkles, vents, lights and speakers are tucked away.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

Seating is split into eight different zones with different ambiance, decor and proportions which was a principle deviation from a traditional notion of a shopping mall food court.

Great attention was focused on bringing in natural vegetation and materials into the space.A careful balance between durability, serviceability, warmth and acoustic properties was found.

Primary floor material is ceramic tile however the stands and elevated interior floor uses oak wood, which is also used as a cladding material on number of F&B units.

Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber

To improve acoustic comfort soft or perforated materials were used wherever possible, i.e. felt baffle ceiling, perforated gyp boards, three-dimensional wooden batten cladding.

The main objective was to create an experiential and unconventional space where people can explore and discover.It offers variety yet a sense of place. Gastro Passage offer reaches beyond lunch hours and beyond eating.

It creates an event space, convivial area, and place for mixed activities. A true meeting place.

Gastro Passage Foodcourt
© Bedrich Schreiber


Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber
Gastro Passage Foodcourt
© Bedrich Schreiber


Gastro Passage Foodcourt
Ground floor plan 01
Gastro Passage Foodcourt
1st floor plan 02
Gastro Passage Foodcourt
Plan 1.500


Gastro Passage Foodcourt
Structure


Gastro Passage Foodcourt
Structure
Gastro Passage Foodcourt
Structure


Gastro Passage Foodcourt

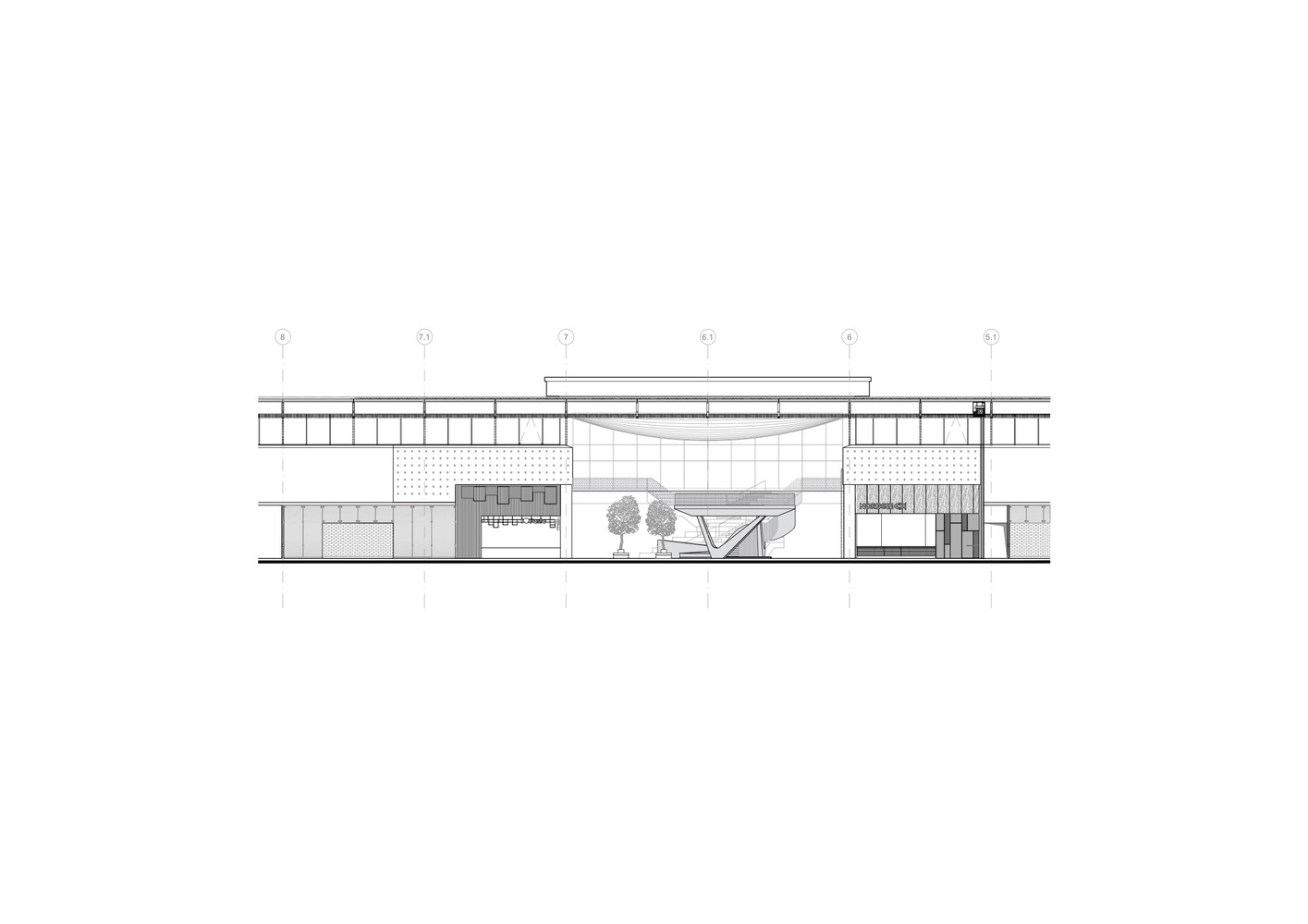

Section
Gastro Passage Foodcourt
Section
Gastro Passage Foodcourt
Section
Gastro Passage Foodcourt

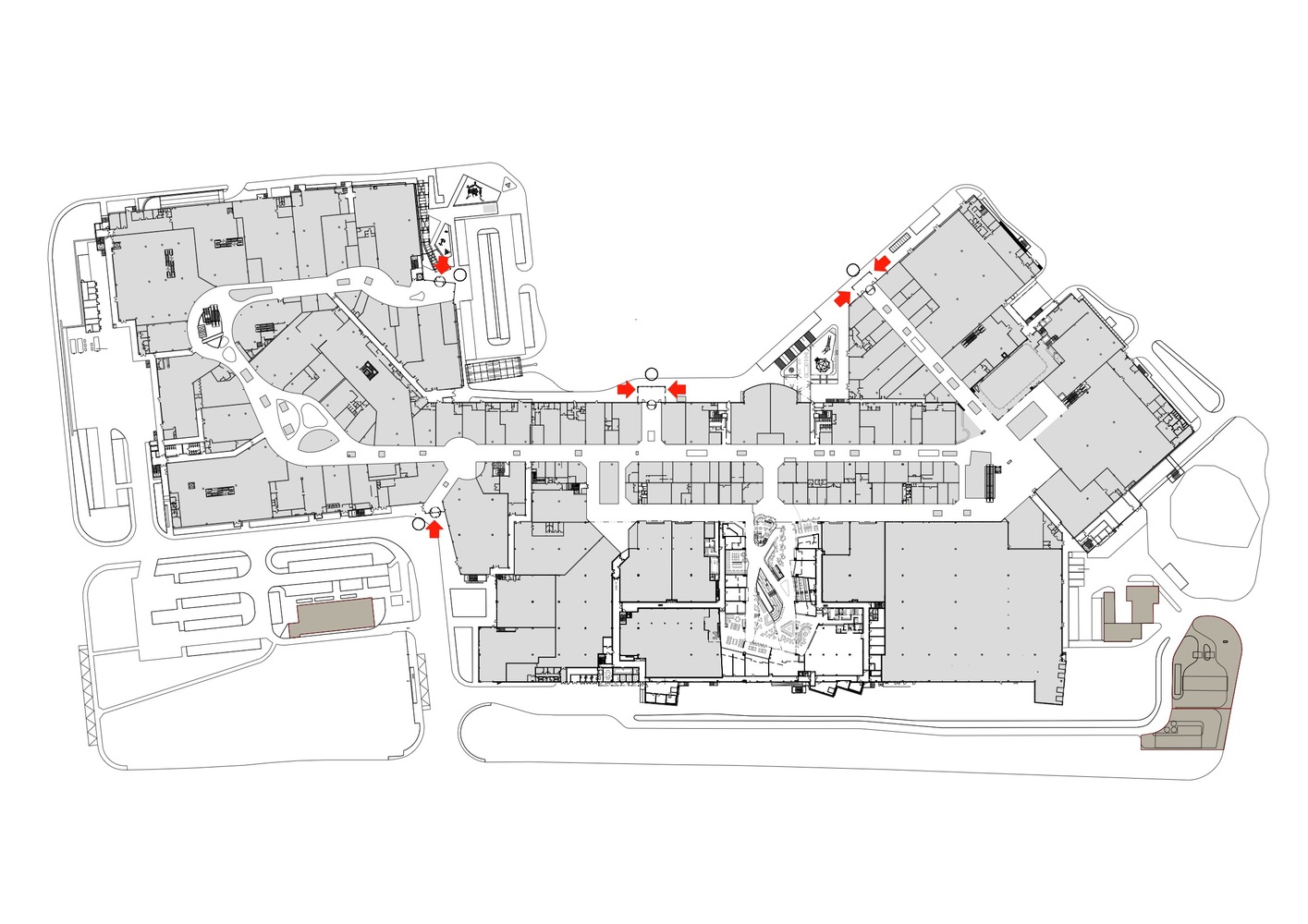

Food court plan
