HOUSE IN KITABATAKE

Nrm-Architects Office

PHOTOGRAPHS
Eiji Tomita

AREA
170.0 m2

YEAR
2010

LOCATION
Osaka-shi, Japan

CATEGORY
Houses

Text description provided by architect.

House with in-home office constructed in Osaka. The lot is flag-shaped, adjacent to the road at west side and beside to the neighbors on the east and the south.

The north neighbor is built at about 5meter lower site which is one of the big factor while planning this house.

House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita

First about lighting; we could not plan a lot of windows at its east and south side due to privacy sake, because the neighbors are at those two sides.

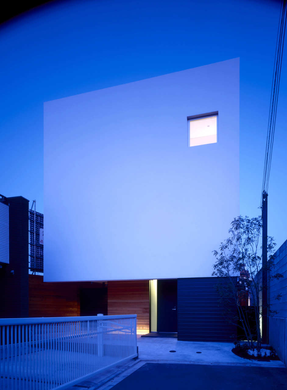

And we could not put them at west side either, due to the afternoon sun. On those conditions, we built the big white wall at its west side while reflecting the lights from east and south at its inside to the rooms. This white wall is also the biggest factor at the facade.

And we planed to put the wide windows at the north side where we expected a broad view of Osaka; you can see that from its 3rd and upper floor.

House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita


House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita


House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita
House In Kitabatake
© Eiji Tomita


House In Kitabatake
Section 01
House In Kitabatake
Section 02


House In Kitabatake
First Floor Plan
House In Kitabatake

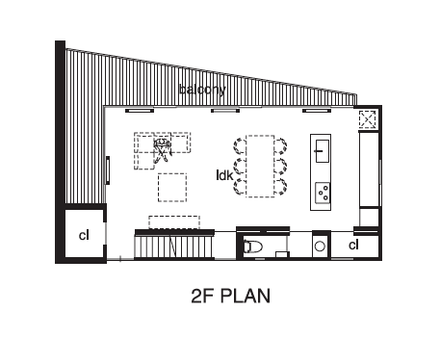

Second Floor Plan
House In Kitabatake
Third Floor Plan
House In Kitabatake

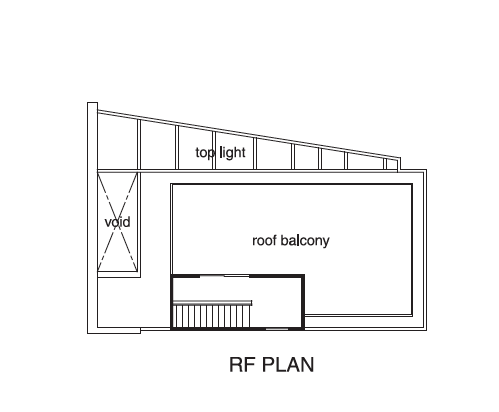

roof plan
