PALATIUM Studio kft

Budapest Underground Line M4 – Bikás Park Station

BUDAPEST UNDERGROUND LINE M4 - BIKÁS PARK STATION

PALATIUM Studio

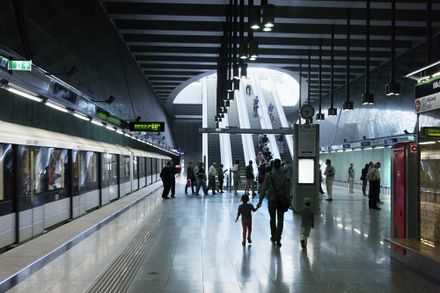

Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky

ARCHITECTS
Palatium studio

ENGINEERING
FŐMTERV-UVATERV, Mott MacDonalds

ARCHITECTS IN CHARGE
Zoltán erő, balázs csapó, dóra brückner, zsolt kosztolányi, máté antal

PHOTOGRAPHS
Tamás bujnovszky

AREA
6180.0 sqm

YEAR
2014

LOCATION
Budapest, tétényi way, hungary

CATEGORY
Metro station

Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky
Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky

Text description provided by architect.

From the architects: Bikás park Station on the new M4 underground line of Budapest is one of the smaller structures.

Regarded as a prototype for the other nine stations, it reflects the most important creative ideas of the architecture of the line.

Following a national competition in 2004, our studio built up a network of architectural offices to work on the stations of the line. The first step was the elaboration of a common approach and the definition of a common architectural language for the line.

Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky
Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky
Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky

Having these in mind, the stations were designed individually, allowing a variety of different answers for the same questions.

The construction technology of the main structures consists of huge reinforced concrete boxes built from above.

Due to this technology, architects could suggest that the spaces should be left as open as possible, having the structural elements as the most important spatial components. Other definitive spatial elements are groups of escalators, elevator shafts and large ventilation ducts.

Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky
Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky

On several sites, the large void between the surface and the platform was opened to natural light, providing a completely new experience for the underground journey.

It is not surprising that fair-faced architectural concrete in its pure form became the basic material, even if its use was challenging for both designers and contractors.

Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky
Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky

The roughness of concrete surfaces is matched with fine finishes of steel and glass structures, and those of smaller scale furniture and handicraft artworks. This station, in the corner of a large park, opens towards the sky with a glazed dome, illuminating the main access of the platform.

During daytime, there are shades and lights in the depth of the station. The graphic decoration of the station, flowers.On fibre-concrete cladding and flying seeds on glazed smoke-shields, echoes the impressions of the park.

Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky
Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky

The graphic decoration of the station, flowers on fibre-concrete cladding and flying seeds on glazed smoke-shields, echoes the impressions of the park.

The opening of elements on the backbone of the park monster provides ventilation of the dome on hot sunny days, adding some irregularity to the pure geometrical form.

Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky
Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky

The new creature, surrounded by rather dull residential blocks, became a characteristic element of urban scale in the corner of the park.

Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky
Budapest Underground Line M4 – Bikás Park Station
© Tamás Bujnovszky


Budapest Underground Line M4 – Bikás Park Station
longitudinal section
Budapest Underground Line M4 – Bikás Park Station
platform floor plan


Budapest Underground Line M4 – Bikás Park Station

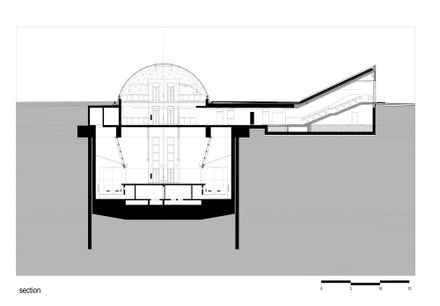

cross section
Budapest Underground Line M4 – Bikás Park Station
underpass floor plan
